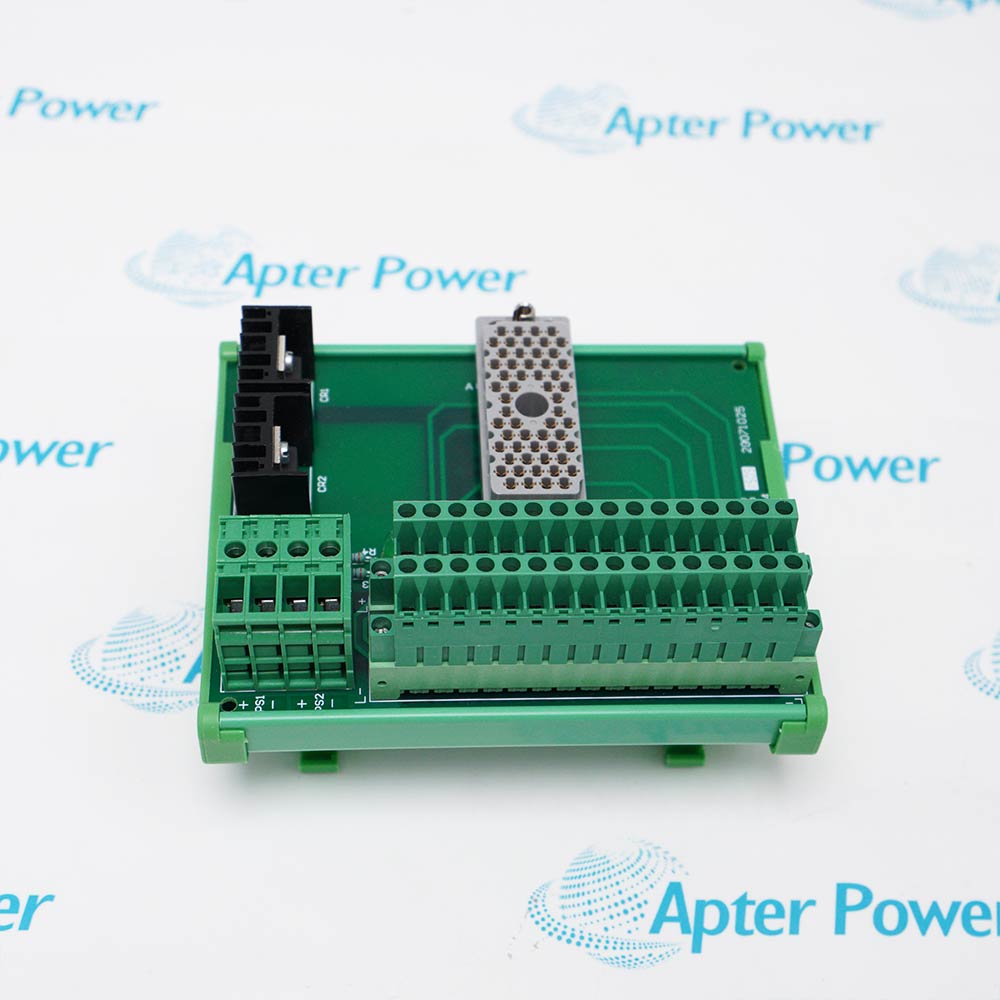

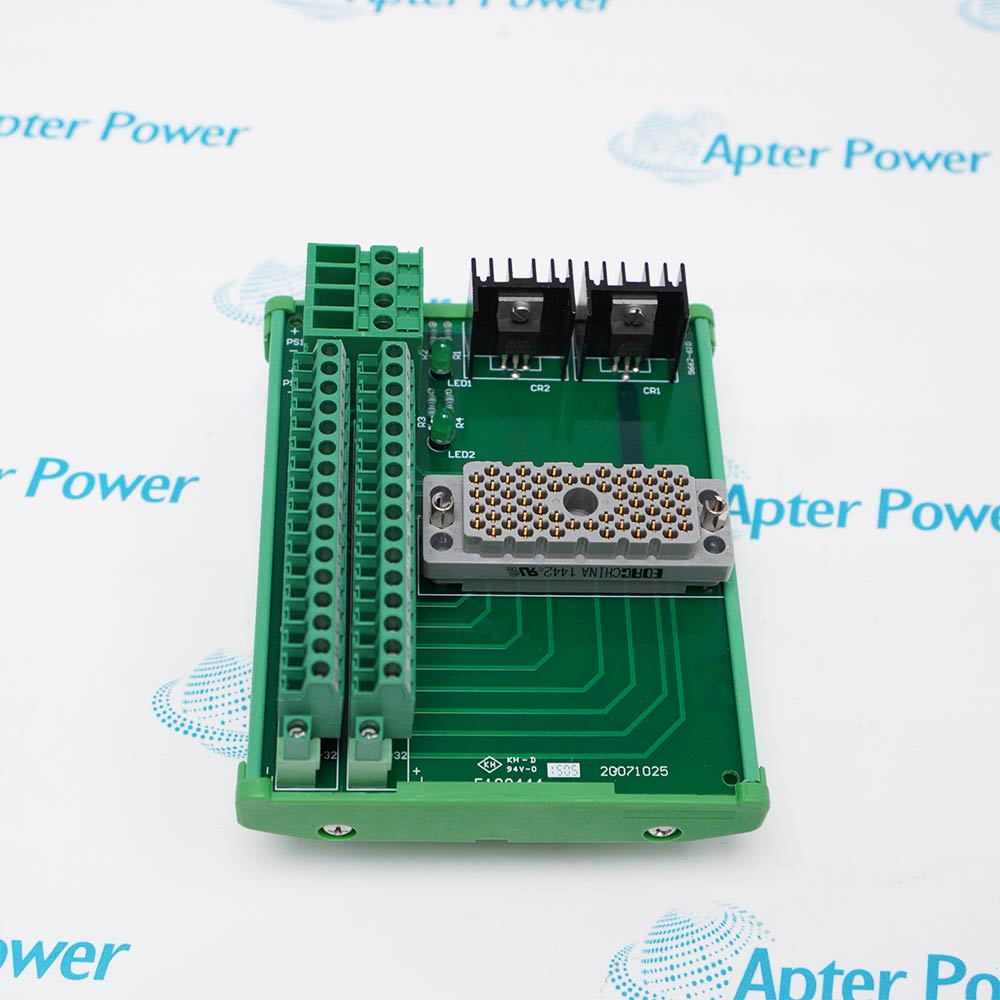

The Triconex 9662-610 is a 16-point commoned DC digital output termination panel for 24V DC self-protected modules, supporting 16A max total current.
In Stock
Ships by Wednesday, October 28
Fast Shipping Available
Get a quick price for 9662-610
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for 9662-610

  • Manufacturer:
    Invensys
  • Part Number:
    9662-610
  • Product Family:
    Triconex
  • Product Type:
    16-Point Commoned 24 VDC Digital Output Termination Panel
  • Stock:
    1
  • Panel Type:
    Commoned
  • Points:
    16
  • Load Terminals:
    16
  • Power Terminals:
    Commoned PWR+ and PWR-
  • Maximum Total Current:
    16 A
  • Maximum Total Current with 3625:
    10 A per termination panel
  • Compatible TMR Modules:
    3624; 3625
  • Compatible Dual Modules:
    3664; 3674
  • Protection Requirement:
    Use with self-protected modules only
  • 32-Point Module Arrangement:
    Two termination panels per module; use the supplied 1-16 and 17-32 label sets
  • Supervised-Point Load Rule:
    With 3624 or 3625, install a load at every point; where no field load is available, install a 470 ohm, 10 W load resistor
  • Tariff Code:
    8537109090
  • Country of origin:
    USA
  • Place of shipment:
    Xiamen, Fujian, China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Compatibility Field Wiring Selection Application
  • Provides 16 load terminals with commoned PWR+ and PWR- connections for 24 VDC digital outputs
  • Supports the documented self-protected 3624 and 3625 TMR modules and 3664 and 3674 dual modules
  • Uses two termination panels and the supplied 1-16 and 17-32 label sets with a 32-point module

9662-610 is a Triconex 16-point commoned 24 VDC digital output termination panel for Tricon v9-v10 systems.

The panel routes field power and load connections for compatible self-protected TMR or dual digital output modules. Its maximum total current is 16 A, reduced to 10 A per panel with a 3625 module to limit module power dissipation.

Before installation or replacement, verify the module pairing, ETA number, interface cable, channel label set, supervised-point loads, commoned field power, and current assigned to each panel.

Availability, condition, price, and shipping time for 9662-610 are confirmed during quotation.

Triconex 9662-610 Digital Output Termination Panel Manuals, Datasheets, Links

Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.

  • TRICONEX 3624 provides 16 supervised, opto-isolated, self-protected TMR outputs for one 9662-610 panel
  • TRICONEX 3625 provides 32 supervised or non-supervised, opto-isolated, self-protected TMR outputs and requires two panels
  • TRICONEX 3664 and 3674 are 32-point opto-isolated, self-protected dual output modules and require two panels
  • Commoned PWR+ and PWR- terminals distribute the 24 VDC field supply to the panel load circuits
  • With a 3624 or 3625 module, every supervised point needs a field load or a 470 ohm, 10 W load resistor
  • For a 32-point module, identify the two panels with the supplied 1-16 and 17-32 label sets before wiring
  • The official cross-reference maps 9662-610 to ETA number 3000520-390 and associated cable 4000094-310
  • The DIN-rail panel measures 11.43 cm across the rail, 12.70 cm along the rail, and 10.80 cm out from the rail
  • Apply the 16 A panel limit generally and the lower 10 A per-panel limit when the connected module is 3625
  • 24 VDC digital-output field termination in Triconex emergency shutdown systems
  • 24 VDC actuator and interlock termination in Triconex burner management systems
  • 24 VDC alarm and protective-output termination in Triconex fire and gas systems
Description
9662-610 is a Triconex 16-point commoned 24 VDC digital output termination panel for Tricon v9-v10 systems.

The panel provides 16 load terminals and commoned PWR+ and PWR- connections for the documented self-protected 3624, 3625, 3664, and 3674 digital output modules.

Before installation or replacement, confirm the complete panel model, module pairing, ETA number 3000520-390, cable 4000094-310, 1-16 or 17-32 label set, supervised loads, and applicable current limit.
Alternative Names
9662-610 9662 610 Triconex 9662-610 Invensys 9662-610 Invensys Triconex 9662-610 3000520-390 Triconex 3000520-390 9662-610 / 3000520-390
Technical notes
TRICONEX 9662-610 requires a self-protected compatible output module. Match ETA 3000520-390, cable 4000094-310, channel labels, supervised loads, and panel current limits before installation.
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
Can TRICONEX 9662-610 be used with a digital output module that is not self-protected?
No. The manufacturer guide explicitly limits TRICONEX 9662-610 to self-protected output modules. Confirm the installed module number before connecting field power or loads.
Why does a TRICONEX 9662-610 installation need two panels with a 32-point module?
Each TRICONEX 9662-610 terminates 16 load points. A 32-point 3625, 3664, or 3674 module therefore uses two panels, identified with the supplied 1-16 and 17-32 label sets.
How should an unused supervised point be handled on TRICONEX 9662-610 with a 3624 or 3625 module?
The manufacturer requires a load at every point to prevent a missing-load alarm. Where no field load is available, install the documented 470 ohm, 10 W load resistor under the approved wiring procedure.
Does TRICONEX 9662-610 itself provide TMR or dual-output voting?
No. TRICONEX 9662-610 is the field termination panel. TMR or dual architecture belongs to the connected 3624, 3625, 3664, or 3674 output module, so the module identity must not be attributed to the panel.
Which companion parts should be confirmed before replacing TRICONEX 9662-610?
Confirm ETA number 3000520-390, associated cable 4000094-310, the connected output module, panel label set, 24 VDC field-power arrangement, and terminal wiring. The cable is a separate component unless the stock description expressly includes it.
How should load current be allocated when TRICONEX 9662-610 is used with a 3625 module?
Calculate the connected load for each panel separately and keep each TRICONEX 9662-610 at or below 10 A. Do not apply the general 16 A panel limit to a panel paired with 3625.
Can TRICONEX 9662-610 be replaced by 9662-810 or another similar-looking Triconex panel?
Not by appearance alone. The official guide lists separate model numbers with different construction and order references. Match the exact model, ETA, fuse arrangement, terminal layout, voltage class, cable, and connected module before substitution.
