3006

/ 4.9
1001 reviews | Need a Specific Revision?

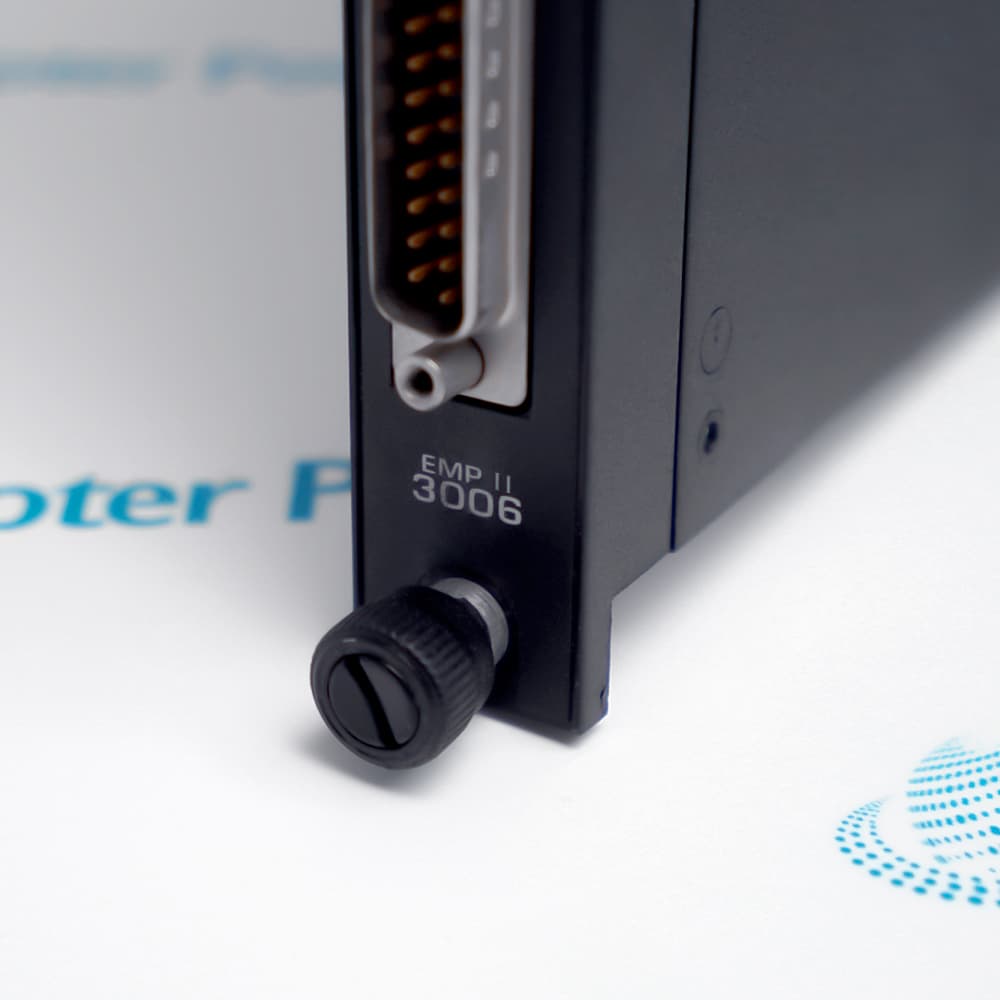

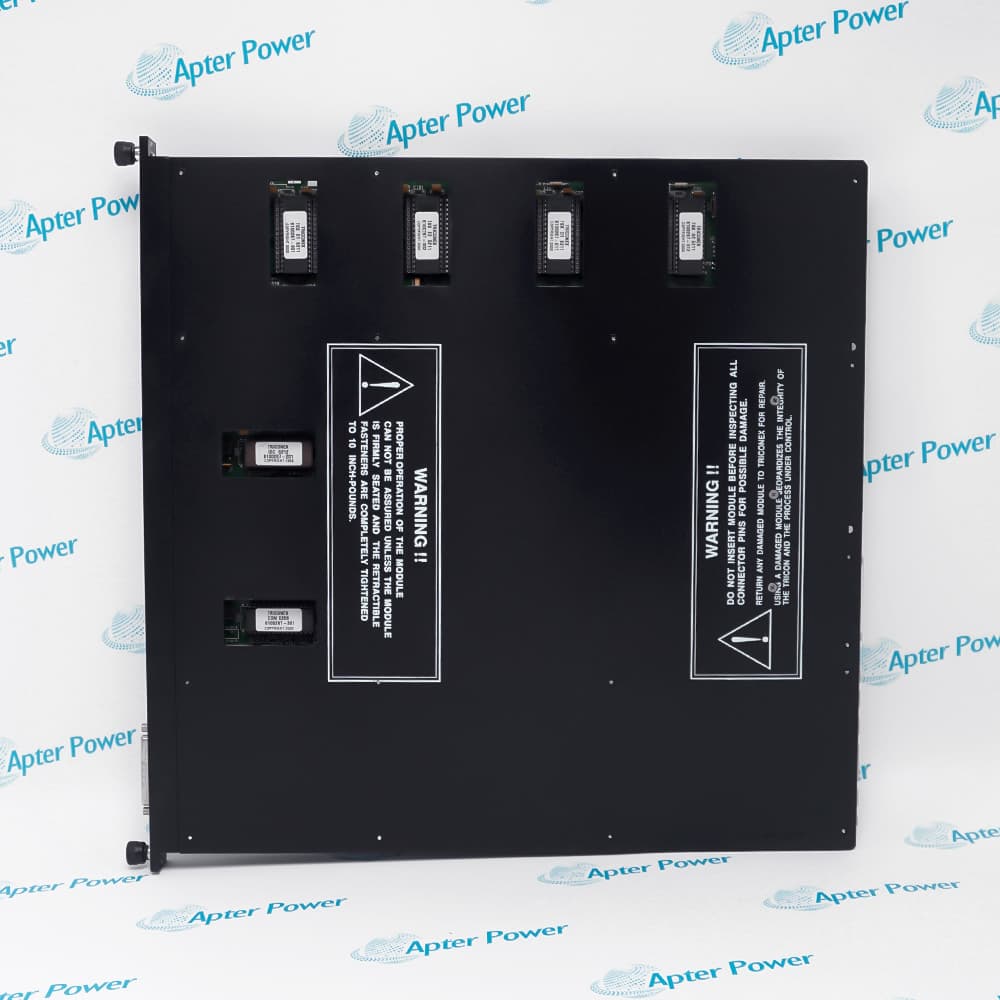

Triconex 3006 is a main processor module for Tricon version 9.5 systems. It combines a 25 MHz processor, protected memory and dedicated TriBus and I/O communications.
In Stock
Ships by Thursday, October 29
Fast Shipping Available
Get a quick price for 3006
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for 3006

  • Manufacturer:
    Invensys
  • Part Number:
    3006
  • Product Family:
    Tricon System
  • Product Type:
    Enhanced Main Processor II
  • Stock:
    1
  • Supported system family:
    Tricon version 9.5
  • Processor:
    National Semiconductor NS32GX32
  • Processor clock:
    25 MHz
  • Math coprocessor:
    National Semiconductor NS32381
  • EPROM capacity:
    512 KB
  • SRAM capacity:
    2 MB
  • Timekeeping:
    Battery-backed clock and calendar
  • Typical clock drift:
    ±2 seconds per day
  • Maximum clock drift:
    ±8.6 seconds per day
  • TriBus transfer rate:
    4 Mbps
  • TriBus data path:
    16-bit DMA
  • Diagnostic interface:
    Optically isolated RS-232
  • Diagnostic isolation:
    500 V
  • Communication processor:
    Intel 80C152
  • Communication bus:
    RS-485 at 2 Mbps
  • I/O processor:
    Intel 80C31 at 12 MHz
  • I/O bus:
    RS-485 at 375 kbps
  • Logic power:
    15 W
  • Tariff Code:
    8537101190
  • Country of origin:
    USA
  • Place of shipment:
    Xiamen,Fujian,China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Applications Performance Configuration Diagnostics

Features:

  • Provides Enhanced Main Processor II capability for the corresponding Tricon controller generation.
  • Executes application logic across three synchronized processor channels for fault-tolerant operation.
  • Coordinates memory, I/O scanning and system diagnostics within the supported chassis architecture.
The selected configuration is the Enhanced Main Processor II used in its documented Tricon system generation.

Three processor channels run the control program in parallel while the controller compares data and maintains continuous diagnostics.

Confirm system release, rack hardware, firmware, project memory use and a matched processor set before installation.

Availability is subject to Apter Power inventory and sourcing confirmation.
Verified resources for Triconex 3006: Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
  • Executes safety and critical-control logic in Tricon installations built around the Enhanced Main Processor II generation.
  • Supports continuous process protection where triplicated processing reduces single-channel fault impact.
  • Provides a replacement path for installed systems that retain the same processor and software architecture.
  • Triplicated execution maintains deterministic control while processor results are continuously compared.
  • Memory and bus resources support the application size documented for this processor generation.
  • System response should be validated against the approved project after any processor replacement.
  • The installed project, node settings and processor revisions should be recorded before maintenance.
  • All processor channels must match the supported system software and chassis generation.
  • Restore configuration only from a verified backup associated with the active controller application.
  • Built-in checks monitor processor execution, memory and communication behavior during operation.
  • Investigate rack power and backplane conditions before attributing a channel fault to the processor alone.
  • After replacement, verify initialization, active status and absence of unexplained system alarms.
Description
Triconex 3006 is a legacy main processor developed for Tricon version 9.5 controller installations. Its NS32GX32 processor, mathematical coprocessor, EPROM and static RAM provide the computing and storage resources used to execute the controller application. These hardware resources define the capacity and timing available to the validated version 9.5 project, making memory generation a functional compatibility factor rather than a purchasing detail.

Dedicated communication and I/O processors separate inter-processor traffic from field data movement. The 4 Mbps TriBus path synchronizes the main processor set, while isolated diagnostic serial access supports maintenance without becoming the normal plant-control interface. This separation of duties helps the processor maintain deterministic application work while specialized devices move data across the rack and maintenance interfaces.

Installed hardware must remain aligned with the version 9.5 system baseline and the other processors in the TMR set. Program backup, clock status, memory generation, rack position and communication-board compatibility should be documented before attempting replacement. After installation, the three channels should be observed through a complete synchronization and diagnostic cycle before process authority is returned to the controller.
Alternative Names
Triconex 3006 3006 Main Processor 3006 MP Module Schneider Electric 3006 Tricon 3006 Processor 3006 Tricon Version 9.5 3006 TMR Processor Module 3006 NS32GX32 Main Processor
Technical notes
Before replacing Triconex 3006, back up the version 9.5 application and verify the complete TMR processor set; mixed generations may not initialize together.
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
Which Tricon release supports 3006?
The documented hardware is intended for Tricon version 9.5 systems.
What processor is used in 3006?
It uses a 25 MHz National Semiconductor NS32GX32 with an NS32381 math coprocessor.
How does 3006 exchange TMR data?
Its 16-bit DMA TriBus path transfers processor-set data at 4 Mbps.
Can 3006 replace a later main processor?
Not automatically; verify system release, memory, firmware, rack and the complete matched processor set.
Which manual covers Triconex 3006?
Use the official Tricon version 9.5 planning and installation documentation for the installed chassis.
What is needed to quote 3006?
Provide the module label, controller release, rack and processor-set details, quantity and destination.
