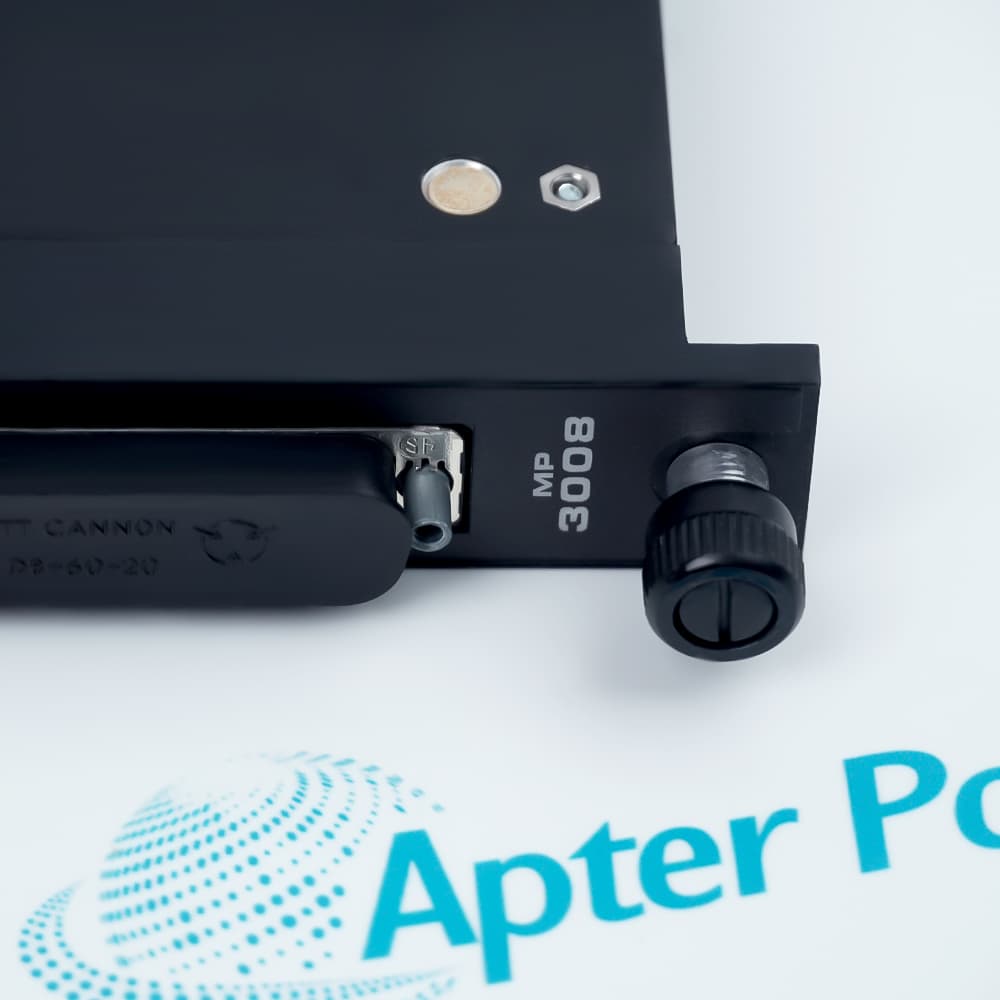

Schneider Electric Triconex 3008 is a 50 MHz main processor for Tricon releases 9.6 through 10.x. It provides 16 MB DRAM, flash storage and a 25 Mbps TriBus for TMR control.
In Stock
Ships by Thursday, October 29
Fast Shipping Available
Get a quick price for 3008
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for 3008

  • Manufacturer:
    Invensys
  • Part Number:
    3008
  • Product Family:
    Tricon System
  • Product Type:
    Tricon Main Processor Module
  • Stock:
    1
  • Supported Tricon releases:
    Versions 9.6 through 10.x
  • Processor:
    Motorola MPC860
  • Processor architecture:
    32-bit
  • Processor clock:
    50 MHz
  • DRAM capacity:
    16 MB
  • Battery-backed SRAM:
    32 KB
  • Flash memory:
    6 MB
  • TriBus transfer rate:
    25 Mbps
  • Diagnostic port:
    Optically isolated RS-232
  • Diagnostic isolation:
    500 V
  • Communication bus:
    RS-485 at 2 Mbps
  • I/O bus:
    RS-485 at 375 kbps
  • Typical clock drift:
    ±2 seconds per day
  • Maximum clock drift:
    ±2.16 seconds per day
  • Logic power consumption:
    10 W
  • Controller architecture:
    Triple modular redundant
  • Processor channels per set:
    Three synchronized modules
  • Maintenance role:
    Online system diagnostics
  • Weight:
    4.54 lbs (2.06 kg)
  • Estimated shipping dimensions:
    2.1 × 40.3 × 40 cm
  • Tariff Code:
    8537101190
  • Country of origin:
    USA
  • Place of shipment:
    Xiamen,Fujian,China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Applications TMR Processing Processor Architecture Temperature Range

Features:

  • Runs Tricon safety logic on a 50 MHz 32-bit Motorola MPC860 processor.
  • Provides dedicated DRAM, battery-backed SRAM and flash memory for controller execution.
  • Exchanges synchronized application and I/O data across the isolated 25 Mbps TriBus.
The selected configuration is the Main Processor generation documented for Tricon releases 9.6 through 10.x.

Three processor channels execute the application in parallel and coordinate diagnostics, timing and I/O scans.

Confirm firmware, rack hardware, project release and a revision-matched processor set before installation.

Availability is subject to Apter Power inventory and sourcing confirmation.
Verified resources for Triconex 3008: Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
  • Supports safety-instrumented and emergency-shutdown logic in supported Tricon controllers.
  • Provides fault-tolerant processing for continuous industrial protection and critical-process control.
  • Maintains online controller operation while one processor channel is evaluated or serviced under approved procedures.
  • Three processor channels execute the same control program independently and compare results.
  • Mid-value and voting mechanisms prevent one processor discrepancy from controlling the plant response.
  • Channel diagnostics identify internal faults while healthy processors maintain the required safety function.
  • A 32-bit Motorola MPC860 provides the documented 50 MHz processing platform.
  • Dedicated volatile, retentive and flash memory areas separate execution, retained data and stored firmware.
  • The processor coordinates controller services through isolated TriBus and serial communication paths.
  • Install the processor only within the environmental limits specified for the complete Tricon chassis.
  • Maintain cabinet airflow and clearance so the processor set remains within its qualified temperature range.
  • Avoid condensation and uncontrolled temperature transitions during storage, transport and commissioning.
Description
Schneider Electric Triconex 3008 advances the legacy Tricon main-processor platform with a 32-bit Motorola MPC860 CPU and expanded working memory. Its 16 MB DRAM, battery-backed SRAM and 6 MB flash support application execution and retention across Tricon releases 9.6 through 10.x. This combination increased application capacity while retaining the established channel synchronization and diagnostic behavior expected from the Tricon controller family.

Three synchronized 3008 modules form the TMR processing set, compare results and coordinate field data through the controller infrastructure. The 25 Mbps TriBus increases inter-processor data movement, while isolated serial diagnostics and continuous internal tests provide maintenance visibility. The separation between logic memory, retained values and flash storage helps the controller preserve required operating information while still supporting controlled application maintenance.

Migration or replacement requires more than matching the catalog number because the controller release, firmware and loaded project must agree across all three channels. Preserve the approved TriStation database, confirm battery condition and record processor diagnostics before the set is changed. A complete acceptance check should compare project signature, processor status, clock behavior and channel agreement before the controller resumes unsupervised operation.
Alternative Names
Triconex 3008 3008 Main Processor 3008 MP Module Schneider Electric 3008 Tricon 3008 Processor 3008 MPC860 Main Processor 3008 Tricon 9.6 10.x 3008 TMR CPU Module
Technical notes
Before replacing Triconex 3008, export the approved TriStation project and confirm battery-backed data and firmware alignment across all three processors.
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
Which Tricon releases support 3008?
It is documented for Tricon versions 9.6 through 10.x.
Which CPU is used by 3008?
The module uses a 32-bit Motorola MPC860 operating at 50 MHz.
How much application memory does 3008 provide?
The hardware provides 16 MB DRAM, 6 MB flash and 32 KB battery-backed SRAM.
Can one 3008 main processor be replaced independently?
Follow the approved procedure and verify firmware, project and synchronization across the complete TMR set.
Which manual applies to 3008?
Use the official Tricon planning and installation guide for the exact 9.6-to-10.x release.
What details support a 3008 quotation?
Provide the label, controller release, firmware and processor-set condition, quantity and destination.
