CA-LH8

/ 4.9
1001 reviews | Need a Specific Revision?

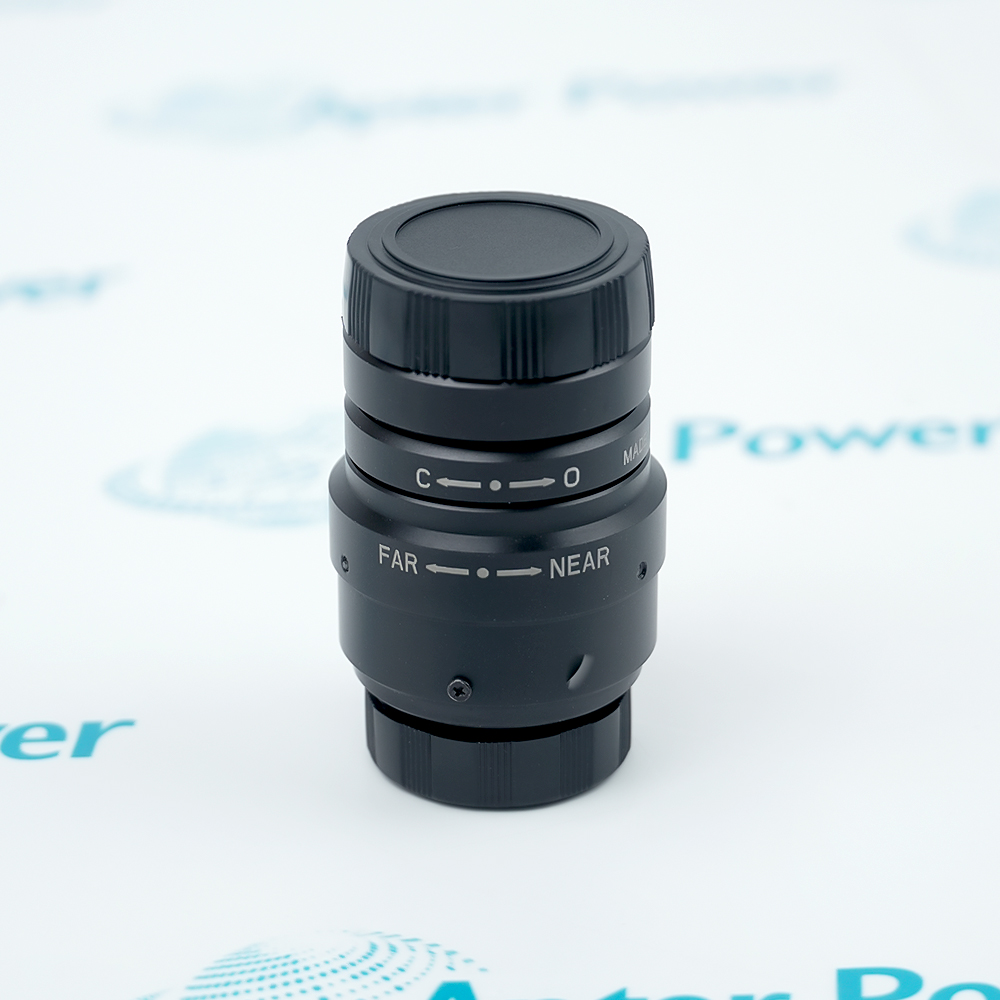

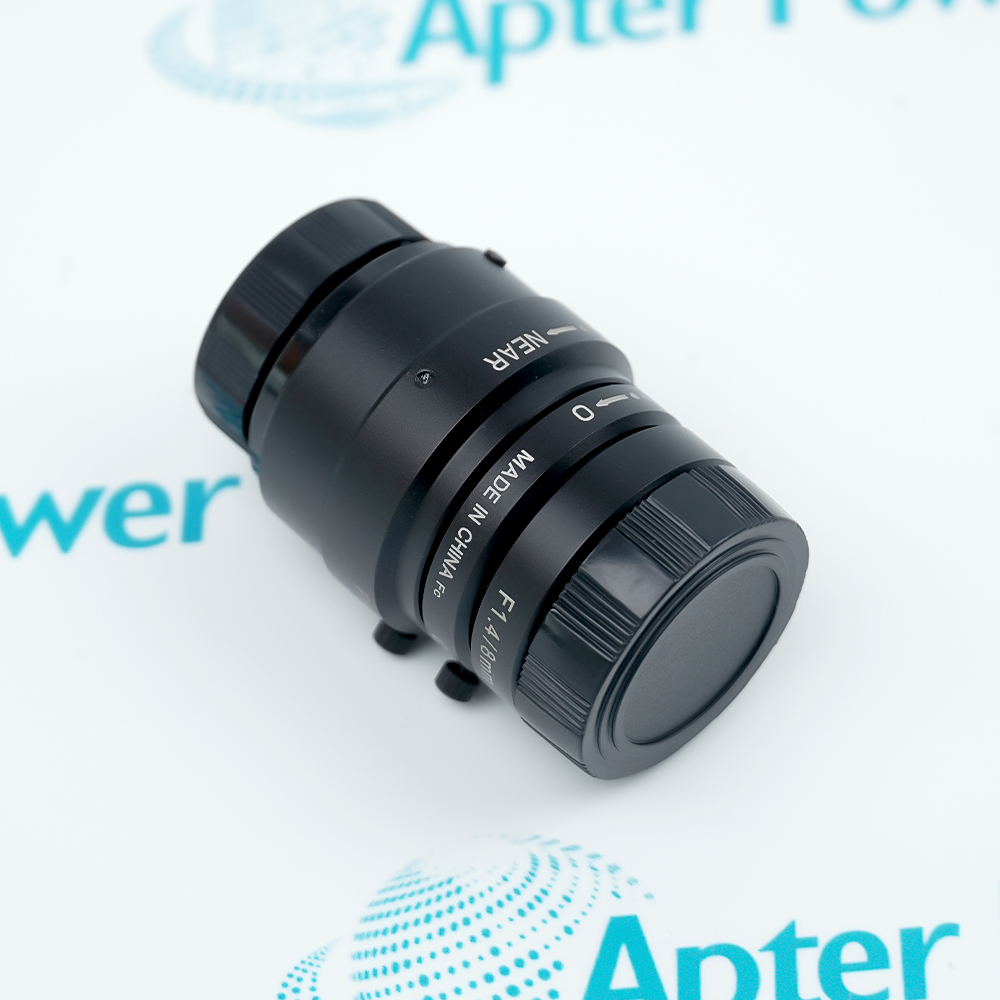

KEYENCE CA-LH8 is an 8 mm C-mount high-resolution, low-distortion machine-vision lens for cameras up to a 2/3-inch sensor format.
In Stock
Ships by Wednesday, October 28
Fast Shipping Available
Get a quick price for CA-LH8
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for CA-LH8

  • Manufacturer:
    KEYENCE
  • Part Number:
    CA-LH8
  • Product Family:
    KEYENCE
  • Product Type:
    High-Resolution Low-Distortion 8 mm Machine-Vision Lens
  • Stock:
    1
  • Focal length:
    8 mm
  • Aperture range:
    F1.4 to F16
  • Minimum working distance:
    0.1 m
  • Mount:
    C mount
  • Maximum compatible sensor format:
    2/3 inch
  • Filter thread:
    27 mm, P0.5
  • TV distortion:
    -0.6% for 2/3-inch format; -0.28% for 1/3-inch format
  • Resolving power:
    100 cycles/mm center; 80 cycles/mm periphery
  • Operating temperature:
    0°C to +50°C
  • Operating humidity:
    80% RH maximum, non-condensing
  • Tariff Code:
    9002199000
  • Country of origin:
    Japan
  • Place of shipment:
    Xiamen, Fujian, China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Camera Match Image Quality Environment Application
  • 8 mm focal length for machine-vision imaging
  • High-resolution, low-distortion CA-L Series optics
  • C-mount fit for sensor formats up to 2/3 inch

CA-LH8 is the 8 mm member of the KEYENCE CA-L high-resolution, low-distortion lens family.

Its optical specification combines an F1.4 to F16 aperture, short documented working distance, and controlled TV distortion for industrial imaging.

Final suitability depends on the exact camera sensor, field of view, working distance, mount, filter, illumination, and any close-up ring.

Availability, condition, price, and shipping time for CA-LH8 are confirmed during quotation.

KEYENCE CA-LH8 Machine-Vision Lens Manuals, Product Family, Links

Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.

  • Match CA-LH8 to the exact camera sensor format and confirm the C-mount interface before installation.
  • Verify the field of view, working distance, and target size with the selected camera instead of choosing the lens by focal length alone.
  • Check whether the camera setup requires a close-up ring, then refocus and revalidate the inspection after assembly.
  • TV distortion is -0.6% for the 2/3-inch format.
  • Center resolving power is documented as 100 cycles/mm.
  • Peripheral resolving power is documented as 80 cycles/mm.
  • The operating temperature range is 0°C to +50°C.
  • Operating humidity is 80% RH maximum without condensation.
  • The 27 mm P0.5 filter thread must match the selected optical accessory.
  • Low-distortion imaging for dimensional inspection.
  • High-resolution surface and defect inspection.
  • Presence and assembly verification with a compatible vision camera.
Description
CA-LH8 is a KEYENCE high-resolution, low-distortion 8 mm lens for the officially documented CA-L machine-vision lens family.

The lens uses a C mount, supports sensor formats up to 2/3 inch, provides an F1.4 to F16 aperture range, and has a documented minimum working distance of 0.1 m.

Before installation or replacement, confirm the camera sensor format, C-mount interface, required field of view, working distance, aperture, filter thread, and any required close-up ring.
Alternative Names
CA-LH8 KEYENCE CA-LH8 CA-L Series CA-LH8 KEYENCE CA-L Series CA-LH8
Technical notes
CA-LH8 is an 8 mm C-mount lens. Confirm sensor format, working distance, aperture, filter thread, and the required close-up ring before fitting.
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
How can a buyer confirm that CA-LH8 is the right lens for an existing KEYENCE camera?
Check the exact camera model, sensor format, C-mount interface, required field of view, working distance, and illumination before selecting the lens.
Which accessories should be confirmed separately when ordering CA-LH8?
Confirm whether filters, close-up rings, protective optical accessories, camera cables, lighting, and mounting parts are required because they are not assumed to be included.
When should CA-LH8 be compared with another CA-L Series lens?
Compare alternatives whenever the required field of view, target size, camera sensor, working distance, or installation space differs from the validated setup.
Can CA-LH8 be fitted to any C-mount camera without further review?
No. A matching mount alone does not prove optical compatibility; sensor coverage, field of view, working distance, resolution, and mechanical clearance must also be checked.
What should be revalidated when CA-LH8 replaces an existing lens?
Recheck focus, aperture, distortion, field of view, lighting, calibration, inspection thresholds, and physical clearance using qualified production samples.
Does CA-LH8 always fit without a close-up ring?
No. KEYENCE lists close-up-ring conditions for certain cameras, so the exact camera and working distance must be checked.
What must be confirmed before ordering CA-LH8?
Confirm the camera model, sensor size, required field of view, working distance, mount, filter, and any close-up-ring requirement.
