    Apter Power specializes in sourcing hard-to-find, discontinued industrial communication hardware. We offer fully tested and refurbished PCS 950 WIN modules, eliminating the need for costly, large-scale control system migrations.

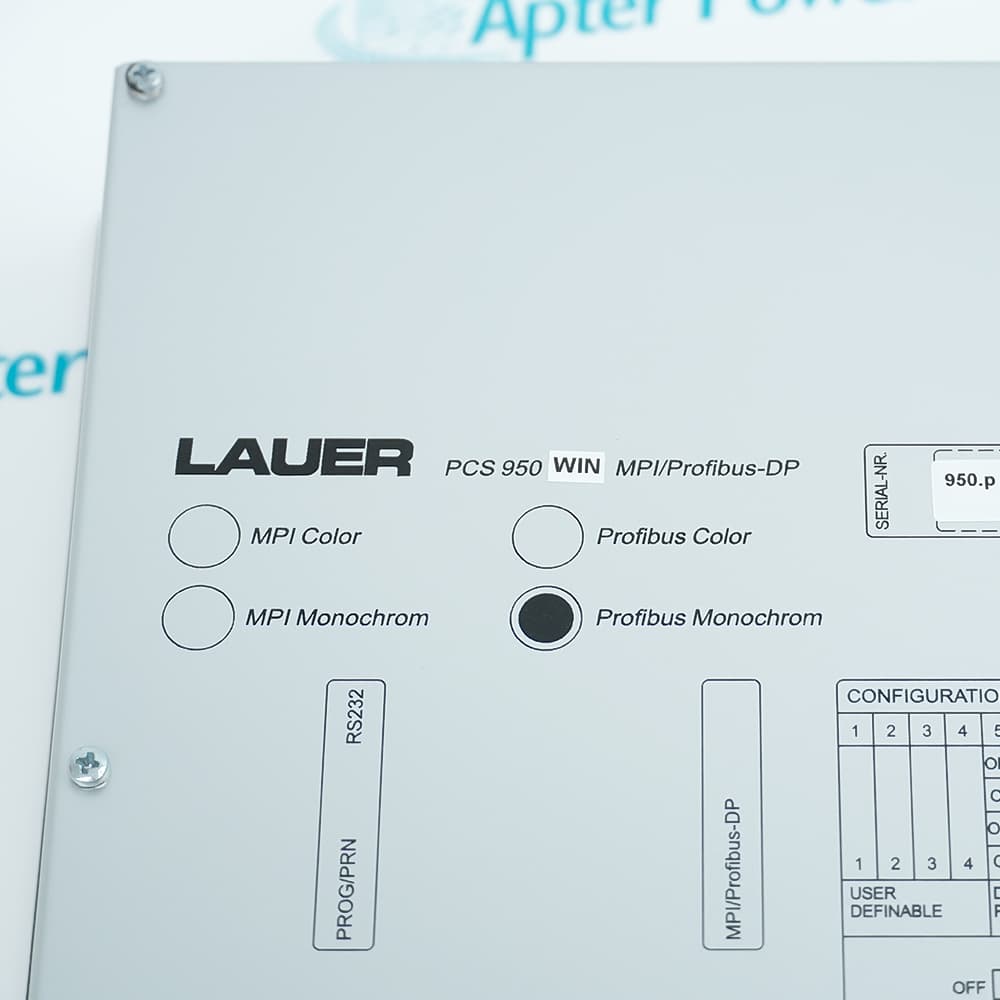

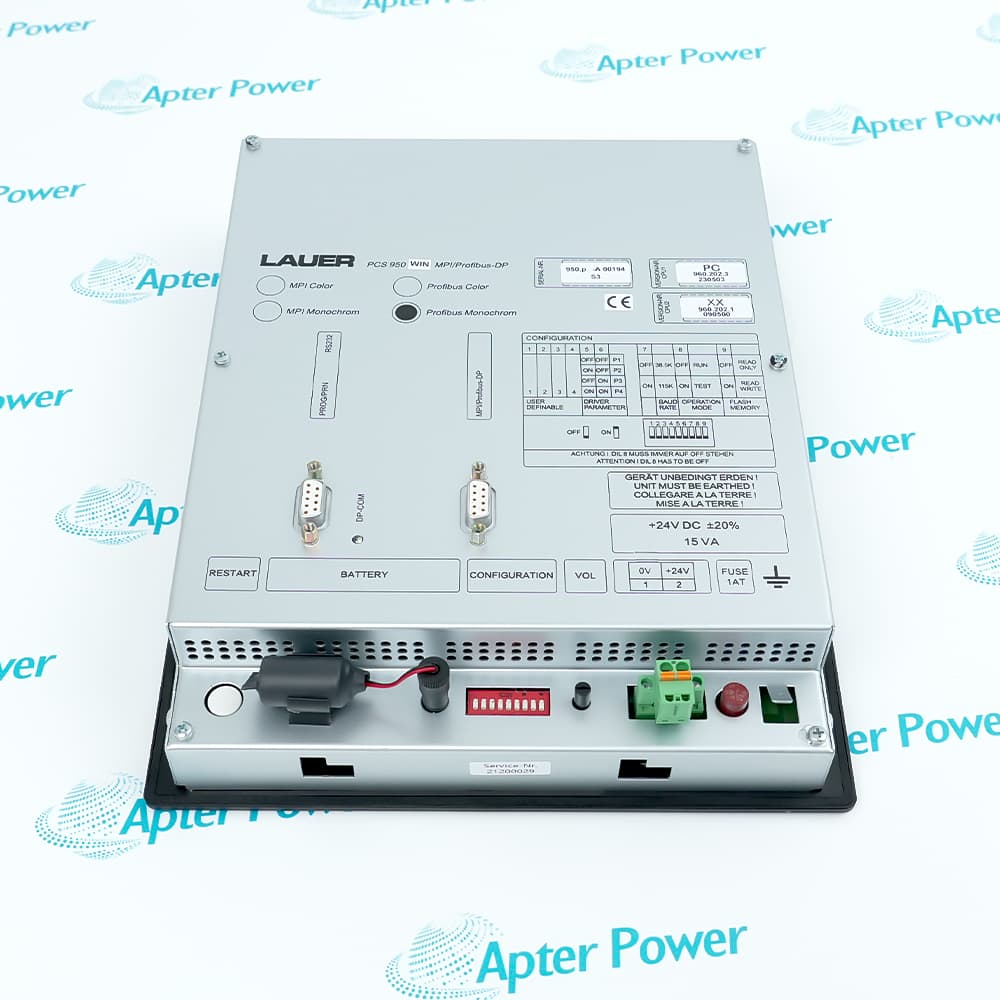

PCS 950 WIN MPI/Profibus-DP

/ 4.9
1001 reviews | Need a Specific Revision?
The PCS 950 WIN MPI/Profibus-DP is an operator console featuring a 320x240 graphic LCD (24 lines x 40 chars), 20 freely assignable keys with 40 LEDs, recipe management for 255 blocks, and logging for industrial automation.
In Stock
Ships by Thursday, October 29
Fast Shipping Available
Get a quick price for PCS 950 WIN MPI/Profibus-DP
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for PCS 950 WIN MPI/Profibus-DP

  • Manufacturer:
    Lauer
  • Part Number:
    PCS 950 WIN MPI/Profibus-DP
  • Product Family:
    Lauer
  • Product Type:
    Industrial Operator Console
  • Stock:
    1
  • Display:
    Graphic LCD, 320x240 pixels, 24 lines x 40 chars, CFL backlight
  • Function Keys:
    20 freely assignable (F1–F20), each with green/yellow LED
  • Numeric Keypad:
    Yes, for preset values
  • Control Keys:
    8 cursor keys with LED for menu operation
  • Variables:
    214 PLC words + 55 internal variables
  • Bit Monitoring:
    Up to 1024 consecutive bits (rising/falling edges)
  • Message Priority:
    3 levels: information, warning, fault
  • RecipeManager:
    255 recipe blocks with 255 forms each
  • Timers:
    8 timers with daily on/off switching
  • Operating Voltage:
    24V DC ±20%, reverse polarity protected
  • Current Consumption:
    800 mA @24V (1.0 A max with cassettes)
  • Protection (front/rear):
    IP65 / IP20
  • Operating Temperature:
    0 to +50°C
  • Storage Temperature:
    -25 to +70°C
  • Pain Point Solved:
    Solves the need for a standalone operator console that offloads the PLC from managing recipes, message logging, keypad inputs, and priority-based alarm handling – reducing PLC program complexity and wiring while providing a rugged IP65 front panel for harsh industrial environments.
  • Weight:
    0.32 kg
  • Estimated shipping dimensions:
    2.1x19.2x24.3cm
  • Tariff Code:
    8537109090
  • Country of origin:
    Germany
  • Place of shipment:
    Xiamen, Fujian, China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals pecifications Application Protection Functions Physical Installation

Features:

  • 20 freely assignable keys with 40 LEDs, numeric keypad, 8 cursor keys, and 320x240 graphic LCD display.
  • Edge monitoring for 1024 bits, 3 priority levels, first/last message, logging (CAME/WENT/ACKNOWLEDGED), and RecipeManager (255 blocks × 255 forms).
  • IP65 front, IP20 rear, 24V DC operation, reverse polarity protection, and wide temperature range (0 to +50°C operating).
The PCS 950 WIN MPI/Profibus-DP is a complete standalone operator console. It features 20 freely assignable function keys (F1–F20), each with a green and yellow LED for status indication (ON, DARK, FLASHING, INVERSE FLASHING). A numeric keypad allows direct preset value entry, while 8 control keys with LEDs support menu navigation and cursor movement. The graphic LCD display (320x240 pixels, 24 lines x 40 characters) can show background bitmaps, fixed texts with integrated variables (9 variable formats), and up to 214 PLC words as variables plus 55 internal variables. This rich I/O and display capability eliminates the need for separate keypads, indicator lights, and text displays.

The PCS 950 WIN MPI/Profibus-DP handles complex messaging and recipe tasks independently, significantly reducing PLC program size. It monitors up to 1024 consecutive bits for rising or falling edges, organizing events into three priority levels (information, warnings, faults). The console manages first message and last message tracking, with individually settable clearing behavior. Message logging records CAME, WENT, and ACKNOWLEDGED times, storing them in a logging memory for display (HISTORY) or printing (MESSAGE PRINTER). The RecipeManager supports 255 recipe blocks, each with 255 forms. Recipes can be managed via PCS dialogs or under PLC control, storing equipment parameters product‑related. This offloads the PLC from managing large recipe databases.

The PCS 950 WIN MPI/Profibus-DP is built for harsh industrial environments. The front panel is rated IP65 – dust‑tight and protected against low‑pressure water jets – making it suitable for food processing, machine tools, and outdoor installations. The rear is IP20, requiring cabinet mounting for protection. The console operates on 24V DC ±20% with reverse polarity protection, consuming 800 mA (1.0 A max with optional cassettes). A 1.25 A slow‑blow fuse (with spare) protects against overcurrent. Vibration resistance is 3g at 50 and 100 Hz in all directions for at least one hour. Operating temperature range is 0 to +50°C, with storage from -25 to +70°C.

The PCS 950 WIN MPI/Profibus-DP LAUER Operator Console may still be available for purchase and support from Apter Power beyond End-Of-Life (EOL) by the manufacturer (OEM).
LAUER PCS 950 WIN MPI/Profibus-DP Operator Console Manuals, Datasheets, Drivers, Link Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
LAUER PCS 950 WIN MPI/Profibus-DP Operator Console Specs

General

  • Manufacturer LAUER
  • Model PCS 950 WIN MPI/Profibus-DP
  • Condition New Original ready stock
  • Product Family PCS 900,PCS 920,PCS 980
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
  • Siemens S7 System Integration: With its built-in MPI (Multi-Point Interface) and Profibus-DP interface, it is the ideal third-party HMI solution for S7-300 and S7-400 control systems.
  • Complex Machinery Control: Possesses powerful graphics processing capabilities, suitable for packaging machinery, machine tool processing, and production line monitoring.
  • Data and Recipe Management: Supports complex recipe editing, data recording, and alarm handling, suitable for process industries requiring frequent changes in production parameters.
  • Communication Diagnostics: The system has a built-in communication status monitor that can detect the node status of the MPI or Profibus network in real time. If the connection with the PLC is lost, an alarm message will immediately pop up on the screen.
  • Power Protection: Equipped with reverse polarity protection and surge current limiting to prevent damage to electronic components from unstable industrial power supplies.
  • Data Protection: Equipped with internal non-volatile memory (NVRAM) to ensure that critical formula data and system parameters are not lost in the event of a sudden power outage.
  • Standard rack-mount installation is used.
  • Heat Dissipation Requirements: Ensure sufficient space is left behind the unit during installation to avoid placing it in close contact with high-heat-generating components (such as inverters) to prevent screen aging or slowdown at high temperatures.
Description
The PCS 950 WIN MPI/Profibus-DP is a programmable operating console offering unmatched flexibility. It includes a graphic LCD display (320x240 pixels), 20 freely assignable function keys (each with green/yellow LEDs), a numeric keypad, and 8 control keys for menu navigation. The front panel is IP65 rated, while the rear is IP20.

When using the PCS 950 WIN MPI/Profibus-DP, engineers can monitor up to 214 PLC words as variables plus 55 internal variables. The console supports edge monitoring for 1024 consecutive bits, with three priority levels (information, warning, fault) and first/last message organization. Logging includes CAME, WENT, and ACKNOWLEDGED times.

The PCS 950 WIN MPI/Profibus-DP features a RecipeManager for up to 255 recipe blocks with 255 forms each. Recipe management can be done via PCS dialogs or under PLC control. It also includes 8 timers with daily on/off switching points and 9 password levels (4‑digit codes) to protect against unauthorized operation.

For communication, the PCS 950 WIN MPI/Profibus-DP supports MPI and Profibus‑DP protocols. It consumes 800 mA at 24V DC (max 1.0 A with cassettes). Data storage is flash EEPROM (min. 10,000 write cycles). Operating temperature is 0 to +50°C.
Alternative Names
PCS 900 PCS 920 PCS 980 PCS 950c 110FZ PCS810 PCS 810-1
Technical notes
The PCS 950 WIN MPI/Profibus-DP monitors up to 1024 consecutive bits for rising/falling edges, managing three priority levels (information, warning, fault) and organizing first/last messages – all without PLC intervention.Data storage uses flash EEPROM with a minimum of 10,000 write cycles.
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
How many recipes can the PCS 950 WIN MPI/Profibus-DP store?
The PCS 950 WIN MPI/Profibus-DP supports 255 recipe blocks with 255 forms each. Recipe management can be controlled via PCS dialogs or directly by the PLC, offloading product-related parameter storage from the controller.
Which fieldbuses does the PCS 950 WIN MPI/Profibus-DP support?
The PCS 950 WIN MPI/Profibus-DP supports MPI and Profibus‑DP protocols. It features intelligent package length optimization, fault tolerance, and communication monitoring (wire‑break, short circuit) for reliable data transfer.
Can the PCS 950 WIN MPI/Profibus-DP log messages without a PLC?
Yes. The PCS 950 WIN MPI/Profibus-DP handles message logging independently – recording CAME, WENT, and ACKNOWLEDGED times. It includes a logging memory for displayable (HISTORY) and printable (MESSAGE PRINTER) texts, reducing PLC workload.
Is the PCS 950 WIN MPI/Profibus-DP suitable for washdown areas?
Yes. The front panel is rated IP65 (dust-tight and protected against water jets), making it suitable for food processing or machine tool environments. The rear is IP20, so ensure proper cabinet mounting. Operating temperature is 0 to +50°C.
