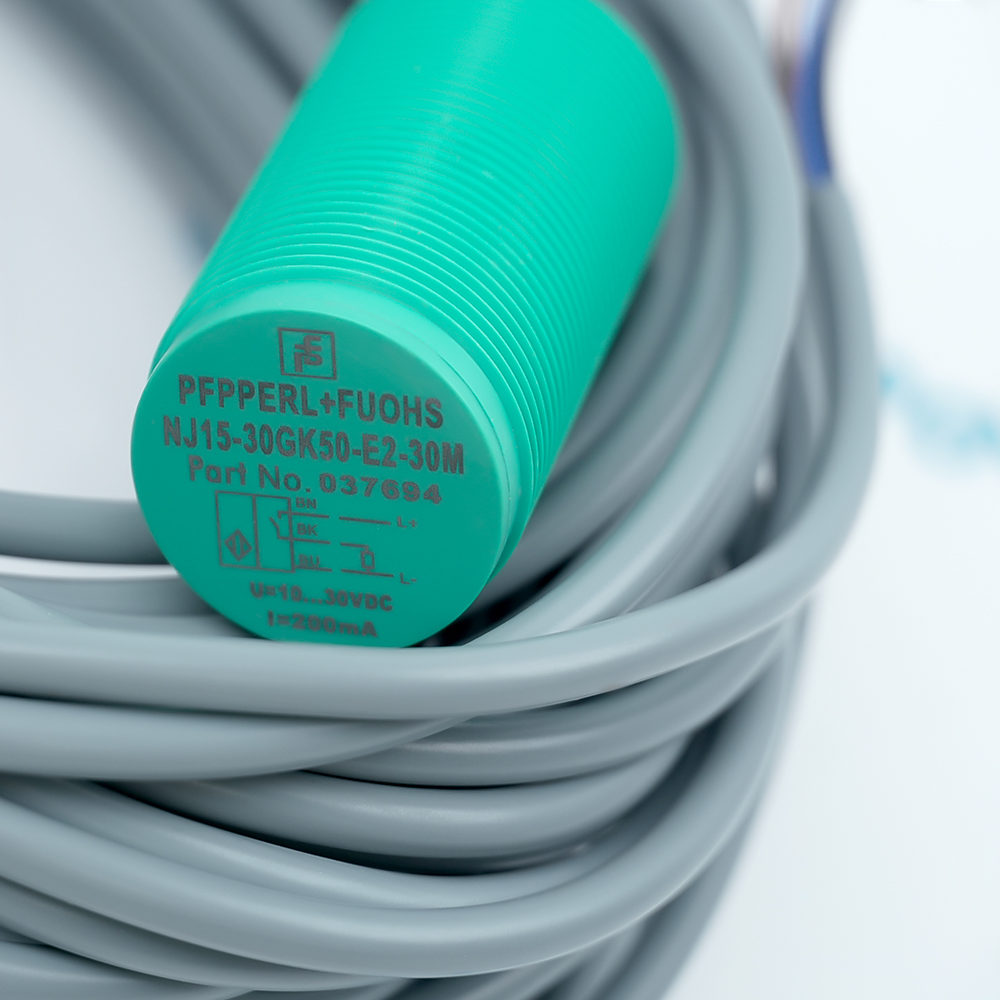

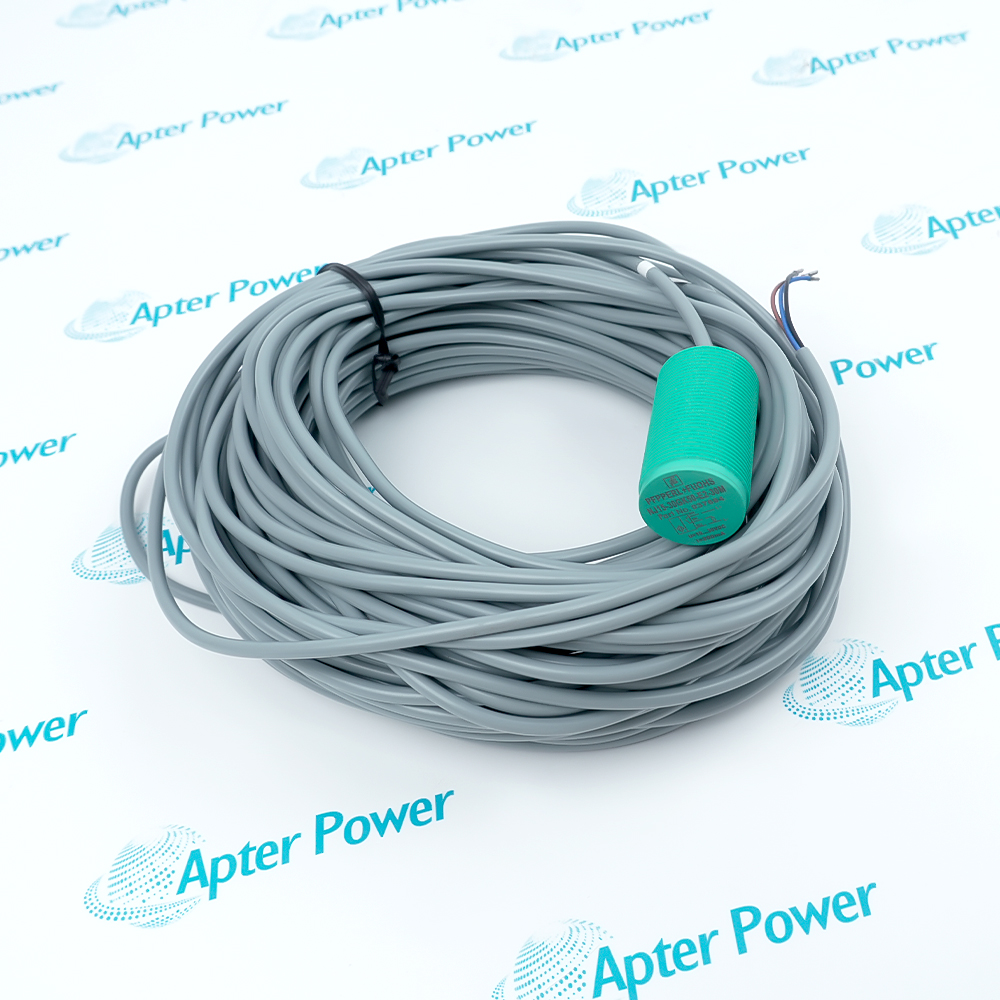

Pepperl+Fuchs NJ15-30GK50-E2-30M is a non-flush M30 inductive proximity sensor with 15 mm rated sensing distance, PNP normally open output and an integral 30 m PVC cable.
In Stock
Ships by Wednesday, October 28
Fast Shipping Available
Get a quick price for NJ15-30GK50-E2-30M
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for NJ15-30GK50-E2-30M

  • Manufacturer:
    Pepperl + Fuchs
  • Part Number:
    NJ15-30GK50-E2-30M
  • Product Family:
    NJ15 Cylindrical Inductive Sensors
  • Product Type:
    Inductive Proximity Sensor
  • Stock:
    1
  • Rated sensing distance:
    15 mm
  • Mounting style:
    Non-flush
  • Output function:
    PNP, normally open
  • Electrical connection:
    3-wire
  • Operating voltage:
    10 to 60 V DC
  • Switching frequency:
    0 to 500 Hz
  • Load current:
    0 to 200 mA
  • Voltage drop:
    2.8 V maximum
  • No-load current:
    9 mA maximum
  • Off-state current:
    0.5 mA maximum
  • Time delay before availability:
    50 ms maximum
  • Short-circuit protection:
    Pulsing
  • Reverse-polarity protection:
    Provided
  • Cable length:
    30 m
  • Cable material:
    PVC
  • Conductor cross-section:
    0.75 mm²
  • Housing material:
    PBT
  • Degree of protection:
    IP68
  • Ambient temperature:
    -25 to 70 °C
  • Thread:
    M30 x 1.5
  • Body length:
    55 mm
  • Product standard:
    EN 60947-5-2 / IEC 60947-5-2
  • Estimated shipping dimensions:
    M30 x 1.5; 55 mm body length
  • Tariff Code:
    Please confirm the destination before shipping.
  • Country of origin:
    Germany
  • Place of shipment:
    Xiamen,Fujian,China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Applications Performance Environmental Ratings Certifications

Features:

  • Detects conductive metal targets across a 15 mm rated non-contact sensing distance.
  • Provides a three-wire PNP normally open signal for standard DC controller inputs.
  • Uses an integral 30 m PVC cable where the connection point is distant from the machine position.
The complete suffix identifies the E2 PNP output and the factory-installed 30 m lead.

It provides wear-free target detection for industrial sequence and interlock logic.

Non-flush clearance, target material and cable termination must match the original installation to preserve switching margin.

Apter Power can review sourcing, documentation and system matching for NJ15-30GK50-E2-30M.
Verified resources for Pepperl+Fuchs NJ15-30GK50-E2-30M: Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
  • Conveyor frames can confirm pallet or metal carrier presence without a mechanical limit switch.
  • Material-handling machines use the long cable to reach a protected junction enclosure away from the sensing point.
  • Outdoor or wash-prone equipment benefits from the IP68 housing when the cable entry and termination remain properly protected.
  • The 15 mm rated distance applies with the documented standard target and non-flush mounting geometry.
  • A switching frequency up to 500 Hz supports responsive position feedback on ordinary machine motion.
  • The PNP output can supply as much as 200 mA while maintaining the specified voltage-drop limit.
  • The molded sensor body and cable entry carry an IP68 degree of protection.
  • Permissible ambient temperature extends from -25 to 70 °C.
  • PBT housing and sensing-face materials provide a durable nonmetallic exterior for industrial service.
  • Electrical behavior is specified to EN 60947-5-2 and IEC 60947-5-2.
  • The product documentation lists cULus, cCSAus and CCC approvals for the applicable sensor execution.
  • Installation must still follow the approval conditions and the ratings of the connected control circuit.
Description
NJ15-30GK50-E2-30M combines an M30 threaded PBT body with a long factory-fitted cable for installations where a junction point is remote from the sensing position. The E2 output is a three-wire PNP normally open interface operating from 10 to 60 V DC.

A high-frequency magnetic field at the sensing face is damped by an approaching metal target, changing the transistor output without physical contact. The 500 Hz switching capability supports routine position confirmation on moving machine parts.

The sensor is specified for non-flush mounting, so surrounding metal clearance and target geometry affect usable range. Cable routing, supply polarity and input compatibility must be reviewed before replacing a shorter-lead or different-output NJ15 variant.
Alternative Names
NJ15-30GK50-E2-30M Pepperl+Fuchs NJ15-30GK50-E2-30M NJ15 30GK50 E2 30M NJ1530GK50E230M P+F NJ15-30GK50-E2-30M NJ15-30GK50-E2 30M NJ15 M30 PNP Sensor Pepperl+Fuchs 15 mm Inductive Sensor
Technical notes
Mount NJ15-30GK50-E2-30M non-flush with the required metal clearance; embedding the sensing face can reduce range or cause false operation.
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
What does the 30M ending identify on Pepperl+Fuchs NJ15-30GK50-E2-30M?
It identifies the factory-fitted 30 metre PVC cable, an important distinction from shorter connection variants.
Which PLC input polarity matches Pepperl+Fuchs NJ15-30GK50-E2-30M?
The E2 execution is a three-wire PNP normally open sensor for a compatible sourcing-input arrangement.
Why must Pepperl+Fuchs NJ15-30GK50-E2-30M remain non-flush?
Metal surrounding the active face changes the electromagnetic field and can reduce range or destabilize detection.
Can Pepperl+Fuchs NJ15-30GK50-E2-30M be used where moisture reaches the sensor body?
Its enclosure is rated IP68, provided the cable and external termination are installed to preserve system protection.
What target checks are needed when replacing Pepperl+Fuchs NJ15-30GK50-E2-30M?
Confirm target material, size, approach direction, mounting clearance and the available 10 to 60 V DC supply.
Which identifiers should appear on a Pepperl+Fuchs NJ15-30GK50-E2-30M enquiry?
State the complete suffix, 30 m lead requirement, PNP input type, quantity and shipping destination.
