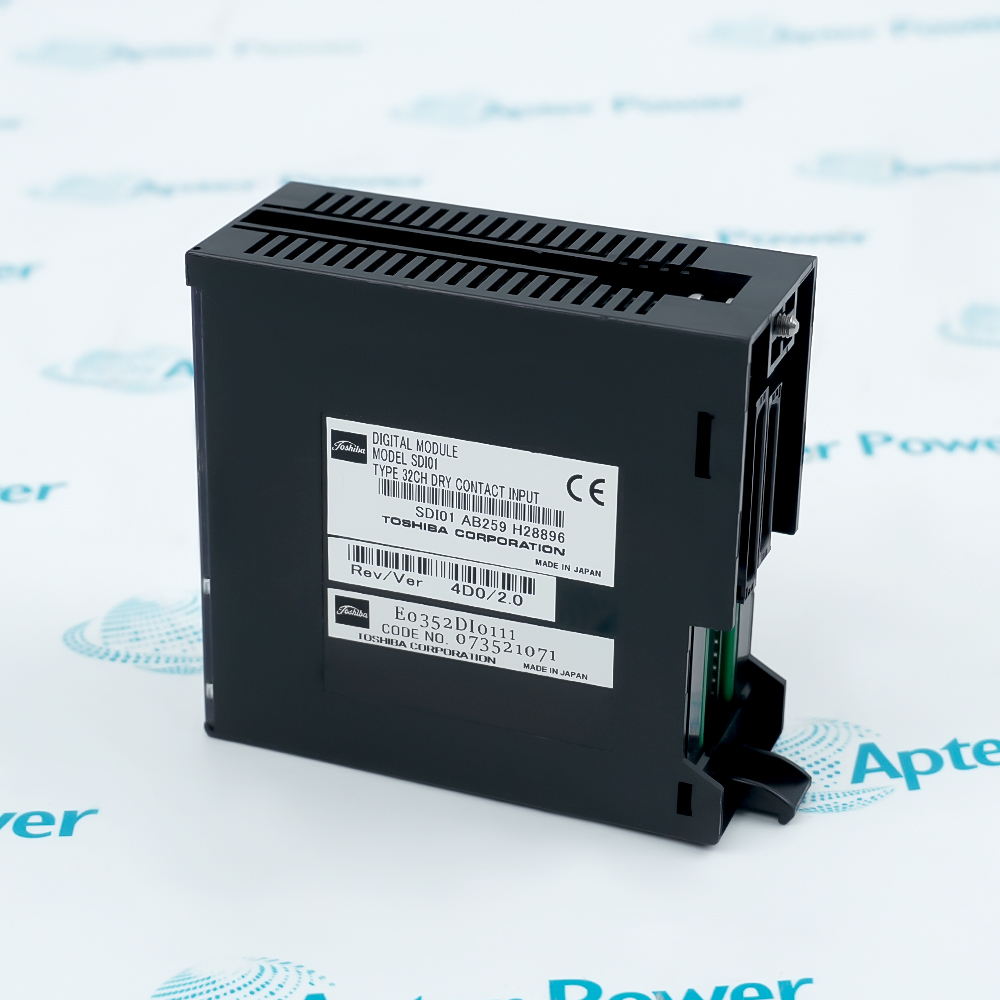

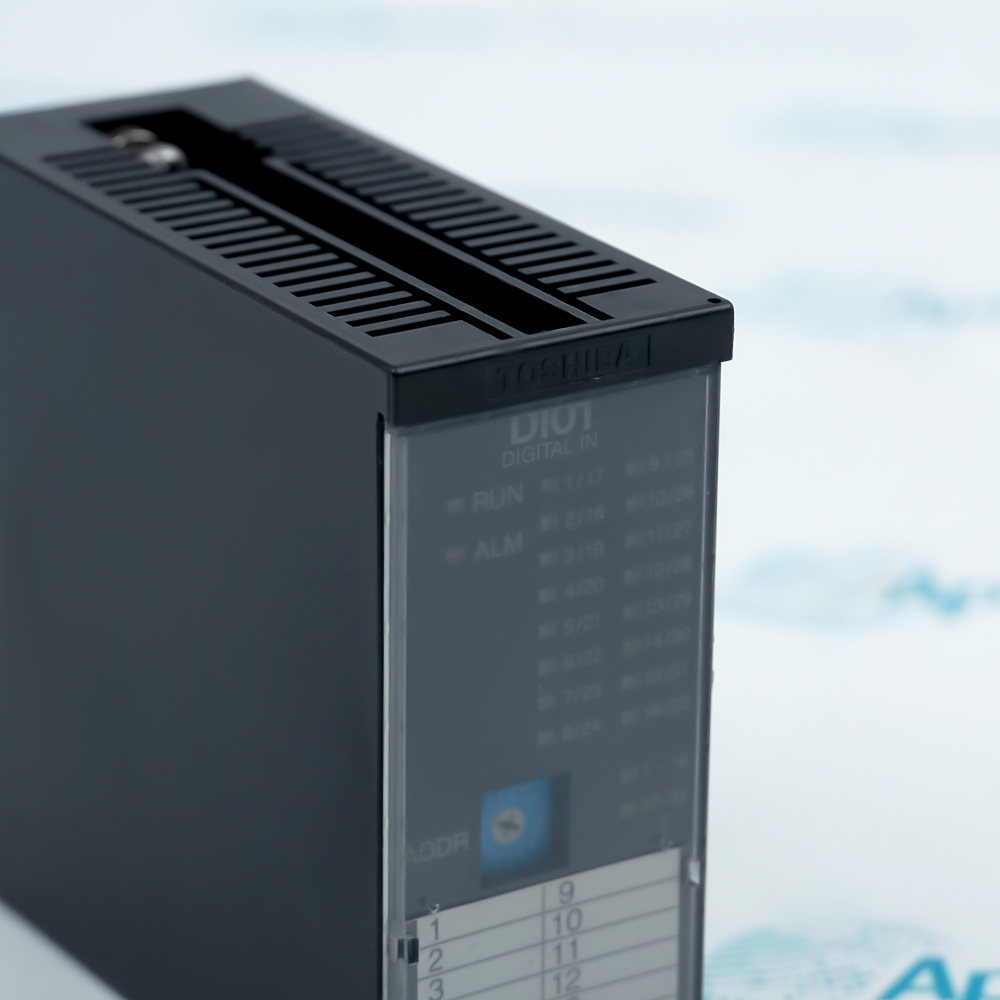

Toshiba SDI01 is a 32-point 24 VDC digital input module for Toshiba Integrated Controller V Series process I/O.
In Stock
Ships by Wednesday, October 28
Fast Shipping Available
Get a quick price for SDI01
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for SDI01

  • Manufacturer:
    Toshiba
  • Part Number:
    SDI01
  • Product Family:
    Toshiba Integrated Controller V Series
  • Product Type:
    32-Point 24 VDC Digital Input Module
  • Stock:
    1
  • Input points:
    32
  • Rated input voltage:
    24 VDC
  • Input current:
    5 mA per channel
  • Channel isolation:
    Non-isolated
  • Online replacement:
    Supported
  • 24 VDC current consumption:
    50 mA
  • Controller platform:
    Integrated Controller V Series
  • Module function:
    Digital input
  • Tariff Code:
    8537101190
  • Country of origin:
    Japan
  • Place of shipment:
    Xiamen,Fujian,China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Input Design System Fit Diagnostics Product Applications

Features:

  • Input density: thirty-two documented 24 VDC points consolidate discrete status collection in one module.
  • Electrical design: 5 mA non-isolated channels share field-common and supply considerations.
  • Service support: published online replacement capability supports planned process-I/O maintenance.
Signal decision: compare field voltage, common arrangement and terminal assignment with the installed wiring.

Project decision: preserve the station position and archived point mapping used by the control application.

Diagnostic decision: review supply, common and field state before attributing a missing input to the module.

Apter Power supports Toshiba SDI01 32-Point 24 VDC Digital Input Module sourcing with quotations, official documentation and configuration review.
Toshiba SDI01 32-Point Digital Input Module Manuals,Datasheets,Link
Important Notice: Use the complete SDI01 model and Integrated Controller V Series station context in every document request.
  • Signal level: each point is designed around a 24 VDC, 5 mA discrete input
  • Point count: one module handles thirty-two field-state channels
  • Common reference: non-isolated channels depend on the documented cabinet common design
  • Sensor review: contact and solid-state outputs should agree with the published input characteristics
  • Station identity: the module belongs with the installed V Series process-I/O arrangement
  • Slot record: rack position and point assignment should match the archived project
  • Power demand: the module uses 50 mA from the 24 VDC system supply
  • Replacement planning: published online replacement support is applied through the system procedure
  • Single-point symptom: compare terminal voltage and configured address before module exchange
  • Group symptom: inspect the shared common and 24 VDC supply when several inputs change together
  • Acceptance test: prove each safe field stimulus at the intended controller point
  • Record update: retain the final channel check with the maintenance and project documentation
  • Process permissives: collects discrete states used by sequence and interlock logic
  • Equipment status: receives switch and contact feedback from plant machinery
  • Alarm inputs: consolidates documented 24 VDC field indications for operator visibility
  • Legacy support: maintains installed V Series I/O during planned service and procurement
Description
The Toshiba SDI01 brings 32 discrete field-status signals into an Integrated Controller V Series process I/O station. Its 24 VDC, 5 mA input design makes the module suitable for monitoring switches, contacts and compatible solid-state outputs in a documented control-system arrangement.

Because SDI01 uses non-isolated input channels, field common quality and the 24 VDC supply are part of the diagnostic path. Comparing channel voltage, shared common continuity and the configured point assignment helps distinguish a wiring issue from a module-level fault.

Toshiba documents online replacement support for SDI01. Apter Power can assist with exact-model quotation, technical documentation and a point-by-point replacement review that keeps the new module aligned with the installed rack and project records.
Alternative Names
Toshiba SDI01 SDI-01 SDI 01 Toshiba SDI-01 TOSDIC SDI01 Integrated Controller SDI01 SDI0I SD101
Technical notes
Toshiba SDI01 provides 32 non-isolated 24 VDC inputs, each specified at 5 mA. Because the channels do not provide individual isolation, field common and supply design directly affect fault behaviour; diagnosis should distinguish a wiring or common problem from a module fault before using the published online-replacement capability.
