    Apter Power supplies top-grade Sciyon KN831B replacement hardware, offering industrial facilities a trusted source for critical automation components to maintain continuous and efficient plant operations.

KN831B

/ 4.9
1001 reviews | Need a Specific Revision?
The SCIYON KN831B is a industrial redundant power monitoring and relay output module engineered to deliver uninterrupted dual-supply supervision and instantaneous fault-status signaling for critical DCS automation architectures.
In Stock
Ships by Friday, October 30
Fast Shipping Available
Get a quick price for KN831B
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for KN831B

  • Manufacturer:
    SCIYON
  • Part Number:
    KN831B
  • Product Family:
    SCIYON
  • Product Type:
    Redundant Power Monitoring & Relay Output Module
  • Stock:
    1
  • Hardware Version:
    HW Ver: 1.0
  • Software / Firmware Version:
    SW Ver: 1.0
  • Product Type:
    Industrial Redundant Power Monitor & Relay Output Module
  • Input Channels:
    Two Redundant Power Supplies (power1 / power2)
  • Rated Input Voltage:
    24VDC
  • Rated Input Current:
    0.25 A maximum per supply channel
  • Relay Output Channels:
    Dual-State Contact Channels
  • Relay Contact Configuration:
    Normally Closed (NC) or Normally Open (NO) Terminal Logic
  • Maximum Switching Voltage:
    48VDC
  • Maximum Switching Current:
    1A DC
  • Mounting Configuration:
    Industrial Standard 35mm DIN-Rail Mounted
  • Global Product Certifications:
    CE Certified, RoHS Compliant
  • Weight:
    0.95 kg
  • Estimated shipping dimensions:
    4.6x16.2x17.5cm
  • Tariff Code:
    8517623990
  • Country of origin:
    China
  • Place of shipment:
    Xiamen, Fujian, China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Specifications Applications Safety & Compliance Monitoring & Control

Features:

  • Dual-Channel Independent Power Redundancy Input
  • Flexible NC/NO Relay Fault Diagnostic Signaling
  • Comprehensive CE and RoHS Global Regulatory Compliance
The SCIYON KN831B supports two completely independent 24VDC power inputs (power1 and power2), providing continuous power routing and instant hardware-level failover protection to secure process machinery during source drops.

Featuring dual-state Normally Closed (NC) or Normally Open (NO) terminal logic, the SCIYON KN831B provides adaptable hardware-driven status feedback directly to remote monitoring stations or local emergency trip loops.

Fully validated under rigorous global standards, the SCIYON KN831B features an eco-friendly, lead-free solder profile and robust electromagnetic shielding that satisfies all major international industrial safety directives.

The KN831B SCIYON Redundant Power Monitoring & Relay Output Module may still be available for purchase and support from Apter Power beyond End-Of-Life (EOL) by the manufacturer (OEM).
SCIYON KN831B Redundant Power Monitoring & Relay Output Module Manuals,Datasheets,Link Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
SCIYON KN831B Redundant Power Monitoring & Relay Output Module

General

  • Manufacturer SCIYON
  • Model KN831B
  • Condition New Original ready stock
  • Product Family KN831A,KN835D
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
  • DCS Dual-Bus Power Supervision: Acts as the primary line-integrity inspector for secondary 24VDC electrical distribution rails driving critical automation processors.
  • Hardware Interlock Triggering: Safely trips or closes external circuit breakers and safety loops using dry contacts when one of the power grids undergoes a voltage dip.
  • Turbine Control Utilities: Deployed in demanding power plant environments where continuous controller power is critical and single-source failure cannot be tolerated.
  • Remote Substation Panels: Interfaced within unmanned remote data acquisition cabinets to relay battery bank health reports back to the central SCADA terminal.
  • CE Safety Directives Certification: Fully tested against heavy industrial electromagnetic surge and emissions standards to ensure noise-free co-existence inside tight cabinets.
  • RoHS Environmental Restriction: Assembled using lead-free hazardous substance protocols, protecting long-term global trade compliance and green-factory initiatives.
  • Anti-Shock Recessed Terminals: Built with deep, touch-safe screw terminal paths to insulate field installation crews against unexpected live voltage contact points.
  • Vibration-Isolated Lock Rails: Features heavy-duty mechanical locking clips that keep the module firmly anchored to standard 35mm DIN rails under high-vibration equipment rooms.
  • Isolated Failure Paths: Ensures power1 and power2 circuits remain electronically isolated, so an electrical short on the primary supply line won't compromise the backup channel.
  • Ultra-Low Parasitic Overhead: Consuming a maximum of 0.25A per line, the unit functions with minimal power overhead, preserving the lion's share of energy for active field I/O devices.
  • Bi-State Contact Versatility: Outfitted with concurrent NO and NC landing paths to accommodate both modern loop-powered monitors and legacy open-loop alarm systems.

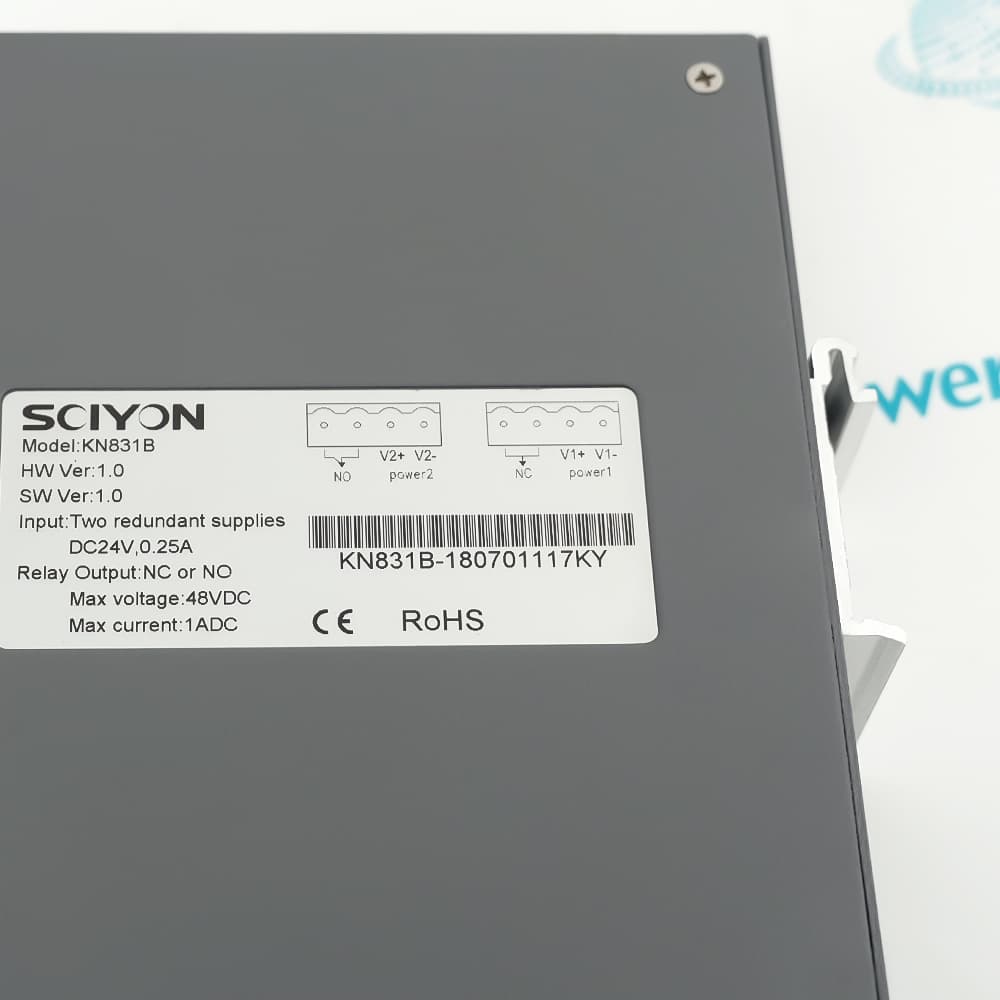

  • Permanent Top-Label Schematic: Features an un-erasable, laser-etched wiring diagram on the physical enclosure body, eliminating human error during high-stress field repair operations.
Description
The SCIYON KN831B serves as a vital hardware-level infrastructure component purposefully built to guarantee high-availability power routing within industrial control networks. Functioning as a dedicated power supervision link within Distributed Control Systems (DCS), the SCIYON KN831B accepts dual-channel independent voltage inputs to establish a rock-solid, failure-resistant power backbone for downstream processors, field network controllers, and execution modules.

Engineered for ultimate electrical resilience, the SCIYON KN831B continuously tracks the health of connected power lines to mitigate the catastrophic risk of single-point power failures on the plant floor. The hardware-driven diagnostics inside the SCIYON KN831B ensure that any localized line drop or power supply failure is instantaneously captured, isolated, and translated into physical interlock signals without relying on complex network software layers.

Optimized for dense, high-vibration control cabinets typical of heavy utilities, the SCIYON KN831B combines superior thermal dissipation with an ultra-low operational current draw of just 0.25A. International system integrators favor the SCIYON KN831B for its rugged physical durability, transparent diagrammatic labeling, and maintenance-free lifecycle. By preventing cascading power drops, the module dramatically boosts continuous plant uptime and lowers the lifecycle Total Cost of Ownership (TCO).
Alternative Names
KNB31B KN8318 KN83IB KN831A KN835D
Technical notes
The SCIYON KN831B features dual-supply inputs (power1 and power2) that must be provisioned with standard 24VDC logic source voltage to ensure correct failure-monitoring and redundancy operations. Operators installing the SCIYON KN831B must strictly adhere to the 48VDC and 1ADC maximum thresholds on the relay contact blocks to prevent contact welding or damage to the master diagnostic alarm loops.
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
What is the exact electrical mapping for the dual power inputs on the SCIYON KN831B?
The SCIYON KN831B provides isolated dual terminal blocks mapped as power1 (V1+, V1-) and power2 (V2+, V2-) to receive two independent 24VDC loops for total supply-side path isolation.
What are the absolute maximum switching limitations for the SCIYON KN831B relay outputs?
The integrated dry-contact relay loops on the SCIYON KN831B are strictly rated for a maximum switching voltage of 48VDC and an operational current up to 1A DC to maintain signal integrity.
Does the SCIYON KN831B require initial software configuration or field firmware flashes?
No, despite displaying pre-loaded SW Ver: 1.0, the SCIYON KN831B operates as a hardware-defined power routing card, bypassing the need for web-based tools or field software setups.
How does the parameters and terminal layout of the SCIYON KN831B facilitate low-current diagnostics?
The SCIYON KN831B layout features dedicated wiring paths for both NC and NO contacts, enabling system designers to program direct, microsecond-level hardware interlocks into the backplane logic.
Does the SCIYON KN831B hold proper electrical safety and environmental certifications for global shipping?
Yes, the SCIYON KN831B carries prominent, official CE and RoHS logos laser-printed on its chassis label, verifying that it meets international environmental restrictions and safety compliance.
