    Discontinued / Obsolete by OEM.
    Apter Power provides quotation support, technical documentation, sourcing assistance, and system-matching guidance.

140ACI04000C

/ 4.9
1001 reviews | Need a Specific Revision?

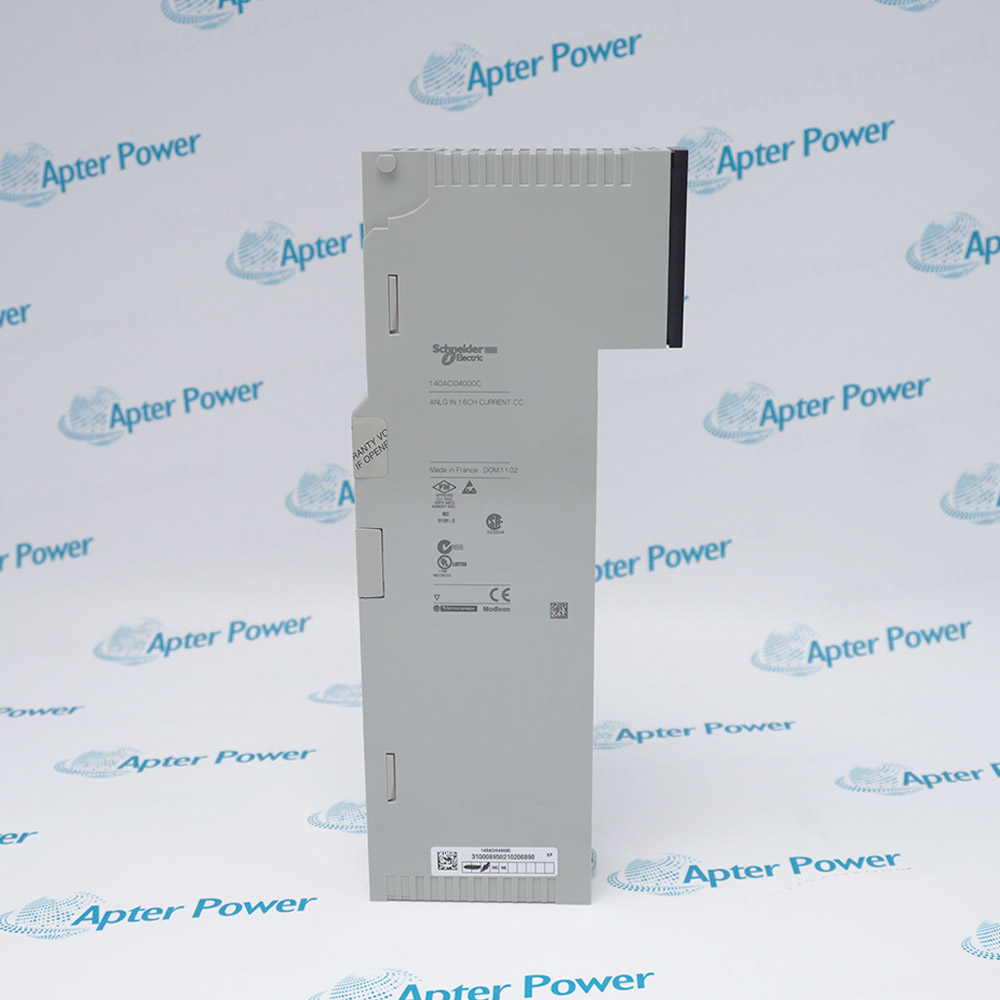

Schneider Electric 140ACI04000C is a conformal-coated Modicon Quantum 16-channel differential analog current-input module for multirange industrial automation measurement.
In Stock
Ships by Thursday, October 29
Fast Shipping Available
Get a quick price for 140ACI04000C
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for 140ACI04000C

  • Manufacturer:
    Schneider Electric
  • Part Number:
    140ACI04000C
  • Product Family:
    Modicon Quantum
  • Product Type:
    Analogue Input Module
  • Stock:
    1
  • Input channels:
    16
  • Input type:
    Differential
  • Filter:
    Single-pole low-pass, 3 dB at 34 Hz ±25%
  • Addressing requirement:
    17 input words
  • Input ranges:
    0–25 mA, 0–20 mA, 4–20 mA
  • Alternative 4–20 mA resolution:
    0–4,095 counts
  • Absolute maximum input:
    30 mA
  • Input impedance:
    250 Ω
  • Absolute accuracy error:
    ±0.125% of full scale
  • Temperature accuracy drift:
    ±0.0025% of full scale/°C
  • Common-mode rejection:
    Better than −90 dB at 60 Hz
  • Channel-to-bus isolation:
    1780 V AC for 60 s
  • Update time:
    15 ms for 2-wire or 4-wire connections
  • Broken-wire detection:
    4–20 mA
  • Bus current requirement:
    360 mA
  • Power dissipation:
    5 W
  • Module format:
    Standard
  • Operating temperature:
    0 to 60°C
  • Storage temperature:
    −40 to 85°C
  • Relative humidity:
    95% non-condensing
  • Maximum operating altitude:
    ≤5000 m
  • Tariff Code:
    Please confirm the destination before shipping.
  • Country of origin:
    Germany
  • Place of shipment:
    Xiamen, Fujian, China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Applications Diagnostics & Protection Efficiency Certifications & Standards

Features:

  • Sixteen differential current-input channels support multirange industrial measurement signals.
  • Channel-to-bus isolation and 4–20 mA broken-wire detection support reliable loop diagnostics.
  • Conformal coating and standard Quantum formatting support demanding control-cabinet installations.
Schneider Electric 140ACI04000C is supplied as a standard Modicon Quantum analog input module with conformal coating for the specified industrial configuration.

The module collects current signals from field transmitters and presents the converted values to the Quantum control system for process and machine monitoring.

Before installation or replacement, confirm the Quantum rack, terminal wiring, current range, channel allocation and application scaling.

Availability: Discontinued by Schneider Electric; remaining stock and service status require order-time verification.
Verified resources for Schneider Electric 140ACI04000C: Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
  • Process transmitters using 4–20 mA loops can be monitored through the Quantum analog input architecture.
  • Industrial machine instrumentation can use the module for multichannel current-signal acquisition.
  • Existing Quantum control cabinets can use the module for distributed analog measurement tasks.
  • Broken-wire monitoring is provided for 4–20 mA circuits to help identify open field loops.
  • Separate green and red indicators distinguish bus communication, external faults, channel activity and channel faults.
  • Channel-to-bus isolation is specified at 1780 V AC for 60 seconds.
  • The module requires 360 mA from the Quantum bus during operation.
  • Power dissipation is specified at 5 W for the standard module format.
  • The 15 ms update time supports responsive acquisition of two-wire and four-wire current signals.
  • Schneider Electric documents compliance with UL 508 for the module platform.
  • CSA C22.2 No. 142 is listed among the applicable product standards.
  • FM Class 1 Division 2 certification supports the documented hazardous-location application category.
Description
Schneider Electric 140ACI04000C is a 16-channel differential analog input module for the Modicon Quantum automation platform. It accepts multirange current signals from industrial transmitters and field instruments, including 0–25 mA, 0–20 mA and 4–20 mA signals.

The module converts field-current measurements into PLC input data using selectable count ranges and a 15 ms update time. Differential acquisition, input filtering and channel-to-bus isolation support stable signal handling in process monitoring, machine control and distributed automation installations.

140ACI04000C uses conformal coating for demanding industrial installations and provides broken-wire detection on 4–20 mA loops. Its front diagnostics, standard Quantum format and 17-input-word addressing support maintenance and replacement planning within existing Quantum racks.
Alternative Names
140ACI04000C 140 ACI 040 00 C 140ACI04000 C Schneider 140ACI04000C Schneider Modicon Quantum 140ACI04000C Schneider Quantum 16-channel analog input module Schneider Modicon Quantum 16 I multirange input
Technical notes
Schneider Electric 140ACI04000C is a discontinued conformal-coated Quantum module; replacement with BMXAMI0810H requires verification of channel capacity, wiring, rack compatibility and application scaling.
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
Can Schneider Electric 140ACI04000C detect a broken 4–20 mA wire?
Yes. Schneider Electric 140ACI04000C provides broken-wire detection for 4–20 mA circuits.
What type of field signals suit Schneider Electric 140ACI04000C?
Schneider Electric 140ACI04000C is intended for industrial current transmitters, process instruments and analog measurement loops using supported current ranges.
What environmental coating does Schneider Electric 140ACI04000C use?
Schneider Electric 140ACI04000C uses Humiseal 1A33 conformal coating.
What official replacement is listed for Schneider Electric 140ACI04000C?
Schneider Electric lists BMXAMI0810H as the recommended replacement, subject to system and application verification.
Is BMXAMI0810H a drop-in replacement for Schneider Electric 140ACI04000C?
It should not be treated as an automatic drop-in replacement; channel count, rack architecture, wiring, configuration and scaling must be checked first.
What should be checked before ordering Schneider Electric 140ACI04000C?
Verify the Quantum rack, field-terminal arrangement, current range, channel wiring, application scaling and required environmental rating.
