    Discontinued / Obsolete By OEM
    Apter Power supplies top-tier replacement PLC hardware, ensuring reliable operational longevity for aging factory installations.

140ACO02000

/ 4.9
1001 reviews | Need a Specific Revision?

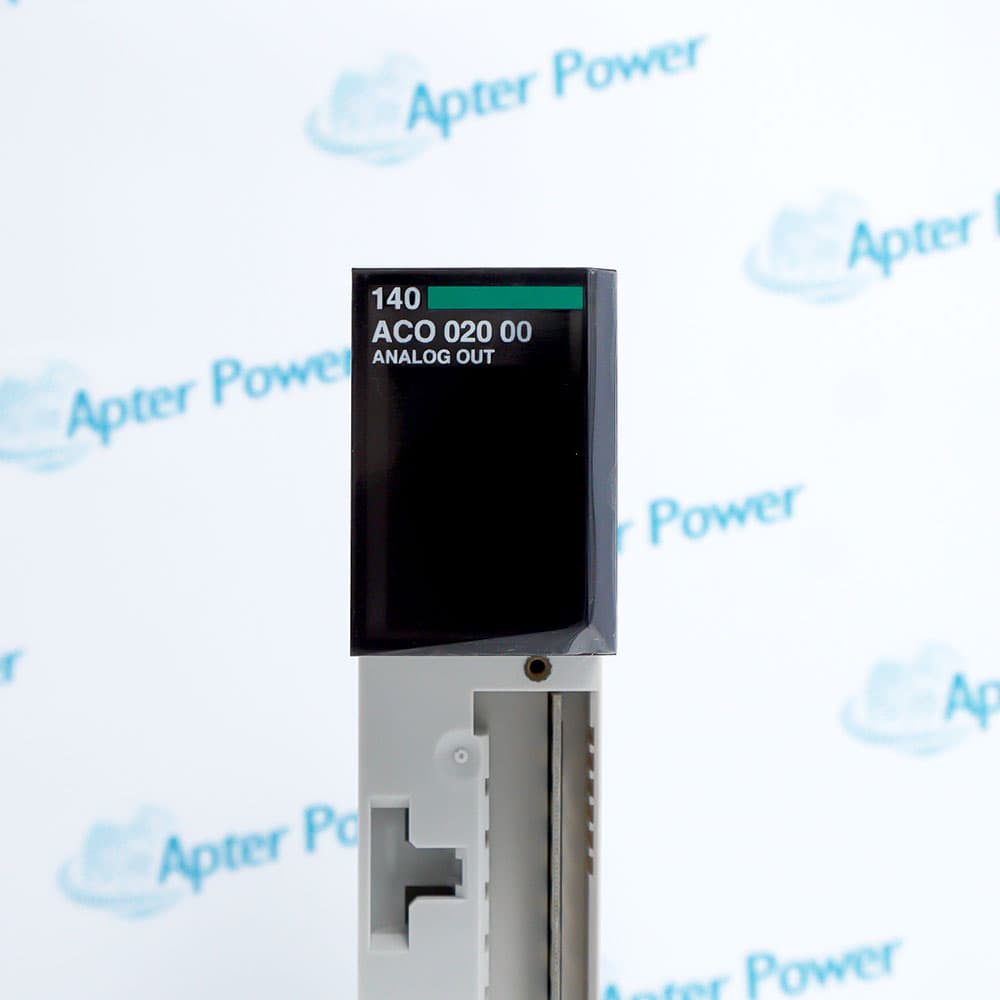

The Schneider Electric 140ACO02000 is a Modicon Quantum analog output module with 4 channels, 4-20mA, 12-bit bipolar current, and 500V isolation.
In Stock
Ships by Thursday, October 29
Fast Shipping Available
Get a quick price for 140ACO02000
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for 140ACO02000

  • Manufacturer:
    Schneider Electric
  • Part Number:
    140ACO02000
  • Product Family:
    Modicon Quantum
  • Product Type:
    Analog Output Module
  • Stock:
    4
  • Analog Outputs:
    4 channels
  • Output Range:
    4-20mA
  • Resolution:
    12 bits bipolar current
  • Absolute Accuracy:
    ±0.20% of full scale @ 25°C
  • Linearity:
    ±1 LSB
  • Setting Time:
    900μs to ±0.1% of final value
  • Update Time:
    3ms
  • Isolation (Channels):
    500V AC (47-63Hz), 750V DC (1 min)
  • Bus Current:
    480mA
  • Power Dissipation:
    5.3W max
  • External Power:
    12-30V DC
  • Operating Temperature:
    0°C to 60°C
  • Storage Temperature:
    -40°C to 85°C
  • Weight:
    0.32 kg
  • Estimated shipping dimensions:
    4x10.6x24.8cm
  • Tariff Code:
    8517795000
  • Country of origin:
    France
  • Place of shipment:
    Xiamen, Fujian, China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Specifications Application Performance and Efficiency Application Scenarios

Features:

  • Provides 4 channels with 500V AC isolation for reliable field device control.
  • ±0.20% full scale accuracy with 900μs setting time and 3ms update.
  • FM Class 1 Div 2, cUL, UL 508 certified for hazardous locations.
The 140ACO02000 provides four independent analog output channels with 4-20mA current range and 12-bit bipolar current resolution. Each channel is isolated with 500V AC (47-63Hz) and 750V DC for 1 minute, ensuring robust noise immunity and protection against ground loops in industrial environments. The 140ACO02000 supports a maximum voltage drop of <30V at 20mA with external power requirement of 12-30V DC. This isolation and output configuration make the 140ACO02000 ideal for controlling field devices such as actuators, valves, and variable speed drives in Modicon Quantum systems.

The 140ACO02000 delivers exceptional accuracy with an absolute accuracy error of ±0.20% of full scale at 25°C and linearity of ±1 LSB. The module features a fast setting time of 900μs to ±0.1% of the final value with an update time of 3ms, enabling precise and rapid control responses. The 140ACO02000 maintains accuracy with drift of ±0.004% of full scale per °C (typical) and ±0.007% maximum. This high accuracy and fast response make the 140ACO02000 suitable for demanding applications requiring precise analog output control.

The 140ACO02000 is certified to FM Class 1 Division 2, cUL, UL 508, and CSA C22.2 No 142 standards, making it suitable for installation in hazardous locations. The module operates in ambient temperatures from 0°C to 60°C with storage capability from -40°C to 85°C and relative humidity up to 95% without condensation. The 140ACO02000 is a Green Premium product with REACH free of SVHC and proactive EU RoHS compliance. The module includes local signaling with LEDs for bus communication, external fault, channel status, and channel fault indication.

The 140ACO02000 Schneider Analog Output Module may still be available for purchase and support from Apter Power beyond End-Of-Life (EOL) by the manufacturer (OEM).

Schneider 140ACO02000 Analog Output Module Manuals, Datasheets, Drivers, Link Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
Schneider 140ACO02000 Analog Output Module Specs

General

  • Manufacturer Schneider
  • Model 140ACO02000
  • Condition New Original ready stock
  • Product Family 140CRP93100,140AVO02000,140CHS11000,140CPU4321A
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
  • Water and Wastewater Treatment: Controlling chemical dosing pumps and large water valves to clean city water.
  • Oil and Gas Refining: Managing pressure regulating valves and flow controllers across massive pipeline networks.
  • Power Generation: Adjusting steam valves and fuel feeders to maintain steady electricity production.
  • 4-Channel 4-20mA Output: It features 4 high-precision channels that output standard 4 to 20 mA electrical current loops, which are highly resistant to factory electrical noise.
  • Fast Update Times: The module can refresh all of its output channels in less than 5 milliseconds, ensuring real-time response to critical process changes.
  • High Electrical Isolation: It provides 1500V AC optical isolation between the delicate internal PLC electronics and the harsh field wiring, protecting the main system from sudden power spikes.
  • Modulating Valve Control: Imagine a water pipe that needs to stay at exactly 50% capacity. The PLC reads a sensor, and the 140ACO02000 sends a changing 12mA signal to a motorized control valve, holding it perfectly half-open.
  • Variable Frequency Drive (VFD) Speed Setting: If a factory conveyor belt needs to speed up or slow down based on how many boxes are arriving, this module sends a shifting 4-20mA signal to a motor drive, smoothly accelerating or braking the motor.
  • Industrial Heater Regulation: In a plastics plant, a melting tank must stay at a precise temperature. The module sends a control signal to a power regulator, slightly backing off the electrical heat as the tank reaches its target temperature to prevent overheating.
Description
The Schneider Electric 140ACO02000 is a high-performance analog output module designed for the Modicon Quantum automation platform. This module provides four isolated analog output channels with a 4-20mA current range and 12-bit bipolar current resolution. The 140ACO02000 is ideal for controlling field devices such as actuators, valves, and variable speed drives in industrial automation applications.

The Schneider Electric 140ACO02000 features an absolute accuracy error of ±0.20% of full scale at 25°C and a linearity of ±1 LSB. The 140ACO02000 offers a setting time of 900μs to ±0.1% of the final value and an update time of 3ms. The 140ACO02000 includes 500V AC isolation between channels and 750V DC for 1 minute isolation.

The Schneider Electric 140ACO02000 supports an external power requirement of 12-30V DC with a maximum voltage drop of <30V at 20mA. The 140ACO02000 operates in ambient temperatures from 0°C to 60°C and can be stored from -40°C to 85°C. The 140ACO02000 is certified to FM Class 1 Division 2, cUL, and complies with UL 508 and CSA C22.2 No 142 standards.

The Schneider Electric 140ACO02000 is a Green Premium product with REACH free of SVHC and proactive EU RoHS compliance.  The 140ACO02000 is in the post-commercialisation phase and may be replaced by the BMXAMO0410 module. The 140ACO02000 is suitable for applications requiring precise analog output control in water treatment, chemical processing, and manufacturing industries.
Alternative Names
14OACOO2OOO I40ACO02000 140CRP93100 140CHS11000 140CPU4321A 140CPU43412 140CRA21220 140DAI74000
Technical notes
The Schneider Electric 140ACO02000 is a 4-channel analog output module for Modicon Quantum with 4-20mA, 12-bit resolution, ±0.20% accuracy, 900μs setting time, and 500V isolation. Operates on 12-30V DC, 0-60°C, 0.3kg. FM/cUL certified. Post-commercialisation, replaceable by BMXAMO0410.
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
What is the primary function of the 140ACO02000?
It provides 4 isolated 4-20mA analog outputs for controlling actuators, valves, and drives in Modicon Quantum systems.
What is the accuracy of the 140ACO02000?
It offers ±0.20% of full scale accuracy at 25°C with ±1 LSB linearity and 12-bit resolution.
What is the setting time of the 140ACO02000?
It has a fast setting time of 900μs to ±0.1% of final value with a 3ms update time.
Is the 140ACO02000 still in production?
It is in post-commercialisation phase and may be replaced by the BMXAMO0410 module.
