    Extend the operational longevity of your automation infrastructure with this authentic Schneider Electric module, sourced by Apter Power to ensure consistent performance for critical temperature monitoring.

140ARI03010C

/ 4.9
1001 reviews | Need a Specific Revision?

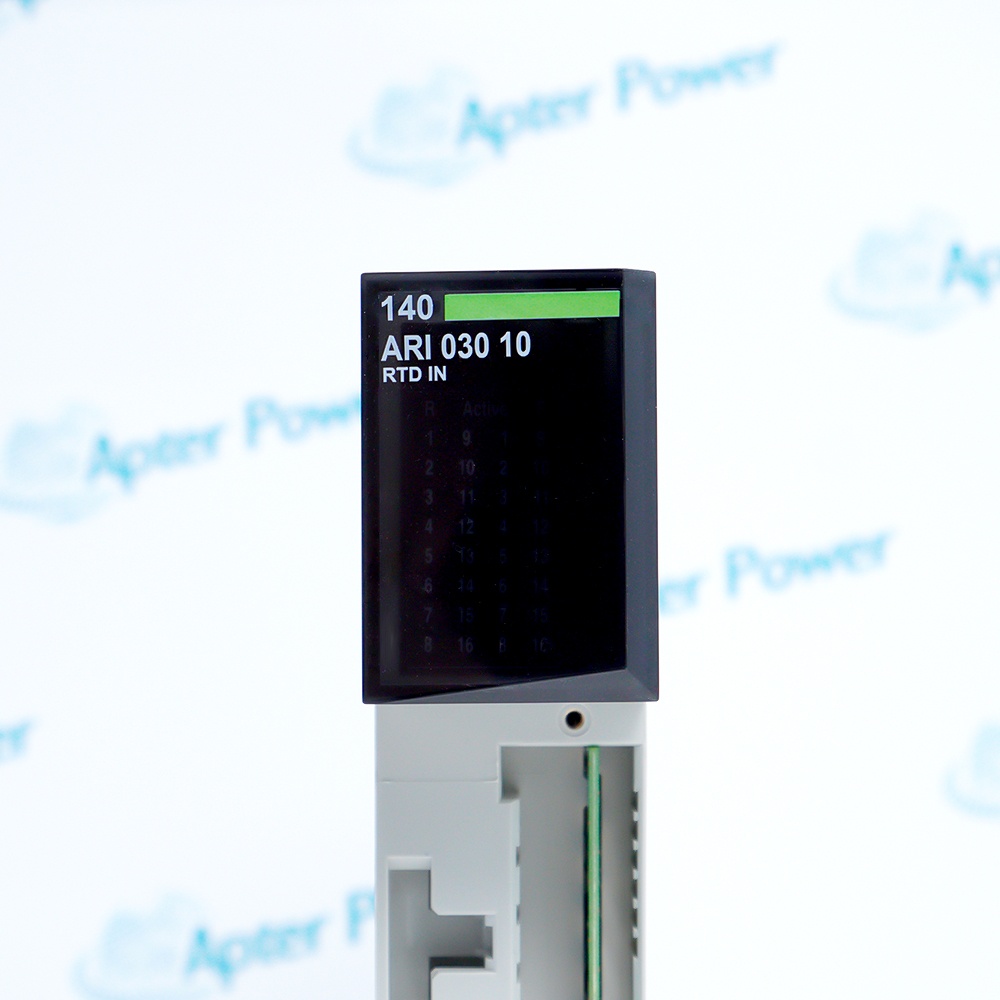

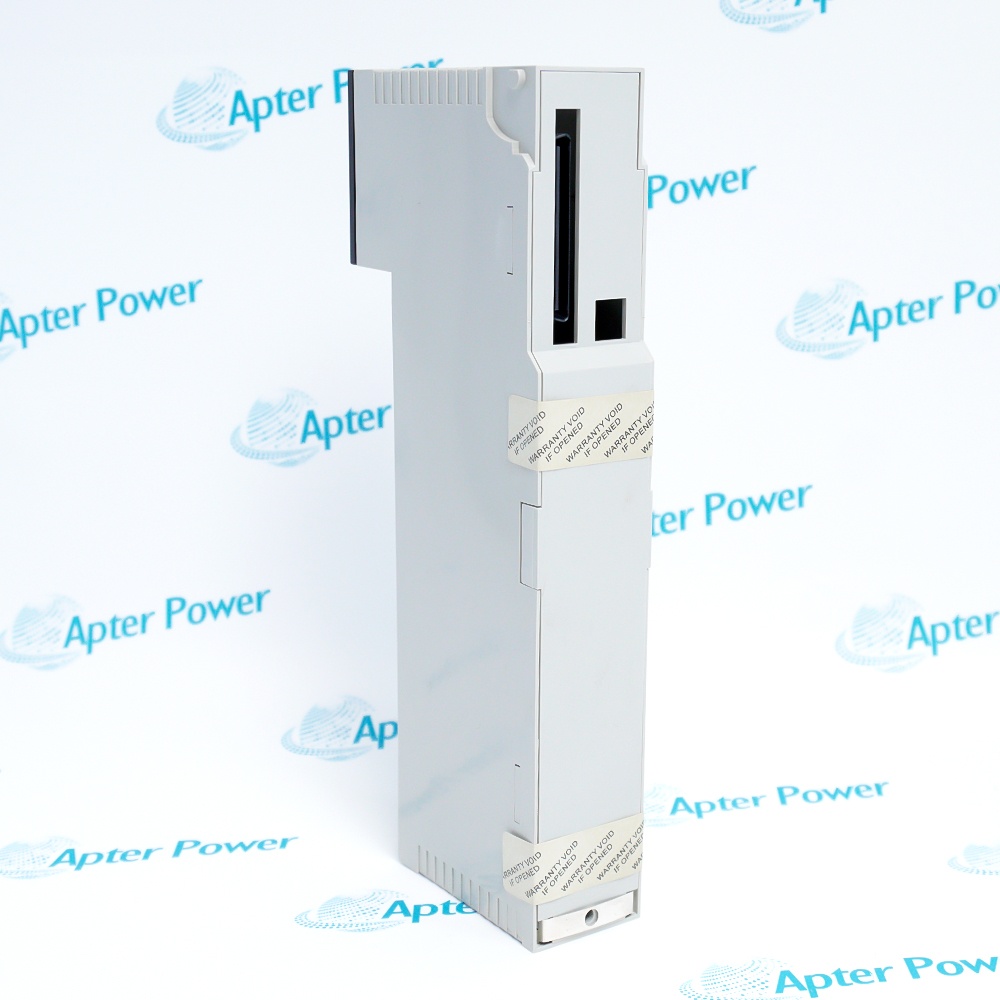

140ARI03010C is a Modicon Quantum analog input module with 8 channels, supporting Ni and Pt RTD sensors with ranges of 100, 200, 500, and 1000 ohms.
In Stock
Ships by Thursday, October 29
Fast Shipping Available
Get a quick price for 140ARI03010C
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for 140ARI03010C

  • Manufacturer:
    Schneider Electric
  • Part Number:
    140ARI03010C
  • Product Family:
    Modicon Quantum
  • Product Type:
    Analog Input Module
  • Stock:
    1
  • Channels:
    16 single-ended / 8 differential
  • Analogue input resolution:
    13 bits
  • Analogue input number:
    8
  • Addressing requirement:
    9 input words
  • Input impedance:
    >= 10 MOhm
  • Absolute accuracy error:
    0.1 °C
  • Isolation between channels:
    300 Vrms AC
  • Weight:
    0.32 kg
  • Estimated shipping dimensions:
    4x10.8x24.8cm
  • Tariff Code:
    8537101190
  • Country of origin:
    France
  • Place of shipment:
    Xiamen, Fujian, China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Specifications Compatibility Efficiency Application Scenarios

Features:

  • Supports Pt and Ni RTD sensors across multiple temperature ranges, providing flexible temperature measurement for industrial applications.
  • Combines 13-bit resolution, low linearity error, and high input impedance to deliver accurate and stable temperature data.
  • Integrates channel status LEDs, fault detection, broken wire monitoring, electrical isolation, and EMC protection for dependable operation.
Schneider Electric 140ARI03010C is intended for industrial temperature monitoring where reliable RTD signal acquisition is required. Eight differential analogue input channels allow multiple sensing points to be monitored simultaneously, helping improve process visibility and control. Compatibility with several Pt and Ni sensor types increases installation flexibility across different applications.

The module is well suited for automation systems that require precise temperature feedback and dependable signal integrity. High input impedance, channel isolation, and low measurement error help maintain consistent data quality, while configurable support for two-wire, three-wire, and four-wire temperature probes allows the module to fit a variety of field wiring methods. Integrated diagnostic LEDs provide quick indication of communication status and channel conditions during operation.

Schneider Electric 140ARI03010C is built for continuous operation in demanding industrial environments. Conformal coating enhances durability, while compliance with UL 508, CSA C22.2 No. 142, and FM Class 1 Division 2 certifications supports installation in qualified industrial facilities. Resistance to electrostatic discharge, electromagnetic interference, and wide operating and storage temperature ranges further contributes to long-term system reliability.

The 140ARI03010C Schneider Electric Analog Input Module may still be available for purchase and support from Apter Power beyond End-Of-Life (EOL) by the manufacturer (OEM).
Schneider Electric 140ARI03010C Analog Input Module Manuals,Datasheets,Link Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
Schneider Electric 140ARI03010C Analog Input Module Specs

General

  • Manufacturer Schneider Electric
  • Model 140ARI03010C
  • Condition New Original ready stock
  • Product Family 140ARI03010,140ATI03000,140AVO02000
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
  • Platform: Perfectly compatible with the Modicon Quantum automation system architecture.
  • Software: Supports EcoStruxure Control Expert (Unity Pro) programming.
  • Protocol: Natively supports Modbus Plus and Ethernet TCP/IP network communication.
  • Protection: Equipped with a "C"-type anti-corrosion coating, suitable for high humidity and harsh chemical environments.
  • Density: Single module integrates 8 independent analog input channels, optimizing rack space.
  • Accuracy: 16-bit high resolution ensures precise conversion of minute signals.
  • Acquisition: Ultra-short data scanning and update cycle, real-time response to field changes.
  • Power Consumption: Low-power circuit design effectively controls module heat generation and extends lifespan.
  • Petrochemical: Real-time temperature and pressure data monitoring at key process nodes in chemical plants.
  • Power: Precision parameter acquisition for steam turbine units and auxiliary systems in power plants.
  • Water: Centralized signal feedback for large-scale water treatment pump stations and water quality sensors.
  • Metallurgy: Industrial automation control in environments with strong electromagnetic interference, such as steel plants and mines.
Description
The Schneider 140ARI03010C Analog Input Module is designed for high-precision measurement in industrial automation systems. It features 8 analogue inputs with 13-bit resolution, providing accurate data acquisition for temperature, pressure, and other sensor signals. The module supports 16 single-ended or 8 differential channels, offering flexibility for varied wiring configurations.

With an input impedance of ≥10 MΩ and an absolute accuracy error of just 0.1°C, the 140ARI03010C ensures reliable and precise signal conversion. Channel-to-channel isolation of 300 Vrms AC protects sensitive measurements from cross-talk and electrical interference, making it ideal for critical process control applications.

The module requires 9 input words for addressing, enabling easy integration with Schneider PLC systems. Its robust design and high accuracy make it suitable for demanding industrial environments where signal fidelity and system reliability are essential.
Alternative Names
14OARIO3O1OC I40ARI030I0C 140AR103010C I4OAR1O3OIOC 140ARI03010 140AMM09000 140AII33010 140ACO13000C
Technical notes
The Schneider Electric 140ARI03010C is a ruggedized Quantum Analog Input Module featuring 8 high-density channels with conforming coating for harsh environments. It delivers precise 16-bit resolution tracking to safeguard critical process parameters in demanding industrial automations.
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
What measurement applications does Schneider Electric 140ARI03010C support?
Schneider Electric 140ARI03010C is designed for temperature measurement using Pt 100, Pt 200, Pt 500, Pt 1000, Ni 100, Ni 200, Ni 500, and Ni 1000 temperature probes. The module provides eight differential analog input channels for accurate process monitoring.
How many input channels are available on Schneider Electric 140ARI03010C?
Schneider Electric 140ARI03010C provides 8 differential analogue input channels and requires 9 input words for addressing within the control system.
Why does Schneider Electric 140ARI03010C offer support for multiple RTD types?
Support for Pt and Ni temperature probes allows Schneider Electric 140ARI03010C to accommodate different industrial sensing requirements across a wide temperature range, from -200°C to +850°C depending on the selected sensor.
Can Schneider Electric 140ARI03010C deliver high measurement accuracy?
Yes. Schneider Electric 140ARI03010C provides 13-bit input resolution, an absolute accuracy error of 0.1°C, a linearity error of ±0.01% full scale, and temperature drift of ±0.5°C at 25°C.
Does Schneider Electric 140ARI03010C provide electrical isolation?
Schneider Electric 140ARI03010C features channel-to-bus isolation rated at 1780 V AC for 60 seconds or 2500 V DC for 60 seconds, along with 300 Vrms AC isolation between channels to improve system protection.
