    Extend your Modbus Plus network reliability with this original Schneider Electric fiber optic repeater, sourced by Apter Power for seamless, high-speed data transmission.

490NRP25400

/ 4.9
1001 reviews | Need a Specific Revision?

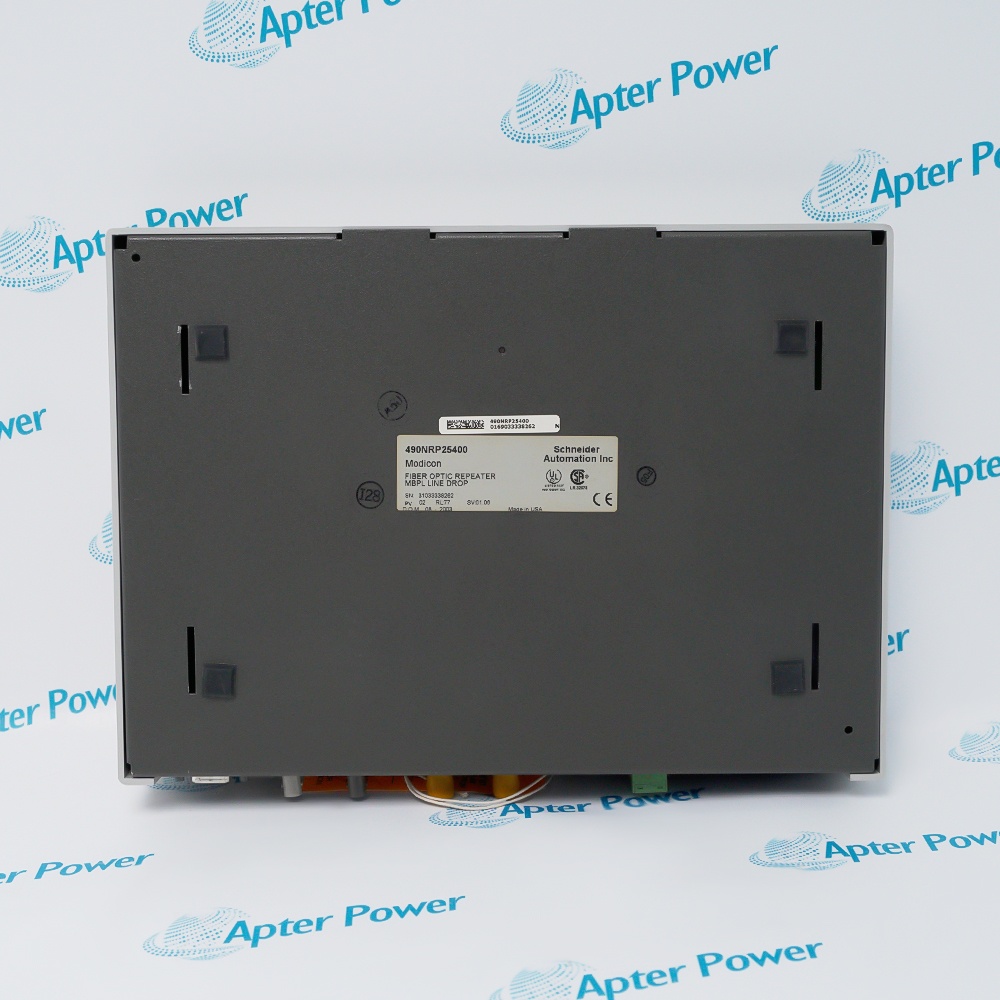

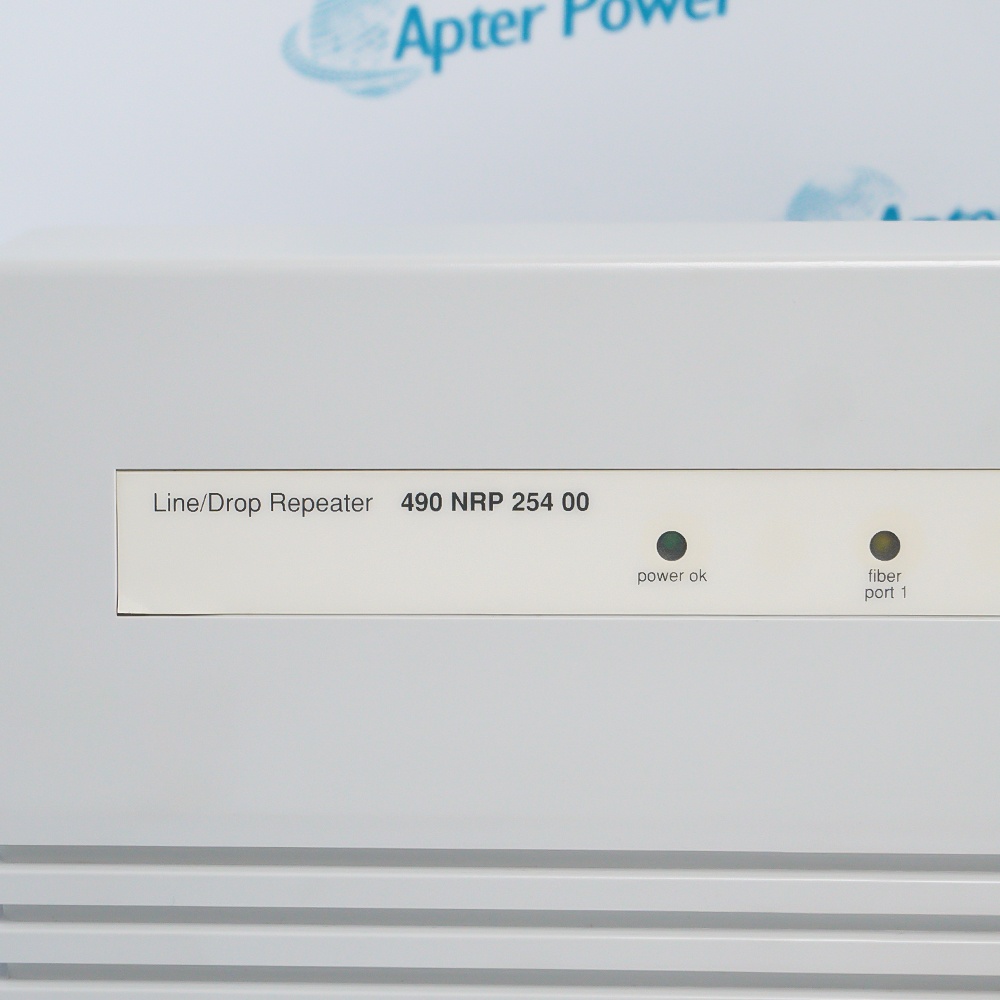

The Schneider Electric 490NRP25400 fiber optic repeater converts Modbus Plus electrical signals to optical signals for reliable long-distance industrial communication.
In Stock
Ships by Thursday, October 29
Fast Shipping Available
Get a quick price for 490NRP25400
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for 490NRP25400

  • Manufacturer:
    Schneider Electric
  • Part Number:
    490NRP25400
  • Product Family:
    Modicon Quantum
  • Product Type:
    Fiber Optic Repeater MBPL Line
  • Stock:
    4
  • Communication Rate:
    Fixed 1 Mbps
  • Fiber Wavelength:
    820 nm
  • Fiber Type:
    62.5/125 µm multimode fiber
  • Maximum Distance:
    3000 meters (3 km) per hop
  • Copper Cable Interface:
    1 Sub-D 9-pin female connector
  • Fiber Optic Interface:
    2 ST type connectors (TX/RX)
  • Operating Voltage:
    5 VDC (powered by Quantum backplane)
  • Installation Method:
    Quantum module baseplate slot mounting
  • Weight:
    0.5 kg
  • Estimated shipping dimensions:
    35x27x12cm
  • Tariff Code:
    7212200000
  • Country of origin:
    France
  • Place of shipment:
    Xiamen, Fujian, China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Specifications Connections Application Scenarios Compatibility

Features:

  • Extends Modbus Plus communication up to 3000 meters per hop using 62.5/125 µm multimode fiber.
  • Fiber optic transmission eliminates the effects of electromagnetic and radio-frequency interference commonly found in industrial facilities.
  • Mounts directly into a Quantum baseplate and operates from the 5 VDC backplane power supply without additional external power.
The Schneider Electric 490NRP25400 provides an effective solution for extending Modbus Plus communication beyond the limitations of conventional copper cabling. By converting electrical signals into optical signals, the module enables stable data transmission across large industrial sites while maintaining the fixed 1 Mbps network communication rate. This makes it suitable for distributed automation systems where equipment is installed over long distances.

Industrial environments often contain heavy electrical equipment capable of generating significant electromagnetic interference. The 490NRP25400 uses multimode fiber optic communication to eliminate the influence of electrical noise, helping maintain reliable communication between PLCs and other Quantum control devices. Optical transmission also introduces electrical isolation, reducing the possibility of damage caused by lightning, ground loops, or electrical faults.

Designed for direct installation into a Quantum module baseplate, the Schneider Electric 490NRP25400 requires no separate power source because it operates from the 5 VDC Quantum backplane. The combination of a 9-pin copper interface, dual ST fiber optic connectors, and support for 3000-meter transmission distances makes the module a practical choice for expanding Modicon Quantum networks in manufacturing plants, processing facilities, and other demanding industrial applications.

The 490NRP25400 Schneider Electric Fiber Optic Repeater MBPL Line may still be available for purchase and support from Apter Power beyond End-Of-Life (EOL) by the manufacturer (OEM).
Schneider Electric 490NRP25400 Fiber Optic Repeater MBPL Line Manuals,Datasheets,Link Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
Schneider Electric 490NRP25400 Fiber Optic Repeater MBPL Line Specs

General

  • Manufacturer Schneider Electric
  • Model 490NRP25400
  • Condition New Original ready stock
  • Product Family 490NRP25300,490RIO00211,490RIO00400
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
  • Fiber Optic Terminals: The panel integrates two sets of standard ST-type locking fiber optic connectors for independent signal transmission (TX) and reception (RX).
  • Electrical Ports: The bottom is equipped with one standard Sub-D 9-pin female connector for connecting to a local Modbus Plus copper network.
  • Topology Cascading: Supports point-to-point serial connections via fiber optic media, or the construction of highly flexible star branch topologies through multi-module combinations.
  • Physical Media: The physical layer link strictly requires 62.5/125 micrometer (µm) multimode fiber to ensure minimal optical power loss.
  • Long-Distance Interconnection Across Plants: Widely used in large-scale industrial sites such as metallurgy and water treatment plants, bridging distributed control master stations over distances of several kilometers.
  • High-Voltage Interference Isolation: Deployed in environments with strong electromagnetic interference (EMI), such as those containing large frequency converters and high-voltage power distribution rooms, using fiber optics to achieve interference-free communication.
  • Lightning Strike Ground Potential Isolation: In backbone networks susceptible to lightning strikes, such as outdoor pipeline transportation and long-distance conveyor belts, the electrical path between the control cabinets at both ends is severed to prevent equipment burnout.
  • Partial Expansion of Existing Network Segments: Used for the maintenance and in-situ upgrade of existing Modbus Plus network facilities, extending the total length of copper cable communication without changing the original PLC architecture.
  • Network Protocol: Natively optimized for 1 Mbps Modbus Plus (MBPL) industrial token bus networks at the hardware layer.
  • Platform Compatibility: Adopts the modular form factor standard of the Quantum series, fully compatible and directly plugged into the 140XBP series master/slave backplane.
  • Power Supply Compatibility: Requires no external power cables; securely obtains 5 VDC operating voltage directly from the system bus in the backplane slot.
  • Replacement Transition: As the Quantum platform is phased out, the functionality of this fiber optic repeater hardware in new control systems will be replaced by dedicated gateways or optoelectronic conversion kits.
Description
The Schneider Electric 490NRP25400 is an industrial fiber optic repeater for the Modicon Quantum automation platform. It is used in Modbus Plus (MBPL) networks to convert electrical signals from copper cables into optical signals for transmission over fiber optic cable, then convert received optical signals back into electrical signals. This allows PLCs and other control devices to communicate over much greater distances than conventional copper wiring.

Operating at a fixed communication rate of 1 Mbps, the 490NRP25400 supports 62.5/125 µm multimode fiber with an optical wavelength of 820 nm. Each communication hop can reach up to 3000 meters, significantly extending network coverage compared with standard copper connections. The module provides one 9-pin Sub-D female connector for the copper interface and two ST fiber optic connectors for optical transmit and receive functions, allowing straightforward integration into existing Modbus Plus installations.

The 490NRP25400 mounts directly into a Quantum module baseplate slot and receives 5 VDC power from the Quantum backplane, eliminating the need for an external power supply. Because communication is carried over optical fiber rather than copper conductors, the repeater is immune to electromagnetic and radio-frequency interference generated by large motors, welding equipment, high-voltage cables, and other industrial sources. Fiber communication also provides electrical isolation, helping protect the control system from lightning, ground potential differences, and electrical faults while maintaining reliable long-distance network performance.
Alternative Names
49ONRP254OO 490RIO00211 490RIO00400 490RIO00406 490RIO00411 490RIO0C411 490NRP25300 490NOR00005
Technical notes
Engineered to bypass severe industrial EMI, the 490NRP25400 module boosts communication distances up to 3000 meters via its dual ST-type fiber ports. This slot-mounted repeater draws 5 VDC directly from the Quantum backplane to eliminate the need for external power supplies.
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
What does Schneider Electric 490NRP25400 do?
Schneider Electric 490NRP25400 converts Modbus Plus electrical signals into optical signals and converts received optical signals back into electrical signals, allowing reliable fiber optic communication between automation devices.
Why should 490NRP25400 be used instead of a copper-only connection?
Copper networks are more susceptible to electromagnetic interference and have shorter transmission distances. 490NRP25400 extends communication up to 3000 meters per hop while providing immunity to industrial electrical noise.
How far can 490NRP25400 transmit data?
Using 62.5/125 µm multimode fiber, 490NRP25400 supports transmission distances of up to 3000 meters for each communication hop.
Can 490NRP25400 operate on a Modbus Plus network?
Yes. 490NRP25400 is designed for Modbus Plus (MBPL) communication with a fixed network speed of 1 Mbps.
