Features:
- Connects Modicon Quantum controllers to remote I/O drops over 75-ohm coaxial networks.
- Delivers rapid data transfer with 31 drops and 64 I/O words per drop.
- Dual female F-type connectors with 35 dB dynamic range for enhanced reliability.

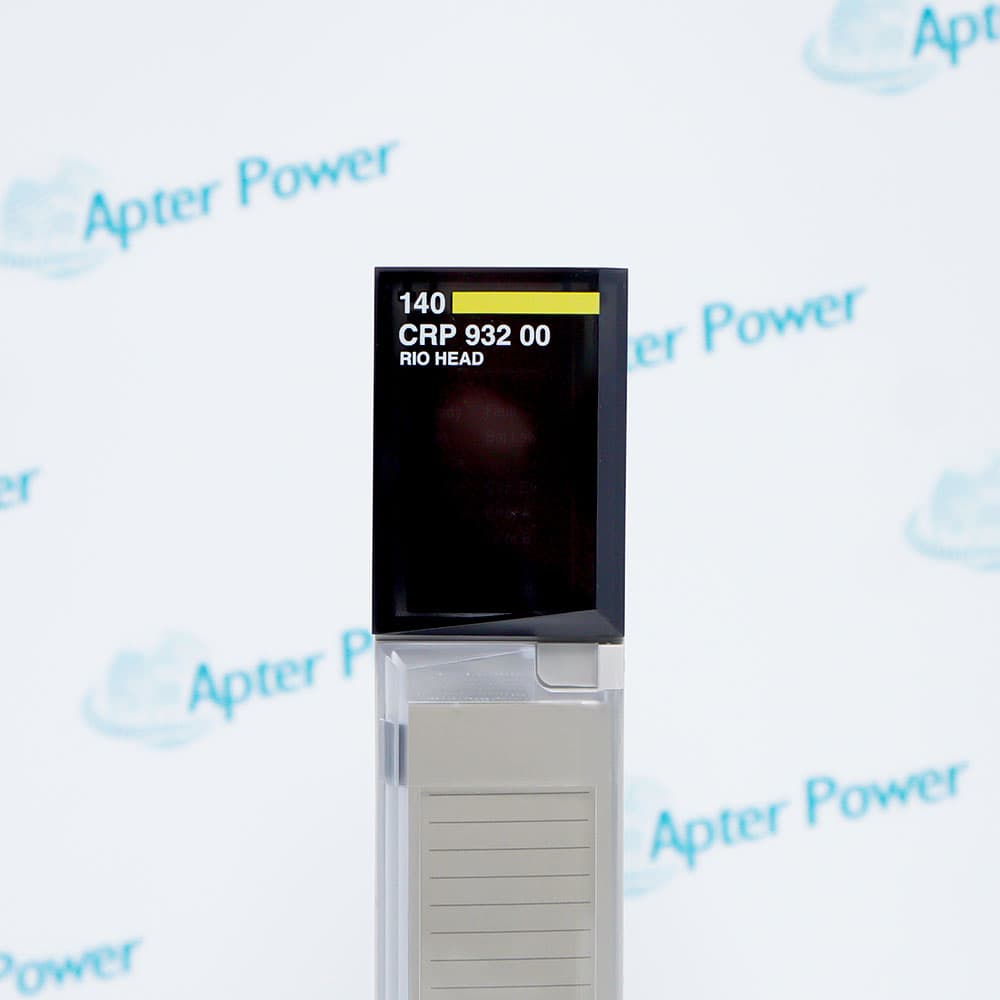

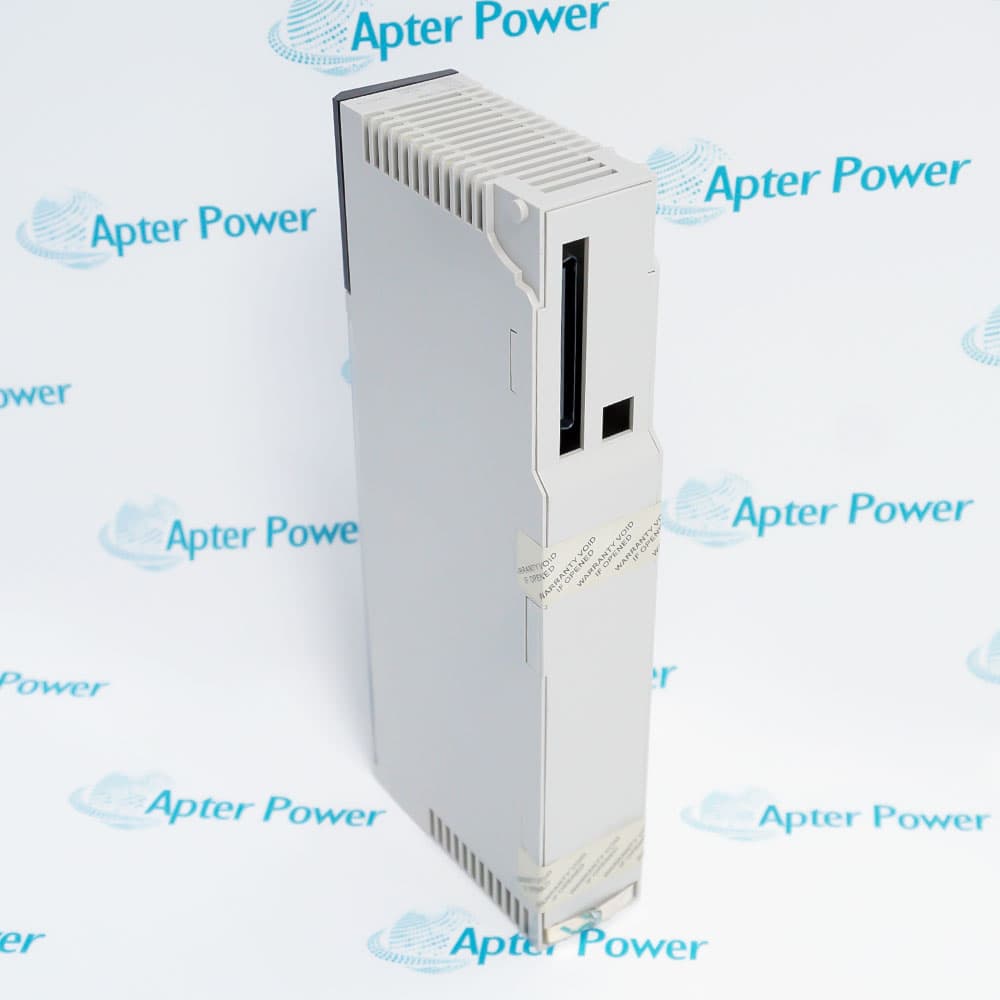

The 140CRP93200C serves as the remote I/O head-end adapter for the Modicon Quantum automation platform, enabling communication between the Quantum controller and up to 31 remote I/O drops. The 140CRP93200C is compatible with Quantum 200/500/800 series and Symax I/O drops in any mix. Each drop supports 64 input and 64 output words, providing flexible I/O capacity for distributed control systems. The 140CRP93200C communicates over a 75-ohm coaxial cable network with a transmission rate of 1.544 Mbit/s, ensuring fast and reliable data exchange between the controller and remote field devices.
The 140CRP93200C features a transmission rate of 1.544 Mbit/s with a dynamic range of 35 dB, ensuring reliable communication even in noisy industrial environments. The 140CRP93200C includes two female F-type elbowed connectors, enabling redundant cable connections for increased network reliability. The 140CRP93200C provides isolation voltage of 500V DC between the coaxial center and ground, protecting the module and connected equipment from electrical noise and voltage differences. The 140CRP93200C's high-speed communication capability makes it ideal for applications requiring fast I/O response times.
The 140CRP93200C is designed for demanding industrial environments with conformal coating (Humiseal 1A33) that protects the circuit board from moisture, dust, and contaminants. The 140CRP93200C is certified to FM Class 1 Division 2, cUL, UL 508, and CSA C22.2 No 142 standards, making it suitable for installation in hazardous locations. The 140CRP93200C operates in temperatures from 0°C to 60°C and can be stored from -40°C to 85°C with relative humidity up to 95% without condensation. The 140CRP93200C is a Green Premium product with RoHS and REACH compliance.
The 140CRP93200C Schneider RIO Head-End Adapter may still be available for purchase and support from Apter Power beyond
End-Of-Life (EOL) by the manufacturer (OEM).
Schneider 140CRP93200C RIO Head-End Adapter Manuals,
Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not
included with this equipment unless listed in the above stock item description. All prices are
shown in USD.
Schneider 140CRP93200C RIO Head-End Adapter Specs
General
- Manufacturer Schneider
- Model 140CRP93200C
- Condition New Original ready stock
- Product Family
140CRP93100,140CRP93100,140CRA21220,140CHS11000
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not
included with this equipment unless listed in the above stock item description. All prices are
shown in USD.
- Continuous Infrastructure: Airports, subways, and massive baggage handling networks where signals travel long distances.
- Water Treatment Facilities: Connecting distant pumping stations, filtration bays, and chemical stations to one central CPU rack.
- Mining and Conveyor Logistics: Managing vast mining yards where input/output sensors are spread out across kilometers of conveyor belts.
- Hardware Robustness: The "C" in 140CRP93200C stands for Conformal Coating, meaning its internal circuit boards have a special protective layer. This stops dust and chemical vapors from messing with the firmware chips.
- Diagnostic Firmware: The built-in firmware automatically performs a series of self-tests upon startup, including a full memory check and a LAN controller health check to verify network electronics are safe.
- Upgrading Firmware: Firmware updates for this communication card are handled externally using specialized Schneider Electric software loader tools (such as Exec Loader). Upgrades are usually done to fix network bugs or ensure the card can talk to newer Quantum CPU modules.
- Software Environments: You program and configure the network path for this card using classic Schneider tools like Concept or ProWORX, or modern platforms like EcoStruxure Control Expert (formerly Unity Pro).
- Drop Configuration: The software lets you configure up to 31 remote I/O drops (sub-racks) on a single coaxial network. You assign each drop a unique address so the master card knows exactly where to send data.
- Data Allocation Mapping: Inside the programming software, you map out the memory space for each drop. The 140CRP93200C can handle a data payload of up to 64 Input words and 64 Output words per drop, running at a transmission speed of 1.544 Mbit/s.
