140DDO35301

/ 4.9
1001 reviews | Need a Specific Revision?

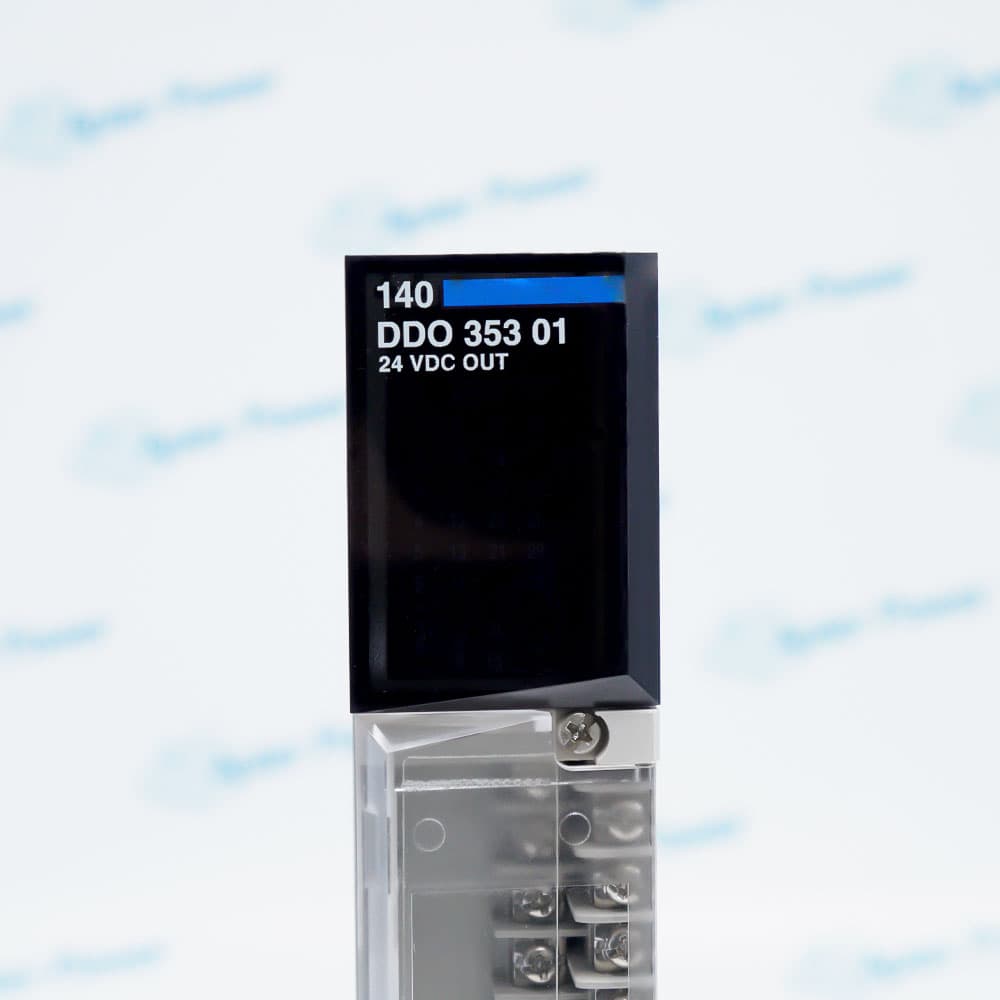

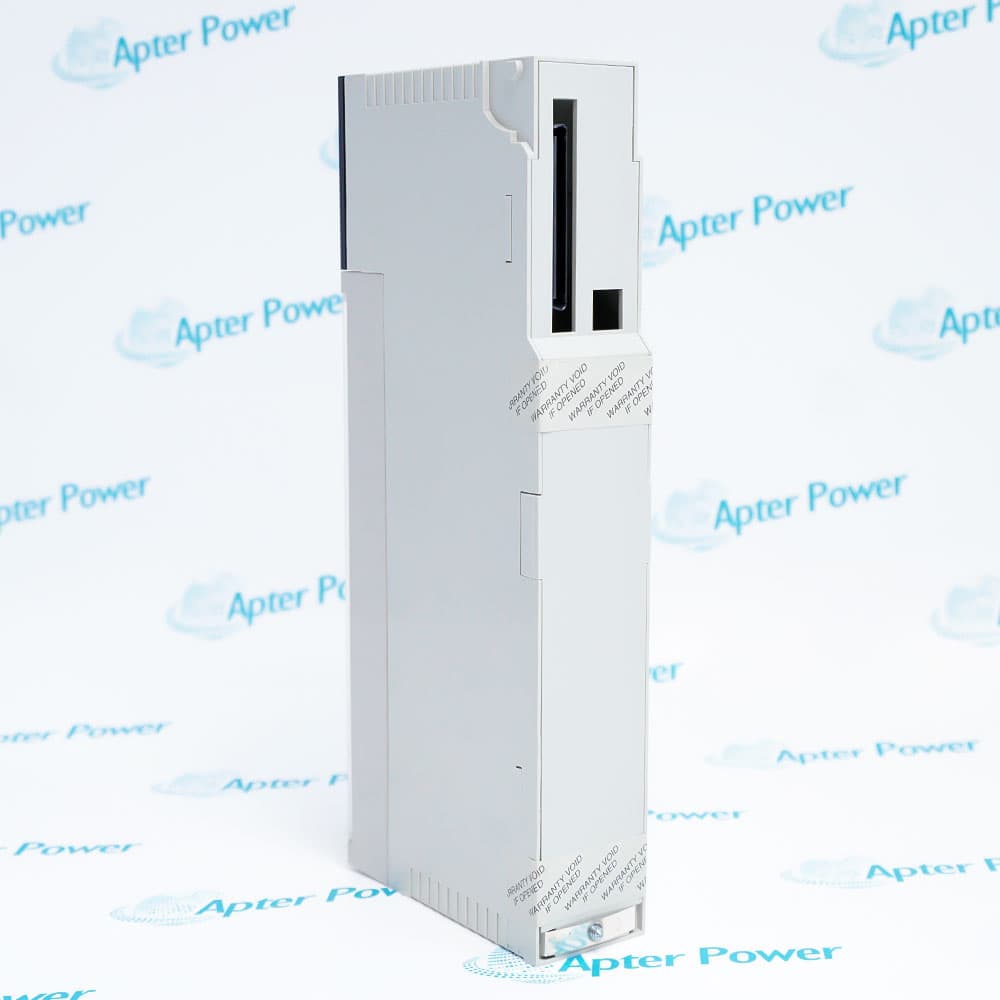

The Schneider Electric 140DDO35301 is a 32-point discrete output module engineered exclusively for the Modicon Quantum automation platform to deliver robust, high-speed 24VDC control.
In Stock
Ships by Thursday, October 29
Fast Shipping Available
Get a quick price for 140DDO35301
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for 140DDO35301

  • Manufacturer:
    Schneider Electric
  • Part Number:
    140DDO35301
  • Product Family:
    Modicon Quantum
  • Product Type:
    Discrete Output Module
  • Stock:
    2
  • Rated Discrete Output Voltage:
    24 V DC
  • Output Voltage Limits:
    19.2...30 V
  • Absolute Maximum Output:
    50 V (1 s decaying pulse)
  • Maximum Load Current:
    16 A per module / 4 A per group
  • Maximum Voltage Drop:
    <0.4 V at 0.5 A
  • Surge Current Capacity:
    2 A
  • Maximum Leakage Current:
    1 mA at 24 V
  • Bus Current Requirement:
    330 mA
  • Power Dissipation:
    5 W
  • Channel-to-Bus Isolation:
    1780 Vrms DC for 1 minute
  • Group-to-Group Isolation:
    500 Vrms DC for 1 minute
  • Operating Temperature:
    32...140 °F (0...60 °C)
  • Storage Temperature:
    -40...185 °F (-40...85 °C)
  • Relative Humidity:
    95% without condensation
  • Weight:
    0.45 kg
  • Estimated shipping dimensions:
    31x16.5x5cm
  • Tariff Code:
    8537109101
  • Country of origin:
    France
  • Place of shipment:
    Xiamen, Fujian, China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Specifications Applications Performance & Efficiency Environmental Ratings

Features:

  • High-Density 32-Channel Source Configuration Minimizes Footprint
  • Granular Short-Circuit Protection & Advanced Isolation Safeguards Equipment
  • Instantaneous LED Diagnostic Interface Drives Down Maintenance Downtime
The Schneider Electric 140DDO35301 features 32 independent output points managed in 4 isolated groups of 8 channels. This design maximizes rack utilization and cuts down on panel hardware requirements. By employing a positive logic source architecture, the module supplies 24VDC directly to your connected equipment, standardizing wiring schemes and lowering total deployment costs.

Engineered to withstand harsh industrial electrical interference, the Schneider Electric 140DDO35301 provides an impressive 1780 Vrms DC isolation between the system bus and field channels. Each group utilizes an integrated 5 A fuse to isolate internal faults, while a 3 A point-by-point rating prevents electrical faults from spreading, protecting your controller hardware.

The Schneider Electric 140DDO35301 integrates a robust physical diagnostic array featuring 32 green channel status LEDs, a green active communication LED, and a specialized red external fault indicator. This visual reporting instantly signals issues like a blown fuse or a sudden loss of field power, giving field operators the insight needed for fast troubleshooting.

The 140DDO35301 Schneider Electric Modicon Quantum 32-Channel 24VDC Discrete Output Module may still be available for purchase and support from Apter Power beyond End-Of-Life (EOL) by the manufacturer (OEM).
Schneider Electric 140DDO35301 Modicon Quantum 32-Channel 24VDC Discrete Output Module Manuals,Datasheets,Link Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
Schneider Electric 140DDO35301 Modicon Quantum 32-Channel 24VDC Discrete Output Module

General

  • Manufacturer Schneider Electric
  • Model 140DDO35301
  • Condition New Original ready stock
  • Product Family 140DDO36400,140NOE77110,140NOM21200
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
  • Oil, Gas & Petrochemical Refining: Handles critical solenoid valve actuation, emergency shutdown systems (ESD), and valve positioning in hazardous environments requiring FM Class 1 Div 2 safety.
  • Water & Wastewater Treatment: Controls large-scale effluent pumps, chemical dosing systems, and motorized penstocks across long-distance distribution networks.
  • Marine & Offshore Operations: Deployed on marine vessels and offshore drilling platforms, backed by RMRS marine certification to withstand constant vibration and salty, humid air.
  • Power Generation & Utility Boiler Control: Manages high-speed trip relays, fuel feed systems, and cooling tower fans, using its rapid 0.1 ms response time to protect heavy machinery.
  • Sub-Millisecond Execution Speeds: A fast ≤ 0.1 ms turn-off time enables highly responsive operations, improving process efficiency in high-speed manufacturing lines.
  • Low Thermal Footprint: Dissipating just 5 W of power, this module reduces heat buildup inside sealed control cabinets, extending the life of nearby electronic components.
  • High Load Capacity Per Module: Supports a substantial 16 A total module load (4 A per channel group), allowing it to drive heavy inductive actuators without needing intermediate relays.
  • Minimized Bus Overhead: Drawing only 330 mA from the backplane, it allows for denser rack configurations without overloading the primary Quantum power supply module.
  • Extended Operational Altitude: Rated to run reliably at altitudes up to 5,000 meters (≤ 16,404.2 ft), making it ideal for high-altitude mining and geographical installations.
  • Extreme Climate Adaptability: Supports a broad operating range from 0°C to 60°C, allowing dependable use in unconditioned desert or arctic enclosures.
  • Certified Electromagnetic Resilience: Tested up to 10 V/m against electromagnetic fields (IEC 801-3), ensuring stable performance near high-voltage motor drives and heavy switchgear.
  • High Humidity Tolerance: Operates safely in up to 95% non-condensing relative humidity, protecting vital internal components from moisture in tropical environments.
Description
The Schneider Electric 140DDO35301 maximizes your rack space and lowers hardware overhead by integrating 32 discrete output channels into a single standard Quantum module slot. Structured into four distinct groups of eight channels each, this architecture allows for segregated field wiring and flexible power routing, providing versatile control for localized sub-systems without requiring extensive additional module footprints.

Built to safeguard mission-critical industrial assets, the Schneider Electric 140DDO35301 features comprehensive electrical isolation and robust integrated circuit protection. Each channel group is independently isolated up to 500 Vrms and backed by an internal 5 A fuse, supplemented by a 3 A rating per point. This design prevents localized field wiring errors or accidental short circuits from disrupting the broader control architecture, minimizing unscheduled system downtime.

Utilizing positive logic (sourcing) configurations, the Schneider Electric 140DDO35301 is engineered to switch the positive side of the 24VDC supply loop directly to your field loads, matching standard global industrial wiring conventions. With a blistering turn-off response time of less than or equal to 0.1 ms, this module is ideal for applications demanding high-frequency switching, rapid valve manipulation, and highly responsive sequencing controls.

Equipped with an intuitive LED array, the Schneider Electric 140DDO35301 minimizes mean time to repair (MTTR) by providing field technicians with immediate status clarity. The module faceplate displays 32 dedicated green status LEDs for the outputs, a green LED for active bus communication, and a clear red LED indicator to signal external fault detection, ensuring that loss of field power or blown fuses are diagnosed instantly.
Alternative Names
I40DDO3530I 14ODDO353O1 140DD035301 I4ODDO353OI 140DDO36400 140NOE77110 140NOM21200
Technical notes
The Schneider Electric 140DDO35301 requires an output addressing space of 2 discrete words within the Quantum controller configuration. When implementing inductive field loads, engineers must utilize the official load inductance formula: Inductance (H) = 0.5 / (Current (A)×Switching Frequency (Hz)) to prevent transient damage to the module.
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
What are the terminal allocation and wiring requirements for the 40-pin connector on the Schneider Electric 140DDO35301?
The Schneider Electric 140DDO35301 uses a standard 40-point terminal block divided into four isolated control groups (A, B, C, and D). For example, pins 1 through 8 route individual outputs for Group A, pin 10 acts as the dedicated Group A Supply (+24VDC), and pin 9 handles the Group A Common. This precise terminal architecture must be wired accurately to utilize the module's positive logic sourcing capabilities and maintain proper group-to-group isolation.
What specific LED status codes does the Schneider Electric 140DDO35301 provide to identify critical system faults?
Deep diagnostic tracking on the Schneider Electric 140DDO35301 is provided via an integrated 34-LED front panel array. If the module detects an external fault, such as a complete loss of field power or an activated internal blown fuse, the dedicated red 'F' LED illuminates immediately. Meanwhile, a green active LED monitors the system bus health, and 32 separate green LEDs track the precise logical on/off state of each individual channel.
What are the addressing and backplane power requirements when configuring the Schneider Electric 140DDO35301 within a Quantum rack?
When integrating the Schneider Electric 140DDO35301 into your PLC configuration utility, the module requires exactly 2 output words of addressing space. From a hardware energy standpoint, it places a current demand of 330 mA on the Quantum backplane bus. System integrators must include this 330 mA load in their total rack power supply budget to ensure overall system stability and avoid voltage drops.
Which international maritime, hazardous area, and industrial safety standards does the Schneider Electric 140DDO35301 comply with?
For high-reliability deployments, the Schneider Electric 140DDO35301 holds major industrial certifications, including UL 508 and CSA C22.2 No 142 compliance. It features FM Class 1 Division 2 classification for safely operating in hazardous locations where flammable gases may be present. It also carries C-tick, GOST, and RMRS marine certifications, proving its compliance with strict maritime environmental and vibration standards.
How does the Schneider Electric 140DDO35301 comply with Green Premium standards and hazardous substance regulations?
The Schneider Electric 140DDO35301 is classified as a Green Premium product, reflecting a commitment to strict environmental compliance. It is fully certified mercury-free, contains no Substances of Very High Concern (SVHC) per REACH regulations, and complies proactively with EU RoHS and China RoHS declarations. This clear environmental transparency helps facility operators meet strict corporate sustainability goals and local waste regulations.
