Features:
- Interface Between the Ethernet TCP/IP Network and Modicon Quantum Rack Backplane
- Combines Capability of Modbus TCP Messaging with Web-Based Remote Monitoring
- Operates in Conjunction with the Quantum Series and Standard Modicon Automation Modules

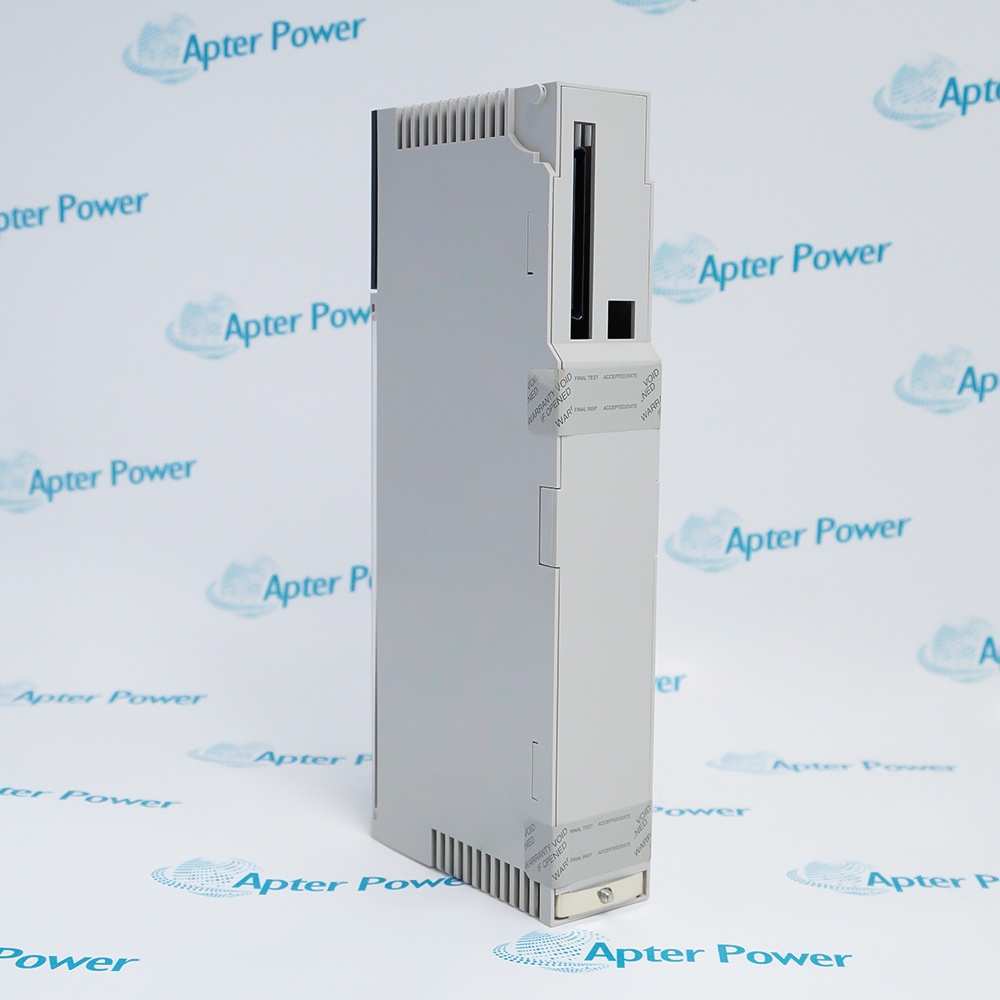

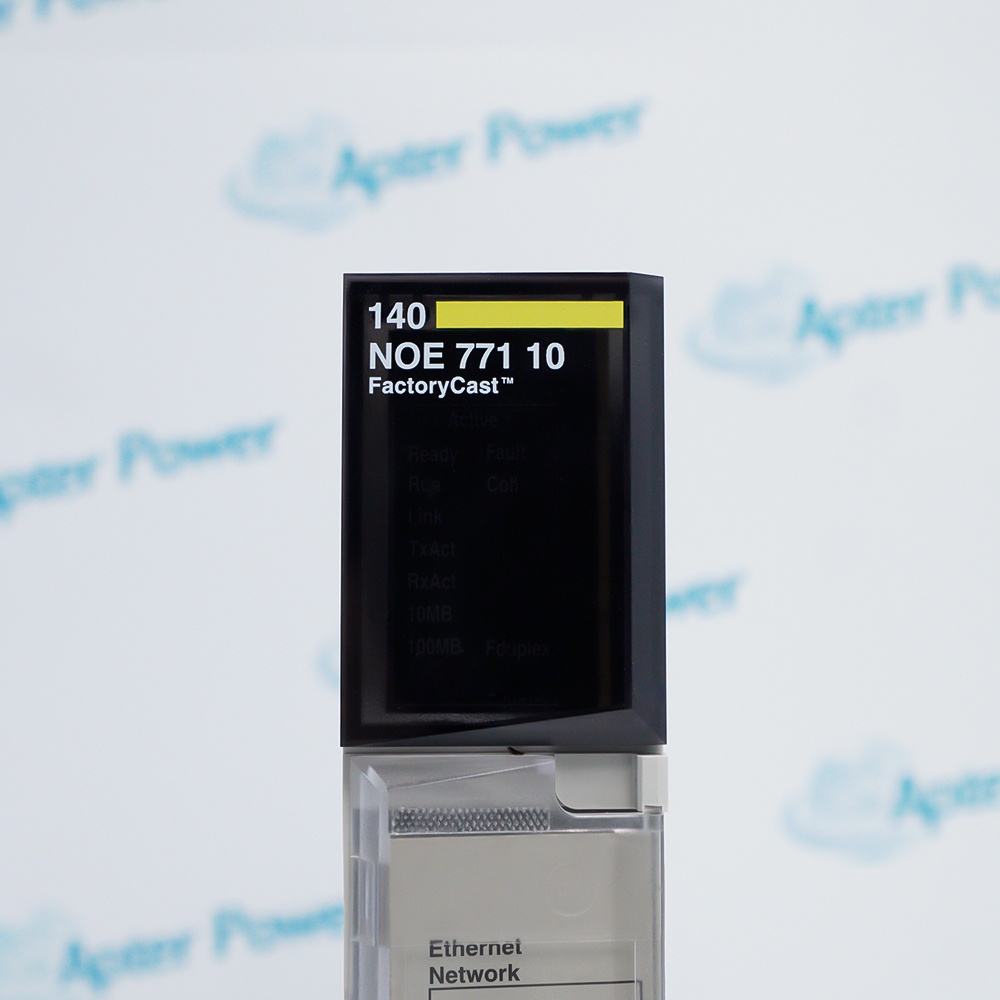

The Schneider Electric 140NOE77110 Ethernet network TCP/IP module operates as the primary communication gateway in a Modicon Quantum rack, providing reliable network connectivity to all modules within the system. It continuously facilitates Ethernet Modbus TCP/IP communication (10/100 Mbps, fiber optic and twisted pair) and distributes this data through the rack backplane to support steady state operation of all monitors and modules.
The 140NOE77110 provides essential network functions common to the entire rack, and is a critical component of the communication path, directly affecting the proper, normal operation of the overall automation system. One or two 140NOE77110 modules may be utilized per rack depending on the desired network redundancy level. The 140NOE77110 occupies a standard slot in the rack and is configured for flexible placement within the Quantum backplane architecture.
For dual redundant network applications, the Quantum System requires a second 140NOE77110 Ethernet module installed in the redundant slot. In addition to standard single module operation, the redundant configuration also performs automatic switchover. The Quantum dual communication configuration executes failover using the internal circuitry specified in the network options.
The 140NOE77110 Schneider Electric Ethernet network TCP/IP module may still be available for purchase and support from Apter Power beyond End-Of-Life (EOL) by the manufacturer (OEM).
Schneider Electric 140NOE77110 Ethernet network TCP/IP module Manuals,Datasheets,Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
Schneider Electric 140NOE77110 Ethernet network TCP/IP module Specs
General
- Manufacturer Schneider Electric
- Model 140NOE77110
- Condition New Original ready stock
- Product Family 140NOE77101,140NOC78000
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
- Industrial Ethernet Networking: Provides 10/100 Mbit/s communication interfaces using Modbus TCP/IP protocols over RJ45 twisted pair and MT/RJ fiber optics.
- Web-Based Supervision: Features a built-in FactoryCast configurable web server which enables a web service infrastructure, remote data editors, and rack viewer diagnostic capabilities.
- High Availability Systems: Supports hot-standby redundant architectures to minimize downtime in critical control applications.
- Network Management: Integrates into wider IT environments via SNMP network management.
- Setup Process: Configuration involves accessing the PLC Configuration to define the module, assigning it to a slot in the I/O Map, and setting network parameters like IP Address, Subnet Mask, and Gateway.
- Modbus TCP: The Modbus TCP server, which listens on port 502, must be activated within the module parameters.
- Temperature & Humidity: Operates between 0°C and 60°C, with a storage range of -40°C to 85°C and 95% non-condensing humidity.
- Altitude & EMC: Supports operation up to 4500 meters. It meets standards for electrostatic discharge (4 kV contact / 8 kV air) and electromagnetic fields (10 V/m).
- Certifications: Compliant with CE, UL 508, cUL, FM Class 1 Div 2, and CSA C22.2 No 142.
