140XCA71706

/ 4.9
1001 reviews | Need a Specific Revision?

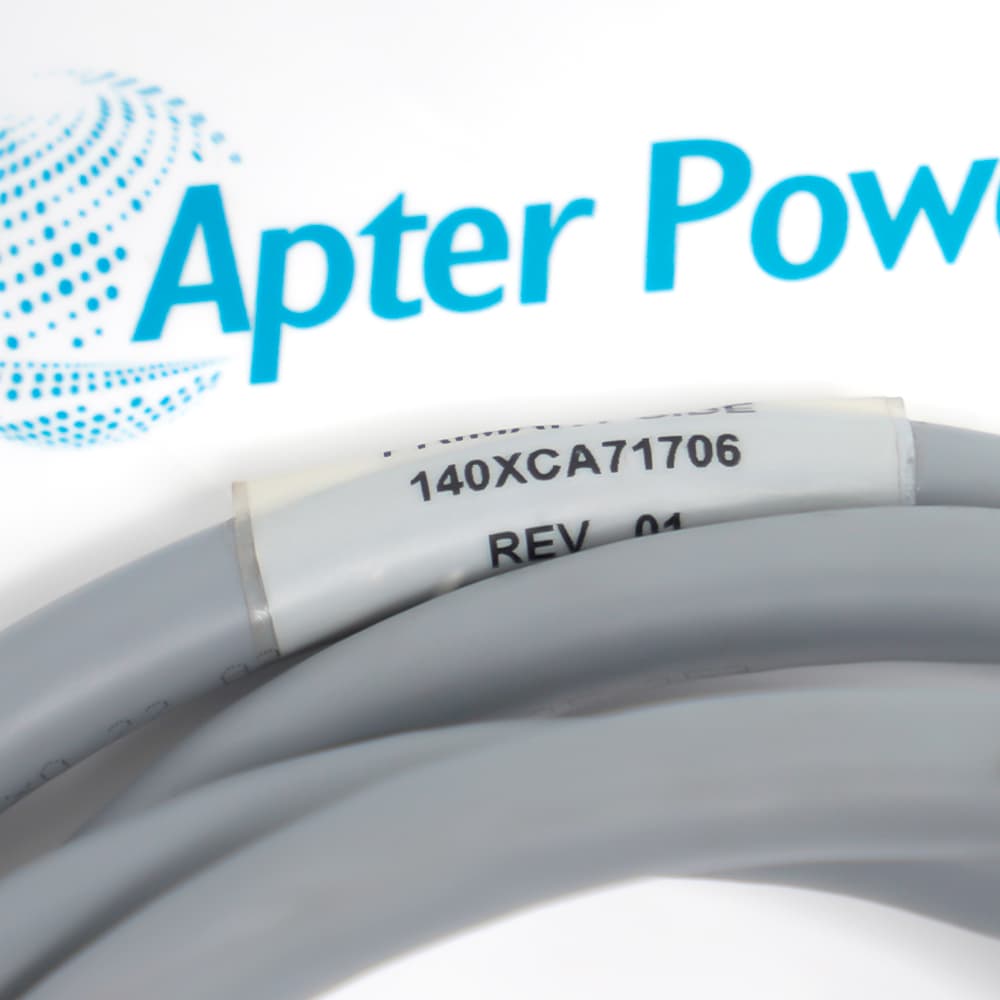

Schneider Electric 140XCA71706 is a two-metre Modicon Quantum rack expansion cable documented for extending the platform between approved rack assemblies.
In Stock
Ships by Wednesday, October 28
Fast Shipping Available
Get a quick price for 140XCA71706
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for 140XCA71706

  • Manufacturer:
    Schneider Electric
  • Part Number:
    140XCA71706
  • Product Family:
    Modicon Quantum
  • Product Type:
    Two-Metre Rack Expansion Cable
  • Stock:
    1
  • Platform:
    Modicon Quantum
  • Cable function:
    Rack expansion
  • Documented length:
    2 m / 6.56 ft
  • Lifecycle date:
    Discontinued 9 November 2023
  • Manufacturer replacement reference:
    BMXXBC015K
  • Weight:
    0.44 kg
  • Estimated shipping dimensions:
    26x20x5cm
  • Tariff Code:
    Please confirm the destination before shipping
  • Country of origin:
    France
  • Place of shipment:
    Xiamen,Fujian,China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Rack Link Choice Legacy Migration Cable Service Product Applications

Features:

  • Defined rack link: the cable supports documented Modicon Quantum expansion architecture
  • Two-metre route: the published length sets a real cabinet-layout boundary
  • Managed migration: the named replacement belongs to a platform transition, not automatic interchange
Schneider Electric 140XCA71706 is the catalogued two-metre inter-rack cable for a legacy Modicon Quantum expansion path.

The product preserves communication between approved rack assemblies when the installed architecture remains in service.

Selection must keep cable length, both rack identities, connector condition, routing, and any replacement-platform decision inside one engineering record.

Apter Power supports document review and quotation for the Schneider Electric 140XCA71706 Two-Metre Rack Expansion Cable for legacy-system requirements beyond End-of-Life (EOL) by the manufacturer (OEM).
Schneider Electric 140XCA71706 Two-Metre Rack Expansion Cable Manuals,Datasheets,Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
  • Quantum purpose: the cable belongs to the platform’s rack-expansion connection.
  • Two-metre boundary: cabinet separation and routing must fit the documented length without tension.
  • End-point record: both connected racks should be identified before the cable is removed.
  • Generic-cable stop: connector resemblance does not qualify an uncontrolled substitute.
  • Discontinued item: new system planning should not assume ongoing OEM production.
  • Named route: Schneider Electric points to BMXXBC015K in the product lifecycle record.
  • Platform change: the replacement reference requires architecture review rather than a cable-only decision.
  • Installed-base option: legacy sourcing may remain appropriate while the Quantum system is retained.
  • Before removal: mark both ends and photograph connector orientation and routing.
  • Mechanical check: reject damaged pins, shells, strain relief, or insulation before energization.
  • Routing control: keep bend, support, and separation practices consistent with the cabinet design.
  • Return to service: verify rack communication and diagnostics before process release.
  • Quantum rack expansion: connect approved local or remote rack arrangements at the documented length.
  • Legacy cable replacement: restore an existing two-metre route after controlled end-point identification.
  • Shutdown preparation: hold an exact spare for a known rack-to-rack connection.
  • Migration assessment: document the old link before planning the manufacturer-named replacement platform.
Description
Rack separation in a Modicon Quantum cabinet is the job addressed by 140XCA71706, a documented two-metre expansion link. Its defined length allows remote rack placement without treating an ordinary cable as a qualified control-system interconnect.

For 140XCA71706, obsolescence changes the purchasing question from simple replenishment to platform planning. Schneider Electric references BMXXBC015K as a successor, but that reference belongs to a migration review and does not establish a direct plug-in swap.

During a legacy outage, 140XCA71706 can be controlled by recording both rack endpoints, cable route, connector condition, and spare identity before disconnection. That map gives the installation team a clear restoration path if the original Quantum architecture is retained.
Alternative Names
Schneider 140 XCA 717 06 Schneider 140-XCA-717-06 Schneider 140XCA 71706 Schneider 140 XCA71706 Modicon 140XCA71706 cable Modicon Quantum 2 m rack expansion cable Quantum rack extension cable 6.56 ft Quantum 2 metre rack expansion cable 140XCA71706 rack cable
Technical notes
For 140XCA71706 service, record both connected Quantum racks, cable routing, connector orientation, strain relief, and the reason for replacement before disconnection. Schneider Electric marks the item discontinued and points to BMXXBC015K; treat that reference as a migration route requiring platform-specific engineering, not as evidence of an automatic drop-in cable substitution.
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
Can 140XCA71706 be selected when a Quantum rack separation exceeds two metres?
No. The documented cable length is two metres; redesign the rack arrangement with manufacturer-supported architecture instead of extending the link informally.
Should BMXXBC015K be treated as a direct cable replacement for 140XCA71706?
No. Schneider Electric names it as the replacement reference, but it belongs to a platform migration decision. Review racks, architecture, engineering scope, and commissioning before purchase.
What should a technician mark before disconnecting 140XCA71706?
Mark both rack ends, connector orientation, route, support points, and cabinet entry locations so the exact expansion path can be reconstructed and checked.
When should a received 140XCA71706 be rejected before a shutdown?
Quarantine it if the complete code, connector shells, pins, strain relief, insulation, or documented two-metre route differs from the approved record.
How should rack communication be verified after installing 140XCA71706?
Complete the Quantum service procedure, inspect both end connections, energize in the approved sequence, and confirm rack communication and diagnostics before returning the process to automatic control.
What should a buyer provide when sourcing discontinued 140XCA71706 stock?
Provide the exact model, photographs of both installed ends, rack identities, required condition, outage date, and whether the request supports continued Quantum operation or a migration study.
