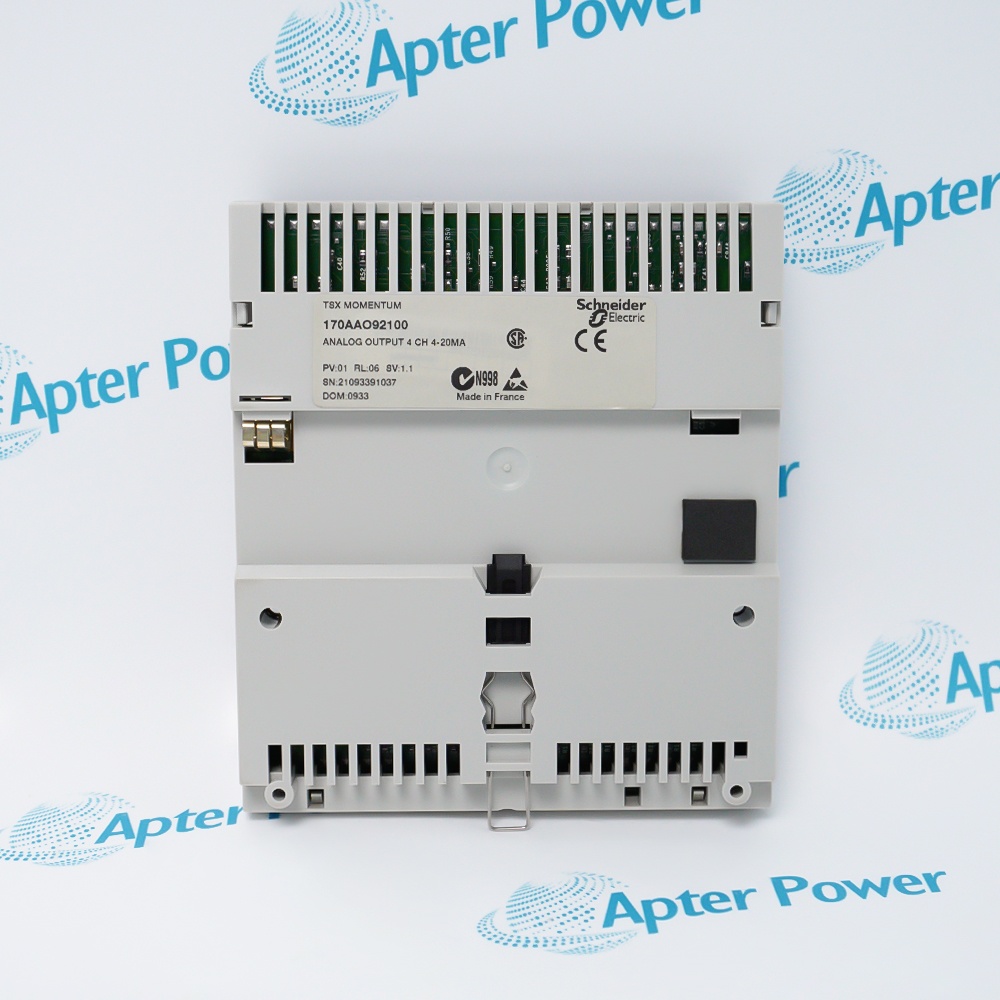

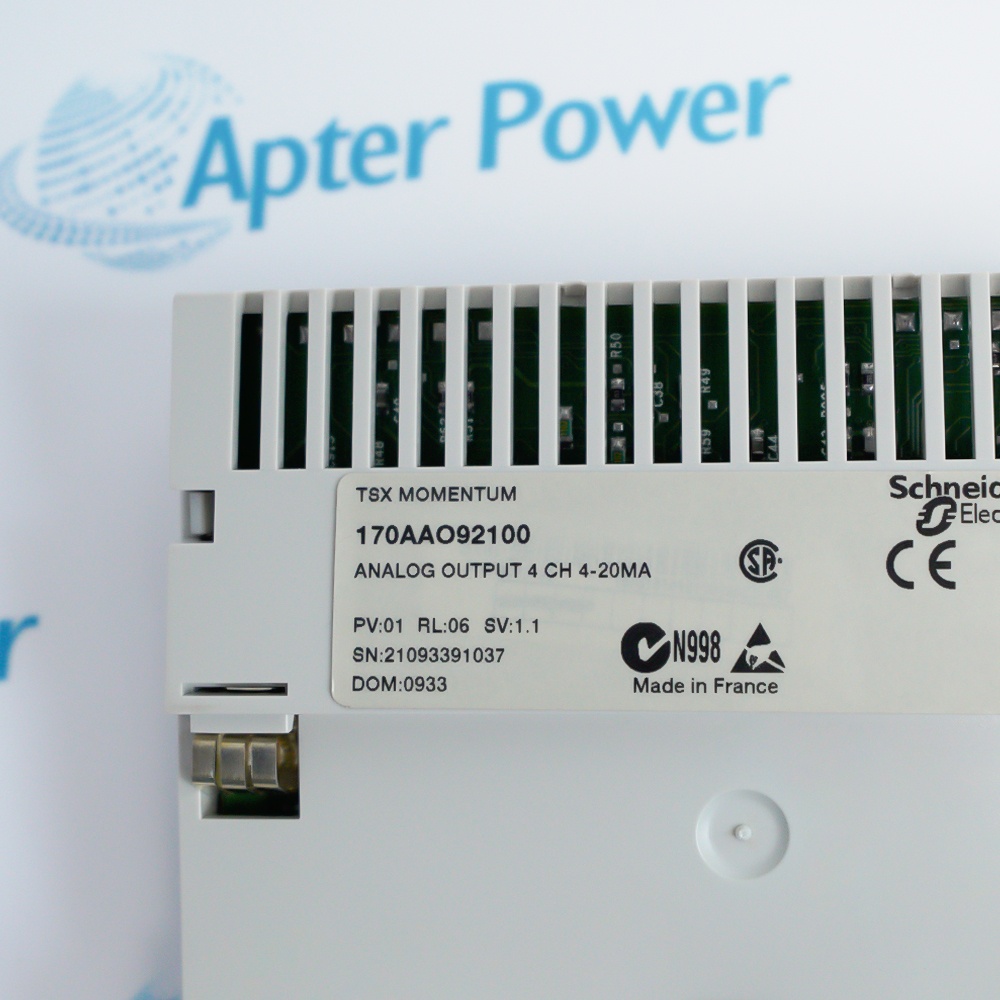

170AAO92100

/ 4.9
1001 reviews | Need a Specific Revision?
170AAO92100 is a Modicon Momentum distributed analog output base with 4 output channels, each supporting a 4–20 mA signal.
In Stock
Ships by Thursday, October 29
Fast Shipping Available
Get a quick price for 170AAO92100
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for 170AAO92100

  • Manufacturer:
    Schneider Electric
  • Part Number:
    170AAO92100
  • Product Family:
    TSX Momentum
  • Product Type:
    Distributed Analogue Output Base
  • Stock:
    1
  • Number of channels:
    4 analog outputs
  • Output type:
    Current
  • Default range:
    4…20 mA
  • Adjustable range:
    4…20 mA ±10 V or 4…20 mA
  • Resolution:
    16-bit signed
  • Channel-to-ground isolation:
    500 V AC
  • Status indication:
    4 LEDs (1 per channel)
  • Protection rating:
    IP20
  • Protective treatment:
    TC
  • Resistance to electromagnetic fields:
    10 V/m 80...1000 MHz IEC 801-3
  • Ambient air temperature for operation:
    0...60 °C
  • Ambient air temperature for storage:
    -40...85 °C
  • Relative humidity:
    95 % without condensation
  • Operating altitude:
    <= 5000 m
  • Weight:
    0.22 kg
  • Estimated shipping dimensions:
    14.3x12.3x4cm
  • Tariff Code:
    8537101190
  • Country of origin:
    France
  • Place of shipment:
    Xiamen,Fujian,China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Specifications Interoperability Installation Application Scenarios

Features:

  • Four high-resolution analog current output channels with configurable output ranges for flexible process control.
  • 500 V AC channel-to-ground isolation and IEC 801-3 electromagnetic immunity for dependable industrial performance.
  • LED channel status indication together with IP20 protection and wide environmental specifications for reliable cabinet installation.
Schneider Electric 170AAO92100 is a TSX Momentum distributed analog output base developed to provide four independent analog current outputs for industrial automation systems. High-resolution 16-bit signal conversion allows accurate control of field devices requiring standard current signals. The module supports parameter configuration before commissioning, enabling flexible adaptation to different control applications.

Reliable operation is achieved through electrical isolation, electromagnetic compatibility, and durable industrial construction. Each output channel is individually indicated by an LED, allowing operating conditions to be verified quickly during maintenance and troubleshooting. The module also supports configurable analog output ranges to satisfy a variety of process control requirements.

Schneider Electric 170AAO92100 is suitable for distributed I/O architectures used in manufacturing, process industries, utilities, and infrastructure automation. Its compact design, IP20 protection, and ability to operate in demanding environmental conditions make the module an effective solution for precise analog signal output within TSX Momentum systems.

The 170AAO92100 Schneider Electric Distributed Analogue Output Base may still be available for purchase and support from Apter Power beyond End-Of-Life (EOL) by the manufacturer (OEM).
Schneider Electric 170AAO92100 Distributed Analogue Output Base Manuals,Datasheets,Link Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
Schneider Electric 170AAO92100 Distributed Analogue Output Base Specs

General

  • Manufacturer Schneider Electric
  • Model 170AAO92100
  • Condition New Original ready stock
  • Product Family 170ADI35000,170AAO12000,170ADI74050
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
  • Platform Ecosystem Architecture: This module serves as the foundation component of Schneider Electric's Modicon Momentum distributed automation platform, supporting connection to various common communication adapters.
  • Data Bus Compatibility: The hardware is perfectly adapted and compatible with Modbus Plus, Interbus, FIPIO, Devicenet, and proprietary distributed I/O communication networks.
  • Master Control Collaboration Capability: The module can seamlessly interface with and be controlled by Schneider Quantum, Premium, Modicon M340, or other master controller systems supporting open industrial networks.
  • Full Resolution Alignment: Supports direct configuration of full 16-bit signed data format within the system integration software, maintaining low-level interoperability with mainstream HMI and PLC variable libraries.
  • Channels and Resolution: The module has four built-in high-performance independent analog output channels, providing extremely high 16-bit signed full digital conversion resolution.
  • Signal Output Range: The channel supports diverse signal loops, allowing hardware or software switching to output ±10V voltage signals and standard 4-20mA current signal loops.
  • Electrical Isolation and Safety: The channel is equipped with high-voltage electrical isolation protection of up to 500V AC between itself and system ground, effectively isolating it from strong electrical grid interference from industrial sites.
  • Status Indication and Monitoring: The front panel of the module integrates four independent LED channel status indicator lights, allowing on-site operators to visually assess the activity status of each output loop in real time.
  • Physical Dimensions: The hardware features an extremely compact design, with precise dimensions of 141.5mm width × 47.5mm depth × 125mm height, and a total weight of only 0.215kg.
  • Versatile Wall Mount Adaptability: The product design boasts excellent shock and temperature resistance, suitable not only for standard modular plug-in rails but also for direct wall mount installation in compact spaces.
  • Infrastructure and Energy Management: Modules are widely deployed in urban water supply systems, sewage treatment plants, and power distribution networks for controlling various regulating valves and frequency converters.
  • Material Handling and Conveying Control: Applied to multi-level speed synchronous analog control of automated conveyor belts, heavy-duty robotic arms, and sorting systems in modern warehousing and logistics centers.
  • Simple Mechanical Nonlinear Control: Suitable for single-axis or multi-axis distributed remote I/O control loops in small to medium-sized non-standard automated equipment, packaging machines, or machine tools.
  • Harsh Industrial Environment Access: Products have passed international mainstream certifications such as CE marking, CSA, and UL industrial equipment control certifications, suitable for high-reliability industrial scenarios such as continuous production lines.
Description
The 170AAO92100 is a distributed analog output base from the Modicon Momentum series, providing 4 outputs with a current range of 4–20 mA. This output base is part of the Modicon Momentum range, designed for distributed control architectures, including controllers and IP20 monoblock I/O modules. The 170AAO92100 offers full 16-bit signed resolution analog outputs and supports output ranges of ±10 V or 4–20 mA. There is 500 V AC isolation between channels and ground, and it features 4 LEDs for channel status indication.

As a member of the Modicon Momentum series, the 170AAO92100 exemplifies the flexibility and modularity of the family. Components can be easily snapped together to meet a wide range of distributed I/O and control requirements. The Momentum system consists of 4 fundamental components that can be combined in various ways to form versatile control systems or sub-systems.
Alternative Names
170 AAO 921 00 I70AAO92I00 17OAAO921OO 170AAI03000 170AAI14000 170AAI52040 170AAO12000 170ADI34000
Technical notes
Part of the modular Modicon Momentum family, the 170AAO92100 output base seamlessly snaps together with diverse network adapters to expand distributed I/O systems. Weighing just 0.215kg and matching strict IP20 guidelines, it offers an absolute accuracy error down to ±0.2% at 25°C for infrastructure and machine control topologies.
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
What output capability does Schneider Electric 170AAO92100 provide?
Schneider Electric 170AAO92100 supports four analog output channels with current outputs. The default operating range is 4…20 mA, and each channel offers 16-bit signed resolution for accurate signal transmission.
Why should Schneider Electric 170AAO92100 parameters be configured before commissioning?
All analog channels require parameter settings before commissioning to ensure the module operates with the correct output range and application requirements.
How does Schneider Electric 170AAO92100 improve signal reliability?
Each output channel is isolated from ground by 500 V AC, helping reduce electrical interference while maintaining stable analog output performance in industrial environments.
Can Schneider Electric 170AAO92100 operate with different output ranges?
Yes. Schneider Electric 170AAO92100 supports a default 4…20 mA output and can be configured for 4…20 mA ±10 V or 4…20 mA according to system requirements.
Does Schneider Electric 170AAO92100 provide channel status indication?
Yes. Schneider Electric 170AAO92100 features four LEDs, with one dedicated indicator for each analog output channel, allowing operators to monitor channel status easily.
Which environmental conditions are suitable for Schneider Electric 170AAO92100?
The module operates in temperatures from 0°C to 60°C and can be stored between -40°C and 85°C. It also supports up to 95% non-condensing humidity and installation at altitudes up to 5000 m.
Where can Schneider Electric 170AAO92100 be installed?
With an IP20 protection rating and TC protective treatment, Schneider Electric 170AAO92100 is intended for installation inside industrial control cabinets used in automation and process control systems.
