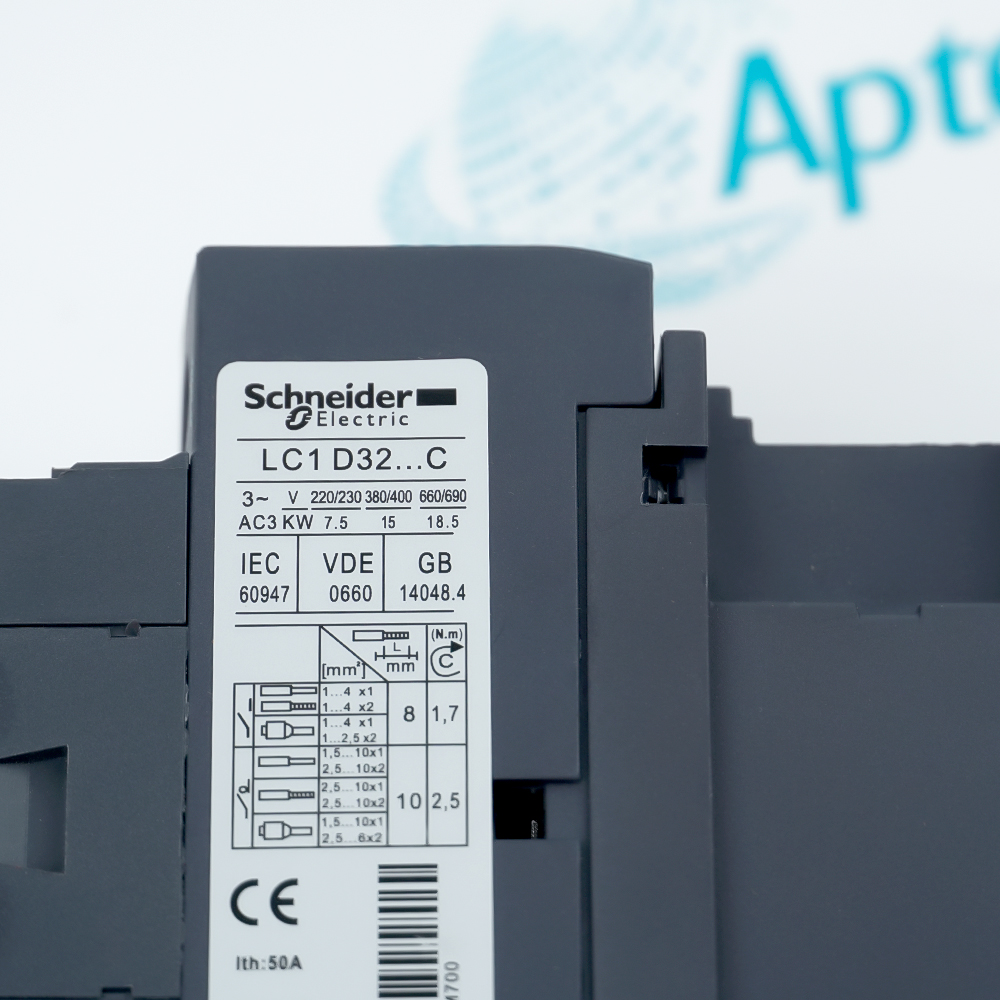

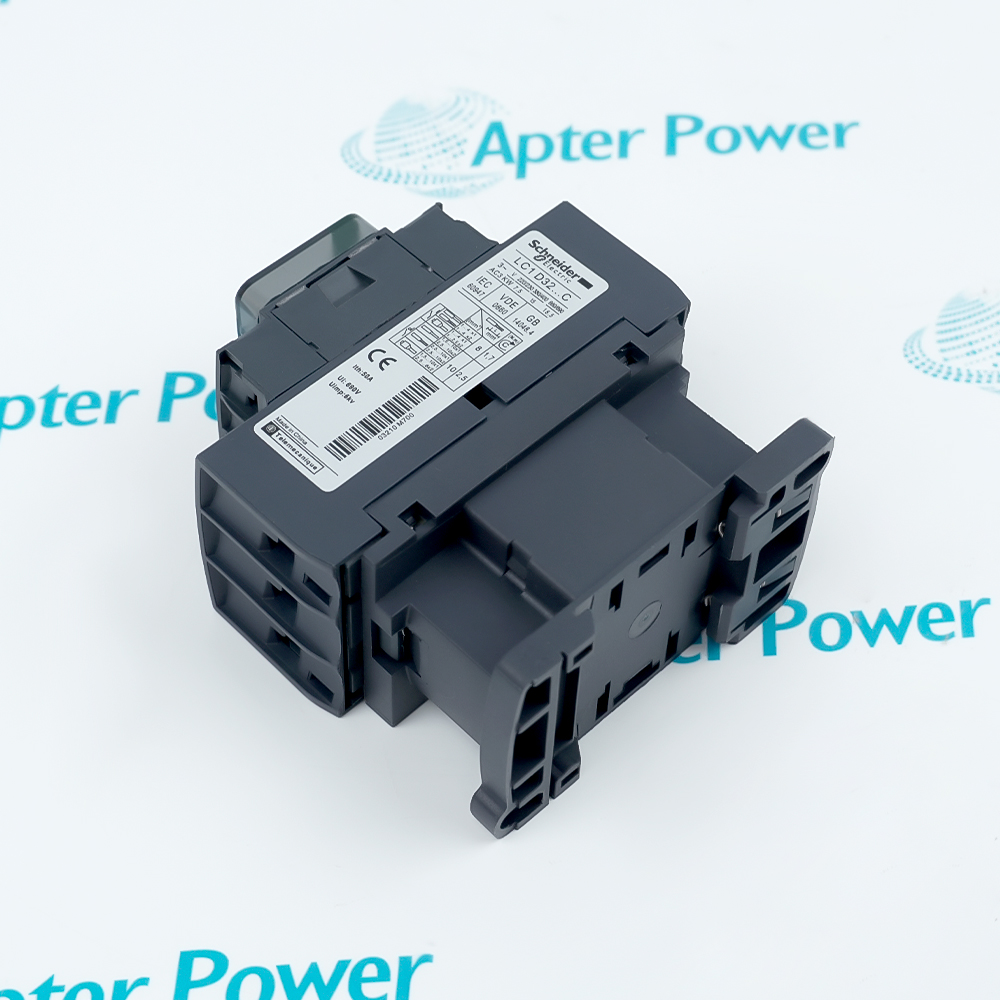

Schneider Electric LC1D32F7C is a 32 A TeSys Deca contactor with three normally open power poles and a 110 V AC 50/60 Hz coil. The China-market execution carries the CCC and GB/T compliance for motor-control panels.
In Stock
Ships by Thursday, October 29
Fast Shipping Available
Get a quick price for LC1D32F7C
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for LC1D32F7C

  • Manufacturer:
    Schneider Electric
  • Part Number:
    LC1D32F7C
  • Product Family:
    TeSys Deca
  • Product Type:
    Three-Pole Contactor
  • Stock:
    1
  • Rated operational current:
    32 A at <=440 V AC for AC-3 and AC-3e motor duty
  • Conventional free-air thermal current:
    50 A for the power circuit at <=60 deg C
  • Pole arrangement:
    3 poles with 3 normally open power contacts
  • Control circuit voltage:
    110 V AC at 50/60 Hz
  • Rated operational voltage:
    Up to 690 V AC at 25 to 400 Hz; up to 225 V DC
  • Motor power at 220/240 V:
    7.5 kW at 50/60 Hz for AC-3 and AC-3e
  • Motor power at 380/400 V:
    15 kW at 380/400 V, 50/60 Hz, AC-3 and AC-3e
  • Motor power at 500 V:
    18.5 kW at 500 V, 50/60 Hz, AC-3 and AC-3e
  • Utilization categories:
    AC-1, AC-3, AC-3e and AC-4
  • Auxiliary contacts:
    1 NO + 1 NC mechanically linked
  • Rated insulation voltage:
    690 V for the power and signaling circuits
  • Rated impulse withstand voltage:
    6 kV in accordance with IEC 60947
  • Connection:
    Screw-clamp terminals
  • Mounting:
    35 mm DIN rail or plate
  • Operating ambient temperature:
    -40 to +60 deg C
  • Storage ambient temperature:
    -60 to +80 deg C
  • Standards:
    IEC 60947-1, IEC 60947-4-1 and GB/T 14048.4
  • Product certifications:
    CE, UKCA and CCC
  • Motor power at 415/440 V:
    15 kW at 415/440 V, 50/60 Hz, AC-3 and AC-3e
  • Motor power at 660/690 V:
    18.5 kW at 660/690 V, 50/60 Hz, AC-3 and AC-3e
  • Weight:
    0.827 lbs (0.375 kg)
  • Estimated shipping dimensions:
    45 mm W x 85 mm H x 92 mm D
  • Tariff Code:
    85364900
  • Country of origin:
    China
  • Place of shipment:
    Xiamen,Fujian,China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Applications Certifications Installation & Integration Operating Environment

Features:

  • Three normally open power poles are rated 32 A for AC-3 and AC-3e duty at up to 440 V.
  • A 110 V AC 50/60 Hz coil operates the main contacts and the linked 1 NO + 1 NC auxiliary pair.
  • The regional execution is to IEC 60947, GB/T 14048.4 and CCC requirements.
This order code identifies the TeSys Deca regional execution with screw terminals, a 110 V AC coil and the three-pole contact arrangement.

It closes or interrupts a three-phase motor circuit from a low-power command and supplies auxiliary contact states for permissive or interlock logic.

Match the complete suffix, coil supply, motor voltage, coordination type and mounting method before installing the contactor in an existing starter.

Apter Power can support exact-model configuration review and quotation for Schneider Electric LC1D32F7C.
Verified resources for Schneider Electric LC1D32F7C: Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
  • Three-phase motor starters in machinery can use the contactor for routine start-stop switching within its AC-3 rating.
  • HVAC and pumping panels can use the linked auxiliary contacts for electrical interlocking and run-state feedback.
  • Industrial control cabinets can mount the device on a 35 mm rail or plate where screw-clamp field wiring is required.
  • The regional execution carries CE, UKCA and CCC product certifications.
  • IEC 60947-1 and IEC 60947-4-1 define the principal low-voltage switchgear requirements.
  • GB/T 14048.4 is included for the contactor and motor-starter application in the target market.
  • The 45 mm wide device may be mounted on a 35 mm DIN rail or fixed directly to a plate.
  • Screw-clamp terminals provide the conductor interface for power and control wiring.
  • The linked 1 NO and 1 NC contacts can be incorporated into interlock and feedback circuits.
  • Normal operation is from -40 to +60 deg C without applying another product's derating data.
  • Storage conditions extend from -60 to +80 deg C before the contactor is installed and energized.
  • The thermal and motor-duty ratings must be evaluated inside the actual enclosure and coordination scheme.
Description
The LC1D32F7C combines a compact three-pole power contactor with a 110 V AC control coil and mechanically linked 1 NO + 1 NC auxiliary contacts. Its 32 A AC-3/AC-3e rating supports three-phase motor switching while the auxiliary pair provides interlocking or state feedback inside the starter circuit.

This execution covers common panel duties from 7.5 kW at 220/240 V through 15 kW at 380/440 V and 18.5 kW at 500/690 V. Screw-clamp terminals and either DIN-rail or plate mounting allow the device to be integrated into machine, HVAC and process-control assemblies without a separate mounting adapter.

Selection must be based on the complete LC1D32F7C reference because the C suffix identifies the regional execution. Coil voltage, utilization category, protective device coordination, conductor capacity and available panel space should all be verified before a new installation or like-for-like exchange.
Alternative Names
LC1D32F7 Schneider Electric LC1D32F7C TeSys Deca LC1D32F7C LC1D32F7C 32 A Contactor LC1D32F7C 110 V AC Coil Contactor Schneider LC1D32F7C Telemecanique LC1D32F7C LC1D32F7C Catalog Number
Technical notes
When LC1D32F7C is replaced, keep the 110 V AC coil code and verify the upstream short-circuit protection against the actual motor duty; a visually similar TeSys Deca contactor may use a different coil or regional certification set.
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
Why does the final C matter when ordering LC1D32F7C?
The suffix belongs to the China-market execution; retain it when CCC/GB/T compliance and the exact catalog identity are required.
Which starter duty is the reference point for LC1D32F7C selection?
Use the 32 A AC-3/AC-3e rating and the motor power listed for the actual supply voltage, not the thermal-current value alone.
How can LC1D32F7C report its switching state to the control circuit?
Its mechanically linked 1 NO and 1 NC auxiliary contacts can be wired for feedback, seal-in logic or electrical interlocking.
Can LC1D32F7C be fitted without changing the panel mounting scheme?
It supports a 35 mm DIN rail or plate, but hole pattern, conductor routing and 45 x 85 x 92 mm device envelope still require checking.
What evidence should be reviewed before substituting LC1D32F7C?
Compare coil voltage, utilization category, terminal capacity, coordination and certification against the installed starter.
Which LC1D32F7C nameplate and motor details prevent a regional-ordering error?
Provide a clear nameplate image, quantity, destination, motor kW and voltage, required delivery date and any specified protection coordination.
