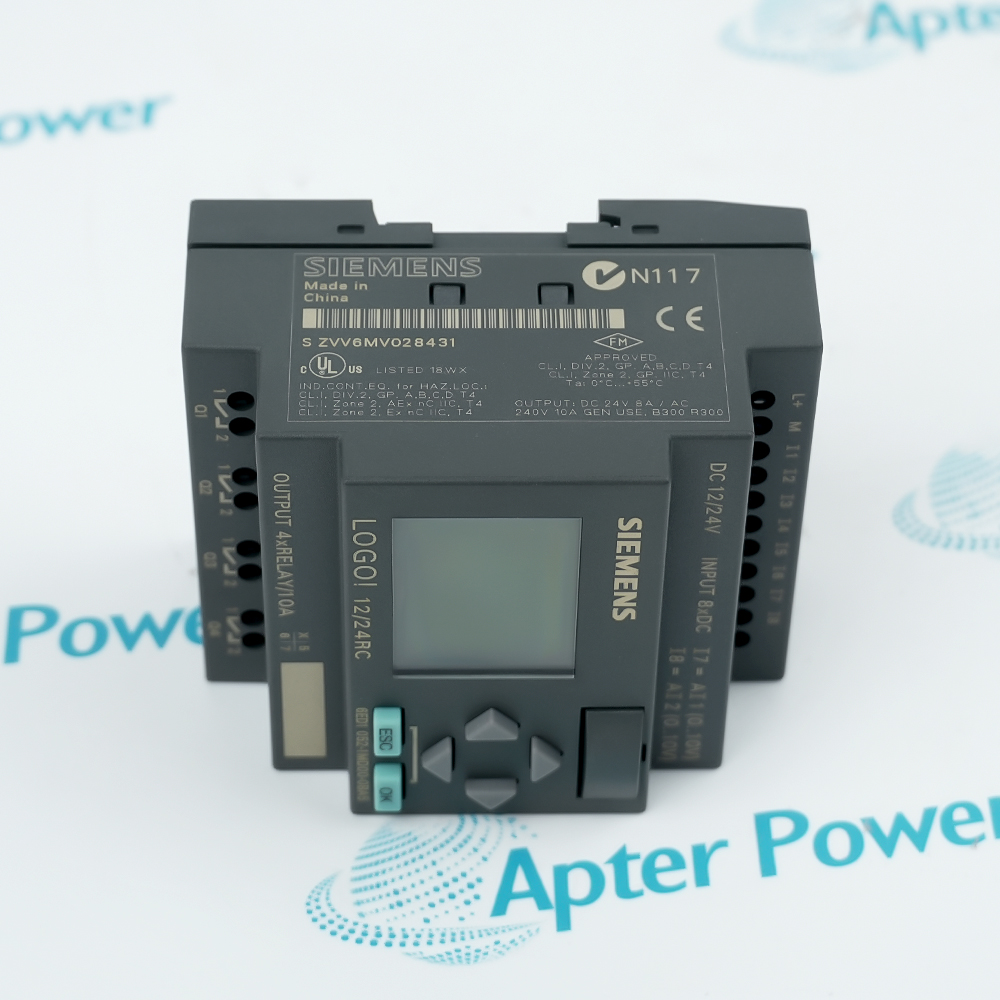

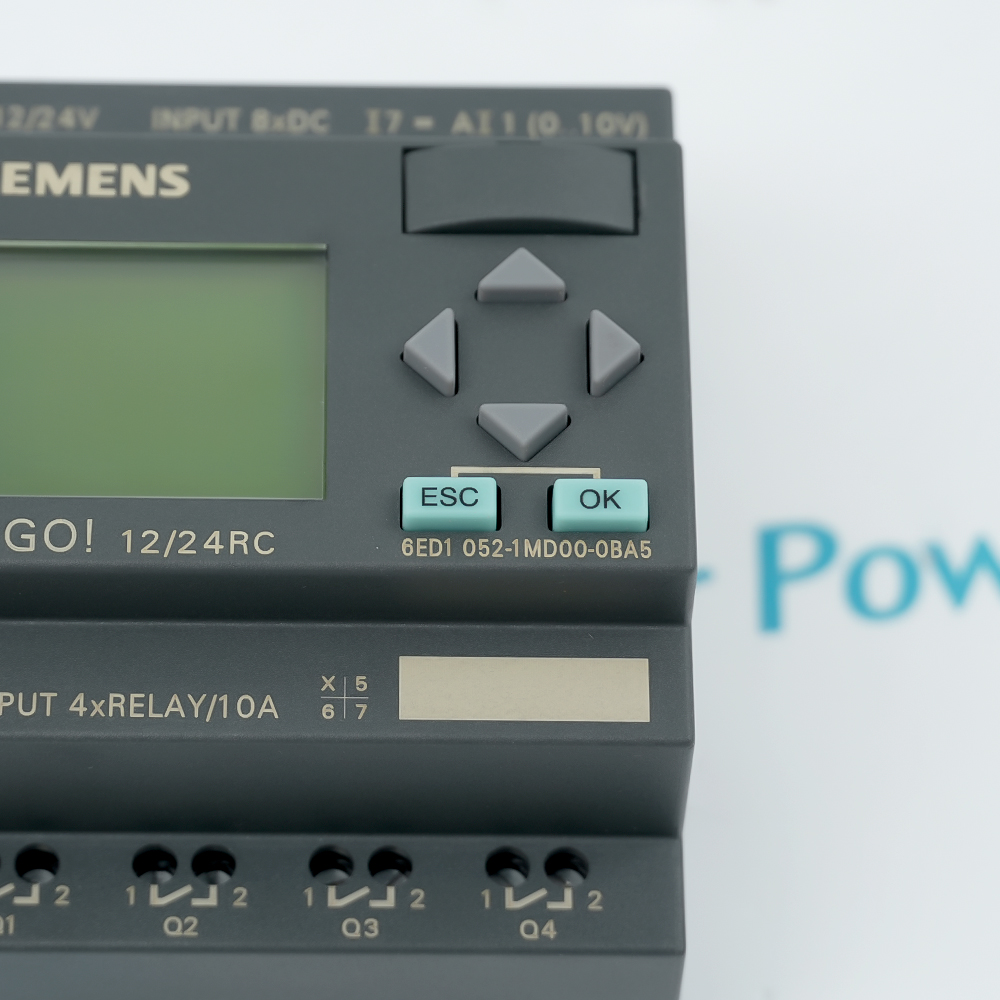

Siemens 6ED1052-1MD00-0BA5 is a display-equipped LOGO! 12/24RC logic module that processes eight digital inputs and switches four relay outputs for compact automation control.
In Stock
Ships by Wednesday, October 28
Fast Shipping Available
Get a quick price for 6ED1052-1MD00-0BA5
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for 6ED1052-1MD00-0BA5

  • Manufacturer:
    Siemens
  • Part Number:
    6ED1052-1MD00-0BA5
  • Product Family:
    Siemens LOGO
  • Product Type:
    LOGO! 12/24RC Logic Module
  • Stock:
    1
  • Display:
    Yes
  • Mounting:
    35 mm DIN rail; 4 spacing units wide
  • Rated DC Supply:
    12 V DC / 24 V DC
  • Permissible DC Range:
    10.8 to 28.8 V DC
  • Time Switching Clocks:
    8
  • Clock Power Reserve:
    80 h
  • Digital Inputs:
    8; 2 support 0 to 10 V analog mode
  • Digital Outputs:
    4 relay outputs
  • Short-Circuit Protection:
    No; external fusing necessary
  • Inductive Load Capacity:
    3 A max.
  • Resistive Load Capacity:
    10 A max.
  • Radio Interference Class:
    EN 55011 Class B; residential use
  • Degree of Protection:
    IP20
  • CE and CSA Approvals:
    Yes
  • UL and FM Approvals:
    Yes
  • Standards:
    IEC 61131; VDE 0631
  • Marine Approval:
    Yes
  • Operating Temperature:
    0 to 55 °C
  • Program Capacity:
    130 function blocks
  • Expansion:
    Expandable with extra modules
  • Weight:
    0.503 lbs (0.228 kg)
  • Estimated shipping dimensions:
    10.5x8.3x7.5cm
  • Tariff Code:
    8537101190
  • Country of origin:
    Germany
  • Place of shipment:
    Xiamen,Fujian,China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Channel Allocation Load Switching Program Planning Order Verification

Features:

  • LOGO! 12/24RC base module with integrated display
  • Eight digital inputs, with two supporting 0 to 10 V analog mode
  • Four relay outputs with external fusing required
Siemens 6ED1052-1MD00-0BA5 provides compact programmable control from a 12 V DC or 24 V DC supply within the permitted 10.8 to 28.8 V DC range.

Two of the eight inputs can be assigned to 0 to 10 V analog signals, while the module also provides four relay outputs and supports up to 130 function blocks.

For load switching, apply the documented maximum of 10 A for resistive loads or 3 A for inductive loads and provide external fusing because the outputs do not include short-circuit protection.

The Siemens 6ED1052-1MD00-0BA5 LOGO! 12/24RC Logic Module may still be available for purchase and support from Apter Power beyond End-Of-Life (EOL) by the manufacturer (OEM).
Siemens 6ED1052-1MD00-0BA5 LOGO! 12/24RC Logic Module Manuals,Datasheets,Link Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.

Plan Input Use Before Wiring

  • Input Count: Siemens 6ED1052-1MD00-0BA5 provides eight digital inputs for the base control task.
  • Analog Option: Two of those inputs can instead be configured for 0 to 10 V analog signals.
  • Channel Plan: Reserve the two analog-capable inputs for analog measurement when required and use the remaining inputs for digital states.
  • Configuration Check: Make the software channel assignment match the physical wiring before commissioning Siemens 6ED1052-1MD00-0BA5.

Apply the Relay Outputs Correctly

  • Contact Type: Siemens 6ED1052-1MD00-0BA5 provides four relay outputs rather than transistor outputs.
  • Resistive Loads: Use a maximum contact capacity of 10 A when the connected load is resistive.
  • Inductive Loads: Use a maximum contact capacity of 3 A when the connected load is inductive.
  • Protection Plan: Provide external fusing because the Siemens 6ED1052-1MD00-0BA5 outputs do not include short-circuit protection.

Fit the Control Task to LOGO!

  • Logic Budget: Count the required functions before migration because Siemens 6ED1052-1MD00-0BA5 stores up to 130 function blocks.
  • Local Setup: Use the integrated display for status and local parameter work required by the configured LOGO! program.
  • Timed Functions: Account for the internal clock when the control sequence depends on scheduled operations.
  • Power Interruption: The clock backup is approximately 80 hours, so longer outages require the time setting to be checked after restart.

Match the Complete 0BA5 Configuration

  • Full Number: Verify 6ED1052-1MD00-0BA5 in full because a nearby LOGO! order number can represent a different generation or I/O arrangement.
  • Supply Identity: Confirm the required unit is the 12/24 V DC LOGO! 12/24RC version before reviewing the panel power circuit.
  • I/O Identity: Match the eight digital inputs, two 0 to 10 V analog-capable channels and four relay outputs to the existing wiring schedule.
  • Expansion Review: List any modular LOGO! expansion separately rather than assuming it is included with Siemens 6ED1052-1MD00-0BA5.
Description
Siemens 6ED1052-1MD00-0BA5 is a display-equipped LOGO! 12/24RC logic module with eight digital inputs, including two inputs that can operate in 0 to 10 V analog mode, and four relay outputs. Its program memory supports 130 function blocks and the base unit can be expanded with extra modules.

Siemens 6ED1052-1MD00-0BA5 accepts either 12 V DC or 24 V DC within a permissible 10.8 to 28.8 V DC range. The four-spacing-unit housing mounts on a 35 mm DIN rail and measures 72 mm wide, 90 mm high and 55 mm deep.

The relay contacts on Siemens 6ED1052-1MD00-0BA5 switch up to 10 A with a resistive load or 3 A with an inductive load. The outputs do not include short-circuit protection, so external fusing is necessary for the connected circuits.

Siemens 6ED1052-1MD00-0BA5 operates from 0 to 55 °C with IP20 protection. Its eight time-switching clocks retain a power reserve of 80 hours, and the unit carries CE, CSA, UL, FM and marine approvals.
Alternative Names
6ED10521MD000BA5 6ED1052 1MD00 0BA5 6ED1052-1MD00-0BA 5 Siemens 6ED1052-1MD00-0BA5 LOGO 12/24RC 0BA5 6ED1052-1MD00-0BA5 Logic Module 6ED1052-1MD00-0BA5 LOGO Module 6EDI052-1MDOO-OBA5
Technical notes
Siemens 6ED1052-1MD00-0BA5 combines an integrated display, eight digital inputs including two analog-capable inputs, and four relay outputs. Verify the complete 0BA5 order number and 12/24 V DC supply range.
