214-2BM02

/ 4.9
1001 reviews | Need a Specific Revision?

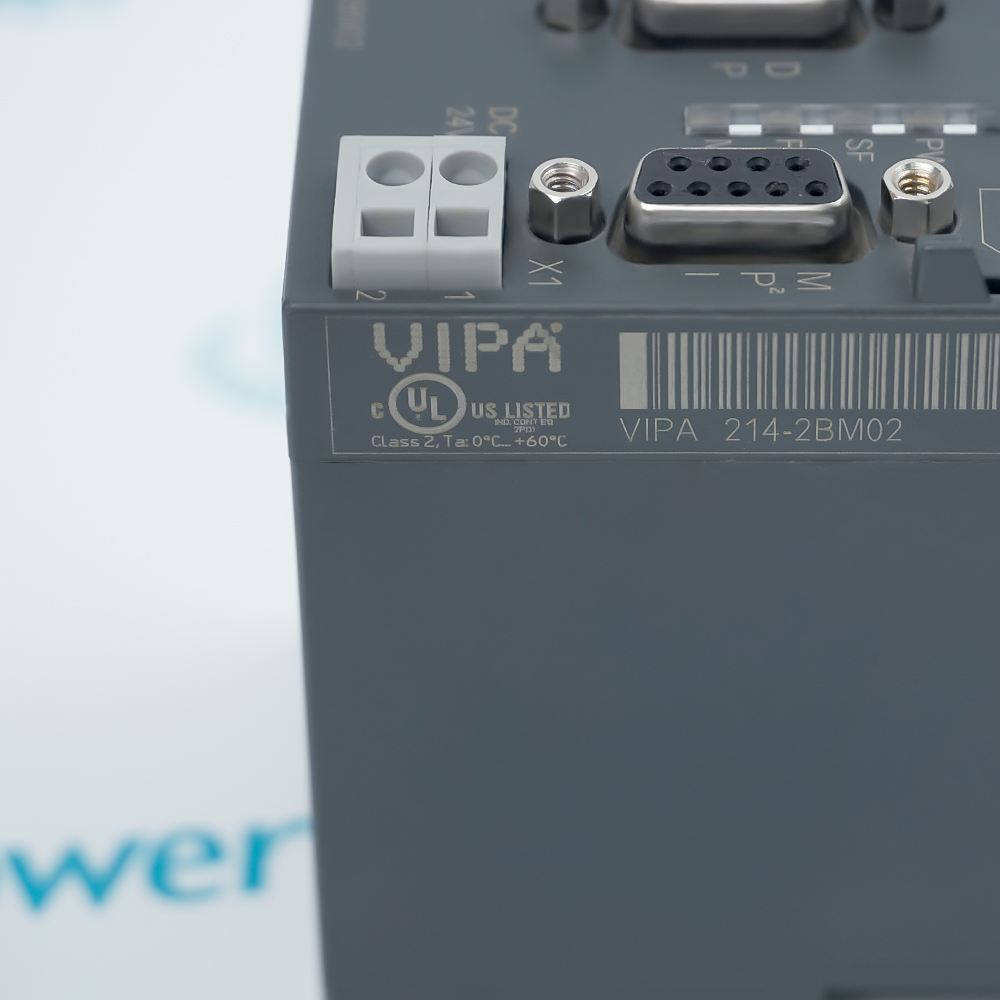

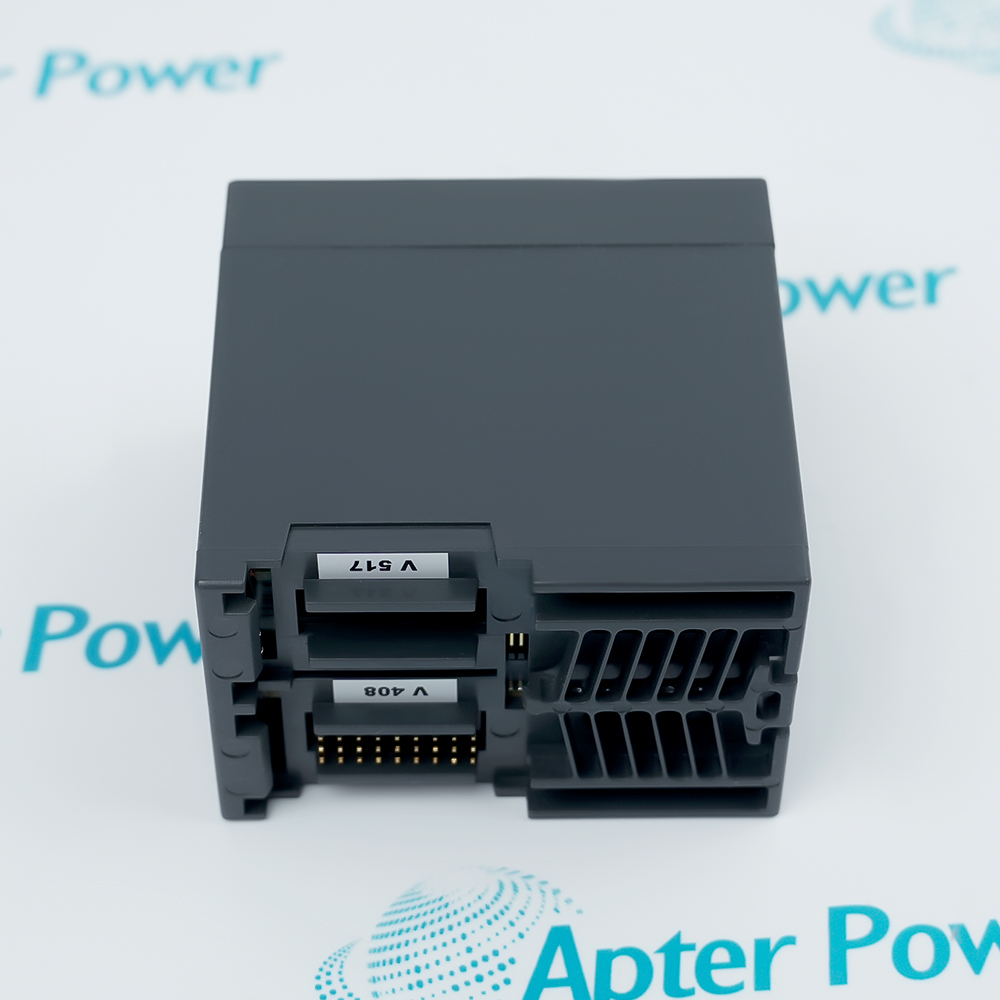

VIPA 214-2BM02 is a System 200V CPU 214DPM controller module with an integrated PROFIBUS-DP master for compact distributed-control installations.
In Stock
Ships by Wednesday, October 28
Fast Shipping Available
Get a quick price for 214-2BM02
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for 214-2BM02

  • Manufacturer:
    VIPA
  • Part Number:
    214-2BM02
  • Product Family:
    VIPA
  • Product Type:
    System 200V CPU 214DPM Module
  • Stock:
    1
  • Control Platform:
    VIPA System 200V
  • CPU Type:
    CPU 214DPM
  • Integrated Network Role:
    PROFIBUS-DP master
  • Work Memory:
    48 / 80 KB
  • Supply Voltage:
    24 VDC
  • Power Consumption:
    5 W
  • Maximum Current:
    1.5 A
  • PROFIBUS Speed:
    9.6 kbps to 12 Mbps
  • Weight:
    0.15 kg
  • Estimated shipping dimensions:
    5.08 x 7.6 x 8 cm
  • Tariff Code:
    Please confirm the destination before shipping
  • Place of shipment:
    Xiamen,Fujian,China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals CPU Match PROFIBUS Setup Startup Recovery Product Applications

Features:

  • CPU and fieldbus master: Program execution and PROFIBUS-DP coordination share one System 200V module.
  • Compact installed footprint: The narrow controller supports distributed-machine architectures with limited panel space.
  • Recoverable configuration: A verified project and network record provide the basis for controlled replacement.
214-2BM02 serves as the control and PROFIBUS coordination point in an installed VIPA System 200V rack.

The correct replacement decision is based on the exact model, project revision, memory use and network device map, not on enclosure appearance.

Commissioning restores the controller and bus in stages so unexpected outputs or missing stations are found before production release.

Apter Power can help confirm the VIPA 214-2BM02 System 200V CPU 214DPM Module, project evidence, rack layout, PROFIBUS role and replacement scope before quotation.
VIPA 214-2BM02 System 200V CPU 214DPM Module Manuals,Datasheets,Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
  • Exact identity: Match 214-2BM02 and CPU 214DPM rather than a neighboring 215 or 216 variant.
  • Project revision: Verify the backup belongs to the installed machine and hardware arrangement.
  • Memory demand: Confirm the existing application fits the documented CPU configuration.
  • Rack layout: Record adjacent modules and connectors before removal.
  • Master role: Preserve the CPU's assigned PROFIBUS-DP master configuration.
  • Bus address: Record and restore the approved network identity.
  • Device map: Retain slave addresses, configuration data and diagnostic baseline.
  • Cable integrity: Check shielding and termination before replacing controller hardware.
  • Safe startup: Keep hazardous outputs inhibited while the CPU and network initialize.
  • CPU diagnostics: Resolve controller faults before fieldbus testing.
  • Bus proof: Confirm every required PROFIBUS device returns without configuration errors.
  • Functional release: Test controlled machine sequences against the approved project.
  • Compact machine control: Executes automation logic in a System 200V rack.
  • Distributed I/O: Coordinates PROFIBUS-DP devices from the integrated master.
  • Legacy-system repair: Restores an exact CPU and fieldbus role when project evidence is retained.
  • Migration preparation: Supplies the verified controller and network baseline for modernization.
Description
214-2BM02 combines a VIPA System 200V CPU with an integrated PROFIBUS-DP master, allowing the controller program and distributed fieldbus to share one compact module.

The installed behavior of 214-2BM02 depends on its saved project, memory configuration, bus address and PROFIBUS device map. VIPA assigns CPU 215 and CPU 216 separate order numbers and memory capacities, so a different CPU code requires project and hardware review.

Before replacing 214-2BM02, service staff should secure the approved project and record the rack and network configuration. Restart then proves CPU diagnostics, bus recovery and controlled machine functions before automatic operation is restored.
Alternative Names
2142BM02 214 2BM02 CPU 214DPM
Technical notes
214-2BM02 is both a controller CPU and a PROFIBUS-DP master. Back up the approved project, record the bus address, device map and adjacent modules, and isolate rack power before exchange. Keep hazardous outputs inhibited during restart. Stop if the project revision, memory configuration or network identity cannot be positively matched to the installed machine.
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
What should be saved before replacing 214-2BM02?
Secure the approved controller project and record the rack layout, memory use, PROFIBUS address, slave map and current diagnostics before power is removed.
Can a VIPA CPU 215 or CPU 216 be fitted in place of 214-2BM02?
Do not assume a direct substitution. VIPA lists separate order numbers and memory capacities for those CPUs, so review the project, memory demand and fieldbus requirements before any migration.
Why can 214-2BM02 enter run mode while PROFIBUS devices remain offline?
CPU run state does not prove the fieldbus configuration. Compare the restored master project, address, cabling, termination and slave diagnostics with the recorded baseline.
How should maintenance commission 214-2BM02 after exchange?
Recover stable CPU diagnostics first, then prove each required PROFIBUS device and selected machine functions with outputs controlled before returning to automatic operation.
What should a site do if the project for 214-2BM02 cannot be found?
Stop the exchange and recover an authorized backup or migration plan. A blank or unrelated CPU cannot safely reproduce the machine application.
What information should accompany an urgent request for 214-2BM02?
Provide the full model, rack arrangement, software and backup status, PROFIBUS layout, fault symptoms and required recovery date so compatibility can be reviewed.
