6GK1105-2AB10

/ 4.9
1001 reviews | Need a Specific Revision?

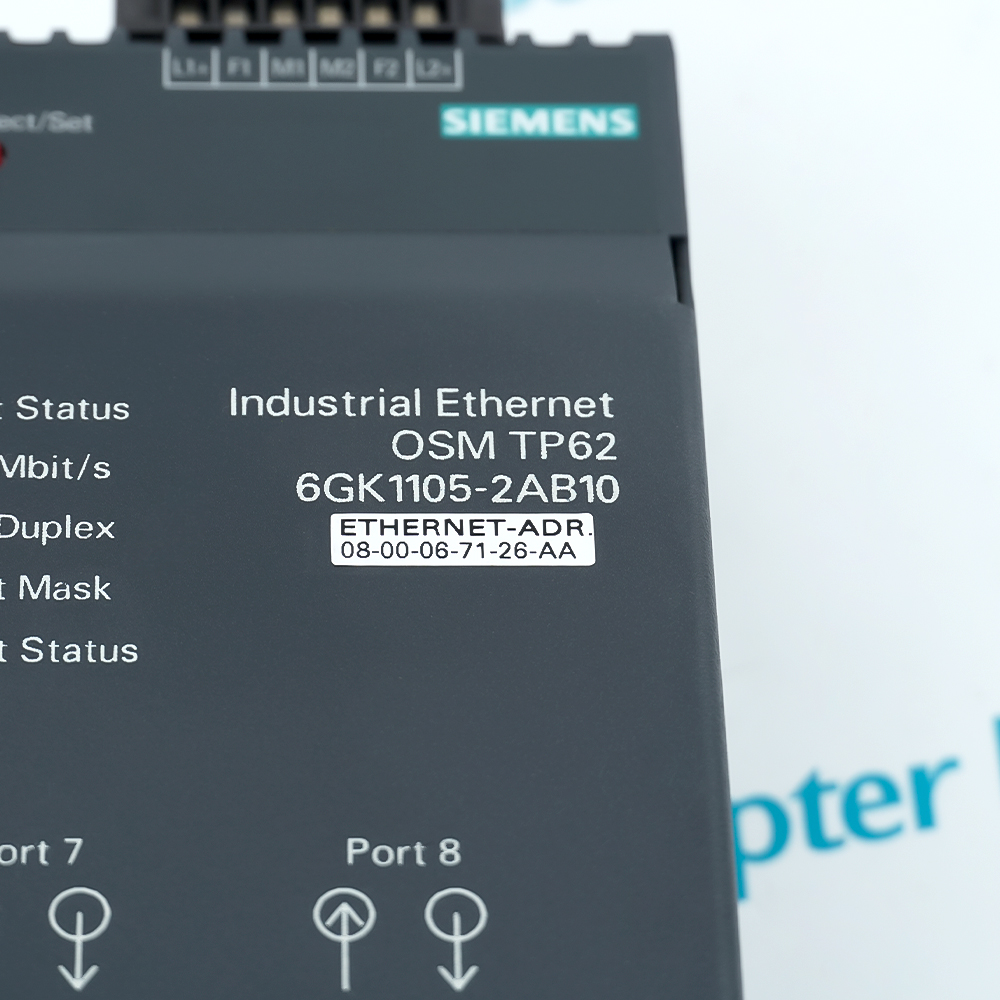

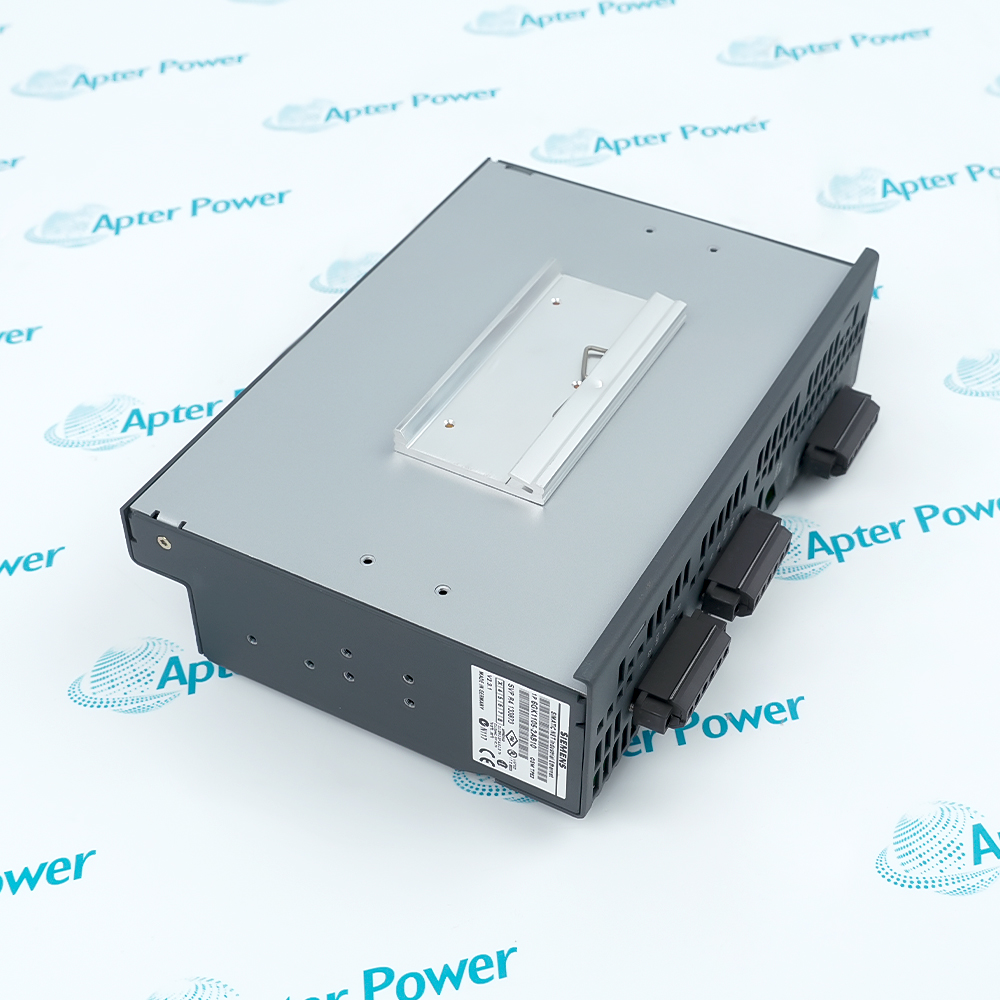

Siemens 6GK1105-2AB10 is an OSM TP62 optical switch module that couples two 100 Mbit/s fiber ports with six 10/100 Mbit/s RJ45 ports and monitors eight digital inputs.
In Stock
Ships by Wednesday, October 28
Fast Shipping Available
Get a quick price for 6GK1105-2AB10
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for 6GK1105-2AB10

  • Manufacturer:
    Siemens
  • Part Number:
    6GK1105-2AB10
  • Product Family:
    Siemens SCALANCE
  • Product Type:
    Optical Switch Module
  • Stock:
    1
  • Device Designation:
    OSM TP62
  • Optical Ports:
    2 x 100 Mbit/s FOC
  • Copper Ports:
    6 x 10/100 Mbit/s RJ45
  • Digital Inputs:
    8
  • Supply Voltage:
    24 V DC
  • Redundant Power Infeed:
    Supported
  • Signaling Contact:
    Integrated
  • Redundancy Manager:
    Integrated
  • Network Management:
    Integrated
  • IP Assignment Path:
    Serial interface with zero-modem cable
  • Web Management:
    HTTP access over Industrial Ethernet
  • Weight:
    4.694 lbs (2.129 kg)
  • Estimated shipping dimensions:
    34.7x26.4x13.4cm
  • Tariff Code:
    85176200
  • Country of origin:
    Germany
  • Place of shipment:
    Xiamen,Fujian,China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Applications Monitoring & Control Integration Configuration & Programming

Features:

  • Two 100 Mbit/s fiber ports extend Industrial Ethernet beyond the six local 10/100 Mbit/s RJ45 connections.
  • Eight digital inputs bring external binary states into the module's monitoring functions.
  • Redundant 24 V DC power, a signaling contact, and an integrated redundancy manager separate supply, alarm, and network recovery paths.
The OSM designation identifies an optical switch module, while TP62 describes its two-fiber and six-copper port arrangement.

Serial access provides the initial route for IP address assignment before browser management is available through the Ethernet network.

Web Based Management displays module status and applies network settings after the configured IP address becomes reachable.

The Siemens 6GK1105-2AB10 OSM TP62 Optical Switch Module may still be available for purchase and support from Apter Power beyond End-Of-Life (EOL) by the manufacturer (OEM).
Siemens 6GK1105-2AB10 OSM TP62 Optical Switch Module Manuals,Datasheets,Link Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
  • Supports switched Industrial Ethernet plant-bus and terminal-bus networks used in SIMATIC PCS 7 automation systems.
  • Segments industrial networks so that local traffic remains within its assigned section, reducing unnecessary traffic across the wider system.
  • Provides resilient network paths for production facilities that require redundant optical-ring operation and rapid communication recovery.
  • Eight digital-input states can be read through the management information base using SNMP network-management requests.
  • Configured input changes can generate e-mail notifications, SNMP traps or entries in the internal event log for centralized supervision.
  • Front-panel indicators and the floating signaling contact report selected port-link, power-supply and operating fault conditions.
  • Six RJ45 twisted-pair ports connect Industrial Ethernet stations or complete copper network segments at 10/100 Mbit/s.
  • Two 100 Mbit/s BFOC optical ports integrate compatible OSM modules into multimode fiber-optic bus and ring structures.
  • The standby synchronization interface supports paired OSM units for redundant coupling between separate rings or network segments.
  • IP address, subnet mask and gateway settings can be assigned through the serial command-line interface or supported SIMATIC configuration tools.
  • Integrated Web-Based Management provides administrator access for changing settings and user access for viewing status and counter data.
  • Configuration files and firmware can be loaded or saved through TFTP, supporting controlled setup backup and device maintenance.
Description
Fiber and copper segments share one switching point in Siemens 6GK1105-2AB10, the OSM TP62 optical switch module whose two 100 Mbit/s FOC ports exchange Industrial Ethernet traffic with six 10/100 Mbit/s RJ45 ports.

Eight digital inputs enter 6GK1105-2AB10 separately from the switched data ports, allowing external binary conditions to be included in the module's monitoring functions without occupying an Ethernet connection.

Inside 6GK1105-2AB10, the integrated redundancy manager evaluates the configured network path, while the redundant 24 V DC infeed and signaling contact provide distinct power and hardwired status circuits.

Initial address assignment for 6GK1105-2AB10 uses the serial interface and a zero-modem connection; after an IP address is active, Web Based Management exchanges configuration and status information over the Industrial Ethernet network.
Alternative Names
6GK11052AB10 6GK1105 2AB10 6GK 1105 2AB10 Siemens 6GK1105-2AB10 6GK1105-2AB10 OSM TP62 6GK1105-2AB10 optical switch module 6GKI105-2AB10 6GK1105-2ABI0
Technical notes
Siemens 6GK1105-2AB10 combines two fiber ports, six RJ45 ports, eight digital inputs, redundant 24 V DC power, and integrated redundancy and network management in the OSM TP62.
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
What does TP62 specify on 6GK1105-2AB10?
For 6GK1105-2AB10, TP62 identifies the port mix of two 100 Mbit/s fiber connections and six 10/100 Mbit/s twisted-pair RJ45 ports.
How is an initial IP address assigned to 6GK1105-2AB10?
A PC connects to the serial interface of 6GK1105-2AB10 through a zero-modem cable, writes the IP address, and restarts the module.
Why are eight digital inputs included on 6GK1105-2AB10?
The eight inputs on 6GK1105-2AB10 collect external binary states for module monitoring without occupying switched Ethernet ports.
After serial setup, where is 6GK1105-2AB10 managed?
Once its IP address is active, 6GK1105-2AB10 is accessed through Web Based Management over the Industrial Ethernet network.
Does redundant power on 6GK1105-2AB10 replace the network redundancy manager?
No. The 6GK1105-2AB10 uses separate 24 V DC supply paths for power continuity and an integrated manager for network-path redundancy.
Which media can exchange traffic through 6GK1105-2AB10?
The switching logic in 6GK1105-2AB10 forwards Industrial Ethernet frames between its two optical ports and six copper RJ45 ports.
