    Apter Power supports sourcing and configuration review for installed SINAMICS S120 motor-module applications.

6SL3120-1TE31-3AA3

/ 4.9
1001 reviews | Need a Specific Revision?

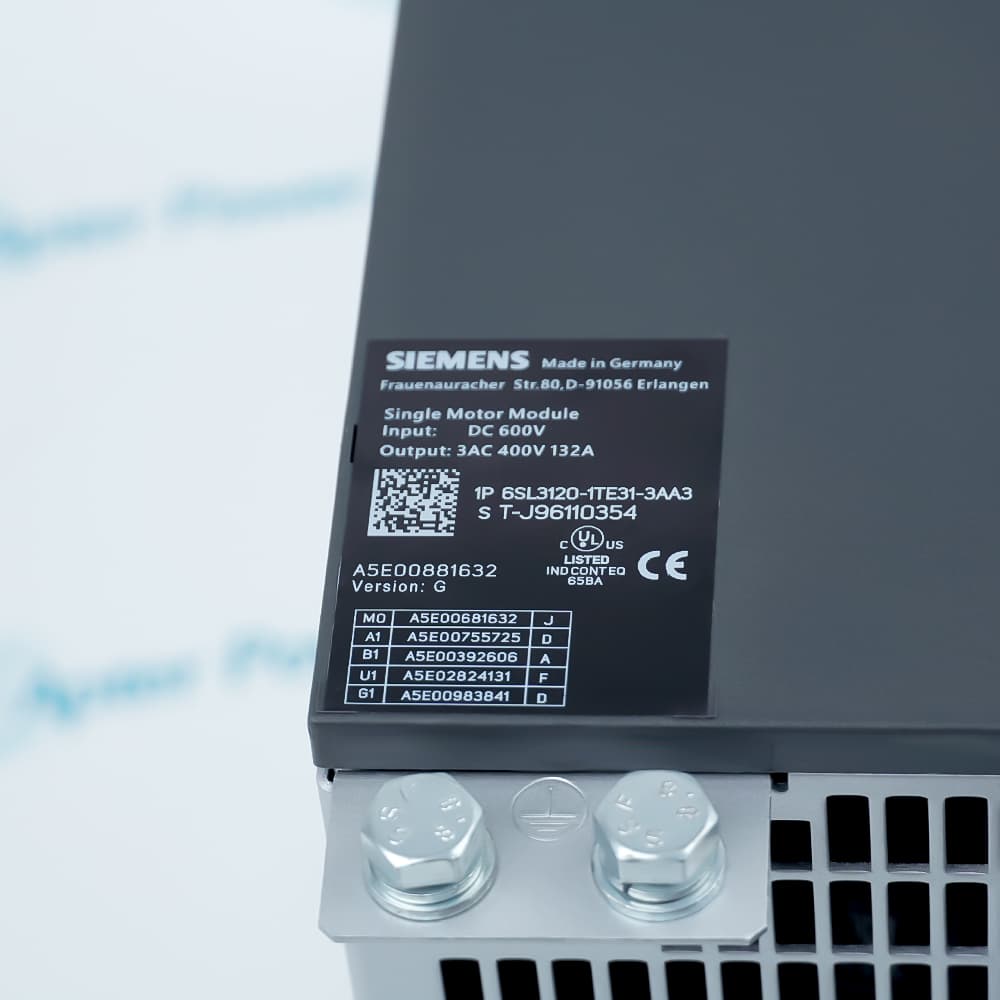

Siemens 6SL3120-1TE31-3AA3 SINAMICS S120 Single Motor Module, 132 A, 71 kW.
In Stock
Ships by Wednesday, October 28
Fast Shipping Available
Get a quick price for 6SL3120-1TE31-3AA3
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for 6SL3120-1TE31-3AA3

  • Manufacturer:
    Siemens
  • Part Number:
    6SL3120-1TE31-3AA3
  • Product Family:
    Siemens SINAMICS
  • Product Type:
    SINAMICS S120 Single Motor Module
  • Stock:
    1
  • Rated Output Current:
    132 A
  • Rated Power:
    71 kW
  • DC-Link Voltage Range:
    510-720 V DC
  • Rated Pulse Frequency:
    4 kHz
  • Cooling Method:
    Internal air cooling
  • Weight:
    21 kg
  • Estimated shipping dimensions:
    30 x 62.9 x 27 cm
  • Tariff Code:
    8537101190
  • Country of origin:
    Germany
  • Place of shipment:
    Xiamen,Fujian,China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals System Fit Installation Commissioning Applications

Features:

  • SINAMICS S120 booksize Single Motor Module rated 132 A and 71 kW.
  • Operates from the documented 510–720 V DC-link range.
  • Uses internal air cooling and DRIVE-CLiQ within the modular drive system.
The module controls one motor branch within a common SINAMICS S120 DC-link and control architecture.

The complete article number ties the electrical rating to a specific booksize frame and cooling arrangement.

Replacement work therefore joins mechanical fit, DC-link safety, DRIVE-CLiQ topology, and the approved drive data set in one commissioning path.

For Siemens 6SL3120-1TE31-3AA3 SINAMICS S120 Single Motor Module inquiries, Apter Power can help review the installed rating, frame, and topology.
Siemens 6SL3120-1TE31-3AA3 SINAMICS S120 Single Motor Module Manuals,Datasheets,Link Important Notice: Other accessories, manuals, cables, calibration data, software, and related items are not included unless identified in the stock item description.
  • Match the complete Siemens article number rather than selecting from the S120 family name alone.
  • Retain the 132 A output and 71 kW power rating for the installed motor branch.
  • Confirm the 510–720 V DC-link range against the existing line and infeed design.
  • Reproduce the installed DRIVE-CLiQ topology and connector arrangement.
  • Isolate and discharge the DC link under the approved site procedure before handling the module.
  • Confirm the 30 x 62.9 x 27 cm frame and required cabinet clearances.
  • Keep the internal-air-cooling path unobstructed through the installed cabinet layout.
  • Restore the original power, motor, shield, and protective-earth connection arrangement.
  • Restore only the approved drive data set for the installed motor branch.
  • Verify DRIVE-CLiQ topology recognition before applying a motor command.
  • Compare parameters, firmware requirements, and active diagnostics with the maintenance record.
  • Confirm direction, current, and commanded operation under controlled commissioning conditions.
  • Single-axis motor control within installed SINAMICS S120 modular drive systems.
  • Booksize drive branches requiring the documented 132 A and 71 kW module rating.
  • Common-DC-link machinery using DRIVE-CLiQ communication and internal air cooling.
  • Exact-article replacement where frame, cabling, topology, and drive data must be retained.
Description
6SL3120-1TE31-3AA3 is a Siemens SINAMICS S120 booksize Single Motor Module for one controlled motor branch in a modular DC-link drive system, rated 132 A and 71 kW with internal air cooling.

6SL3120-1TE31-3AA3 must be selected by the complete article number, DC-link range, frame, cooling method, and DRIVE-CLiQ arrangement because nearby S120 codes can represent different power or mechanical variants.

6SL3120-1TE31-3AA3 returns to service through the approved drive data set, confirmed topology recognition, and controlled motor commissioning after the original cable, shield, protective-earth, and airflow layout is restored.
Alternative Names
6SL3120 1TE31 3AA3 6SL31201TE313AA3
Technical notes
6SL3120-1TE31-3AA3 is a 132 A, 71 kW booksize Single Motor Module with internal air cooling for a 510–720 V DC link. Substituting a similar S120 code can change power rating or frame size. The complete article number, cabinet clearances, cooling path, and DRIVE-CLiQ topology must match before energization.
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
When replacing 6SL3120-1TE31-3AA3, what establishes the exact Siemens module identity?
Use the complete article number together with the 132 A, 71 kW, booksize-frame, internal-air-cooling, and DRIVE-CLiQ details; stop if the candidate differs in any of those selection anchors.
Can 6SL3120-1TE31-3AA3 be substituted when only the DC-link range matches?
No. The 510–720 V DC-link range is only one boundary; output current, power rating, frame size, cooling, and system topology must also match the installed branch.
What should be recorded before disconnecting DRIVE-CLiQ from 6SL3120-1TE31-3AA3?
Record each DRIVE-CLiQ, power, motor, shield, and protective-earth connection, then tie those records to the approved drive data set and the original module position.
How should cabinet fit and cooling be checked for 6SL3120-1TE31-3AA3?
Confirm the 30 x 62.9 x 27 cm frame, required cabinet clearances, and an unobstructed internal-air-cooling path before the module is installed.
Which commissioning data should be restored with 6SL3120-1TE31-3AA3?
Restore the approved drive data set, compare parameters and topology with the maintenance record, and confirm direction, current, diagnostics, and commanded motor operation under controlled conditions.
What should stop startup if 6SL3120-1TE31-3AA3 is not recognized after installation?
Do not energize the motor. Recheck the article number, DRIVE-CLiQ topology, DC-link supply, connector seating, restored data, and active diagnostics before another startup attempt.
