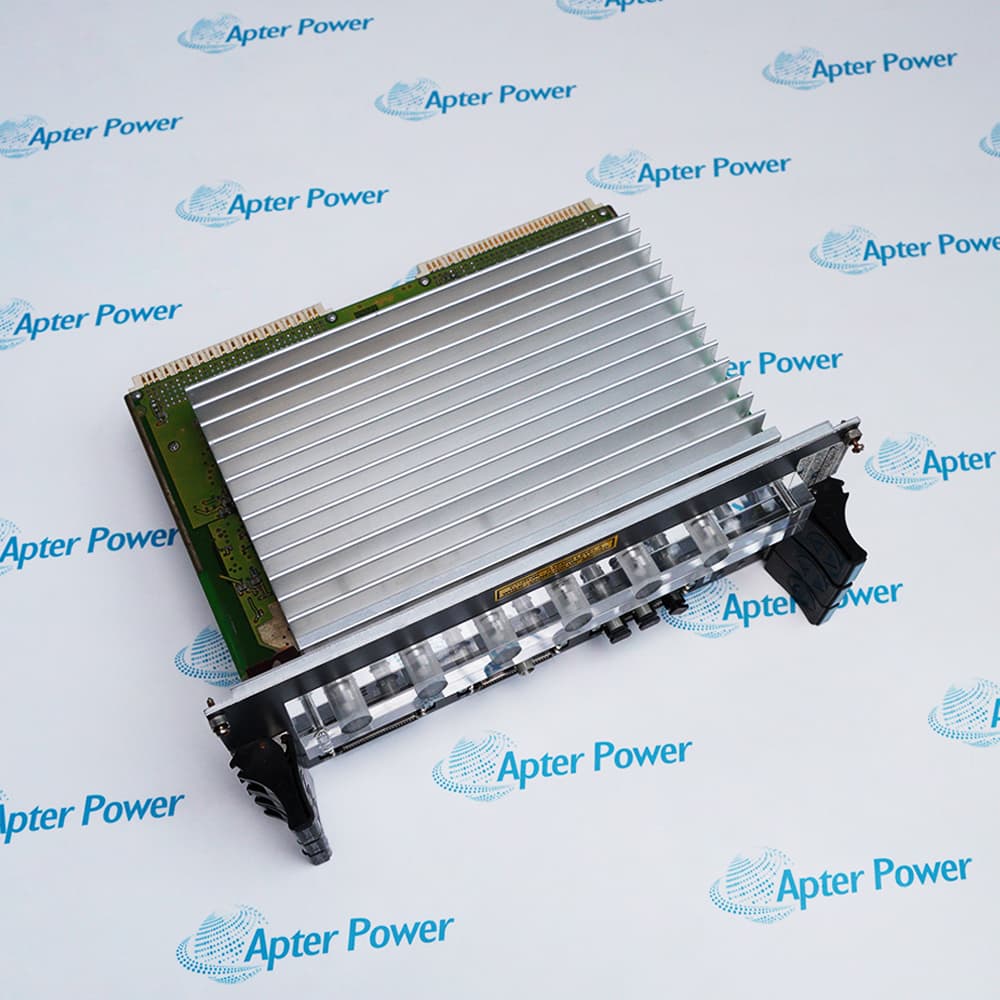

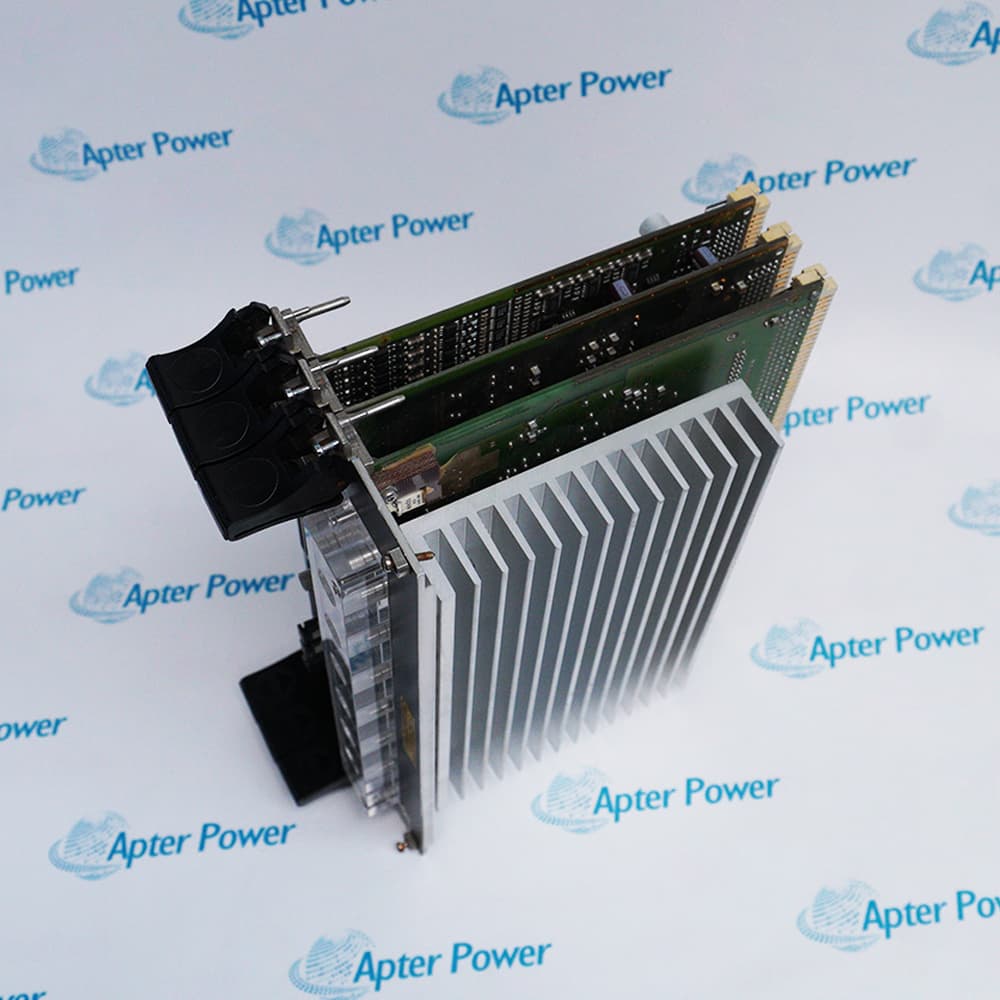

Siemens 6DD7060-1AA06 is a SIMATIC TDC LO6PLUS-A-6 fibre-optic transceiver and I/O module combining optical links, bus interfaces, and mixed I/O.
In Stock
Ships by Wednesday, October 28
Fast Shipping Available
Get a quick price for 6DD7060-1AA06
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for 6DD7060-1AA06

  • Manufacturer:
    Siemens
  • Part Number:
    6DD7060-1AA06
  • Product Family:
    Siemens Simadyn
  • Product Type:
    SIMATIC TDC LO6PLUS-A-6 Fibre-Optic Transceiver and I/O Module
  • Stock:
    1
  • Fibre-optic power outputs:
    6
  • Fibre-optic data inputs:
    6
  • TDM-bus ports:
    2
  • Communication interfaces:
    Fibre-optic TFR and V.24
  • Digital inputs:
    16
  • Digital outputs:
    40
  • Analogue outputs:
    24
  • Differential analogue inputs:
    9
  • Weight:
    2.15 kg
  • Estimated shipping dimensions:
    31x25x16cm
  • Tariff Code:
    85439000
  • Country of origin:
    Germany
  • Place of shipment:
    Xiamen,Fujian,China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Interfaces I/O Architecture System Integration Product Applications

Features:

  • Integrated optical and I/O role: Combines fibre-optic transmission, bus interfaces, and mixed signal channels.
  • TDM-bus connection: Provides two TDM-bus ports for the configured SIMATIC TDC arrangement.
  • Serviceable interface map: Separates optical, serial, bus, digital, and analogue paths for structured diagnostics.
Six fibre-optic power outputs and six fibre-optic data inputs support the module’s optical transmission role.

A fibre-optic TFR interface and V.24 connection operate alongside two TDM-bus ports and the mixed-I/O section.

The full article number and installed connection map define the safe replacement boundary.

Apter Power supports Siemens 6DD7060-1AA06 SIMATIC TDC LO6PLUS-A-6 Fibre-Optic Transceiver and I/O Module quotations, technical documents, and system matching.
Siemens 6DD7060-1AA06 SIMATIC TDC LO6PLUS-A-6 Fibre-Optic Transceiver and I/O Module Manuals,Datasheets,Link
Important Notice: Manuals and supporting documents are provided for identification and engineering review. Confirm the complete product code before ordering.
  • Optical outputs: Six fibre-optic power outputs serve the configured transmission paths.
  • Optical inputs: Six fibre-optic data inputs receive the corresponding remote signals.
  • TFR connection: The fibre-optic TFR interface belongs to the engineered link topology.
  • Serial service: The V.24 interface must be included in the connector and diagnostics record.
  • Digital inputs: Sixteen channels receive binary field or internal states.
  • Digital outputs: Forty channels provide binary output paths.
  • Analogue outputs: Twenty-four channels support analogue output functions.
  • Differential inputs: Nine differential analogue inputs complete the mixed-I/O section.
  • TDM-bus ports: Two ports connect the module to the SIMATIC TDC bus arrangement.
  • Connection map: Fibre, serial, bus, and field-I/O routes must agree with the project.
  • Variant control: The LO6 family name alone does not establish electrical or connector equivalence.
  • Commissioning boundary: Test optical communication, bus exchange, and I/O paths as separate functions.
  • Fibre-optic exchange: Handles optical data transfer within configured SIMATIC TDC installations.
  • Mixed-I/O processing: Combines digital and analogue signal paths in the LO6PLUS-A-6 assembly.
  • TDM-bus integration: Connects the module to its documented bus topology through two ports.
  • Legacy system service: Supports exact-article maintenance where the original architecture remains in use.
Description
Bringing fibre-optic transmission and mixed signal handling together, Siemens 6DD7060-1AA06 serves as the SIMATIC TDC LO6PLUS-A-6 interface between optical links, the TDM bus, and the configured field I/O.

In a SIMATIC TDC installation, the two TDM-bus connections on 6DD7060-1AA06 work alongside the fibre-optic TFR and V.24 interfaces. This arrangement lets the control project coordinate data exchange and local I/O through one defined module position.

For retrofit planning, the optical, serial, bus, digital, and analogue paths associated with 6DD7060-1AA06 should be treated as one system boundary. Apter Power can provide legacy quotations, technical documents, and article-level matching support for the installed SIMATIC TDC configuration.
Alternative Names
6DD70601AA06 6DD 7060-1AA06 6DD7060 1AA06 6DD7060-1AAO6 6DD7O60-1AA06 LO6PLUS-A-6 Siemens LO6PLUS SIMATIC TDC 6DD7060
Technical notes
The main replacement risk for 6DD7060-1AA06 is treating a similar LO6 module as equivalent. Its two TDM-bus ports, fibre-optic TFR path, V.24 interface, and dense mixed-I/O wiring form one engineered connection map; photograph and label every route before removal, then isolate optical, bus, and field-I/O faults separately.
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
How should 6DD7060-1AA06 be matched to an installed SIMATIC TDC system?
Match the complete article number, LO6PLUS-A-6 designation, TDM-bus connections, fibre direction, V.24 interface, terminal map, and project topology.
Which Siemens designation should a buyer match when sourcing 6DD7060-1AA06?
A sourcing request should pair the complete article number with the LO6PLUS-A-6 designation and the installed SIMATIC TDC context.
What should be checked when the fibre path through 6DD7060-1AA06 is offline?
Verify the local supply, fibre seating and direction, cable continuity, remote-end power, TFR interface, and configured communication path.
Why can I/O remain inactive after fitting 6DD7060-1AA06?
Compare the digital and analogue terminal assignments, field supplies, TDM-bus connection, project configuration, and connected process wiring.
What should be reviewed when only one fibre direction fails on 6DD7060-1AA06?
Differentiate the six fibre-optic power-output paths from the six data-input paths, then trace the affected remote endpoint and connector direction.
How can 6DD7060-1AA06 be diagnosed without replacing it immediately?
Separate the fault by testing local power, optical transmission, remote status, bus communication, and individual I/O paths in that order.
What configuration evidence helps verify 6DD7060-1AA06 before installation?
Use full label photographs, rack position, connector map, fibre-route record, terminal schedule, and the approved SIMATIC TDC project.
