    Apter Power supplies top-grade Siemens 6AV2124-0MC01-0AX0 replacement hardware, offering industrial facilities a trusted source for critical automation components to maintain continuous and efficient plant operations.

6AV2124-0MC01-0AX0

/ 4.9
1001 reviews | Need a Specific Revision?
The Siemens 6AV2124-0MC01-0AX0 SIMATIC HMI TP1200 Comfort Panel is a 12.1-inch widescreen touch display engineered for seamless industrial machine control and real-time process monitoring.
In Stock
Ships by Wednesday, October 28
Fast Shipping Available
Get a quick price for 6AV2124-0MC01-0AX0
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for 6AV2124-0MC01-0AX0

  • Manufacturer:
    Siemens
  • Part Number:
    6AV2124-0MC01-0AX0
  • Product Family:
    Siemens Simatic HMI
  • Product Type:
    Touch Display
  • Stock:
    1
  • Configuration Memory:
    12 MB user data
  • Processor:
    X86
  • Power Supply:
    24V DC (19.2V – 28.8V)
  • Current Consumption:
    0.85 A (rated)
  • Power Input (typ.):
    20 W
  • Industrial Ethernet:
    1 port (2-port switch)
  • RS 485 Interface:
    1 (RS 422/485 combined)
  • USB Ports:
    2 x USB 2.0 + 1 x USB Mini B
  • Alarm Classes:
    32
  • Bit Messages:
    4,000
  • Weight:
    4.34 kg
  • Estimated shipping dimensions:
    45.3x29x7cm
  • Tariff Code:
    8538109000
  • Country of origin:
    Germany
  • Place of shipment:
    Xiamen, Fujian, China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Specifications Monitoring & Control Performance & Efficiency Applications

Features:

  • Industrial-grade 12.1" Widescreen Touch Display
  • Multi‑Protocol Communication for Seamless Integration
  • Hazardous Location & Marine Certifications
The Siemens 6AV2124-0MC01-0AX0 offers a high-brightness, 1280x800 pixel TFT screen with analog-resistive touch, allowing gloved operation in harsh factory environments. With 16 million colors and a dimmable backlight rated for 80,000 hours MTBF, it ensures long-lasting, fatigue-free monitoring.

Equipped with dual-port PROFINET (IRT), PROFIBUS, MPI, Modbus TCP/IP, and OPC UA client/server, the Siemens 6AV2124-0MC01-0AX0 connects directly to major PLCs including Siemens S7, Allen Bradley, Mitsubishi, OMRON, and Modicon, streamlining data exchange across mixed-vendor lines.

Certified for Class I Division 2 and Zone 2 hazardous areas (ATEX, IECEx, cULus, FM), plus seven major marine approvals (GL, ABS, BV, DNV, LRS, NK, PRS), the Siemens 6AV2124-0MC01-0AX0 is ready for use in refineries, chemical plants, and shipboard automation systems.

The 6AV2124-0MC01-0AX0 Siemens 12.1-inch widescreen touch display may still be available for purchase and support from Apter Power beyond End-Of-Life (EOL) by the manufacturer (OEM).
Siemens 6AV2124-0MC01-0AX0 12.1-inch widescreen touch display Manuals,Datasheets,Link Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
Siemens 6AV2124-0MC01-0AX0 12.1-inch widescreen touch display

General

  • Manufacturer Siemens
  • Model 6AV2124-0MC01-0AX0
  • Condition New Original ready stock
  • Product Family 6AV2128-3MB06-0AX1,6AV2128-3MB06-0AX0,6AV2124-2DC01-0AX0
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
  • Real-time Alarm Management – 4,000 bit messages with 32 alarm classes and a 1,024-entry circular buffer.
  • Trend & Recipe Handling – 300 recipes (500 records each) and f(x) trend views for batch process optimization.
  • Remote & Web Access – Built-in Sm@rtClient view, HTML browser, and OPC UA server for remote monitoring.
  • System Diagnostics – Integrated system diagnostics view with support for S7, SINUMERIK, and SIMOTION system messages.
  • High‑Speed Communication – PROFINET with IRT (as of WinCC V12) and dual-port switch reduce network latency.
  • Efficient Power Use – 20W typical power consumption on 24V DC (0.85A), minimizing cabinet heat load.
  • Large Configuration Capacity – 2,048 tags, 500 screens, and 400 objects per screen enable complex applications without performance drops.
  • Long Lifecycle – 80,000‑hour backlight MTBF and 6‑week real‑time clock backup reduce maintenance downtime.
  • Chemical & Petrochemical Plants – ATEX Zone 2/22 certified for safe operation in potentially explosive atmospheres.
  • Marine & Offshore Platforms – Approved by GL, ABS, BV, DNV, LRS, NK, and PRS for shipboard automation.
  • Factory Automation Lines – Seamless integration with Siemens S7, Allen Bradley, Mitsubishi, OMRON, and Modicon PLCs.
  • Hazardous Location Equipment – cULus and FM Class I Division 2 / Zone 2 rated for refineries and paint booths.
Description
The Siemens 6AV2124-0MC01-0AX0 combines a brilliant 1280 x 800 pixel TFT display with analog-resistive touch technology, ensuring precise operation even in demanding environments. Its 16.7 million color palette provides crystal-clear visualization of alarms, trends, and machine states, while the dimmable backlight (80,000 hours MTBF) guarantees long-term reliability for 24/7 industrial applications.

Designed for modern smart factories, the Siemens 6AV2124-0MC01-0AX0 features dual-port industrial Ethernet (switch) for PROFINET with IRT support, plus an RS 422/485 interface for PROFIBUS, MPI, and Modbus. This allows seamless integration with Siemens S7, Allen Bradley, Mitsubishi, OMRON, and Modicon controllers, as well as OPC UA client/server communication for cross-vendor data exchange.

The Siemens 6AV2124-0MC01-0AX0 runs on Windows CE 6.0 and is configurable via WinCC Comfort V11 or higher, offering up to 500 screens, 400 objects per screen, and 2,048 tags. Built-in recipe management (300 recipes, 2 MB memory), alarm handling (4,000 bit messages), and trending views empower operators to optimize production quality and reduce downtime.
Alternative Names
6AV2124-OMC01-OAXO 6AV2I24-0MC0I-0AX0 6AV2124 0MC01 0AX0 6AV6640-0CA01-0AX0 6AV8100-0BB00-0AA1 6AV3627-1LK00-1AX0 6AV3503-1DB10 6AV6644-0AB01-2AX0
Technical notes

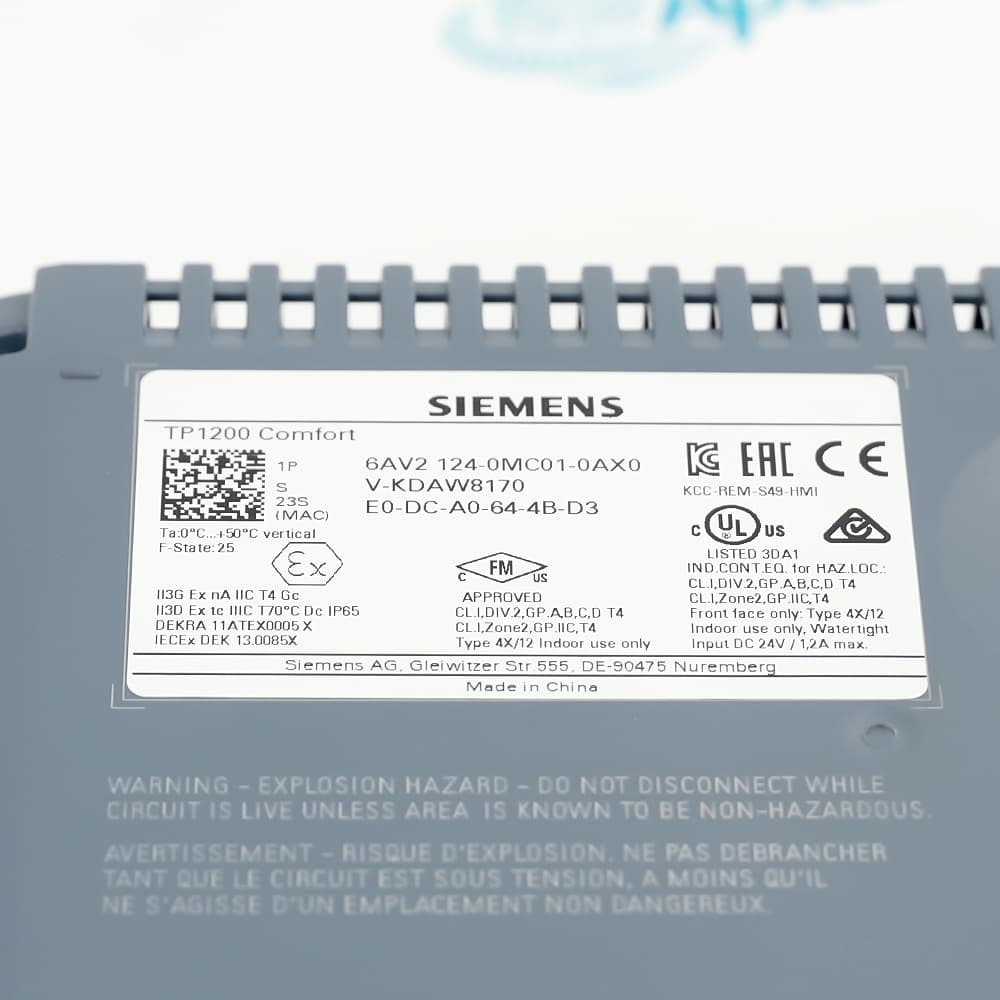

The Siemens 6AV2124-0MC01-0AX0 operates on a 24V DC (19.2–28.8V) power supply with a typical current of 0.85A. It features a real-time hardware clock and provides up to 6 weeks of backup data. This product is approved for use in hazardous locations (Class I, Zone 2, Groups A, B, C, and D; T4; and Class I, Zone 2, Group IIC; T4) and has a NEMA 4X/12 frontal protection rating.
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
What types of industrial environments is the Siemens 6AV2124-0MC01-0AX0 suitable for?
It is designed for harsh indoor industrial settings, including chemical plants, oil & gas facilities, and marine vessels. It carries ATEX Zone 2/22, IECEx, cULus Class I Division 2, and FM Class I Division 2 certifications, plus seven marine approvals (GL, ABS, BV, DNV, LRS, NK, PRS).
Can the Siemens 6AV2124-0MC01-0AX0 operate in extremely hot or cold conditions?
While the datasheet doesn’t list specific temperature ranges, the 80,000-hour backlight MTBF is rated at 25°C, and the device is built for industrial control cabinets. For extreme ambient temperatures, always refer to the full installation manual or consider additional cabinet cooling/heating.
Does the Siemens 6AV2124-0MC01-0AX0 retain recipes and alarms after a power loss?
Yes. The recipe memory (2 MB, expandable) and message buffer (1,024 entries) are retentive. Additionally, the real-time hardware clock is backed up for approximately 6 weeks without external power.
Is the Siemens 6AV2124-0MC01-0AX0 panel compatible with non‑Siemens PLCs like Allen Bradley or Mitsubishi?
Absolutely. It supports EtherNet/IP and DF1 for Allen Bradley, MC TCP/IP and FX for Mitsubishi, FINS TCP and LINK for OMRON, and Modbus TCP/IP for Modicon controllers, plus OPC UA client/server vendor‑neutral communication.
