6ES7214-1BG40-0XB0

/ 4.9
1001 reviews | Need a Specific Revision?
6ES7214-1BG40-0XB0 combines an AC-powered CPU 1214C with 14 digital inputs, 10 relay outputs, two analog inputs, and PROFINET.
In Stock
Ships by Thursday, October 29
Fast Shipping Available
Get a quick price for 6ES7214-1BG40-0XB0
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for 6ES7214-1BG40-0XB0

  • Manufacturer:
    Siemens
  • Part Number:
    6ES7214-1BG40-0XB0
  • Product Family:
    Siemens Simatic S7-1200
  • Product Type:
    SIMATIC S7-1200 CPU 1214C AC/DC/Relay
  • Stock:
    1
  • Real-time clock:
    Integrated
  • CPU type:
    CPU 1214C AC/DC/relay
  • Firmware version:
    V4.7
  • Engineering software:
    STEP 7 V20 or higher
  • Work memory:
    150 KB
  • Integrated load memory:
    4 MB
  • Digital inputs:
    14 at 24 V DC
  • Relay outputs:
    10 at 2 A
  • Analog inputs:
    2 at 0–10 V DC
  • Power supply:
    85…264 V AC, 47…63 Hz
  • Communication:
    PROFINET
  • Local expansion:
    8 signal modules, 3 communication modules, 1 signal board
  • Weight:
    0.454 kg
  • Estimated shipping dimensions:
    11.1 x 11.7 x 8.5 cm
  • Tariff Code:
    85371091
  • Country of origin:
    Germany
  • Place of shipment:
    Xiamen,Fujian,China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Onboard I/O PROFINET Setup Memory & Firmware Product Applications

Features:

  • Compact control core: CPU, digital I/O, analog inputs, and PROFINET share one assembly
  • Relay output configuration: ten integrated contacts switch documented AC or DC loads
  • Current engineering baseline: firmware V4.7 uses STEP 7 V20 or higher
6ES7214-1BG40-0XB0 combines central processing and the primary machine I/O needed for many compact S7-1200 applications.

The exact AC/DC/relay construction matters because supply, input commons, relay load behavior, and project hardware definition differ from neighboring CPU variants.

A recoverable installation retains firmware, TIA Portal project, device name and IP, memory-card policy, I/O map, relay loads, analog scaling, and expansion layout.
Apter Power can review 6ES7214-1BG40-0XB0 firmware, project, I/O, network, condition, and documentation before quotation.
Siemens 6ES7214-1BG40-0XB0 SIMATIC S7-1200 CPU 1214C AC/DC/Relay Manuals, Datasheets, Links
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
  • Input map: retain all 14 digital and two analog channel assignments.
  • Relay loads: verify contact rating, load type, suppression, and common grouping.
  • Analog scaling: align 0–10 V wiring and engineering units with the validated project.
  • Device identity: preserve the configured device name and IP addressing.
  • Topology record: retain switch ports, controller peers, and diagnostic baseline.
  • Commissioning test: prove programming access, I/O communication, and required services separately.
  • Engineering match: use STEP 7 V20 or higher for the documented V4.7 CPU.
  • Archive integrity: preserve the running project and device configuration before exchange.
  • Expansion definition: compile the exact signal-board, signal-module, and communication-module layout.
  • Compact machine control: execute logic with integrated digital, analog, and relay I/O.
  • PROFINET automation cell: coordinate documented controllers, HMIs, and distributed devices.
  • Expandable S7-1200 station: add supported local modules while preserving the approved hardware configuration.
Description

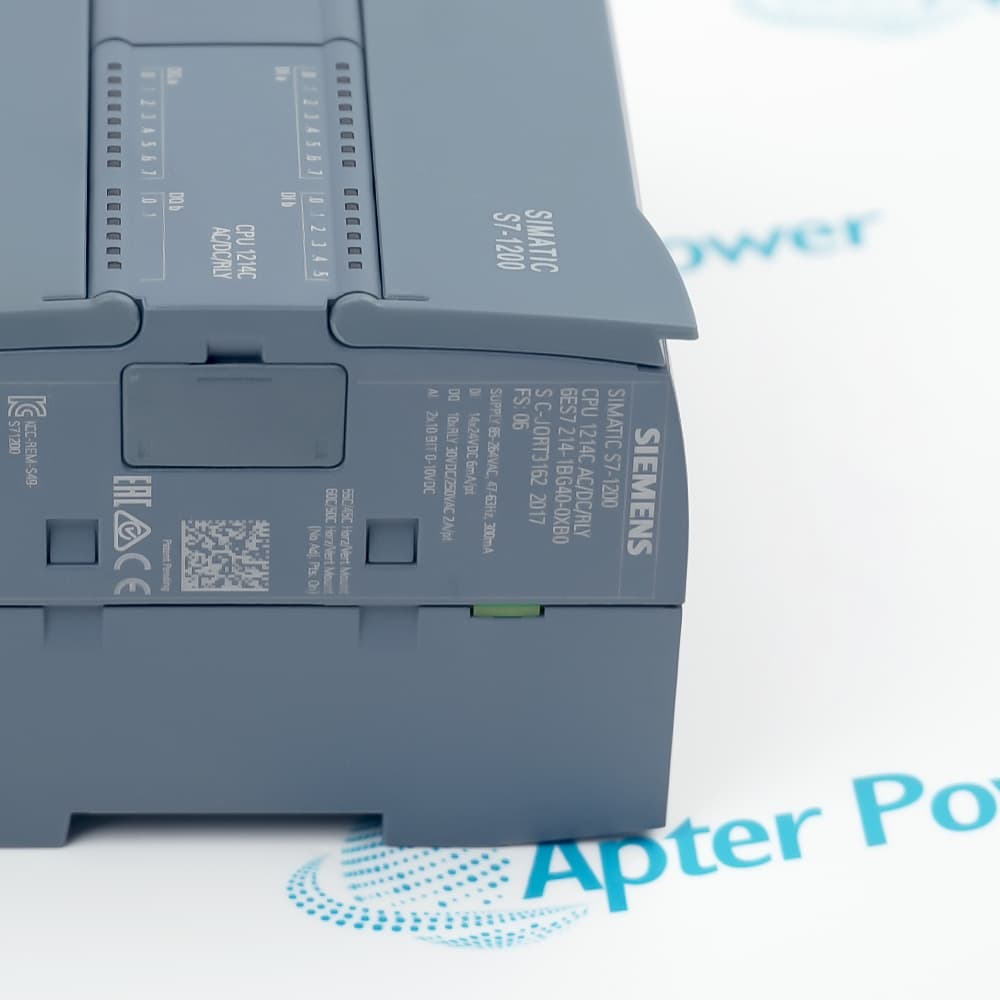

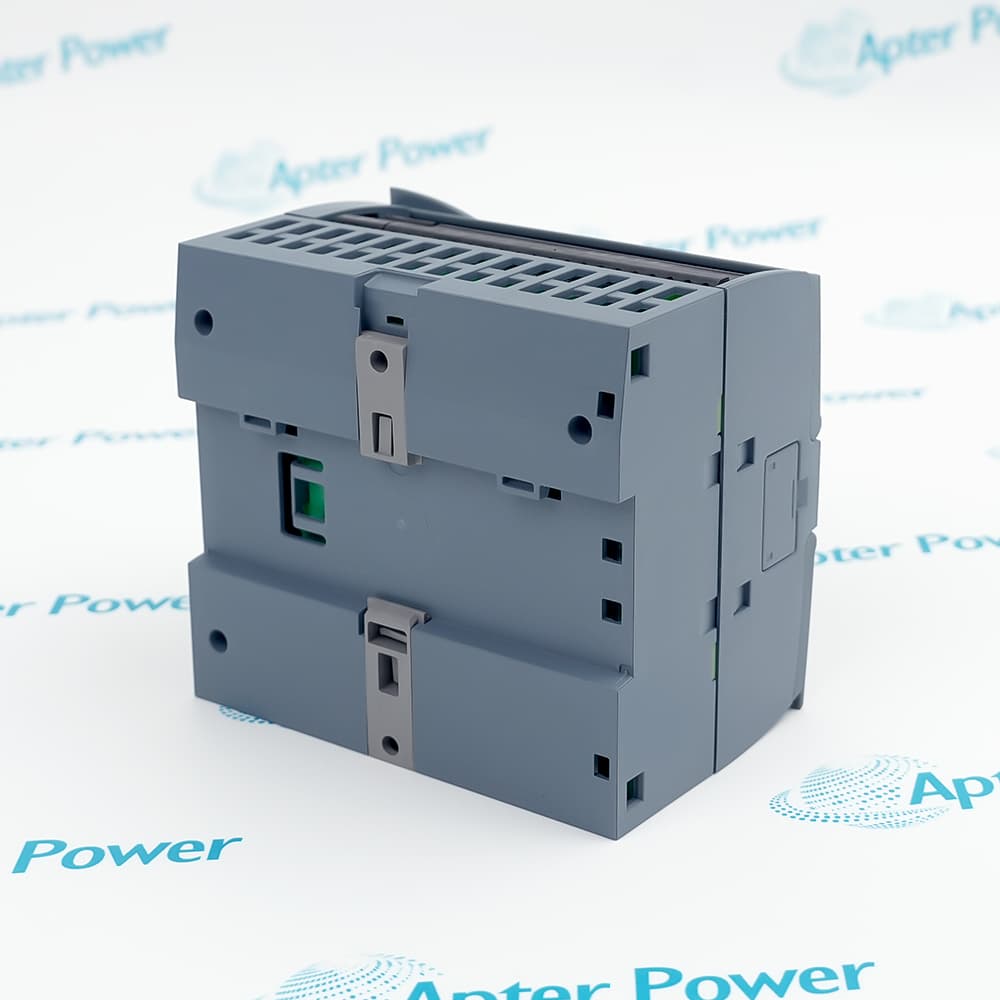

6ES7214-1BG40-0XB0 is a SIMATIC S7-1200 CPU 1214C in the AC/DC/relay configuration. The compact controller integrates 14 digital inputs, 10 relay outputs, two 0–10 V analog inputs, PROFINET communication, and 150 KB of work memory.

The onboard I/O of 6ES7214-1BG40-0XB0 supports a self-contained machine controller while the local system can expand with signal and communication modules. Firmware V4.7 is engineered with STEP 7 V20 or higher according to the current Siemens product data.

Before selecting 6ES7214-1BG40-0XB0, verify AC supply, relay load type, input commons, analog scaling, PROFINET device identity, firmware, project version, and required local modules. Preserve the memory-card and project strategy before replacing a running CPU.
Alternative Names
6ES72141BG400XB0 6ES7 214-1BG40-0XB0 CPU 1214C AC DC Relay SIMATIC S7-1200 Compact CPU
Technical notes
6ES7214-1BG40-0XB0 requires firmware V4.7 engineering with STEP 7 V20 or higher in the current product data. A project built for older device support can fail to download or omit hardware features; archive the running project, record firmware and PROFINET identity, then compile against the exact CPU before replacement.
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
Why can a STEP 7 project fail to download to 6ES7214-1BG40-0XB0 after CPU replacement?
Compare the configured device version with firmware V4.7, confirm STEP 7 V20 or higher, restore the exact hardware layout, and verify access protection before changing the application code.
What should be checked when one relay output on 6ES7214-1BG40-0XB0 commands correctly but the load does not operate?
Inspect the relay common, field supply, contact wiring, load current, suppression, output diagnostics, and physical terminal while keeping the PLC command and external power path separate.
How should analog readings be validated on 6ES7214-1BG40-0XB0?
Confirm the 0–10 V wiring reference, channel address, raw-value conversion, engineering-unit scaling, shielding, and a known test signal at low, middle, and high points.
Why can 6ES7214-1BG40-0XB0 appear online but fail to exchange data with a PROFINET device?
Check device names, IP addresses, configured topology, module definitions, cable and switch path, and controller diagnostics. Basic programming access does not prove that the I/O connection is established.
What must be preserved before replacing 6ES7214-1BG40-0XB0 in a running machine?
Save the validated TIA Portal project, firmware record, device identity, passwords under site control, memory-card policy, I/O and relay load map, expansion layout, and current diagnostic state.
Which details make a 6ES7214-1BG40-0XB0 RFQ actionable?
Provide nameplate photographs, firmware and project version, onboard I/O use, expansion modules, PROFINET role, quantity, required condition, destination, and outage date.
