    Apter Power supports firmware review, thermal I/O checks and sourcing preparation for this CPU 1214C.

6ES7214-1HG40-0XB0

/ 4.9
1001 reviews | Need a Specific Revision?

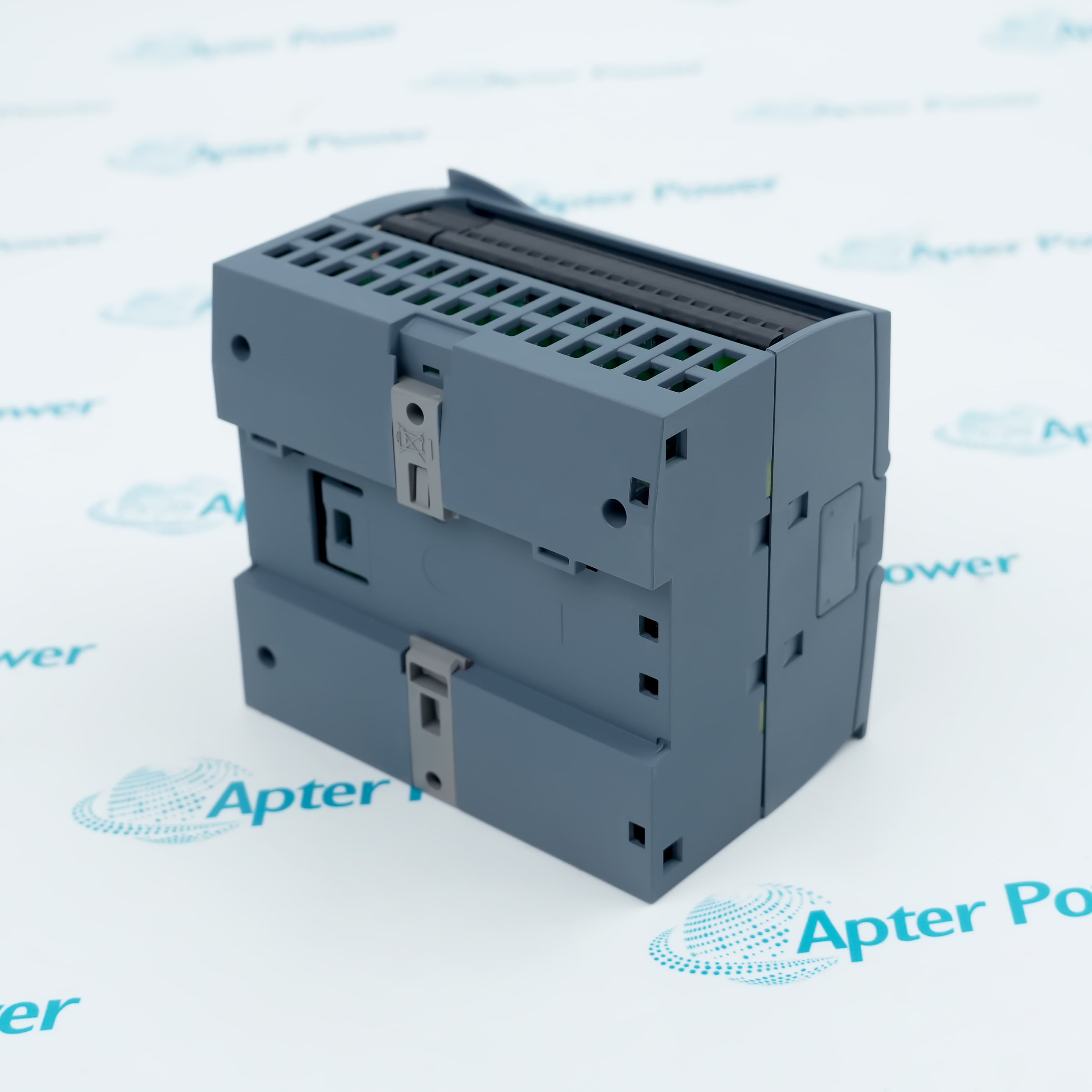

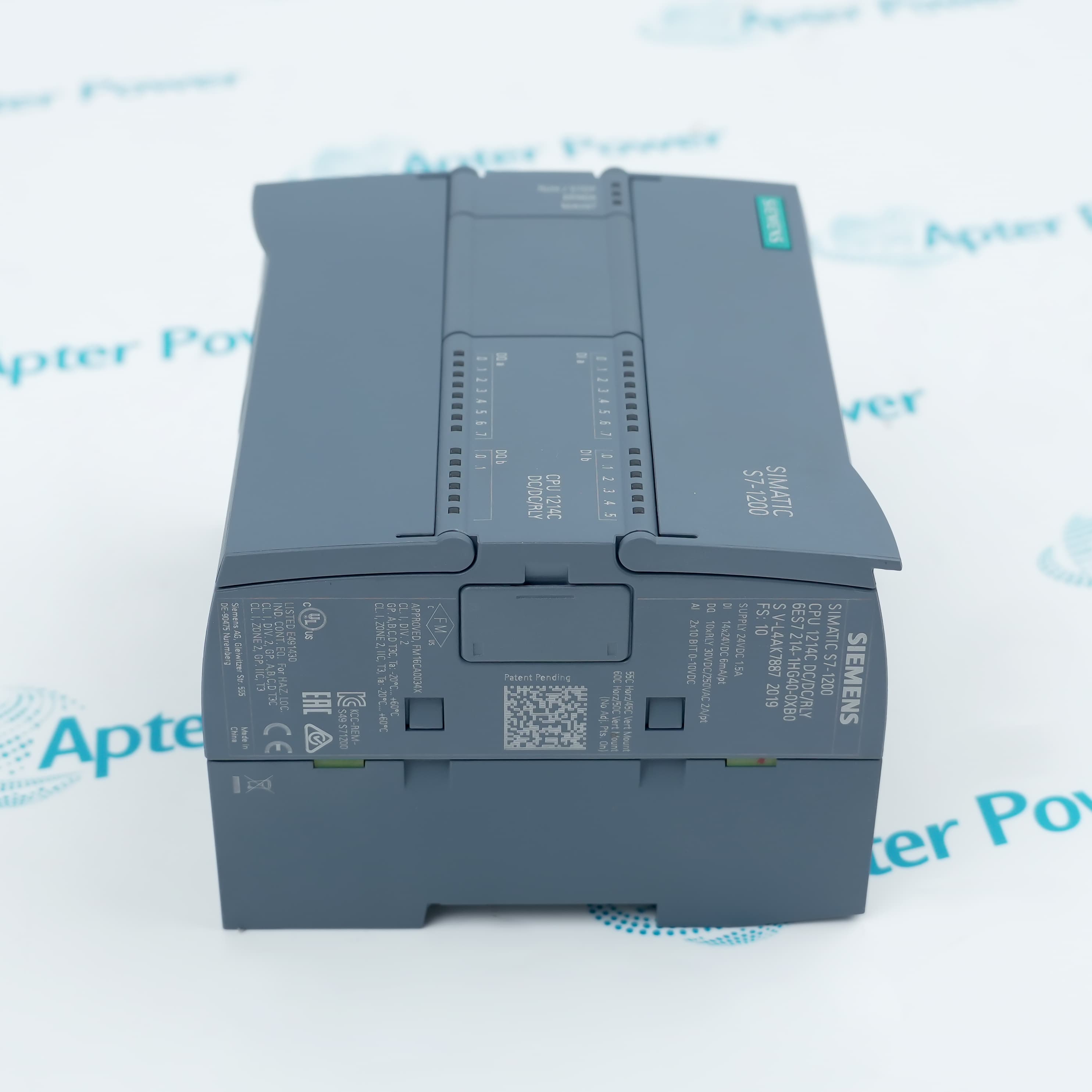

Siemens 6ES7214-1HG40-0XB0 is a CPU 1214C DC/DC/relay controller with onboard 14 DI, 10 relay DO, 2 AI and PROFINET.
In Stock
Ships by Thursday, October 29
Fast Shipping Available
Get a quick price for 6ES7214-1HG40-0XB0
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for 6ES7214-1HG40-0XB0

  • Manufacturer:
    Siemens
  • Part Number:
    6ES7214-1HG40-0XB0
  • Product Family:
    Siemens Simatic S7-1200
  • Product Type:
    SIMATIC S7-1200 CPU 1214C DC/DC/Relay
  • Stock:
    1
  • Firmware reference:
    V4.7
  • Integrated I/O:
    14 DI, 10 relay DO, 2 AI
  • Work memory:
    150 KB
  • Integrated load memory:
    4 MB
  • PROFINET:
    1 port, 100 Mbit/s
  • Expansion capacity:
    8 SM, 3 CM and 1 SB
  • Supply range:
    20.4 to 28.8 V DC
  • Weight:
    0.435 kg
  • Estimated shipping dimensions:
    11 x 10 x 7.5 cm
  • Tariff Code:
    85371091
  • Country of origin:
    Germany
  • Place of shipment:
    Xiamen,Fujian,China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Onboard I/O CPU & Memory PROFINET Expansion Product Applications

Features:

  • Mixed onboard I/O: fourteen digital inputs, ten relay outputs and two analog inputs
  • Integrated control resources: 150 KB work memory and 4 MB load memory
  • Expandable networking: PROFINET plus signal and communication-module growth
6ES7214-1HG40-0XB0 is a complete compact controller rather than an I/O-only module.

Its onboard point mix reduces external hardware for typical machine and process-skid tasks.

Relay output behavior, DC supply limits and thermal loading still belong in the electrical design.
Apter Power can review 6ES7214-1HG40-0XB0 firmware, I/O loading, condition and quotation requirements.
Siemens 6ES7214-1HG40-0XB0 SIMATIC S7-1200 CPU 1214C DC/DC/Relay Manuals,Datasheets,Link

Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.

  • Digital inputs: fourteen integrated channels accept 24 V DC signals.
  • Relay outputs: ten integrated contacts switch resistive loads up to 2 A.
  • Analog inputs: two integrated channels accept 0–10 V signals.
  • High-speed counting: six inputs are available for HSC functions.
  • Work memory: the CPU provides 150 KB.
  • Load memory: 4 MB is integrated.
  • Firmware reference: the current data sheet identifies V4.7.
  • Engineering: the current data sheet specifies STEP 7 V20 or higher.
  • Ethernet port: one isolated RJ45 PROFINET interface is built in.
  • Network role: IO Controller and IO Device operation are supported.
  • IO devices: as many as sixteen can be connected.
  • Hardware growth: the CPU accepts eight SMs, three CMs and one signal board.
  • Packaging and assembly machines: combine discrete, relay and analog control in one compact CPU.
  • Process skids: coordinate local I/O and PROFINET-connected equipment.
  • Machine modernization: add S7-1200 memory, diagnostics and network functions while retaining relay outputs.
Description
6ES7214-1HG40-0XB0 combines an S7-1200 CPU with fourteen 24 V DC inputs, ten 2 A relay outputs and two 0–10 V analog inputs. The integrated mix covers common sensor, actuator and analog-measurement needs without making every point dependent on an expansion module.

6ES7214-1HG40-0XB0 provides 150 KB of work memory, 4 MB of integrated load memory and a 100 Mbit/s PROFINET interface. It can operate as both an IO Controller and IO Device, helping a compact machine coordinate local I/O while exchanging data with a wider automation network.

6ES7214-1HG40-0XB0 supports up to eight signal modules, three communication modules and one signal board. That expansion path gives a project room to grow while the built-in high-speed counters, diagnostics and web access keep commissioning and service functions inside the CPU platform.
Alternative Names
6ES72141HG400XB0 Siemens CPU 1214C DC/DC/relay SIMATIC S7-1200 14DI 10 relay DO 2AI CPU
Technical notes
6ES7214-1HG40-0XB0 uses relay outputs and a 20.4–28.8 V DC supply. At 60 °C horizontal or 50 °C vertical, Siemens limits simultaneous integrated points to seven inputs or five non-adjacent outputs; at 55 °C horizontal or 45 °C vertical, the limits are fourteen inputs or ten outputs.
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
Does 6ES7214-1HG40-0XB0 have relay or transistor outputs?
It has ten relay outputs rated up to 2 A with resistive loads. Using a transistor-output replacement changes the output hardware and requires review of the field circuit and load requirements.
What supply range must be maintained for 6ES7214-1HG40-0XB0?
Use 24 V DC within the specified 20.4–28.8 V range for both CPU supply and load voltage L+.
How much integrated memory does 6ES7214-1HG40-0XB0 provide?
The CPU provides 150 KB of work memory and 4 MB of integrated load memory, with SIMATIC Memory Card support for the plug-in load-memory path.
Can 6ES7214-1HG40-0XB0 control PROFINET IO devices?
Yes. Its 100 Mbit/s port supports PROFINET IO Controller operation with up to sixteen connectable IO Devices, and it can also operate as an IO Device.
How is simultaneous I/O limited for 6ES7214-1HG40-0XB0 in a hot enclosure?
At 60 °C horizontal or 50 °C vertical, the limit is seven inputs or five non-adjacent outputs. At 55 °C horizontal or 45 °C vertical, it is fourteen inputs or ten outputs.
What should an RFQ for 6ES7214-1HG40-0XB0 include?
State the exact article, firmware expectation, STEP 7 project version, supply voltage, relay-load types, expansion modules, condition, quantity and delivery date.
