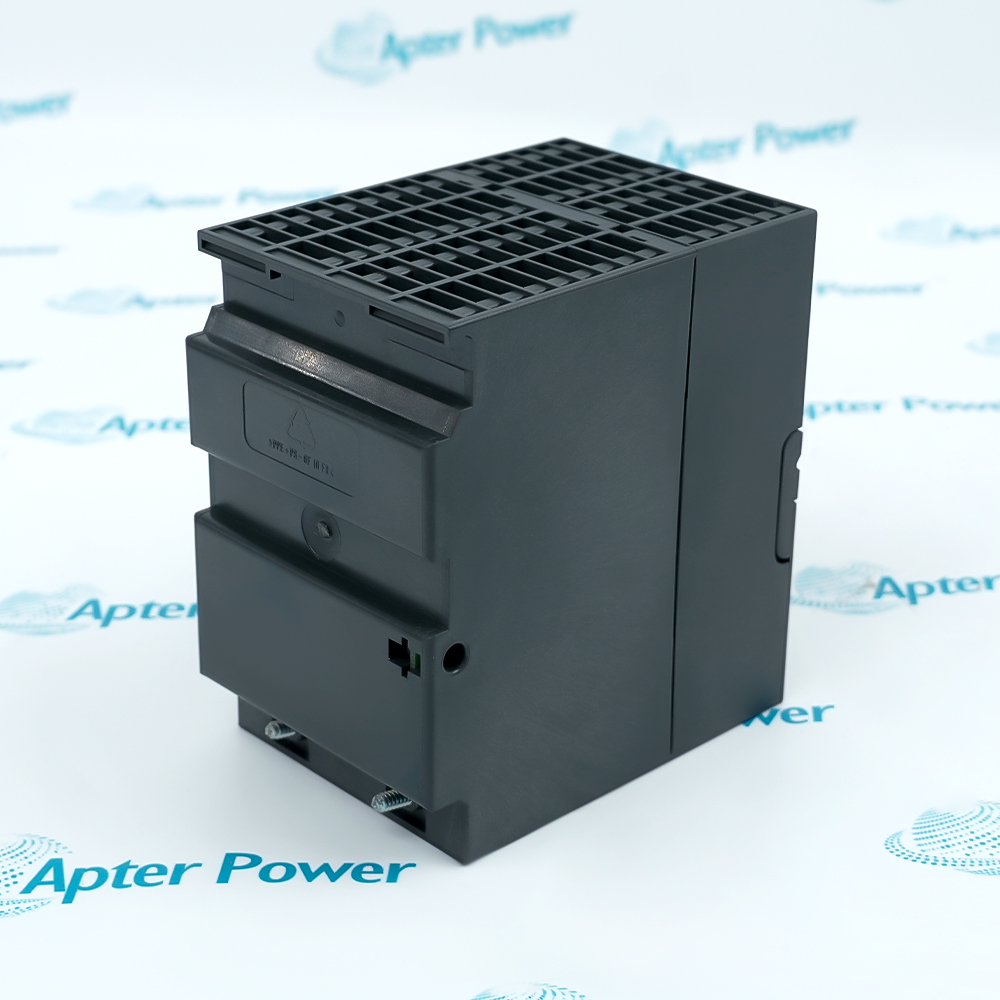

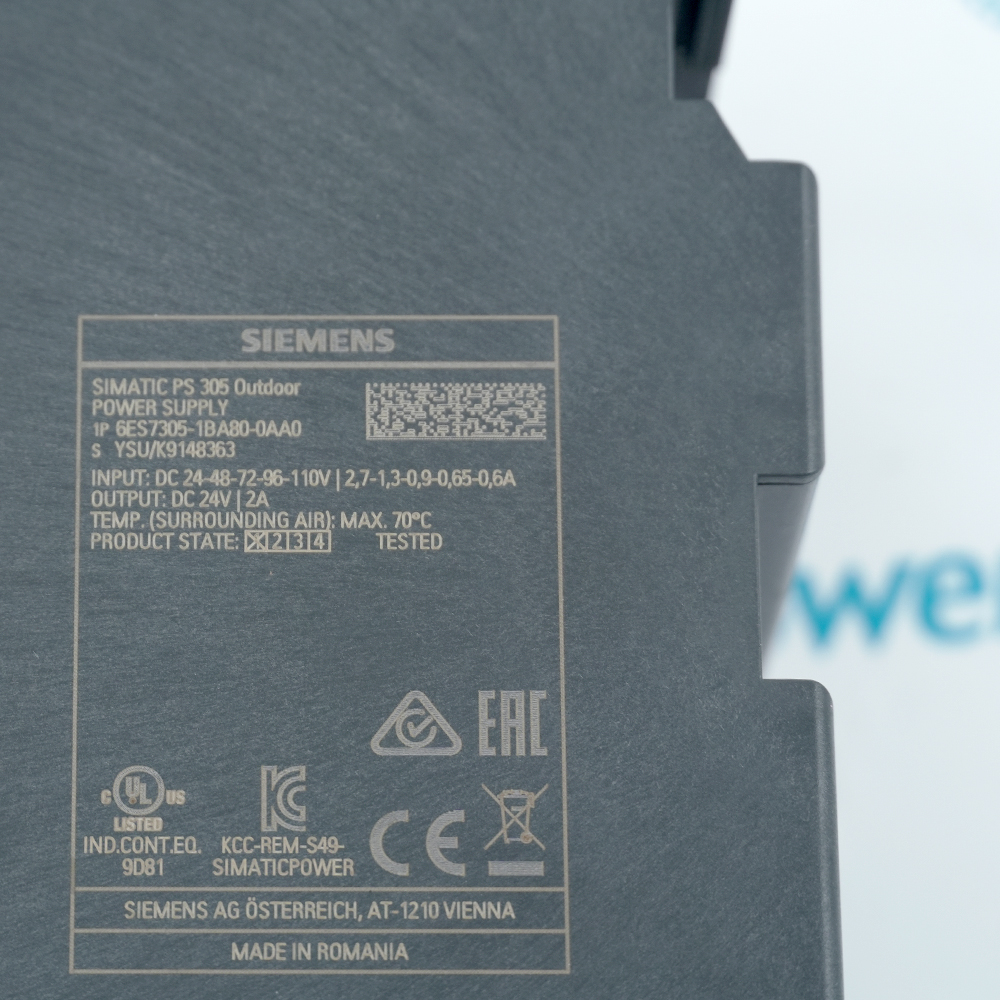

Siemens 6ES7305-1BA80-0AA0 is a PS 305 regulated power supply with a 24 to 110 V DC input and 24 V DC, 2 A output. It powers S7-300 or ET 200M control assemblies from a wide-range DC source.
In Stock
Ships by Thursday, October 29
Fast Shipping Available
Get a quick price for 6ES7305-1BA80-0AA0
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for 6ES7305-1BA80-0AA0

  • Manufacturer:
    Siemens
  • Part Number:
    6ES7305-1BA80-0AA0
  • Product Family:
    Siemens Simatic S7-300
  • Product Type:
    DC Power Supply Module
  • Stock:
    1
  • Rated input voltage:
    24 to 110 V DC
  • Permissible input range:
    16.8 to 138 V DC
  • Input current at 24 V:
    Approximately 2.4 A
  • Input current at 110 V:
    Approximately 0.6 A
  • Rated output voltage:
    24 V DC
  • Rated output current:
    2 A
  • Permissible output current range:
    0 to 3 A
  • Rated output power:
    48 W
  • Efficiency:
    Approximately 75%
  • Output short-circuit protection:
    Electronic, automatic restart
  • Degree of protection:
    IP20
  • Operating temperature:
    -25 to 70 °C
  • Connection method:
    Screw terminals
  • Input network type:
    DC voltage
  • Wide-range input:
    Yes
  • Overvoltage overload capability:
    154 V for 0.1 s
  • Power-failure buffering time:
    Minimum 10 ms at rated input voltage
  • Maximum inrush current at 25 °C:
    20 A
  • Maximum inrush-limiting duration:
    10 ms
  • Maximum I²t value:
    5 A²·s
  • Internal fuse:
    T 6.3 A / 250 V; not accessible
  • Recommended feeder protection:
    Miniature circuit breaker from 10 A, characteristic C, suitable for DC
  • Output voltage characteristic:
    Controlled and electrically isolated DC
  • Input-voltage load regulation:
    0.2% for slow input-voltage fluctuation
  • Resistive-load regulation:
    0.4% for slow load fluctuation
  • Maximum residual ripple:
    150 mV
  • Typical residual ripple:
    30 mV
  • Maximum output voltage peak:
    240 mV
  • Normal-operation indication:
    Green LED for 24 V OK
  • Startup behavior:
    Soft start without output overshoot
  • Maximum response delay:
    3 s
  • Typical output rise time:
    5 ms
  • Short-term overload current:
    Approximately 9 A
  • Overload duration:
    270 ms during startup or operation
  • Parallel operation:
    Up to 2 units for increased power
  • Typical power loss at rated output:
    16 W
  • Load-step settling time:
    Typically 2.5 ms; 5 ms maximum
  • Overvoltage protection:
    Shutdown at approximately 30 V with automatic restart
  • Current-limiting response:
    3.3 to 3.9 A
  • Galvanic isolation:
    Input and output isolated
  • Equipment protection class:
    Class I
  • Emission standard:
    EN 55011 Class A
  • Immunity standard:
    EN 61000-6-2
  • MTBF at 40 °C:
    964,506 h
  • Transport and storage temperature:
    -40 to +85 °C
  • Environmental category:
    IEC 60721 climate class 3K5; transient condensation permitted
  • Terminal conductor range:
    0.5 to 2.5 mm², solid or finely stranded
  • Mounting method:
    SIMATIC S7 mounting rail
  • Required vertical clearance:
    50 mm above and below
  • Weight:
    1.257 lbs (0.57 kg)
  • Tariff Code:
    Please confirm the destination before shipping.
  • Country of origin:
    Romania
  • Place of shipment:
    Xiamen,Fujian,China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Applications Protection Efficiency Temperature Range

Features:

  • Accepts a wide 16.8 to 138 V DC operating input range.
  • Delivers regulated 24 V DC at a 2 A rated load.
  • Restarts automatically after an electronically protected output short circuit is cleared.
The ordered module is the DC-input PS 305 execution with 48 W rated output capacity.

It establishes a local 24 V supply for S7-300 and ET 200M electronics in DC-fed cabinets.

Input polarity, earthing, branch protection and total downstream current must be resolved before wiring.

Apter Power can review sourcing, documentation and system matching for 6ES7305-1BA80-0AA0.
Verified resources for Siemens 6ES7305-1BA80-0AA0: Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
  • Battery-backed automation panels can derive a regulated 24 V control rail from the wider station DC bus.
  • Remote I/O cabinets use the supply where AC mains are unavailable but S7-300-compatible loads remain required.
  • Process skids with 48 V or 110 V DC distribution can feed lower-voltage controller and sensor circuits.
  • Electronic output protection limits fault current during a 24 V short circuit.
  • Automatic restart restores the output after the external fault has been removed.
  • IP20 construction requires installation inside a suitable control enclosure.
  • The rated output is 48 W at 24 V DC and 2 A continuous current.
  • Published efficiency is approximately 75% under the specified operating conditions.
  • Cabinet heat calculations must include conversion losses at the expected load.
  • The documented operating range extends from -25 to 70 °C with applicable loading conditions.
  • Ventilation clearances should prevent neighbouring equipment from restricting natural cooling.
  • Temperature assessment must use the actual enclosure ambient rather than room temperature alone.
Description
6ES7305-1BA80-0AA0 converts a 24 to 110 V DC plant supply into a regulated 24 V DC rail rated at 2 A. The wide input range covers battery-backed and industrial DC distribution systems without an upstream AC stage.

Inside an S7-300 or ET 200M cabinet, the module supplies controller and I/O loads that require a stable 24 V source. Electronic short-circuit protection and automatic restart support predictable recovery after temporary output faults.

Load demand, conductor sizing, protective devices and the available DC source must be verified together. The 48 W output limit and temperature-dependent installation conditions apply to the complete cabinet design, not only the nominal voltage match.
Alternative Names
6ES7305-1BA80-0AA0 Siemens 6ES7305-1BA80-0AA0 6ES7305 1BA80 0AA0 6ES73051BA800AA0 6ES7305-1BA80-0AA0 DC Power Supply Module Siemens SIMATIC PS 305 for S7-300 and ET 200M Siemens 6ES7305-1BA80-0AA0 DC Power Supply Module
Technical notes
Before energizing 6ES7305-1BA80-0AA0, verify DC polarity and keep the connected 24 V load within the 2 A continuous rating.
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
How wide is the acceptable DC source window for Siemens 6ES7305-1BA80-0AA0?
The published operating input range is 16.8 to 138 V DC around the 24 to 110 V rated range.
Can Siemens 6ES7305-1BA80-0AA0 serve both S7-300 and ET 200M assemblies?
Yes, it belongs to the Siemens 24 V supply family used with those modular automation systems.
What installation benefits from Siemens 6ES7305-1BA80-0AA0 rather than an AC-fed supply?
It suits cabinets already supported by a battery or industrial DC distribution bus.
What sourcing approach is appropriate for Siemens 6ES7305-1BA80-0AA0 after phase-out?
Request the exact order number and maintain a verified spare strategy for the installed DC-fed station.
Which load calculation is required before exchanging Siemens 6ES7305-1BA80-0AA0?
Add every connected 24 V consumer and verify continuous current, startup demand, wiring and protection against the 2 A rating.
What should accompany a Siemens 6ES7305-1BA80-0AA0 quotation request?
Include source voltage, connected load, cabinet temperature, quantity and delivery destination.
