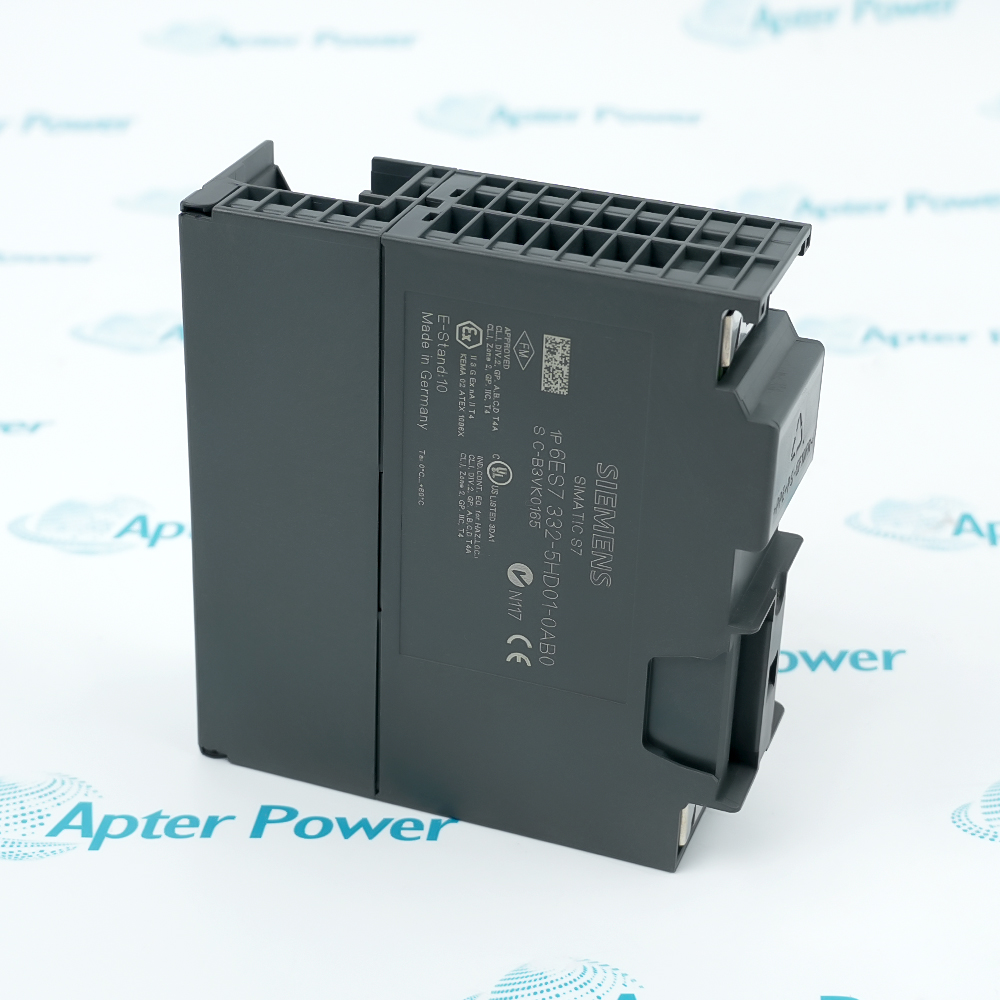

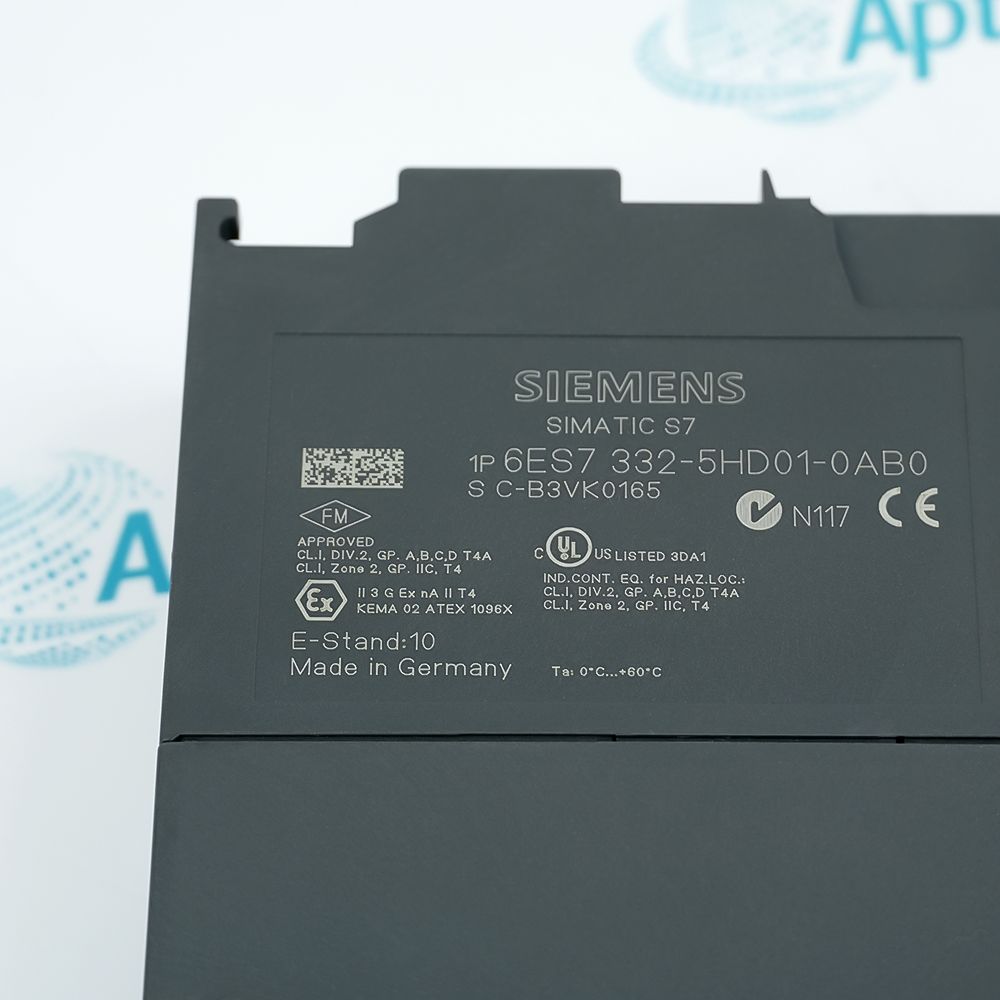

Siemens 6ES7332-5HD01-0AB0 is an isolated four-channel SM 332 analog output module for SIMATIC S7-300 with voltage/current outputs and diagnostics.
In Stock
Ships by Wednesday, October 28
Fast Shipping Available
Get a quick price for 6ES7332-5HD01-0AB0
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for 6ES7332-5HD01-0AB0

  • Manufacturer:
    Siemens
  • Part Number:
    6ES7332-5HD01-0AB0
  • Product Family:
    Siemens Simatic S7-300
  • Product Type:
    SM 332 Analog Output Module
  • Stock:
    1
  • Analog outputs:
    4
  • Load voltage:
    24 V DC
  • Voltage ranges:
    0 to 10 V; 1 to 5 V; -10 to +10 V
  • Current ranges:
    0 to 20 mA; -20 to +20 mA; 4 to 20 mA
  • Resolution:
    Up to 12 bit
  • Conversion time:
    0.8 ms per channel
  • Shielded cable length:
    Maximum 200 m
  • Diagnostics:
    Yes; parameterizable
  • Required front connector:
    20-pin
  • Weight:
    0.252 kg
  • Estimated shipping dimensions:
    12.8x15x5cm
  • Tariff Code:
    85389091
  • Country of origin:
    Germany
  • Place of shipment:
    Xiamen,Fujian,China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Diagnostics Output Signals Installation Product Applications

Features:

  • Four analog outputs: selectable voltage or current signals for S7-300 actuators.
  • Diagnostics: parameterizable diagnostics, alarms and substitute values.
  • Connection: 20-pin front connector with 24 V DC load supply.
The module provides four output channels with the documented unipolar, bipolar and live-zero ranges.

Galvanic isolation separates the output group from the backplane and load supply while the channels share a common potential.

Removal or insertion during operation requires the Siemens active-backplane-bus arrangement specified for this function.

Apter Power supports exact-MLFB and application review for the Siemens 6ES7332-5HD01-0AB0 SM 332 Analog Output Module.
Siemens 6ES7332-5HD01-0AB0 SM 332 Analog Output Module Manuals,Datasheets,Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
  • Provides parameterizable diagnostic information for the configured outputs.
  • Supports a parameterizable diagnostic alarm for controller fault handling.
  • Allows substitute values to be defined for the project response to a fault.
  • Provides four analog outputs for voltage or current actuators.
  • Supports the documented unipolar, bipolar and live-zero output ranges.
  • Requires each channel range and actuator load to match the hardware configuration.
  • Uses the specified 20-pin front connector and 24 V DC load supply.
  • Requires shielded field wiring within the documented cable-length limit.
  • Allows energized removal or insertion only with the active backplane bus.
  • Four-channel analog command output in SIMATIC S7-300 stations.
  • Voltage or current control of compatible valves, drives and positioning devices.
  • Maintenance replacement where the original connector map and project parameters are retained.
Description
In a SIMATIC S7-300 station, 6ES7332-5HD01-0AB0 converts controller values into four analog voltage or current commands for field actuators. The output circuitry is isolated from the backplane and load supply, while the channels share a common potential.

Range selection allows 6ES7332-5HD01-0AB0 to serve unipolar, bipolar and live-zero actuator signals. Each project channel must use the matching voltage or current range so scaling, diagnostics and substitute-value behavior remain consistent with the field device.

Replacement work should retain the 20-pin connector map and channel parameters for 6ES7332-5HD01-0AB0. Removing or inserting the module with the station energized is valid only where the documented Siemens active-backplane-bus arrangement is present.
Alternative Names
Siemens 6ES7332-5HD01-0AB0 SIMATIC S7-300 6ES7332-5HD01-0AB0 6ES7 332-5HD01-0AB0 6ES73325HD010AB0 6ES7332-5HD01-0AB0 SM 332 6ES7332-5HD01-0AB0 4 AO SM 332 4-Channel Analog Output Module S7-300 20-Pin Analog Output Module
Technical notes
Before replacing 6ES7332-5HD01-0AB0, archive the S7-300 hardware configuration and record all four channel ranges, diagnostics and substitute values. Verify the 20-pin front connector, 24 V DC load supply, shielding and actuator load for every output. Hot removal or insertion is permitted only with the documented active backplane bus and an approved maintenance procedure.
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
A project needs voltage outputs on two channels and current outputs on two others; can 6ES7332-5HD01-0AB0 serve that arrangement?
Yes, when each channel is parameterized for the connected actuator and its supported range. Do not rely on automatic detection; align the hardware configuration, scaling, and field load before commissioning each mixed-signal channel.
An actuator drives to the wrong end of travel after 6ES7332-5HD01-0AB0 is exchanged; what should controls engineering inspect first?
Start with that channel's configured voltage or current range and the actuator input type. A range or scaling mismatch can command a valid electrical output that represents the wrong process value, so correct the project before adjusting the actuator.
Why can an output remain at a fallback level after the CPU recovers with 6ES7332-5HD01-0AB0 installed?
The channel may still be applying its parameterized substitute value or fault response. Read the module diagnostics, confirm the CPU operating state, and restore the intended channel command only after the original fault condition has cleared.
The SF indication is active after field wiring changes; how should a technician use the diagnostics of 6ES7332-5HD01-0AB0?
Read the parameterized module and channel diagnostic information before disturbing other outputs. Use the reported channel to distinguish a wiring or load problem from a configuration issue, then clear the cause and confirm that the diagnostic indication resets.
A spare has a 40-pin connector and eight outputs; should it be prepared for a station documented for 6ES7332-5HD01-0AB0?
No. The documented module uses four outputs and a 20-pin front connector. Stop the staging process because the connector, channel allocation, and project hardware entry belong to a different SM 332 configuration.
A shielded actuator cable must be extended close to the published limit; what must be reviewed for 6ES7332-5HD01-0AB0?
Keep the run within the documented shielded-cable limit and review shielding, grounding, route, and actuator load as one circuit. Passing the length limit alone does not prove that voltage drop, interference, or load impedance is acceptable.
An actuator oscillates after a channel on 6ES7332-5HD01-0AB0 is replaced; what should controls engineering check?
Check the configured output range, load type, and the actuator input specification before tuning the loop. A channel can be healthy yet behave poorly when its current or voltage configuration does not match the connected load.
