    Apter Power supports sourcing the exact 6ES7332-5HF00-0AB0 for documented SIMATIC S7-300 maintenance requirements.

6ES7332-5HF00-0AB0

/ 4.9
1001 reviews | Need a Specific Revision?

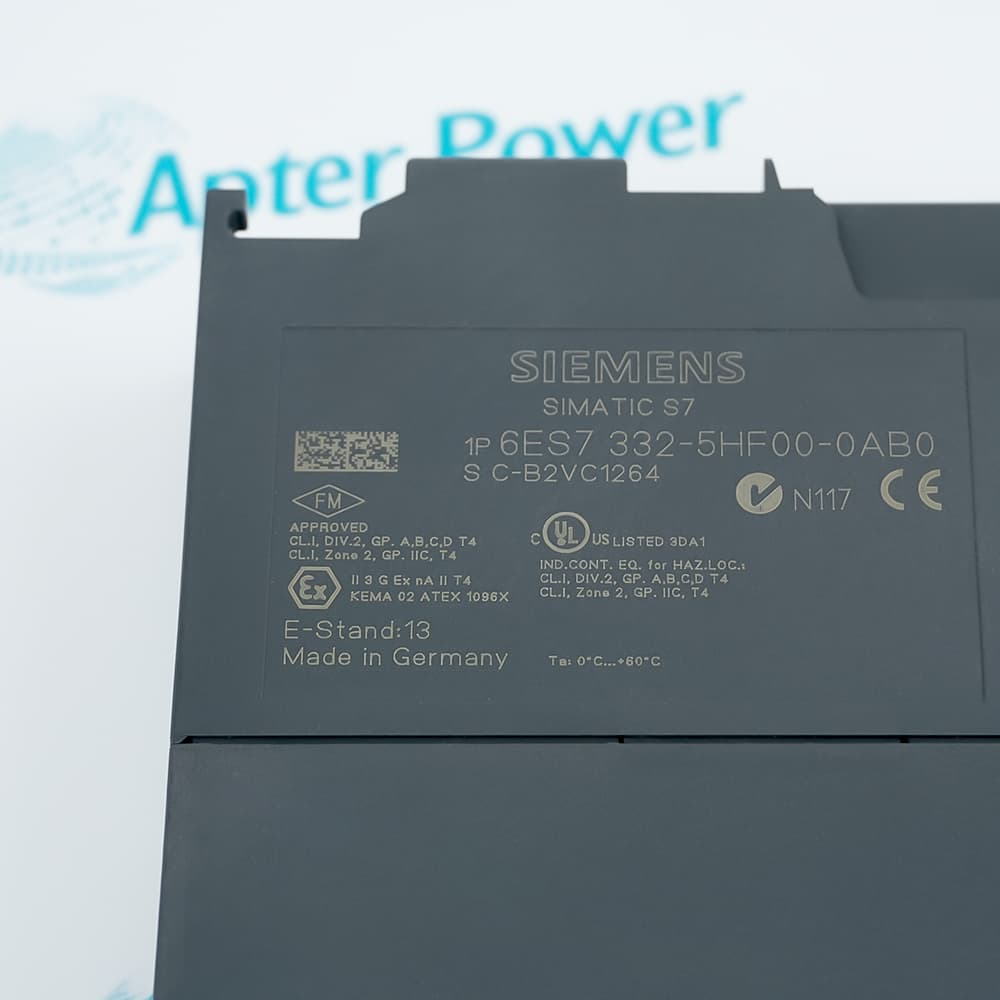

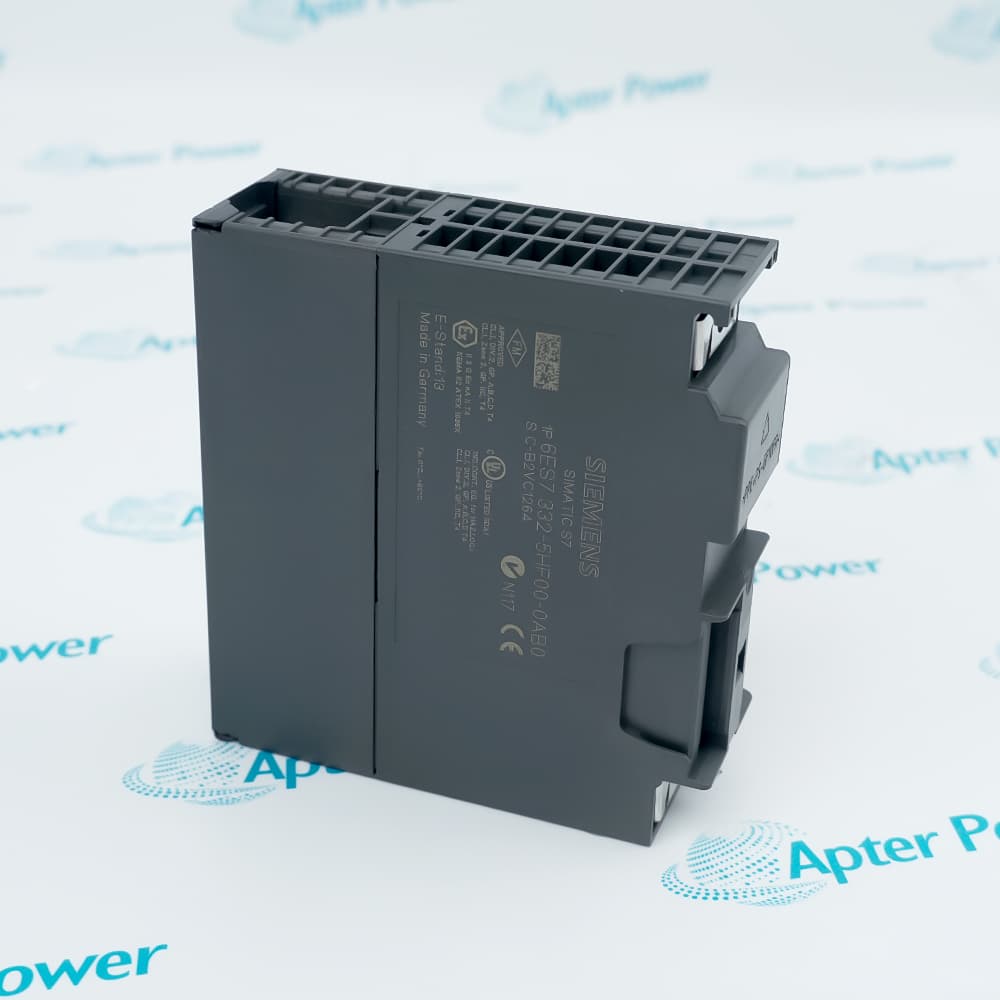

Siemens 6ES7332-5HF00-0AB0 is an isolated eight-channel SM 332 analog output module for SIMATIC S7-300 with diagnostics and a 40-pin connector.
In Stock
Ships by Thursday, October 29
Fast Shipping Available
Get a quick price for 6ES7332-5HF00-0AB0
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for 6ES7332-5HF00-0AB0

  • Manufacturer:
    Siemens
  • Part Number:
    6ES7332-5HF00-0AB0
  • Product Family:
    Siemens Simatic S7-300
  • Product Type:
    SM 332 Analog Output Module
  • Stock:
    1
  • Analog outputs:
    8
  • Load voltage:
    24 V DC
  • Voltage ranges:
    0 to 10 V; 1 to 5 V; -10 to +10 V
  • Current ranges:
    0 to 20 mA; -20 to +20 mA; 4 to 20 mA
  • Resolution:
    Up to 12 bit
  • Conversion time:
    0.8 ms per channel
  • Shielded cable length:
    Maximum 200 m
  • Diagnostics:
    Yes; parameterizable
  • Required front connector:
    40-pin
  • Weight:
    0.326 kg
  • Estimated shipping dimensions:
    15.2 x 12.8 x 5.0 cm
  • Tariff Code:
    85389099
  • Country of origin:
    Germany
  • Place of shipment:
    Xiamen,Fujian,China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Specifications Channel Planning Commissioning Checks Product Applications

Features:

  • Eight outputs: One SM 332 module serves eight voltage or current command loops.
  • Range selection: Bipolar, unipolar and live-zero ranges support different field devices.
  • Diagnostic behavior: Parameterizable diagnostics and substitute values support controlled fault response.

The eight-channel format increases output density but changes connector and addressing requirements compared with four-channel SM 332 variants.

Each channel must be assigned the voltage or current range expected by its actuator before commissioning.

Substitute values let the S7-300 project define a controlled output response when the CPU or communication state changes.

Availability is subject to Apter Power inventory and sourcing confirmation.
Siemens 6ES7332-5HF00-0AB0 SM 332 Analog Output Module Manuals,Datasheets,Link

Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.

Siemens 6ES7332-5HF00-0AB0 SM 332 Analog Output Module Specs

General

  • ManufacturerSiemens
  • Model6ES7332-5HF00-0AB0
  • ConditionNew Original ready stock
  • Product FamilySIMATIC S7-300

Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.

  • Output density: Eight channels change the address allocation and wiring density of the selected S7-300 slot.
  • Connector boundary: The 40-pin front connector prevents a four-channel wiring assembly from being treated as a direct match.
  • Range assignment: Each loop must use the voltage or current range expected by its field actuator.
  • Loop response: Compare the commanded value with the measured field signal on every configured channel.
  • Load supply: A valid PLC value does not prove the external actuator supply and loop wiring are healthy.
  • Fault behavior: Test the configured diagnostic reaction and substitute value before returning the process to automatic control.
  • Multi-loop actuator control: Provides eight analog commands from one SIMATIC S7-300 signal-module position.
  • Voltage-output tasks: Serves field equipment engineered for the module’s supported unipolar or bipolar voltage ranges.
  • Current-loop tasks: Drives industrial actuators and control devices configured for supported current ranges.
Description
Siemens 6ES7332-5HF00-0AB0 is an isolated SM 332 analog output module for SIMATIC S7-300 with eight voltage or current output channels.

6ES7332-5HF00-0AB0 provides the documented voltage and current ranges with up to 12-bit resolution, parameterizable diagnostics, and substitute values.

Verify 6ES7332-5HF00-0AB0 against the required 40-pin connector and eight-channel hardware configuration; Siemens lists this order number under product cancellation.
Alternative Names
Siemens 6ES7332-5HF00-0AB0 SIMATIC S7-300 6ES7332-5HF00-0AB0 6ES7 332-5HF00-0AB0 6ES73325HF000AB0 6ES7332-5HF00-0AB0 SM 332 6ES7332-5HF00-0AB0 8 AO SM 332 8-Channel Analog Output Module S7-300 40-Pin Analog Output Module
Technical notes
The main risk with 6ES7332-5HF00-0AB0 is replacing a four-channel or different connector variant by family name alone. Confirm the complete 5HF00 order code, eight-channel hardware configuration, 40-pin front connector, output range, load limits and STEP 7 parameter assignment before wiring or commissioning the SM 332 module.
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
Does 6ES7332-5HF00-0AB0 provide a direct upgrade from a four-channel SM 332?
Not as a plug-in substitution. The 6ES7332-5HF00-0AB0 eight-channel layout and 40-pin front connector require the hardware configuration, addresses, wiring schedule and cabinet documentation to be reviewed before replacement.
How can engineers decide whether the eight outputs of 6ES7332-5HF00-0AB0 suit a control cabinet?
Compare the required loop count, spare-channel policy, slot availability, 40-pin wiring density, actuator ranges, load limits and maintenance access before selecting 6ES7332-5HF00-0AB0.
What load conditions can affect the settling of 6ES7332-5HF00-0AB0 outputs?
Review the official minimum voltage-output load, maximum current-output load and permitted capacitive load for 6ES7332-5HF00-0AB0. A loop outside those limits may not settle as expected.
What should be commissioned separately on each channel of 6ES7332-5HF00-0AB0?
For every 6ES7332-5HF00-0AB0 channel, verify range selection, address, terminal mapping, substitute value, diagnostic response, actuator direction and measured field signal.
Why can 6ES7332-5HF00-0AB0 show a valid PLC value while the field device does not move?
Check the 6ES7332-5HF00-0AB0 terminal assignment, load supply, selected voltage or current range, field-loop continuity, permitted load and any active substitute behavior.
How should shielding be handled for multiple 6ES7332-5HF00-0AB0 analog outputs?
Plan shielded cable runs for 6ES7332-5HF00-0AB0 within the documented 200 m maximum and apply the project grounding and segregation rules consistently across all eight loops.
What should a buyer confirm is included with a 6ES7332-5HF00-0AB0 spare?
Confirm whether the 6ES7332-5HF00-0AB0 offer includes only the module or also the required 40-pin front connector, and request the full label, condition, quantity and connector scope.
