  • Lifecycle status

    Discontinued
    Discontinued date: 2007-03-30
    Replacement category: Successor
    Replacement product: 6ES7417-4XT07-0AB0

6ES7417-4XL04-0AB0

/ 4.9
1001 reviews | Need a Specific Revision?

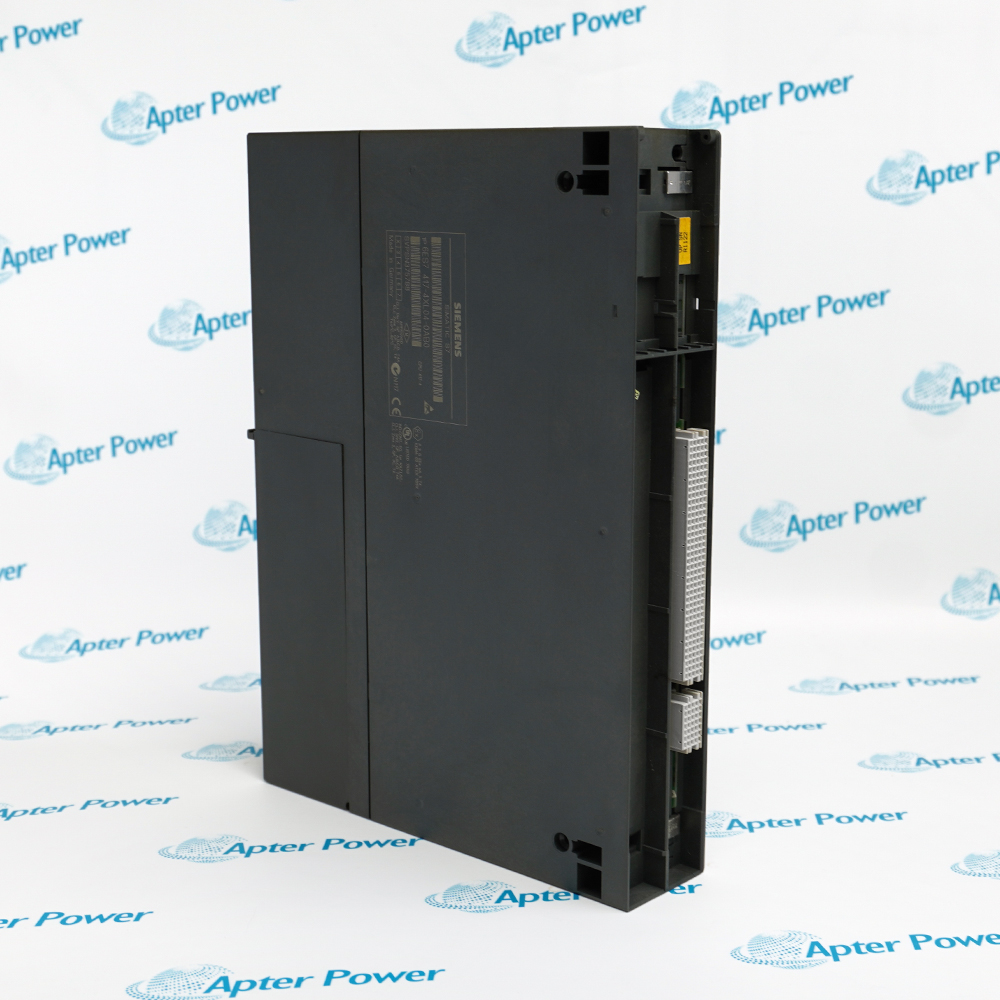

Siemens 6ES7417-4XL04-0AB0 is a discontinued SIMATIC S7-400 CPU 417-4 with 20 MB work memory, MPI/PROFIBUS DP interfaces, and two IFM expansion slots.
In Stock
Ships by Wednesday, October 28
Fast Shipping Available
Get a quick price for 6ES7417-4XL04-0AB0
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for 6ES7417-4XL04-0AB0

  • Manufacturer:
    Siemens
  • Part Number:
    6ES7417-4XL04-0AB0
  • Product Family:
    Siemens Simatic S7-400
  • Product Type:
    SIMATIC S7-400 CPU 417-4 Central Processing Unit
  • Stock:
    1
  • Firmware version in supplied official manual:
    V1.0
  • Work memory:
    20 MB total; 10 MB code and 10 MB data
  • Integrated load memory:
    256 KB RAM
  • Memory card capacity:
    Up to 64 MB, RAM or flash
  • Battery backup:
    Yes
  • Execution time:
    0.03 µs bit/word/integer; 0.09 µs floating point
  • Counters / timers:
    2048 / 2048
  • Total input / output address space:
    16 KB / 16 KB
  • Digital channels:
    131,072
  • Analog channels:
    8,192
  • Integrated interfaces:
    MPI/DP and PROFIBUS DP
  • Transmission rate:
    Up to 12 Mbit/s
  • Maximum DP slaves:
    125
  • Expansion interfaces:
    Third and fourth via IF 964-DP
  • Dimensions:
    5.0 × 29.0 × 21.9 cm
  • Weight:
    1.238 kg
  • Tariff Code:
    8537101190
  • Country of origin:
    Germany
  • Place of shipment:
    Xiamen,Fujian,China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Memory Interfaces Integration Application
  • 20 MB work memory divided between code and data
  • Integrated MPI/DP and PROFIBUS DP interfaces
  • Two additional IFM interface positions

6ES7417-4XL04-0AB0 is a high-performance CPU 417-4 for the Siemens SIMATIC S7-400 control platform.

It combines large code and data work-memory areas with integrated industrial communication and optional third and fourth PROFIBUS DP interfaces.

Because Siemens has cancelled this order number, a replacement project must protect the existing STEP 7 application and validate the named successor in the installed architecture.

Availability, condition, price, and shipping time for 6ES7417-4XL04-0AB0 are confirmed during quotation.

Siemens 6ES7417-4XL04-0AB0 CPU 417-4 Manuals, Datasheets, Links

Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.

  • Work memory is 10 MB for code and 10 MB for data.
  • Integrated load memory is 256 KB RAM.
  • RAM or flash memory cards up to 64 MB are documented.
  • The first integrated interface supports MPI/DP operation.
  • The second integrated interface is PROFIBUS DP.
  • Third and fourth interfaces use IF 964-DP modules.
  • The supplied manual associates the CPU with STEP 7 V5.2 SP1 HF3 and a hardware update.
  • Existing rack, power, memory-card, and bus configurations require exact recovery.
  • The named successor requires an engineered migration rather than blind substitution.
  • Large manufacturing-automation control systems.
  • Process-automation control in SIMATIC S7-400 architectures.
  • Data-intensive and communications-heavy PLC applications.
Description
6ES7417-4XL04-0AB0 is a Siemens CPU 417-4 central processing unit for the officially documented SIMATIC S7-400 control platform.

The CPU provides 20 MB of work memory divided into 10 MB for code and 10 MB for data, integrated MPI/PROFIBUS DP communication, and third and fourth interfaces through IFM modules.

Before installation or replacement, confirm the STEP 7 project, firmware and hardware configuration, memory card, rack slots, MPI and PROFIBUS DP networks, IFM modules, and successor-engineering requirements.
Alternative Names
6ES7417-4XL04-0AB0 6ES74174XL040AB0 Siemens 6ES7417-4XL04-0AB0 SIMATIC S7-400 6ES7417-4XL04-0AB0 SIMATIC S7-400 CPU 417-4 6ES7417-4XL04-0AB0
Technical notes
6ES7417-4XL04-0AB0 is a cancelled two-slot CPU 417-4. Preserve the STEP 7 project and verify all MPI, PROFIBUS DP, IFM, memory-card, and successor-fit requirements.
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
How can a buyer confirm that 6ES7417-4XL04-0AB0 matches the CPU installed in an S7-400 rack?

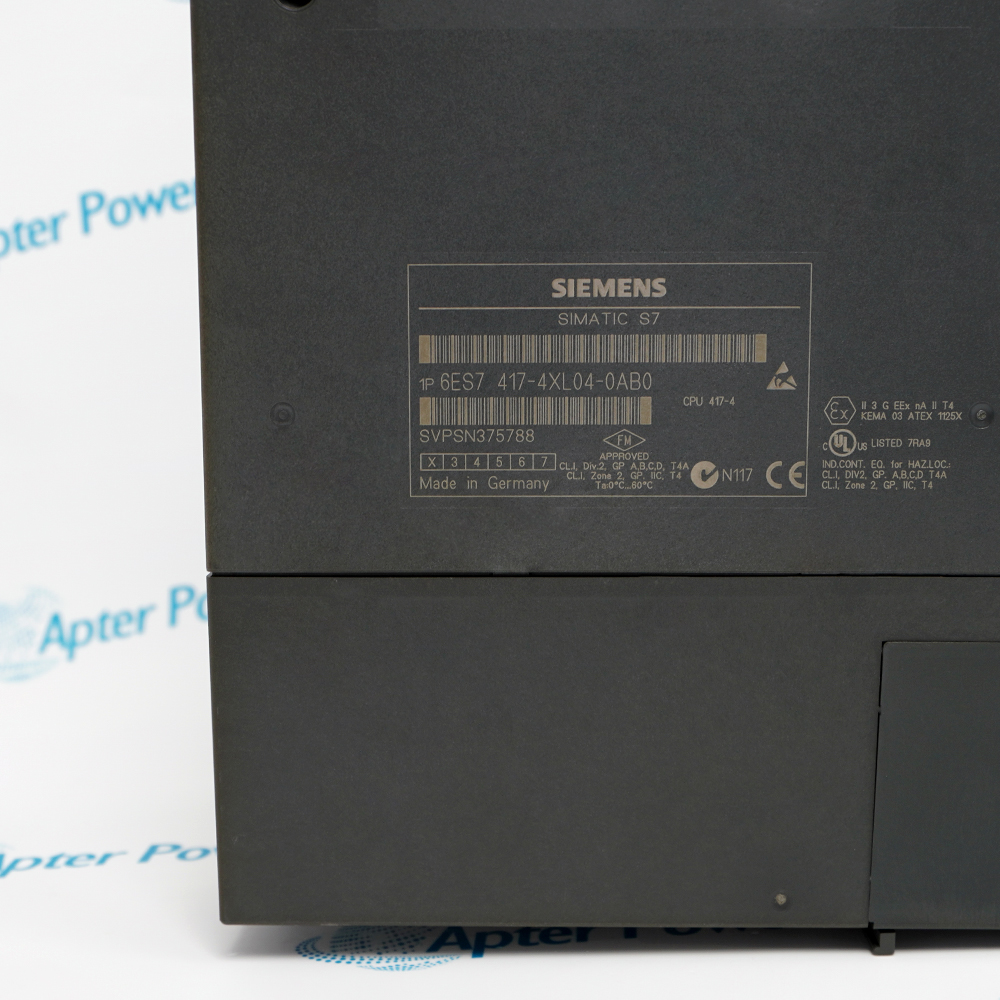

Compare the full catalog number, front-label details, firmware information, slot arrangement, memory card, interface modules, and saved STEP 7 hardware configuration.
What should be considered when sourcing discontinued 6ES7417-4XL04-0AB0?
Confirm condition, test scope, included memory and interface components, firmware, traceability, warranty, lead time, and the ability to restore the existing project.
Can an existing STEP 7 project be loaded into another 6ES7417-4XL04-0AB0 without review?
The project and hardware configuration must match the replacement CPU, firmware, memory arrangement, interface modules, and connected MPI/PROFIBUS DP networks.
Is the Siemens successor for 6ES7417-4XL04-0AB0 a direct drop-in replacement?
No direct substitution should be assumed; the successor requires review of rack compatibility, project conversion, communication, memory, firmware, and plant acceptance testing.
Which optional parts must be checked separately when ordering 6ES7417-4XL04-0AB0?
Confirm whether the memory card, IF 964-DP modules, backup battery, front cover, connectors, and other rack accessories are included in the quoted scope.
What evidence should accompany a replacement 6ES7417-4XL04-0AB0?
Request clear nameplate photos, firmware details, condition statement, included components, inspection or functional-test scope, and traceability documentation where required.
What must be preserved before replacing 6ES7417-4XL04-0AB0?
Preserve the STEP 7 project, hardware configuration, firmware details, memory card, network parameters, IFM setup, and tested rollback plan.
