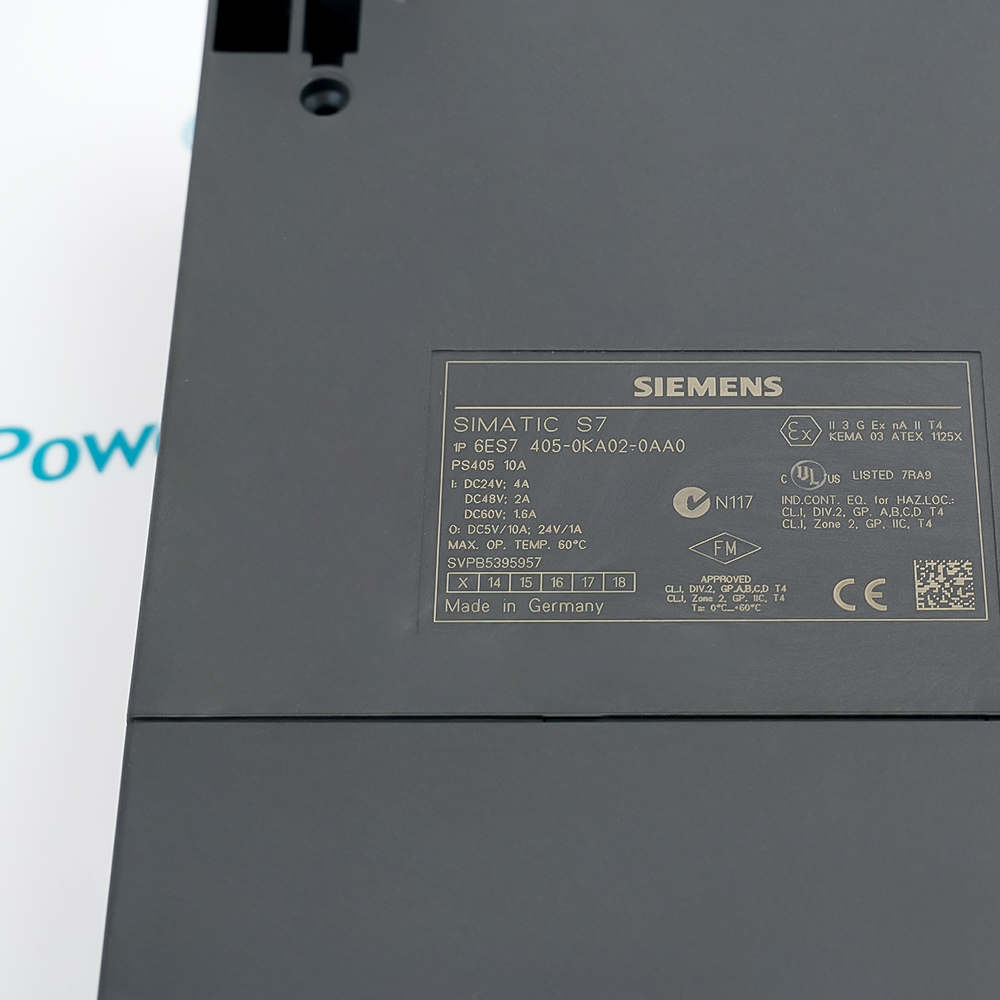

Siemens 6ES7405-0KA02-0AA0 is a SIMATIC S7-400 PS 405 10 A DC-input power supply that feeds the rack’s 5 V and 24 V backplane rails.
In Stock
Ships by Wednesday, October 28
Fast Shipping Available
Get a quick price for 6ES7405-0KA02-0AA0
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for 6ES7405-0KA02-0AA0

  • Manufacturer:
    Siemens
  • Part Number:
    6ES7405-0KA02-0AA0
  • Product Family:
    Siemens Simatic S7-400
  • Product Type:
    SIMATIC S7-400 PS 405 power supply
  • Stock:
    1
  • Mains/voltage failure stored energy time:
    20 ms
  • Mains buffering according to NAMUR recommendation:
    Yes
  • Rated value at 24 V DC:
    4 A
  • Rated value at 48 V DC:
    2 A
  • Rated value at 60 V DC:
    1.6 A
  • Inrush current, max.:
    18 A; Full width at half maximum 20 ms
  • Type of output voltage:
    DC
  • for backplane bus (5 V DC), max.:
    10 A; no base load required
  • for backplane bus (24 V DC), max.:
    1 A; idling-proof
  • Short-circuit protection:
    Yes
  • Active power input, typ.:
    95 W
  • Power loss, typ.:
    20 W
  • Backup battery (optional):
    Yes; 2x lithium AA; 3.6 V / 2.2 Ah
  • Required slots:
    2
  • Weight:
    1.335 kg
  • Estimated shipping dimensions:
    23.3 x 29.5 x 6.3 cm
  • Tariff Code:
    85044095
  • Country of origin:
    Germany
  • Place of shipment:
    Xiamen,Fujian,China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals DC Input Fit Rack Power Fault Response Product Applications

Features:

  • DC-fed S7-400 supply: PS 405 serves racks built around a 24, 48 or 60 V DC source rather than an AC mains feed.
  • Two backplane rails: The module feeds both rack voltage paths, so the station load must be considered across both rails.
  • Short-interruption support: Stored energy buffers a brief input-voltage dip; sustained loss still requires a suitable DC supply strategy.
For a DC-powered SIMATIC S7-400 station, 6ES7405-0KA02-0AA0 is a PS 405 10 A power supply rather than a CPU or field I/O module.

Its role is to energize the rack backplane, including the 5 V logic rail and the auxiliary 24 V rail used by the station.

For an existing cabinet, the DC source, module-space allowance and expected rack load define the selection before installation.

Apter Power can help source Siemens 6ES7405-0KA02-0AA0 SIMATIC S7-400 PS 405 power supply documentation and prepare an exact-model quotation.
Siemens 6ES7405-0KA02-0AA0 SIMATIC S7-400 PS 405 power supply Manuals,Datasheets,Link
Important Notice: Other accessories, manuals, cables, software and batteries are not included unless expressly listed in the offered item description. Prices are quoted in USD.
  • DC source: A 24, 48 or 60 V DC cabinet feed suits this PS 405 variant; an AC-fed station requires a different supply family.
  • Supply envelope: Siemens permits 19.2 to 72 V DC under static conditions, making source variation a design consideration rather than an assumed nominal-only match.
  • Current allowance: The input draws different rated currents at the three nominal voltages; upstream conductors and protective devices should suit the chosen feed.
  • Startup demand: The specified inrush peak is higher than steady-state draw, so protective-device selection should allow for energization.
  • Rack space: This 10 A PS 405 occupies two S7-400 slots, which matters when replacing a one-slot power supply.
  • Logic supply: The 5 V backplane rail serves the station modules without a minimum base-load requirement.
  • Auxiliary rail: The 24 V backplane path is rated separately and is idling-proof; it should not be confused with the external DC input.
  • Electrical separation: Siemens specifies primary-to-secondary separation and protective-conductor class I, shaping the cabinet grounding arrangement.
  • Overload recovery: For this PS 405, a short circuit or overload leads to shutdown followed by an automatic restart attempt after the fault clears.
  • 24 V rail: When overload drives the rail below its threshold, repeated disconnection and reconnection can appear until the load recovers.
  • 5 V rail: A sustained 5 V overload has a different CPU consequence, so it should not be diagnosed as only a transient 24 V issue.
  • Diagnostic cues: The supply LEDs and the CPU diagnostic buffer help distinguish a backplane power fault from a normal operating state.
  • SIMATIC S7-400 stations: This PS 405 provides rack backplane power in a controller station built for DC input.
  • 24/48/60 V cabinet systems: One wide-range supply type can be selected where the installed cabinet uses one of Siemens’ stated DC supply levels.
  • Two-rail rack loads: Stations requiring both the 5 V logic rail and the separate 24 V backplane rail can be assessed against this module’s output ratings.
Description
For a DC-fed SIMATIC S7-400 station, Siemens 6ES7405-0KA02-0AA0 supplies the rack backplane rather than processing field signals. The wide-range PS 405 design accepts 24, 48 or 60 V DC cabinet feeds, helping maintenance teams distinguish it from an AC-input supply before planning a replacement.

The 10 A 5 V rail and separate 24 V rail serve different rack loads. With 6ES7405-0KA02-0AA0, the published input-current figures are not output ratings; the installed module mix and two-slot space allowance are the more useful fit checks for an S7-400 cabinet.

Brief DC interruptions are buffered for about 20 ms, while short-circuit protection and supply diagnostics support fault assessment. For 6ES7405-0KA02-0AA0 sourcing, the optional backup batteries should be specified separately so the quotation reflects the required supply scope without assuming they accompany the module.
Alternative Names
6ES74O5-OKAO2-OAAO 6ES74050KA020AA0 6ES74O5OKAO2OAAO 6ES7 405-0KA02-0AA0 6ES7405 0KA02 0AA0 6ES7405-0KAO2-0AA0 6ES7405-0KA02-OAA0 6ES7405-OKA02-0AA0
Technical notes
Siemens lists 6ES7405-0KA02-0AA0 as the standard PS 405 10 A DC supply and 6ES7405-0KR02-0AA0 separately as the redundant variant. A cabinet designed around redundant power paths therefore needs the correct variant rather than an order-code substitution. Apter Power can help compare the installed supply code with the requested spare.
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
Can 6ES7405-0KA02-0AA0 operate in a cabinet reaching 65 °C?
Its published operating ambient is 0 to 60 °C, so a 65 °C cabinet exceeds that limit. Apter Power can help review the enclosure conditions before sourcing.
How much heat should enclosure cooling allow for 6ES7405-0KA02-0AA0?
Siemens specifies a typical 20 W power loss. That heat should be included with the other rack equipment in the cabinet cooling budget.
What upstream power capacity should be budgeted for 6ES7405-0KA02-0AA0?
The official datasheet gives about 95 W of typical active power input. The upstream DC source should be sized for the complete station and its startup conditions.
What cable termination is specified for 6ES7405-0KA02-0AA0?
The Siemens datasheet specifies three 1.5 mm² solid or stranded conductors with end sleeves and an external cable diameter of 3–9 mm.
Will 6ES7405-0KA02-0AA0 maintain operation through a long DC outage?
Its published mains buffering is about 20 ms, so longer ride-through needs a system-level solution. Apter Power can help match the spare to that power plan.
Are backup batteries included with every 6ES7405-0KA02-0AA0 order?
Siemens describes backup batteries as optional. Please state the battery requirement when requesting a quotation so Apter Power can define the supplied scope clearly.
Can external 24 V field loads be assigned to 6ES7405-0KA02-0AA0 without checking the design?
The published 24 V/1 A rail feeds the rack backplane. External field-power arrangements depend on the cabinet design, which Apter Power can help review with the installed wiring.
What cabinet depth is needed for 6ES7405-0KA02-0AA0?
The module itself is 217 mm deep, 290 mm high and 50 mm wide. A replacement should also allow space for the installed wiring and rack arrangement.
