SRT012

/ 4.9
1001 reviews | Need a Specific Revision?

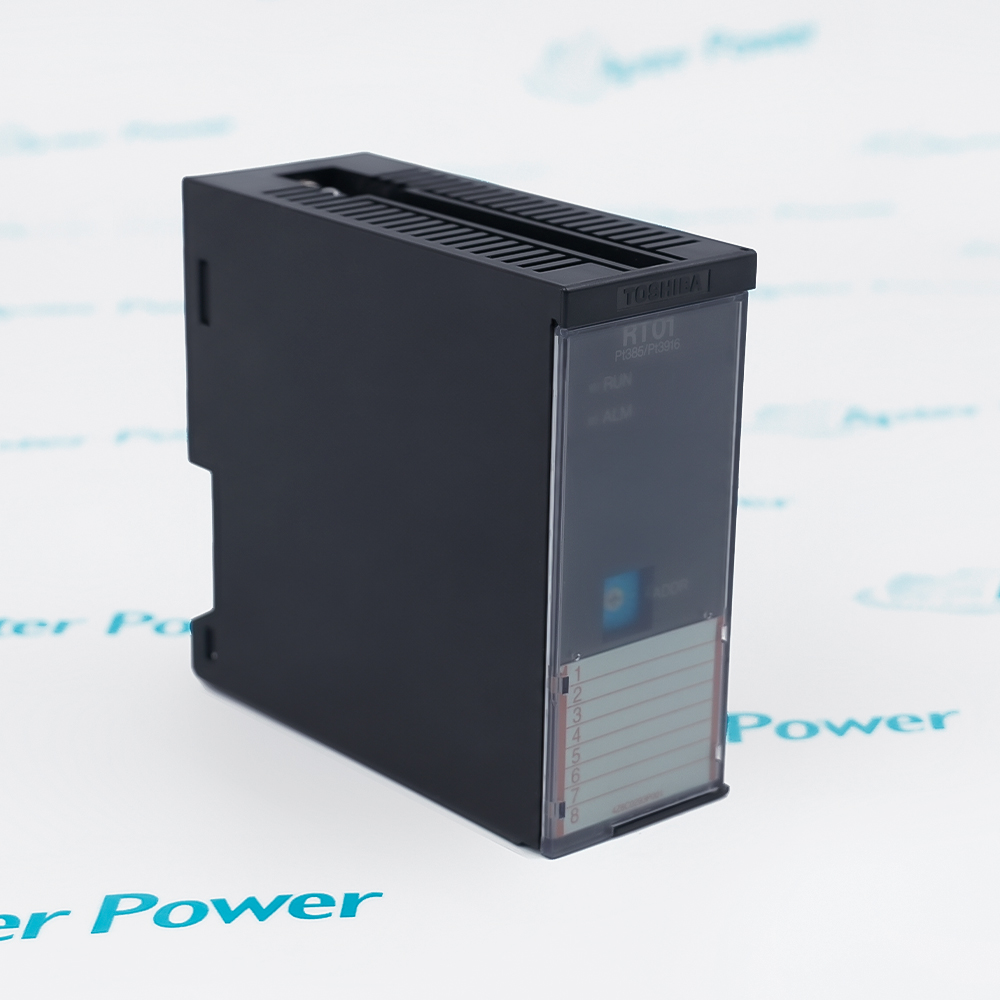

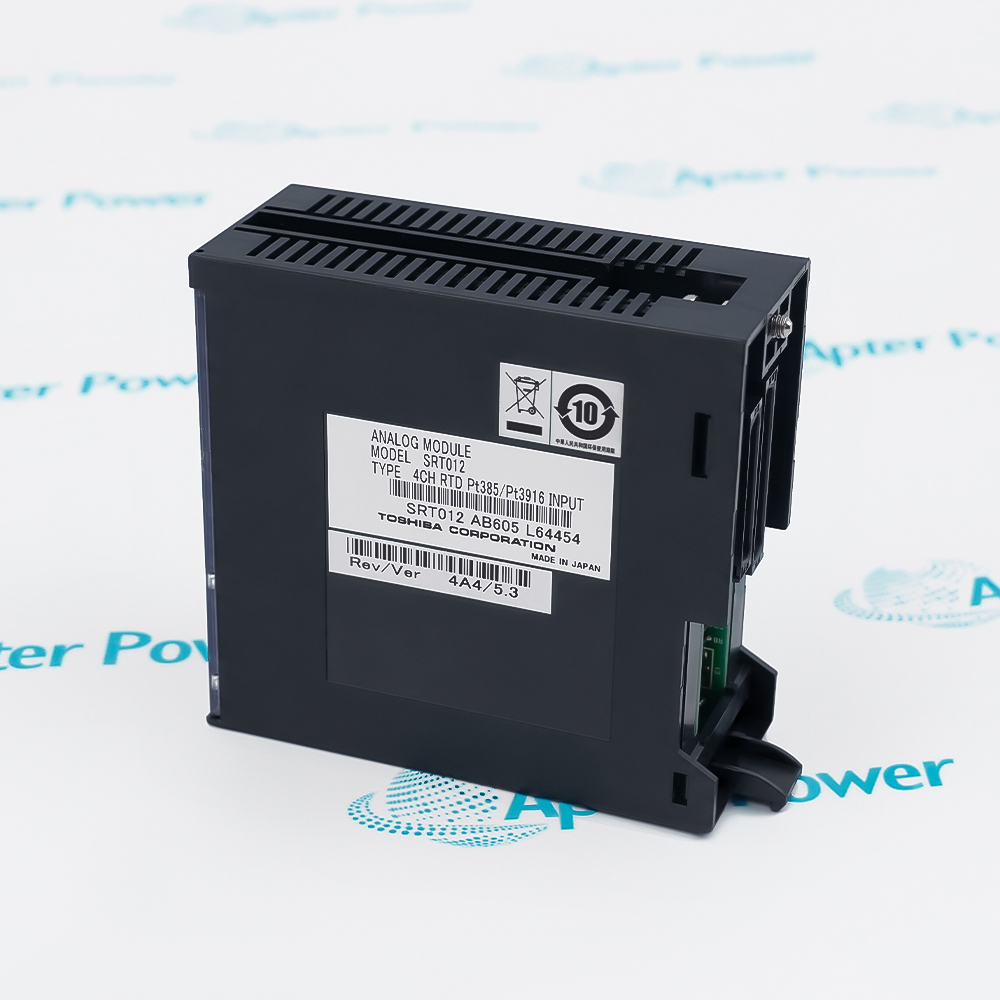

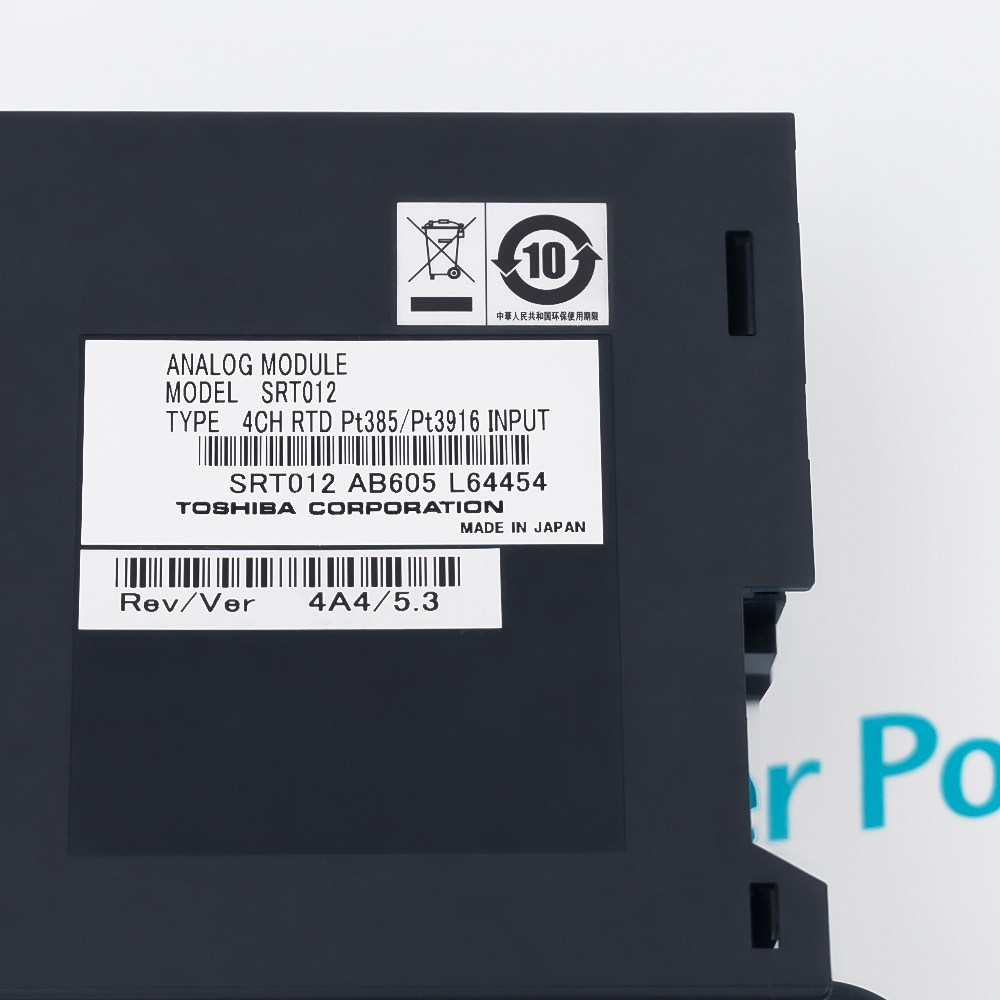

Toshiba SRT012 is a TOSDIC-CIE DS Resistance-Temperature Input Module. It acquires four mutually isolated three-wire RTD input channels.
In Stock
Ships by Wednesday, October 28
Fast Shipping Available
Get a quick price for SRT012
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for SRT012

  • Manufacturer:
    Toshiba
  • Part Number:
    SRT012
  • Product Family:
    Toshiba Integrated Controller V Series
  • Product Type:
    Resistance-Temperature Input Module
  • Stock:
    1
  • Base card:
    UIOU59; two SRT012 modules per documented base-card arrangement
  • Input points:
    4
  • Channel isolation:
    Each input point isolated
  • Sensor wiring:
    Three-wire RTD
  • Selectable sensors:
    Pt100 (Pt385) and JPt100 (Pt3916), configurable independently by point
  • Data update cycle:
    186 ms at 50 Hz filter or 159 ms at 60 Hz filter
  • Internal communications:
    Redundant RS-485 I/O buses
  • Weight:
    0.3307 lbs (0.15 kg)
  • Estimated shipping dimensions:
    4 x 10.3 x 9.1 cm
  • Tariff Code:
    8537101190
  • Country of origin:
    Japan
  • Place of shipment:
    Xiamen,Fujian,China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Applications Temperature & Humidity Range Monitoring Installation

Features:

  • Acquires four mutually isolated three-wire RTD input channels.
  • Supports independently configured Pt100 and JPt100 sensors.
  • Processes resistance through excitation, isolation, V/F conversion and CPU scanning.
SRT012 acquires resistance-temperature signals for the TOSDIC-CIE DS intelligent I/O arrangement and converts four field RTD channels into digital process values.

A controlled excitation current is applied to each three-wire RTD. Resistance detection and the analog V/F conversion path determine the sensor value, while the three-wire connection compensates for lead resistance.

Confirm the UIOU59 base card, channel sensor type, three-wire terminal assignment, configured filter and engineering scaling. Do not substitute the similarly named STC012 thermocouple module.

Availability is reviewed against the exact SRT012 order identity and requested supply condition; manufacturer lifecycle status: Active / Available from OEM.
Verified resources for Toshiba SRT012:Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
  • An analog multiplexer and internal CPU sequence the four isolated channels. The selected 50 or 60 Hz filter determines the documented update cycle, and channel data is exchanged over redundant RS-485 buses.
  • The module is used for plant temperature measurement where Pt100 or JPt100 sensors are connected to legacy Toshiba DPCS/TOSDIC installations, including process vessels, rotating equipment and utility systems.
  • Communicates with the intelligent I/O system through redundant RS-485 buses.
  • Converts four three-wire RTD signals into digital temperature values.
  • Supports independently configured Pt100 and JPt100 sensors on each point.
  • Uses selectable 50 Hz or 60 Hz filtering for stable measurement.
  • Provides four isolated resistance-temperature input channels.
  • Updates channel data every 186 ms at the 50 Hz filter setting.
  • Reduces update time to 159 ms when the 60 Hz filter is selected.
  • Requires the UIOU59 base card with two modules per documented arrangement.
  • Three-wire terminal assignments must follow the configured sensor type and scaling.
  • The similarly named STC012 thermocouple module is not an interchangeable substitute.
Description
Toshiba SRT012 SRT012 acquires resistance-temperature signals for the TOSDIC-CIE DS intelligent I/O arrangement and converts four field RTD channels into digital process values. A controlled excitation current is applied to each three-wire RTD. Resistance detection and the analog V/F conversion path determine the sensor value, while the three-wire connection compensates for lead resistance.

An analog multiplexer and internal CPU sequence the four isolated channels. The selected 50 or 60 Hz filter determines the documented update cycle, and channel data is exchanged over redundant RS-485 buses. The module is used for plant temperature measurement where Pt100 or JPt100 sensors are connected to legacy Toshiba DPCS/TOSDIC installations, including process vessels, rotating equipment and utility systems.

Confirm the UIOU59 base card, channel sensor type, three-wire terminal assignment, configured filter and engineering scaling. Do not substitute the similarly named STC012 thermocouple module.
Alternative Names
SRT012 Toshiba SRT012 Toshiba TOSDIC-CIE DS Resistance-Temperature Input Module
Technical notes
Toshiba SRT012 must remain paired with the UIOU59 base card and the configured Pt100/JPt100 sensor, filter, and three-wire terminal assignment; do not confuse it with the STC012 thermocouple module.
