    Apter Power provides VIPA 314-2AG13 quotations, English technical information, and System 300S matching guidance.

314-2AG13

/ 4.9
1001 reviews | Need a Specific Revision?

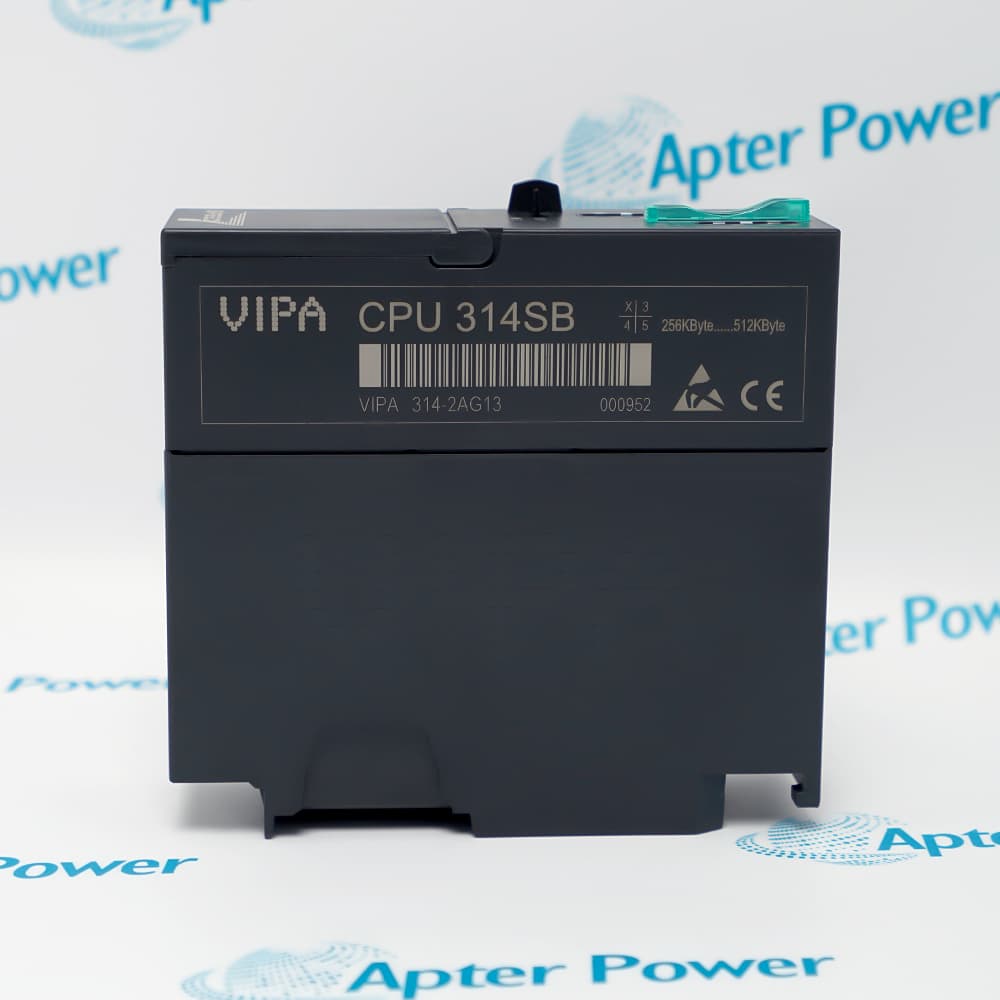

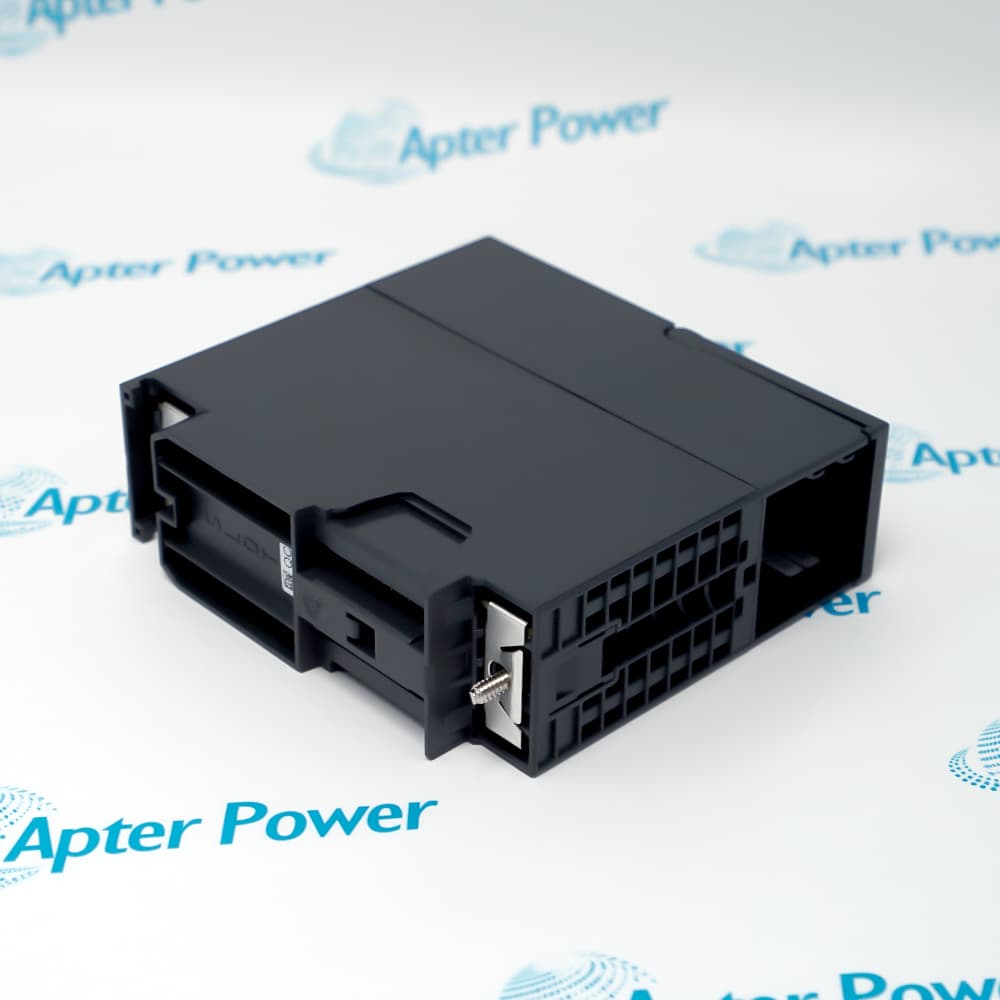

VIPA 314-2AG13 is a System 300S SPEED7 CPU 314SB/DPM that executes controller programs and coordinates local I/O, PROFIBUS, MPI, and PG/OP communication.
In Stock
Ships by Wednesday, October 28
Fast Shipping Available
Get a quick price for 314-2AG13
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for 314-2AG13

  • Manufacturer:
    VIPA
  • Part Number:
    314-2AG13
  • Product Family:
    VIPA
  • Product Type:
    SPEED7 CPU 314SB/DPM
  • Stock:
    1
  • Integrated Work Memory:
    256 KB
  • Maximum Work Memory:
    512 KB
  • Integrated Load Memory:
    512 KB
  • Memory Allocation:
    50% program / 50% data
  • Memory Card Slot:
    MMC card, maximum 1 GB
  • Rated Supply:
    24 VDC
  • Supply Range:
    20.4 to 28.8 VDC
  • Inrush Current:
    5 A
  • I²t:
    0.5 A²s
  • Backplane Bus Current:
    2.5 A maximum
  • Power Loss:
    6 W
  • Rack Capacity:
    4 racks maximum
  • Modules per Rack:
    8 multi-rack / 32 single-rack
  • Integrated DP Master:
    1
  • DP Masters via CP:
    4
  • PtP Communication Modules:
    8 maximum
  • LAN Communication Modules:
    8 maximum
  • Bit/Word/Double Integer Time:
    0.01 microseconds minimum
  • Floating-Point Time:
    0.06 microseconds minimum
  • I/O Address Area:
    8192 bytes input / 8192 bytes output
  • Tariff Code:
    8537101190
  • Country of origin:
    Germany
  • Place of shipment:
    Xiamen,Fujian,China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Memory & Storage Communication Configuration Applications

Features:

  • Runs System 300S control tasks on the SPEED7 processing platform.
  • Provides MPI, Ethernet PG/OP, and configurable RS485 communication.
  • Expands 256 KB work memory to 512 KB with an MCC card.
VIPA 314-2AG13 maps up to 8192 bytes each for process inputs and outputs, allowing the CPU to address a broad modular I/O configuration.

The front operating switch selects STOP, RUN, or memory reset behavior, while LEDs distinguish controller, communication, and bus states during operation.

Configuration can be prepared in STEP7 or TIA Portal using the specified CPU 317-2DP project profile and the corresponding VIPA hardware parameters.

The VIPA 314-2AG13 SPEED7 CPU 314SB/DPM may still be available for purchase and support from Apter Power beyond End-Of-Life (EOL) by the manufacturer (OEM).
VIPA 314-2AG13 SPEED7 CPU 314SB/DPM Manuals,Datasheets,Link Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.

Program and Data Memory

  • Work Area: 256 KB is available for code and data during CPU execution.
  • Expansion: An MCC card increases the usable work memory to 512 KB.
  • Load Storage: 512 KB retains the project objects required for controller startup.
  • Card Slot: The MMC/MCC interface accepts project storage and firmware media.

Integrated Communication Paths

  • MPI: The multipoint interface supports engineering and controller communication.
  • Ethernet: The PG/OP channel provides TCP/IP access for programming and operator communication.
  • RS485 Mode: The serial interface can be assigned as PROFIBUS DP master, DP slave, or point-to-point.
  • PtP Protocols: ASCII, STX/ETX, 3964R, USS, and Modbus Master are selectable.

Engineering and Rack Setup

  • Engineering Tools: STEP7 and TIA Portal can be used to prepare the controller project.
  • CPU Profile: The hardware is configured through the specified CPU 317-2DP project entry.
  • Rack Layout: Up to four racks are supported with eight modules on each rack.
  • Single Rack: A one-rack layout can contain as many as thirty-two modules.

Defined Installation Scope

  • Industrial Control: The CPU is intended for industrial control and automation equipment.
  • Cabinet Mounting: Operation is specified for installation inside a control cabinet.
  • Central Tasks: Local controller and I/O functions can be organized in one station.
  • Distributed Tasks: PROFIBUS communication supports remote automation structures.
Description
VIPA 314-2AG13 is a System 300S SPEED7 CPU 314SB/DPM that combines controller execution with modular I/O coordination and integrated communication. Its SPEED7 architecture separates program processing and communication work through dedicated resources.

Program and data storage in VIPA 314-2AG13 begins with 256 KB of work memory divided equally between program and data, together with 512 KB of load memory. An MCC card can extend work memory to 512 KB, while the MMC slot accepts storage media up to 1 GB.

For network and engineering access, VIPA 314-2AG13 provides MPI, an Ethernet PG/OP channel, and an RS485 interface. The RS485 connection can be assigned as a PROFIBUS DP master, DP slave, or point-to-point port supporting ASCII, STX/ETX, 3964R, USS, and Modbus Master.

A 24 VDC supply feeds VIPA 314-2AG13 and the attached modules through the backplane bus. The CPU supports as many as four racks with eight modules per rack, or thirty-two modules in a single-rack configuration, and exposes 8192 bytes each of input and output address space.

Execution resources in VIPA 314-2AG13 process bit, word, and double-integer instructions from 0.01 microseconds and floating-point operations from 0.06 microseconds. The documented backplane-bus current is 2.5 A maximum, with 6 W power loss.
Alternative Names
314-2AG13 314 2AG13 3142AG13 VIPA 314-2AG13 VIPA CPU 314SB VIPA 314SB/DPM System 300S 314-2AG13 3I4-2AG13
Technical notes
VIPA 314-2AG13 combines SPEED7 processing, expandable work memory, and integrated MPI, Ethernet PG/OP, and PROFIBUS/PtP interfaces in a System 300S CPU.
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
Can VIPA 314-2AG13 be configured in STEP7 or TIA Portal?
A VIPA 314-2AG13 project can be created in STEP7 or TIA Portal using the specified CPU 317-2DP hardware profile and VIPA parameters.
When should an MCC card be fitted to VIPA 314-2AG13?
An MCC card is required when VIPA 314-2AG13 must extend work memory from 256 KB to as much as 512 KB.
Which operating mode must be selected for the RS485 port on VIPA 314-2AG13?
The VIPA 314-2AG13 RS485 interface must be configured for PROFIBUS DP master, DP slave, or the required point-to-point protocol.
How should modules be distributed across racks with VIPA 314-2AG13?
VIPA 314-2AG13 supports up to four racks with eight modules per rack, or as many as thirty-two modules in one single-rack configuration.
What should be checked when a programming device cannot reach VIPA 314-2AG13 over Ethernet?
For VIPA 314-2AG13, verify the Ethernet PG/OP settings, IP configuration, and the engineering project communication assignment.
Does VIPA 314-2AG13 require separate planning for local I/O addresses?
Yes. VIPA 314-2AG13 provides 8192 bytes each for input and output addresses, and connected modules must be assigned within those areas.
