Features:
- High-density connection: MicroNet cable for documented analog and discrete signals.
- Physical reference: gray jacket with 14-foot length.
- Mixed-signal control: pin assignments and shielding remain part of the compatibility boundary.
The exact part number governs selection for this high-density mixed-signal cable.
Endpoint, pin and shield records protect analog integrity and discrete behavior during replacement.
Separate analog and discrete commissioning checks provide clearer fault isolation after installation.
Apter Power supports exact-part review and quotation for Woodward 5417-175 MicroNet High-Density Analog/Discrete Cable.
Woodward 5417-175 MicroNet High-Density Analog/Discrete Cable Manuals,Datasheets,Links
Important Notice: No qualified exact-model English PDF is attached. Use the complete product model in every document request.
- Exact part: 5417-175 identifies the Woodward MicroNet high-density cable.
- Mixed-signal role: the assembly carries documented analog and discrete connections.

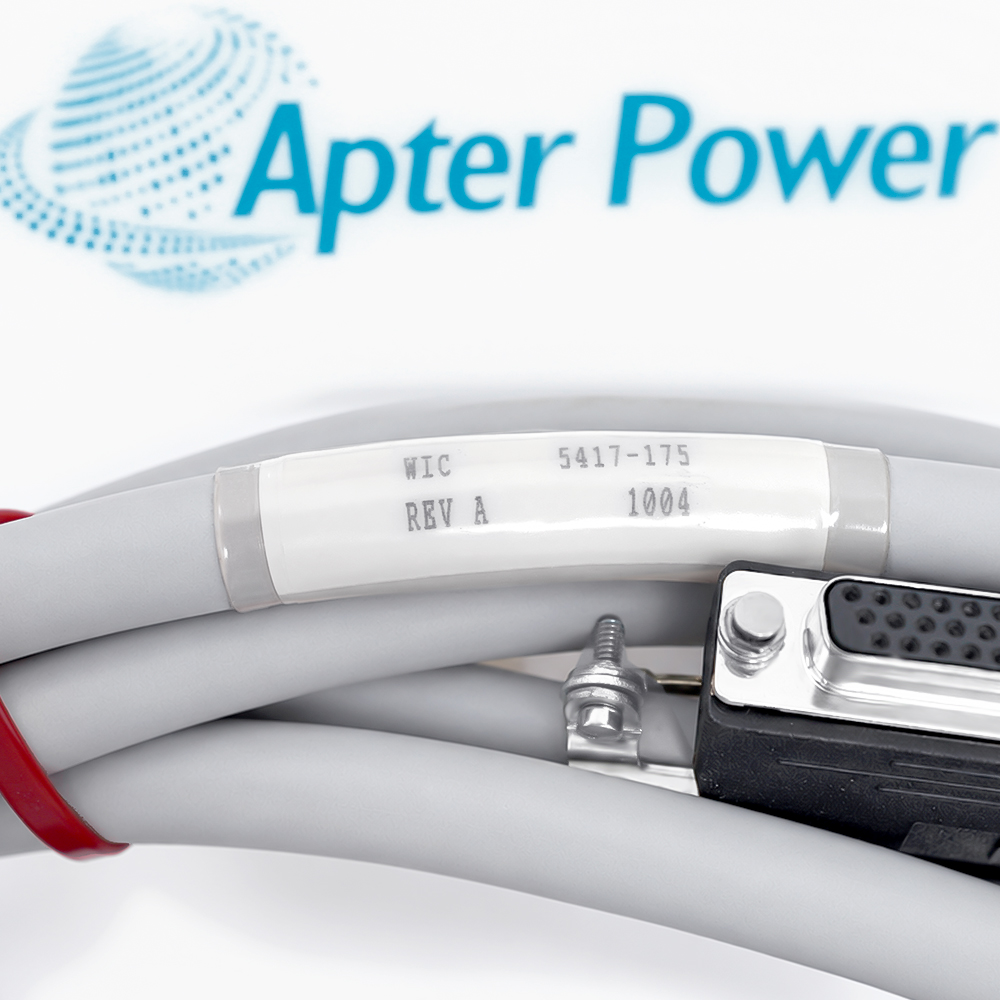

- Physical reference: Woodward lists a 14-foot length for this gray cable.
- Connector density: the high-density build separates this harness from shorter low-density NetCon assemblies.
- Equipment endpoints: both connected device references define the control path served by the harness.
- Pin assignments: analog and discrete circuits share the assembly but retain distinct mapped positions.
- Shield arrangement: bonding and route separation protect mixed-signal behavior.
- Connector retention: hardware and strain relief maintain the high-density mating interface.
- Assembly condition: labels, connectors, retention hardware and jacket establish physical acceptance.
- Path continuity: every documented circuit should remain intact between the high-density endpoints.
- Analog behavior: representative readings show whether shielded signal paths remain stable.
- Discrete behavior: expected states and commands demonstrate correct mapping of the switched circuits.
- MicroNet mixed-signal maintenance: 5417-175 supports restoration of a documented high-density control connection.
- Turbine-control outage work: endpoint and pin-map information define the analog and discrete paths affected.
- Signal-integrity troubleshooting: shielding, route and channel behavior help localize mixed-signal faults.
- Stores differentiation: the gray 14-foot high-density harness is distinct from shorter NetCon cable assemblies.
