ADV142-P13 S1

/ 4.9
1001 reviews | Need a Specific Revision?

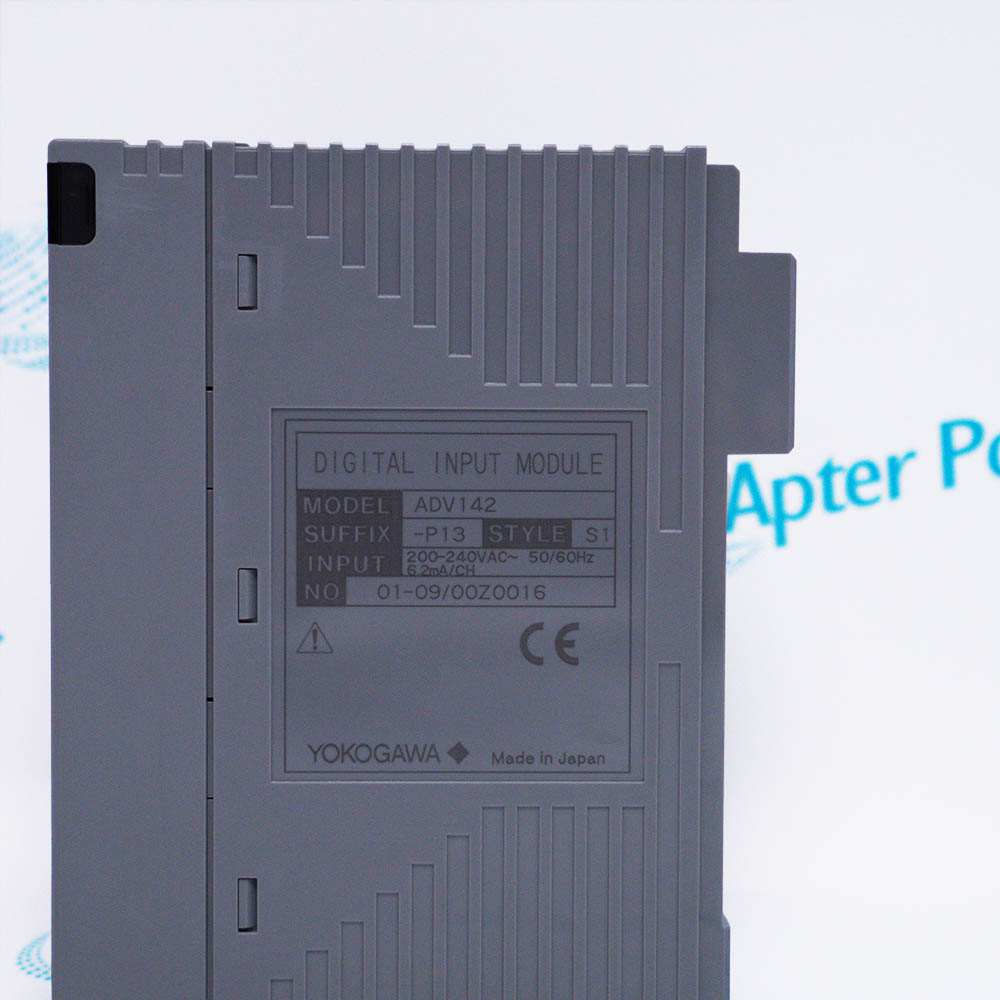

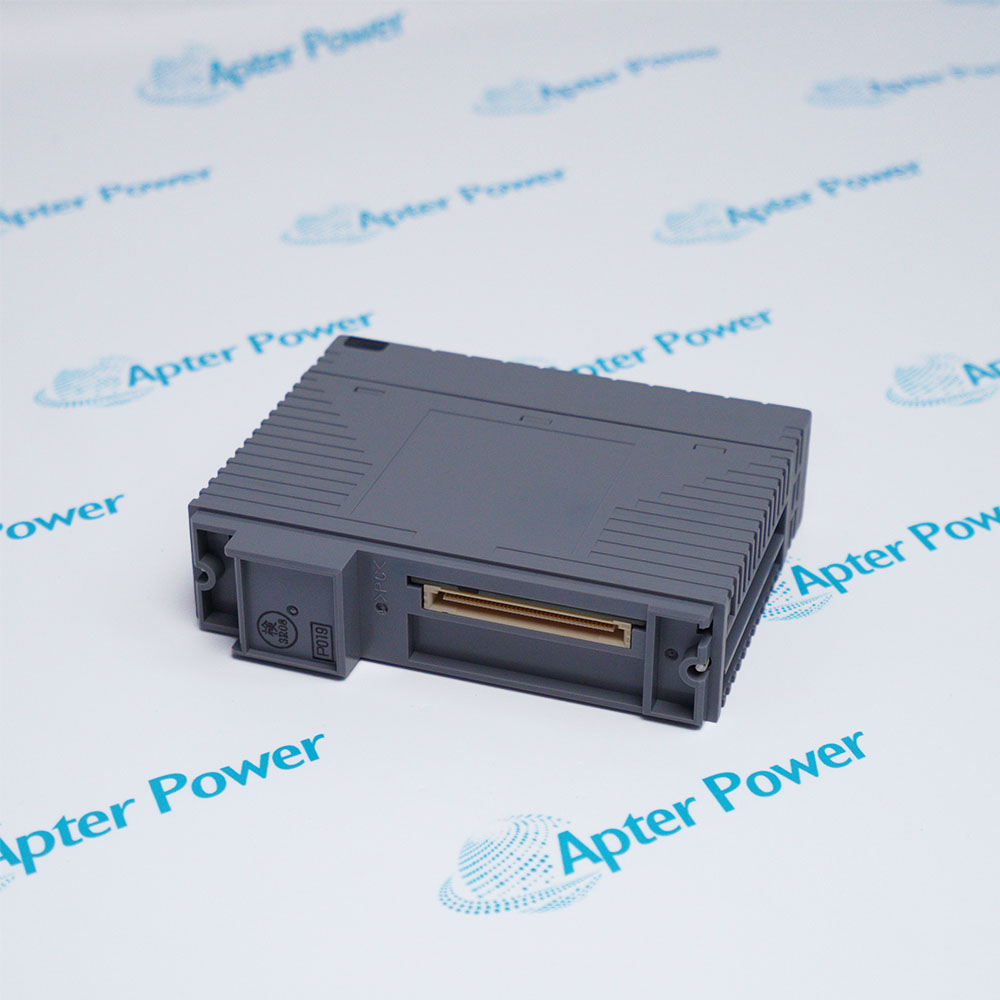

The Yokogawa ADV142-P13 S1 is a 16-channel, isolated AC Digital Input Module designed for high-voltage industrial automation. Operating at a rated input voltage of 200-240 VAC, this module reliably detects ON/OFF status signals from field devices in demanding environments.
Get a quick price for ADV142-P13 S1
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for ADV142-P13 S1

  • Manufacturer:
    Yokogawa
  • Part Number:
    ADV142-P13 S1
  • Product Family:
    Centum CS-Centum VP
  • Product Type:
    AC Digital Input Modules
  • Number of input channels:
    16
  • Rated input voltage:
    200 to 240 V AC, 50/60 Hz
  • Input ON voltage:
    160 V AC (226 V) to 264 V AC (373 V)
  • Input OFF voltage:
    40 V AC (56 V) or less
  • Input current (TYP):
    6.2 mA (@240 V/60 Hz) / channel
  • Input current (MAX):
    9.3 mA / channel
  • Input response time:
    160 ms or less (for status input)
  • Minimum ON detection time:
    200 ms (for pushbutton input)
  • Maximum ON/OFF cycle:
    2.5 Hz (for pushbutton input)
  • Weight:
    0.26 kg
  • Estimated shipping dimensions:
    3.2x10.7x13cm
  • Tariff Code:
    8538909190
  • Country of origin:
    Japan
  • Place of shipment:
    Xiamen, Fujian, China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Specifications Firmware & Updates Certifications & Standards Applications

Features:

  • High-Voltage AC Direct Input
  • Dual-Mode Input Functionality
  • Robust Isolation for Industrial Environments
The Yokogawa ADV142-P13 S1 accepts 200-240 VAC signals directly, simplifying field wiring by eliminating the need for intermediate voltage conversion or interposing relays for high-voltage digital inputs.

Each channel of the Yokogawa ADV142-P13 S1 can be configured for standard status detection or pushbutton edge counting, providing flexible I/O allocation for monitoring and light sequencing tasks.

The Yokogawa ADV142-P13 S1 provides 2 kV AC withstand voltage between input channels and the system backplane. This ensures reliable, error-free operation even in electrically noisy environments such as VFD panels or heavy switching areas.

The ADV142-P13 S1 Yokogawa AC Digital Input Modules may still be available for purchase and support from Apter Power beyond End-Of-Life (EOL) by the manufacturer (OEM).
Yokogawa ADV142-P13 S1 AC Digital Input Modules Manuals,Datasheets,Link Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
Yokogawa ADV142-P13 S1 AC Digital Input Modules

General

  • Manufacturer Yokogawa
  • Model ADV142-P13 S1
  • Condition New Original ready stock
  • Product Family ADV142-S02 S1,ADV142-S03 S1,ADV141-S13 S1
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
  • No Field Firmware Updates: This is a hardware-defined I/O module; all functionality is embedded in the hardware.
  • Configuration via DCS: Module function (status or pushbutton) is assigned channel-by-channel using Yokogawa's CENTUM engineering software.
  • Backward Compatibility: The ADV142 series is fully compatible with existing Yokogawa I/O racks and communication protocols.
  • Documentation Reference: Refer to General Specifications GS 33J30D10-31E for technical details and installation guidelines.
  • CE Marking: Complies with EU safety and EMC directives.
  • Made in Japan: Manufactured in Yokogawa's ISO-certified facilities.
  • ISA Standard G3 (with suffix 13): Certified for corrosion resistance in harsh environments.
  • RoHS Compliant: Meets restrictions on hazardous substances for environmental safety.
  • Direct monitoring of 220V AC motor starter auxiliary contacts.
  • Status detection of high-voltage limit switches and pressure switches.
  • Pushbutton input logging for operator panels and local control stations.
  • Integration with Yokogawa CENTUM VP or ProSafe-RS DCS for digital field signal acquisition.
Description
Engineered for robust performance, the Yokogawa ADV142-P13 S1 directly accepts 200-240 VAC input signals, eliminating the need for external step-down converters. Its 16 isolated channels provide reliable state detection for valves, contactors, and other high-voltage field devices, making it a cornerstone of modern Distributed Control Systems (DCS).

The Yokogawa ADV142-P13 S1 features a versatile design with dual functionality: standard status input and pushbutton input for counting edge transitions. With an input response time of 160 ms for status signals and a maximum ON/OFF cycle of 2.5 Hz for pushbutton mode, it delivers dependable performance for both monitoring and basic sequencing tasks.

Built to Yokogawa’s exacting standards, the Yokogawa ADV142-P13 S1 supports flexible field wiring via a pressure clamp terminal or a dedicated AKB333 cable. Its compact form factor, weighing only 0.3 kg, and wide operating temperature range (with optional G3 treatment) ensure seamless integration into control cabinets, even in harsh or corrosive industrial environments.
Alternative Names
ADV141-P13 S1 ADV141-S13 S1 ADV142-S02 S1 ADV142-S03 S1
Technical notes
When deploying the Yokogawa ADV142-P13 S1, ensure all AC input signals connected to the same common share the same phase and input a sine wave as specified. The module provides withstand voltage of 2 kV AC between input signal and system, and 1.35 kV AC between commons, ensuring robust isolation for high-voltage applications.
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
In which industrial scenarios is the Yokogawa ADV142-P13 S1 typically used?
This module is ideal for manufacturing plants, energy facilities, and process industries where direct monitoring of 220V AC field devices (such as motor starters, limit switches, and relay contacts) is required within a Yokogawa CENTUM DCS or similar control system.
How can I diagnose the operational status of the Yokogawa ADV142-P13 S1?
The module provides clear visual indication through status LEDs on the module face. Additionally, the control system can read back the ON/OFF state of each channel via standard diagnostic function blocks, allowing real-time monitoring of field signal integrity.
Does Yokogawa ADV142-P13 S1 operate reliably in environments with high electrical noise?
Yes. The Yokogawa ADV142-P13 S1 features robust isolation (2 kV AC withstand voltage) between input channels and the system backplane, ensuring stable operation and accurate signal reading even in electrically noisy environments like variable frequency drive (VFD) panels.
Can Yokogawa ADV142-P13 S1 handle continuous high-speed ON/OFF cycling?
For pushbutton counting applications, the module supports a maximum ON/OFF cycle of 2.5 Hz. For status monitoring, the response time is 160 ms. It is not designed for high-speed pulse train counting but is perfectly suited for monitoring mechanical contacts and pushbuttons.
