1MRK002239-BBR03

/ 4.9
1001 reviews | Need a Specific Revision?

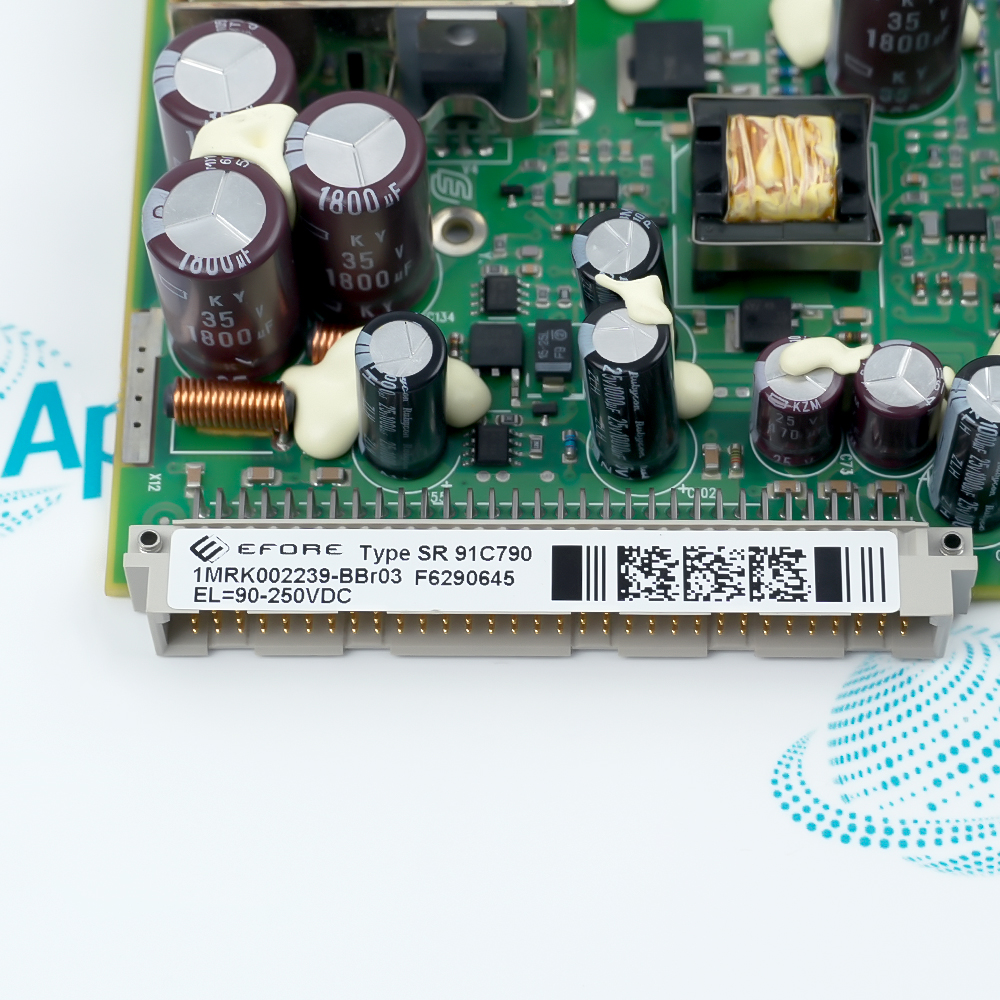

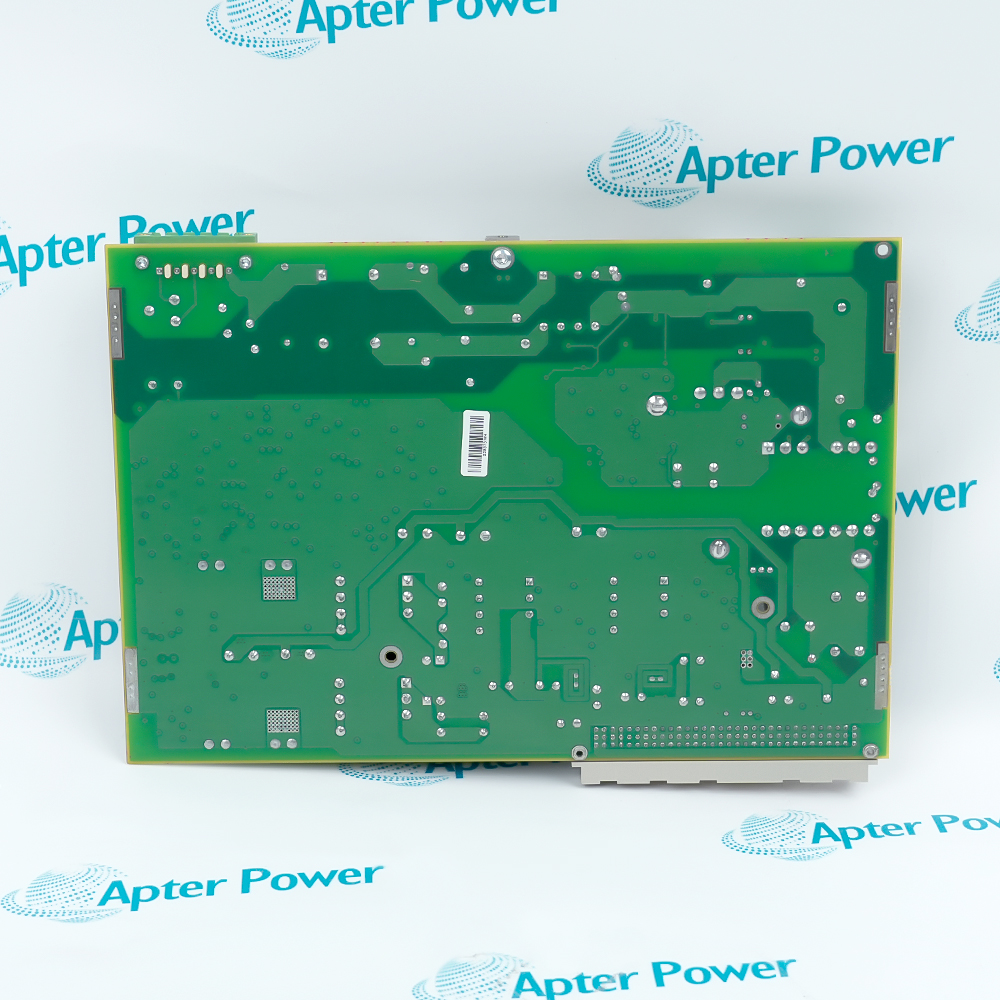

ABB 1MRK002239-BBR03 is a high-voltage DC power supply module for compatible ABB protection and control equipment, using a 90–250 V DC auxiliary supply.
In Stock
Ships by Sunday, October 18
Fast Shipping Available
Get a quick price for 1MRK002239-BBR03
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for 1MRK002239-BBR03

  • Manufacturer:
    ABB
  • Part Number:
    1MRK002239-BBR03
  • Product Family:
    ABB Advant OCS and Advant-800xA
  • Product Type:
    90–250 V DC Power Supply Module
  • Stock:
    1
  • Module Designation:
    PSM
  • Supply Type:
    High-voltage DC auxiliary supply
  • Input Voltage Range:
    90–250 V DC
  • Function:
    Internal power conversion for compatible protection/control equipment
  • Installation Form:
    Plug-in host-equipment module
  • Variant Identifier:
    BB R03
  • Dimensions:
    23.3 × 16.7 × 3 cm
  • Weight:
    0.53 kg
  • Tariff Code:
    8538900000
  • Country of origin:
    Sweden
  • Place of shipment:
    Xiamen,Fujian,China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Supply Match Module Identity Startup Review Application
  • Provides internal power conversion for compatible ABB protection equipment
  • Uses the documented 90–250 V DC auxiliary-supply range
  • Requires complete BB R03 identity matching before replacement

1MRK002239-BBR03 is an ABB plug-in power supply module for compatible protection and control assemblies.

It accepts station auxiliary DC within its documented high-voltage range and supplies the internal electronics through the host assembly.

Selection depends on the complete order code, R03 build, host slot, connector, station voltage, and the approved equipment bill of material.

Availability, condition, price, and shipping time for 1MRK002239-BBR03 are confirmed during quotation.

ABB 1MRK002239-BBR03 Power Supply Module Manuals, Links

Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.

  • Measure and identify the station auxiliary supply before selecting the module
  • Confirm that the approved host documentation specifies the BB high-voltage variant
  • Check polarity and upstream protection before reconnecting the supply
  • Record the complete 1MRK article and R03 suffix from the installed label
  • Compare slot, connector, and backplane relationship with the host bill of material
  • Do not treat a mechanically similar low-voltage module as equivalent
  • Inspect connector seating and station-DC protection before energizing
  • Observe host startup indications and power-supply diagnostics
  • Stop commissioning if the measured supply or module identity differs from the approved design
  • Auxiliary power conversion in ABB substation protection equipment
  • Internal supply for compatible bay-control and protection assemblies
  • High-voltage station-DC powered protection and control installations
Description
1MRK002239-BBR03 is an ABB power supply module for compatible protection and control assemblies.

The BB R03 module accepts the documented 90–250 V DC auxiliary-supply range and provides internal power for the host equipment.

Before replacement, confirm the complete BB R03 identifier, auxiliary-voltage range, connector, slot allocation, host bill of material, and safe isolation procedure.
Alternative Names
1MRK002239-BBR03 1MRK002239-BB R03 1MRK002239 BB R03 ABB 1MRK002239-BBR03 ABB 1MRK002239-BB R03 ABB PSM 1MRK002239-BBR03
Technical notes
1MRK002239-BBR03 requires the BB R03 build, 90–250 V DC auxiliary range, correct connector and host slot; a low-voltage or revision mismatch can prevent safe operation.
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
Why must the complete ABB 1MRK002239-BBR03 identifier be matched?
BB and R03 identify the required module build. Confirm the full label, host IED bill of material, supply range, connector, and module position before ordering.
Is ABB 1MRK002239-BBR03 a drop-in replacement for another ABB power-supply module?
Not automatically. The BB/R03 build, host IED bill of material, approved slot, connector arrangement, and station auxiliary-supply requirements must all match before replacement.
What should be checked before replacing ABB 1MRK002239-BBR03?
Isolate the auxiliary source, record the original slot and connectors, verify polarity and voltage, compare the full article and revision, and follow the host-equipment service procedure.
Can ABB 1MRK002239-BBR03 be selected only from its dimensions?
No. Mechanically similar power modules may use different input ranges or revisions; the complete order code and approved host documentation control selection.
What can cause the host equipment to remain unpowered after installing ABB 1MRK002239-BBR03?
Check station DC voltage and polarity, upstream protection, connector seating, slot assignment, module status, backplane condition, and the host unit's documented startup sequence.
Is ABB 1MRK002239-BBR03 intended for live insertion?
No public complete-model instruction confirming live insertion was located; follow the host IED isolation and module-replacement procedure rather than assuming hot-swap capability.
What is the main compatibility risk with ABB 1MRK002239-BBR03?
The primary risk is fitting a power module with the wrong auxiliary-voltage or revision variant, which can prevent startup or damage the equipment.
