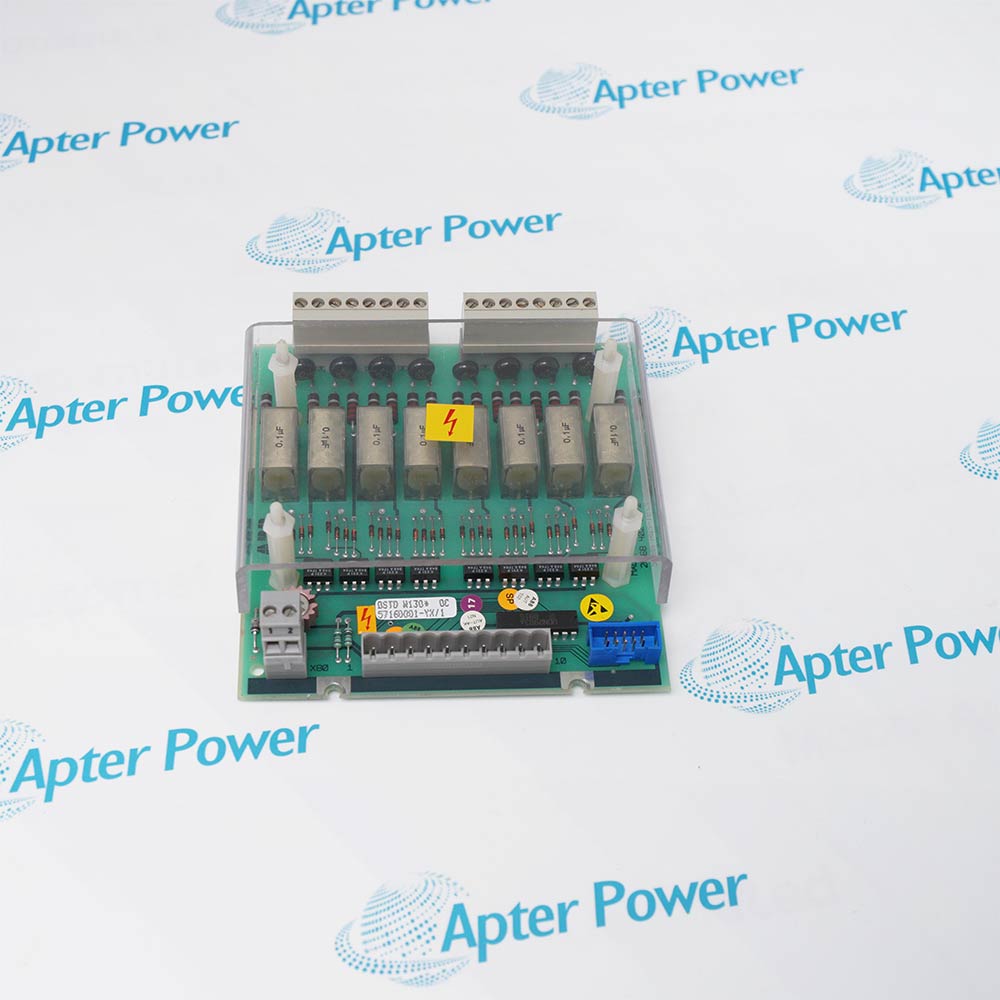

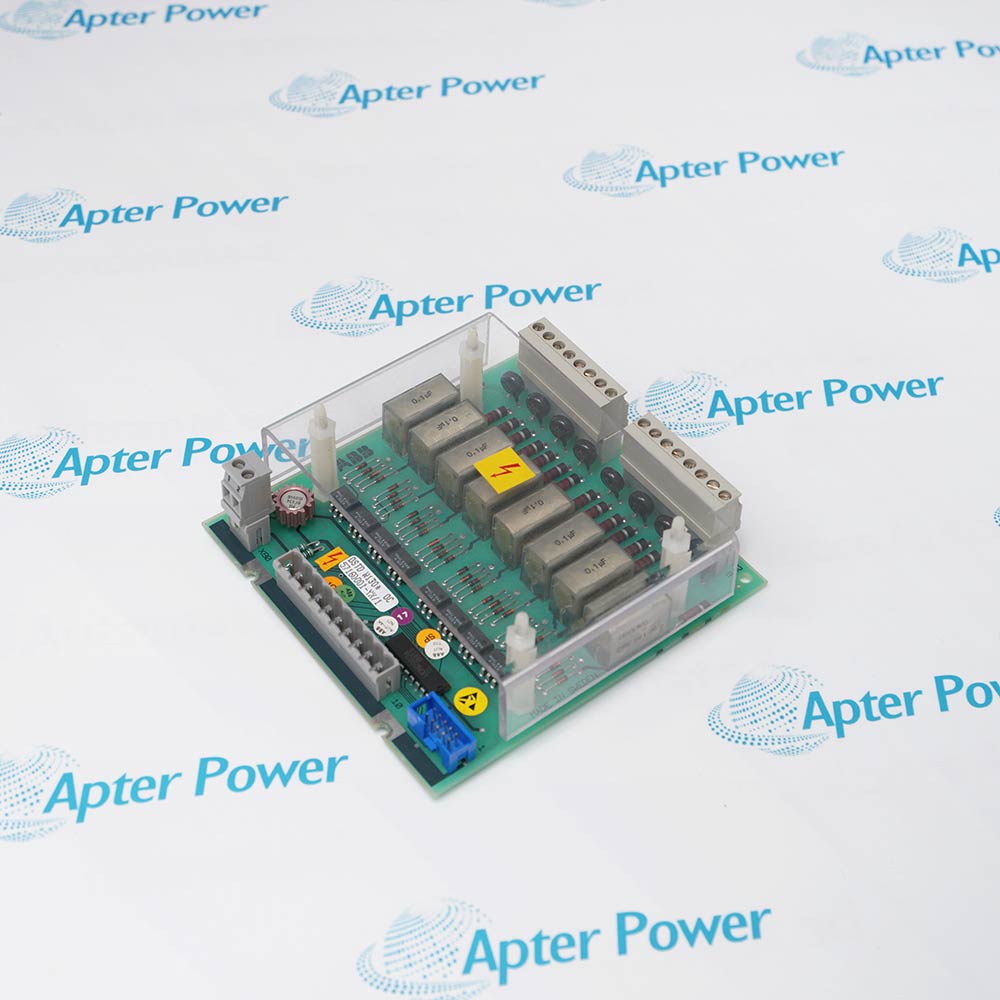

        DSTDW130 57160001-YX

        / 4.9
        1001 reviews ｜ Need a Specific Revision?
        ABB DSTDW130 57160001-YX is a connection unit designed for the Advant S400 I/O series, enabling reliable signal interfacing and field wiring with isolated multi-channel input capability. It supports stable operation in industrial environments with 24V DC supply and RS485 communication.
        Get a quick price for DSTDW130 57160001-YX
        Quantity
        *E-mail
        Company
        *Mobile
        *Content
        Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)
        Get a Quote
        Warranty Policy
        We provide 1 year warranty for all remaining parts.
        The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
        Return Notice
        The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
        In the event of a defect, we will send new equipment, repair equipment or refund the purchase price based on our availability. You must contact us to obtain a return authorization and return the defective device to us within 14 days of reporting the defect.
        Shipping Mode
        Various transportation options are available in each country. Shipping methods and fees are clearly indicated on all quotations.Various transportation options are available in each country. Shipping methods and fees are clearly indicated on all quotations.
        Parts Availability
        Apter Power offers a wide range of components, products and services related to industrial automation. We also supply new products from a variety of quality manufacturers.
        How to order
        We have been working hard to update our inventory. If we have stock or parts available for new factory purchases, you can contact the order online. If we do not currently have an inventory, the displayed quantity will show "Ask". Please create an online quote or contact us by phone, fax or email to check availability.

        Technical specifications for DSTDW130 57160001-YX

        • Manufacturer:
          ABB
        • Part Number:
          DSTDW130 57160001-YX
        • Product Family:
          ABB Advant OCS and Advant-800xA
        • Product Type:
          Connection Unit
        • Product Series:
          ABB Advant S400 I/O
        • Input voltage:
          Typically 24V DC
        • Communication interface:
          RS485
        • Operating temperature:
          -20°C to 60°C
        • Relative humidity:
          5% to 95% (non-condensing).
        • Weight:
          0.22 kg
        • Estimated shipping dimensions:
          12x12.3x4.2cm
        • Tariff Code:
          9016001000
        • Country of origin:
          Sweden
        • Place of shipment:
          Xiamen, Fujian, China
        By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

        More Information

        Overview Manuals Specifications Safety Diagnostics Application

        Features:

        • Eight independent galvanically isolated input channels for 230 V AC signals
        • Stable communication via RS485 with external 24V DC supply support
        • Designed for Advant S400 I/O systems with reliable environmental adaptability
        ABB DSTDW130 57160001-YX connection unit plays a critical role in industrial automation systems by enabling efficient signal interfacing within the Advant S400 I/O architecture. It ensures that field-level signals are properly transmitted to control systems, supporting consistent system performance. Its structured design allows it to be integrated into distributed control environments with ease. The module contributes to system stability by maintaining clear signal paths. This makes it suitable for complex industrial control setups.

        ABB DSTDW130 57160001-YX is designed with eight independent channels that support 230 V AC inputs while maintaining galvanic isolation from internal electronics. This feature helps reduce interference and enhances safety during operation. The use of RS485 communication ensures compatibility with standard industrial networks. Its reliance on an external 24 V DC supply supports consistent functionality. These characteristics allow ABB DSTDW130 57160001-YX to operate reliably in various control configurations.

        In practical applications, ABB DSTDW130 57160001-YX is suitable for environments where stable signal transmission over varying distances is required. Attention to cable specifications becomes important, especially when distances exceed 200 meters, to prevent capacitive interference. The module operates effectively within a temperature range of -20°C to 60°C and high humidity conditions. Its compatibility as a replacement for earlier units ensures continuity in system upgrades. Overall, ABB DSTDW130 57160001-YX supports dependable performance in industrial automation systems.

        The DSTDW130 57160001-YX ABB Connection Unit may still be available for purchase and support from Apter Power beyond End-Of-Life (EOL) by the manufacturer (OEM).
        ABB DSTDW130 57160001-YX Connection Unit Manuals,Datasheets,Link Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
        ABB DSTDW130 57160001-YX Connection Unit Specs

        General

        • Manufacturer ABB
        • Model DSTDW130 57160001-YX
        • Condition New Original ready stock
        • Product Family DSTD W130 2P57160001-YX,DSTD 190V1 3BSE018314R1,DSTA 135 3BSE018315R1
        Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
        • Electrical Isolation: A physical barrier is established between field sensors and the logic controller via internal high-quality relay contacts, preventing high-voltage surges on the field side from damaging the expensive central processing unit module.
        • Terminal Protection: The wiring terminals feature an anti-electric shock design and a dedicated cable clamp structure, ensuring continuous electrical connection even in high-vibration environments.
        • Loop Monitoring: Supports monitoring for open or short circuits in input loops, ensuring the authenticity of signal transmission and preventing control misjudgments due to line faults.
        • Redundancy Support: In critical safety loops, dual-path configuration is supported for hot standby redundancy, improving the mean time between failures (MTBF) of the entire control loop.
        • Status Self-Check: The unit's built-in processor monitors the status of internal power rails and logic circuits in real time. Upon detecting an anomaly, a fault code is sent to the central controller via MasterFieldbus.
        • Channel Indication: Each input channel is equipped with an independent LED status indicator, allowing technicians to quickly determine the on/off status of external switches visually on-site, shortening troubleshooting time.
        • Reverse Voltage Protection: Integrated reverse connection protection circuit at the input effectively prevents internal relay coil burnout due to incorrect field wiring.
        • Communication Monitoring: Equipped with a communication timeout detection function (Watchdog). If contact with the master station is lost, the unit will automatically enter a predefined "safe state" to ensure production safety.
        • Long-Distance Distributed Monitoring: Utilizing its MasterFieldbus interface, I/O units can be placed in motor control centers or remote valve stations far from the control cabinet, reducing cable laying.
        • High-Noise Electromagnetic Environments: Installed in junction boxes near frequency converters or large contactors, utilizing its relay isolation characteristics to combat strong electromagnetic interference.
        • Legacy System Expansion and Maintenance: As a mature component of the Advant Controller 400 series, it can be used for point expansion or spare part replacement of existing MasterPiece systems.
        • Multi-Cascading Network Architecture: In complex large-scale chemical plants or power plants, it acts as a low-level signal acquisition node, aggregating and uploading groups of digital signals to the process management layer.
        Description
        ABB DSTDW130 57160001-YX connection unit is part of the Advant S400 I/O platform, serving as a key interface between field signals and control system electronics. It is designed to handle multiple input signals efficiently while maintaining electrical isolation between channels and internal circuitry. This ensures dependable signal transmission in complex industrial environments.

        The unit incorporates eight independent input channels capable of handling 230 V AC signals, with galvanic isolation enhancing system safety and reducing interference risks. It operates using an external 24 V DC power supply and communicates via RS485, allowing integration within distributed control architectures. Careful consideration of cable characteristics is required, especially for longer transmission distances, to avoid potential signal distortion caused by capacitive effects.

        Designed for stable performance across a temperature range of -20°C to 60°C and humidity levels from 5% to 95% (non-condensing), ABB DSTDW130 57160001-YX is suitable for demanding industrial conditions. It also serves as a replacement for the DSTD 198 unit, maintaining compatibility while supporting consistent signal handling and reliable system operation.
        Alternative Names
        DSTD W130 EXC57160001-YX DSTD W130 57160001-YX DSTD W130 2P57160001-YX DSTD 190 3BSE004723R1 DSTD 195 3BSE004724R1 DSTD 197 3BSE004726R1 DSTD 198 3BSE004727R1 DSTA 001A 3BSE015195R1
        Technical notes
        ABB DSTDW130 57160001-YX connection unit belongs to the Advant S400 I/O series and operates with a typical input voltage of 24V DC and RS485 communication interface. It supports operating temperatures from -20°C to 60°C and relative humidity from 5% to 95% non-condensing. The unit corresponds to DSTD 198 replacing DSTD W130 and provides eight independent channels for 230 V AC inputs with galvanic isolation from electronics. It requires an external 24 V supply and may experience capacitive cross-talk at cable distances exceeding approximately 200 m depending on cable characteristics and input impedance.
