AI880A 3BSE039293R1

/ 4.9
1001 reviews | Need a Specific Revision?

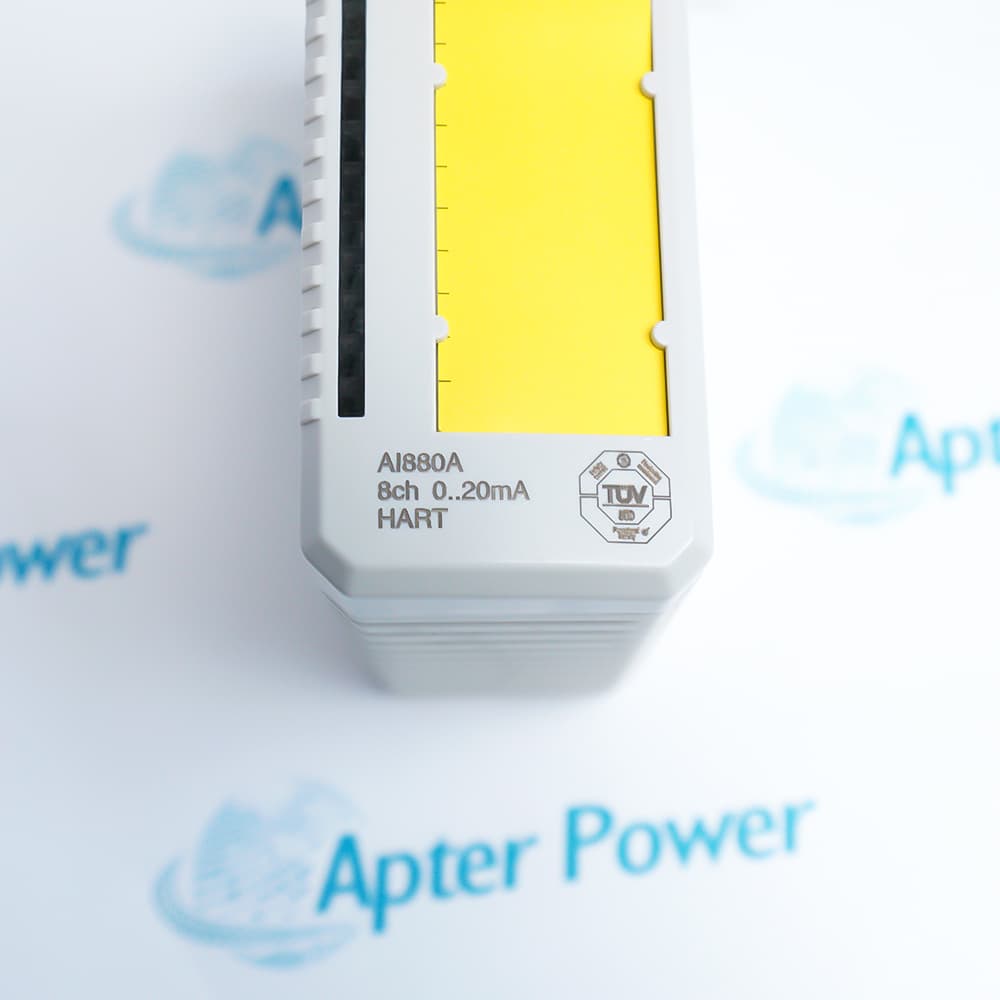

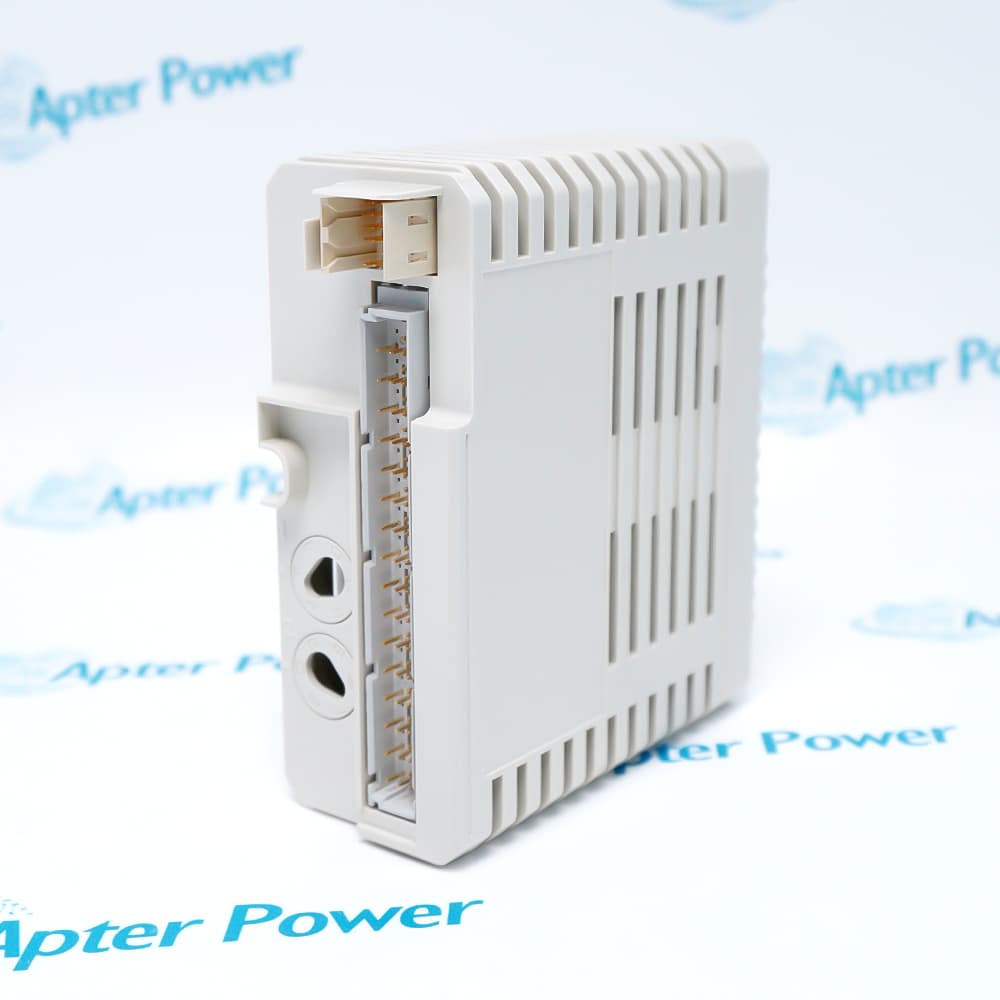

ABB AI880A 3BSE039293R1 is an eight-channel High Integrity current input module with HART pass-through for single or redundant S800 configurations.
In Stock
Ships by Thursday, October 29
Fast Shipping Available
Get a quick price for AI880A 3BSE039293R1
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for AI880A 3BSE039293R1

  • Manufacturer:
    ABB
  • Part Number:
    AI880A 3BSE039293R1
  • Product Family:
    ABB Advant OCS and Advant-800xA
  • Product Type:
    S800 I/O High Integrity HART Input Module
  • Stock:
    1
  • Signal Specification:
    0-20 mA, 4-20 mA
  • Input Channels:
    8
  • Signal Type:
    Unipolar single ended
  • Resolution:
    12 bit
  • HART:
    Yes
  • Redundancy:
    Yes
  • High Integrity:
    Yes
  • Isolation:
    Groupwise isolated from ground
  • Compatible MTUs:
    TU834, TU844, TU845, TU854
  • Operating Temperature:
    0 to +55 C
  • Protection Rating:
    IP20
  • Weight:
    0.15 kg
  • Country of origin:
    Sweden
  • Place of shipment:
    Xiamen,Fujian,China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Specifications Redundancy HART Planning Safety Review

Features:

  • High Integrity input: ABB documents the module for the certified S800 High Integrity architecture.
  • Single or redundant use: The input module supports both configuration modes.
  • HART and diagnostics: Pass-through communication, transmitter-power supervision, and range diagnostics are included.

This ordering code identifies the eight-channel High Integrity current-input variant rather than a general-purpose analog input module.

It supplies and supervises field transmitters, acquires current signals, and supports the ABB-defined redundant and diagnostic functions.

Confirm the safety lifecycle, controller and I/O architecture, MTU, TY801 scope, HART host path, and proof-test requirements before procurement.

Availability is subject to Apter Power inventory and sourcing confirmation.

AI880A 3BSE039293R1 Manuals, Datasheets, and Links

Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.

AI880A 3BSE039293R1 S800 I/O High Integrity HART Input Module Specifications

General

  • ManufacturerABB
  • ModelAI880A 3BSE039293R1
  • ConditionNew and factory sealed
  • Product FamilyABB S800 I/O

Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.

Redundant input planning

  • Architecture: Confirm the approved single or redundant I/O design.
  • MTU orientation: Select the ABB-listed MTU for the required arrangement.
  • Channel mapping: Keep paired channel assignments consistent across the design.
  • Changeover test: Follow the project procedure for redundant-path verification.

Transmitter communication checks

  • Pass-through path: Confirm the controller and asset-management route.
  • Loop impedance: Review the transmitter, shunt, and power arrangement.
  • Device records: Retain tag, address, revision, and configuration data.
  • Range limits: Match configured over-range and under-range alarms.

High Integrity preparation

  • Certified design: Use only the approved ABB safety architecture.
  • Proof testing: Follow the project proof-test interval and procedure.
  • Diagnostics: Include field-power and channel alarms in validation.
  • Documentation: Record hardware, software, configuration, and test results.
Description
AI880A 3BSE039293R1 is an ABB S800 I/O High Integrity analog input module with eight single-ended 0-20 mA or 4-20 mA channels and HART pass-through communication.

AI880A 3BSE039293R1 supports single or redundant configuration, supervised current-limited transmitter power, configurable range limits, and advanced diagnostics for the ABB-documented safety architecture.

Before installing AI880A 3BSE039293R1, confirm the certified system design, TU834/TU844/TU845/TU854 selection, TY801 shunt arrangement where applicable, HART path, and full article number.
Alternative Names
AI880A 3BSE039293R1 AI880-A 3BSE039293R1 AI 880A 3BSE 039293 R1 AI880A3BSE039293R1 ABB AI880A 3BSE039293R1 Asea Brown Boveri AI880A ABB S800 I/O AI880A AI880A High Integrity HART Input
Technical notes
AI880A 3BSE039293R1 is the redundant-capable High Integrity HART current-input module. Verify the certified architecture, MTU, shunt arrangement, and transmitter-power plan.
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
When should AI880A be considered for a High Integrity analog input loop?
Use it when the approved ABB design requires High Integrity current input, HART pass-through, and single or redundant operation.
Which MTU and shunt details should be verified before ordering AI880A?
Confirm TU834, TU844, TU845, or TU854 as designed and verify any required TY801 shunt sticks and channel positions.
What safety-design information should accompany an AI880A quotation?
Provide the full nameplate, safety architecture, MTU, redundancy mode, HART requirement, quantity, condition, and delivery destination.
What installation records are important for redundant AI880A channels?
Keep channel pairing, MTU positions, wiring, transmitter power, shunt settings, controller configuration, and validation records.
What should be checked after an AI880A field-power or channel alarm?
Review external supply, current limiting, loop continuity, shunt position, transmitter condition, range limits, and module diagnostics.
How should AI880A HART communication be tested during commissioning?
Verify the analog value first, then confirm the approved HART host path, device identity, communication stability, and stored configuration.
What engineering review is required before replacing another AI module with AI880A?
No direct replacement is assumed. Compare safety certification, signal service, MTU, redundancy, HART, wiring, and software configuration.
