AI930N 3KDE175513L9300

/ 4.9
1001 reviews | Need a Specific Revision?

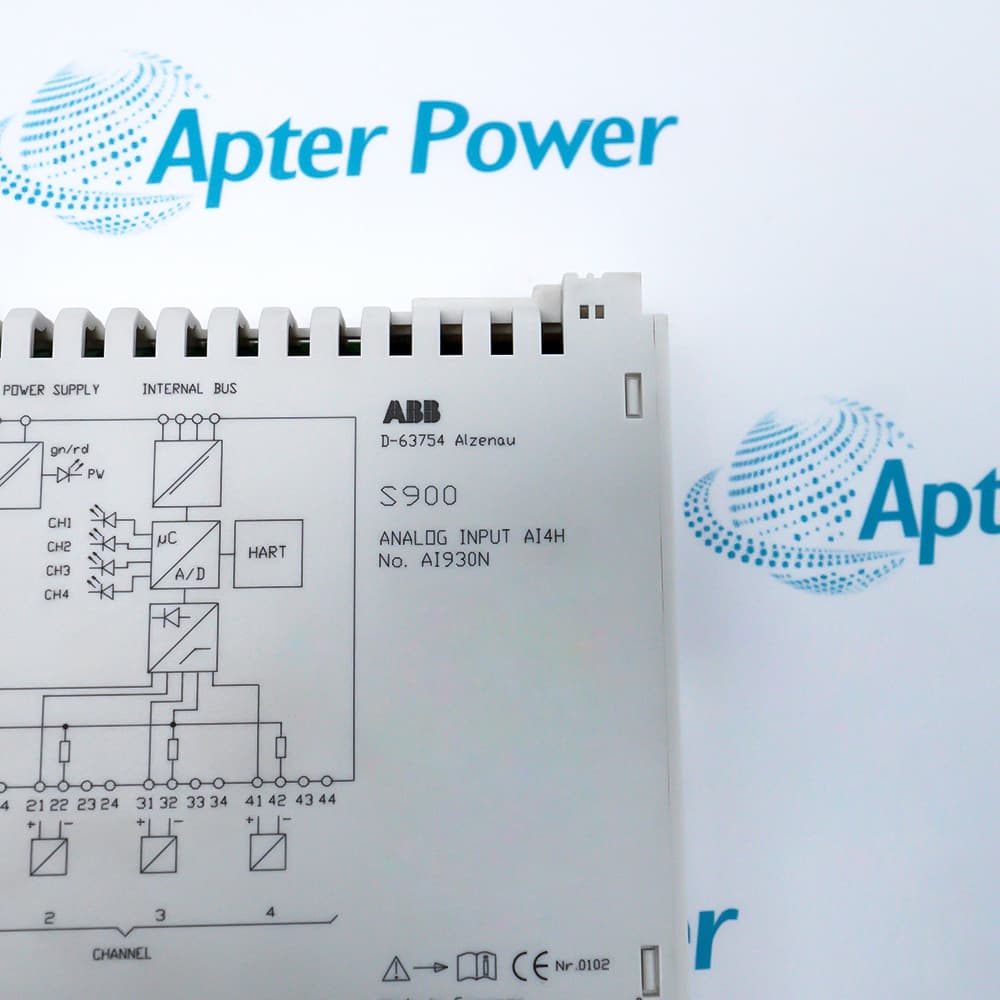

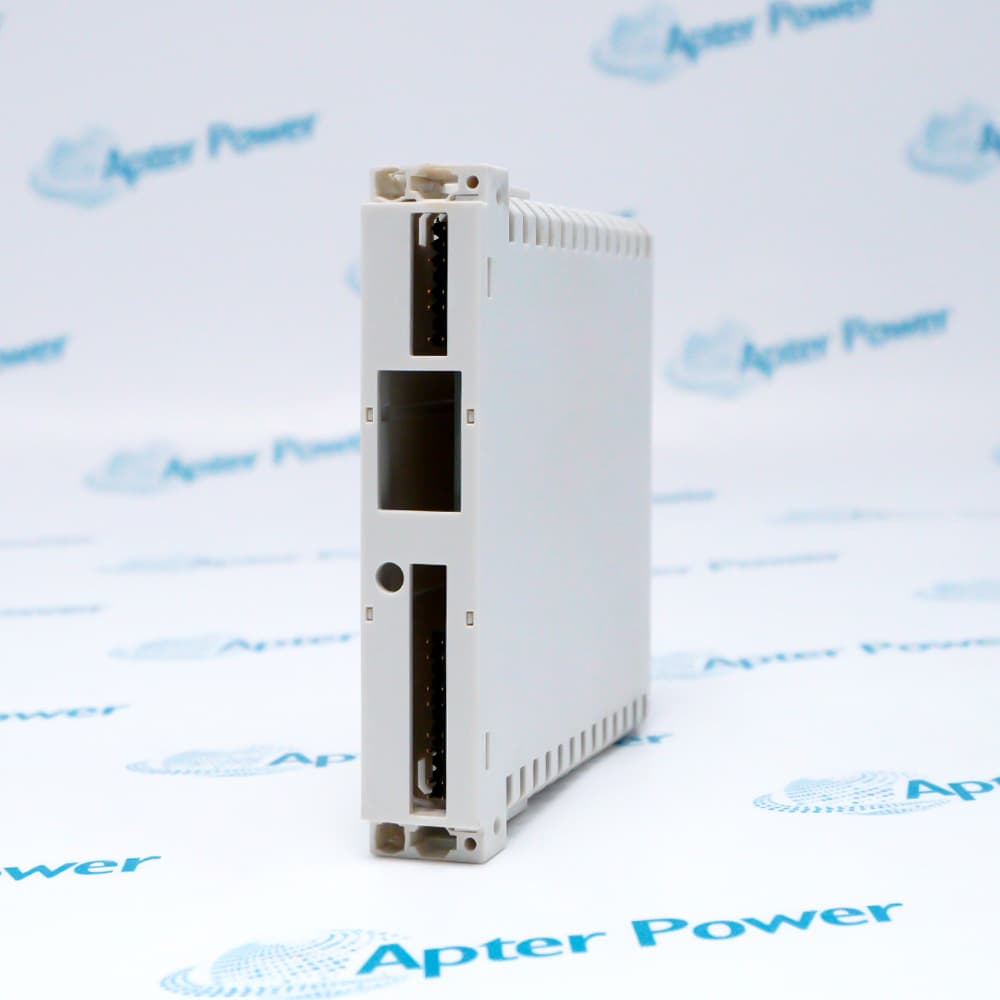

ABB AI930N 3KDE175513L9300 is a 4-channel analog input module used in the S900 remote I/O system for processing 4...20 mA signals from loop powered 2-wire transmitters.
Get a quick price for AI930N 3KDE175513L9300
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for AI930N 3KDE175513L9300

  • Manufacturer:
    ABB
  • Part Number:
    AI930N 3KDE175513L9300
  • Product Family:
    ABB Advant OCS and Advant-800xA
  • Product Type:
    Analog Input (AI4H) Module
  • Number of channels:
    4
  • Signal type:
    4...20 mA
  • HART:
    Yes
  • SOE:
    N/A
  • Redundancy:
    No
  • Intrinsic safety:
    No
  • Mechanics:
    S900
  • CE mark:
    Yes
  • Corrosive atmosphere ISA-S71.04:
    G3
  • Climatic operating conditions:
    Relative humidity max. 93 % +/- 3 % at 40°C
  • Max ambient temperature:
    -20 °C...60 °C
  • RoHS compliance:
    DIRECTIVE/2011/65/EU (EN 50581:2012)
  • WEEE compliance:
    DIRECTIVE/2012/19/EU
  • WEEE category:
    Small Equipment (No External Dimension More Than 50 cm)
  • Weight:
    0.12 kg
  • Estimated shipping dimensions:
    2x10.5x11cm
  • Tariff Code:
    2942000000
  • Country of origin:
    Sweden
  • Place of shipment:
    Xiamen, Fujian, China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Specifications Diagnostics Installation Use Cases

Features:

  • Supports transmission of HART frames and cyclic HART variables through the fieldbus for enhanced process communication and diagnostics.
  • Hot swap and hot configuration in run functions allow module replacement and maintenance without interrupting system operation.
  • G3-coated construction with electrical isolation and extended diagnostics improves reliability in demanding industrial environments.
ABB AI930N 3KDE175513L9300 is part of the S900 remote I/O platform developed for distributed industrial automation systems. The module processes 4...20 mA analog signals from loop powered 2-wire transmitters and communicates through PROFIBUS DP networks. Direct field installation helps reduce marshalling requirements and lowers wiring costs in large-scale facilities. The combination of analog acquisition and HART communication makes the module suitable for process monitoring and control applications.

The module supports four analog input channels and includes electrical isolation between input and bus as well as between input and power. ABB AI930N 3KDE175513L9300 also provides short and break detection functions together with extended diagnostic capabilities for improved system visibility. Integrated auto-diagnostics simplify troubleshooting and maintenance procedures in industrial operations. The design focuses on stable and error-tolerant performance in continuous process environments.

ABB AI930N 3KDE175513L9300 is intended for safe area installation as part of the S900 I/O type N series. The module supports redundancy for communication and power while allowing hot swap replacement during operation. G3 coating protection improves durability in corrosive atmospheres, and the operating temperature range from -20 °C to 60 °C supports installation in demanding industrial conditions. High humidity tolerance further enhances reliability in field-mounted automation systems.

The AI930N 3KDE175513L9300 ABB Analog Input (AI4H) Module may still be available for purchase and support from Apter Power beyond End-Of-Life (EOL) by the manufacturer (OEM).
ABB AI930N 3KDE175513L9300 Analog Input (AI4H) Module Manuals,Datasheets,Link Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
ABB AI930N 3KDE175513L9300 Analog Input (AI4H) Module Specs

General

  • Manufacturer ABB
  • Model AI930N 3KDE175513L9300
  • Condition New Original ready stock
  • Product Family AI910N 3KDE175513L9100,AI931N 3KDE175513L9310,AI950N 3KDE175523L9500
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
  • LED Status Coding: The module panel is equipped with dual-color LED indicators that quickly identify channel open circuits, short circuits, or overload errors through flashing frequency.
  • HART Dynamic Mapping: Supports real-time extraction of secondary variables (such as temperature and density) from field instruments via the HART protocol for deep loop diagnostics.
  • Bidirectional Loop Verification: Allows the system to send simulated signals downstream to verify the integrity of field wiring without interrupting system operation.
  • Reverse Polarity Protection: Built-in diagnostic circuitry monitors wiring errors; if reverse polarity of the input signal is detected, a software alarm is immediately triggered and the channel is isolated.
  • DIN Rail Grounding: The module connects directly to the DIN rail via a bottom metal spring. Before installation, ensure the rail is grounded with a low-impedance system.
  • TU921 Intrinsically Safe Base: The module must be inserted into the matching TU921 intrinsically safe terminal base. Direct wiring without the base installed is strictly prohibited.
  • Hot-swap locking pin: After inserting the module, a dedicated mechanical locking pin must be pushed inward to prevent poor module contact due to industrial vibrations.
  • Single-end grounding of shielding layer: The signal line shielding layer should be centrally grounded at the base end, while the field instrument end should be left ungrounded to eliminate ground loop interference caused by potential differences.
  • Chemical distillation column temperature monitoring: Collects multiple thermocouple signals from the field and utilizes high-precision A/D conversion characteristics to achieve precise control of the column top and bottom temperatures.
  • Hazardous area storage tank level monitoring: Deployed in Zone 1 explosion hazard zone, connected to an intrinsically safe radar level gauge, providing safe and continuous level data feedback.
  • Long-distance pipeline pressure compensation calculation: Simultaneously collects signals from multiple pressure transmitters to provide real-time temperature and pressure compensation data calculation for gas flow meters.
  • Pharmaceutical reactor multivariate process tracking: Utilizes HART channels to simultaneously read the main physical quantities and sensor diagnostic data within the reactor, meeting GMP audit traceability requirements.
Description
ABB AI930N 3KDE175513L9300 belongs to the S900 remote I/O family and provides analog signal acquisition for industrial automation and process control applications. The module is designed for handling 4...20 mA input signals and supports four independent channels with common return architecture. Communication with the control system is achieved through the PROFIBUS DP standard, allowing the S900 I/O platform to operate efficiently in distributed control environments.

The S900 remote I/O system can be installed either in non-hazardous locations or directly in Zone 1 and Zone 2 hazardous areas depending on the selected system variant. ABB AI930N 3KDE175513L9300 is the type N version intended for installation in safe areas. By enabling direct field installation, the system helps reduce marshalling and wiring costs while improving installation flexibility for industrial plants and process facilities.

ABB AI930N 3KDE175513L9300 supplies power for 4...20 mA loop powered 2-wire transmitters and supports transmission of HART frames via the fieldbus. Cyclic HART variables can also be transmitted, providing enhanced device communication and diagnostic visibility. Additional operational functions include short and break detection, electrical isolation between input and bus as well as between input and power, extended diagnostics, and simplified maintenance through integrated auto-diagnostic capabilities.

The S900 platform is built for sturdy and error-tolerant operation in harsh industrial conditions. ABB AI930N 3KDE175513L9300 supports hot configuration in run and hot swap functionality, allowing maintenance and module replacement without interrupting the primary voltage. The module also supports redundancy for both power and communication, increasing system availability in critical process applications. G3 coating protection helps the module withstand corrosive industrial atmospheres according to ISA-S71.04 G3 requirements, while operation is supported within ambient temperatures from -20 °C to 60 °C and humidity levels up to 93% at 40°C.
Alternative Names
AI93ON 3KDE175513L93OO A1930N 3KDE175513L9300 AI930N 3KDEI755I3L9300 AO930N 3KDE175533L9300 AI910N 3KDE175513L9100 AI931N 3KDE175513L9310 AI950N 3KDE175523L9500 AO910N 3KDE175533L9100
Technical notes
The ABB AI930N (3KDE175513L9300) is an intrinsically safe 4-channel analog input module designed for Zone 1 hazardous areas, delivering high-precision signal conditioning with integrated HART communication for advanced field device diagnostics.
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
How many input channels are available on ABB AI930N 3KDE175513L9300?
ABB AI930N 3KDE175513L9300 provides four analog input channels with common return configuration for loop powered 2-wire transmitters.
Why does ABB AI930N 3KDE175513L9300 support HART communication?
HART support allows ABB AI930N 3KDE175513L9300 to transmit HART frames and cyclic HART variables through the fieldbus for improved diagnostics, monitoring, and device communication.
Can ABB AI930N 3KDE175513L9300 operate in corrosive industrial environments?
G3 coating protection according to ISA-S71.04 allows ABB AI930N 3KDE175513L9300 to operate reliably in corrosive industrial atmospheres.
Which signal type works with ABB AI930N 3KDE175513L9300?
ABB AI930N 3KDE175513L9300 is designed for 4...20 mA analog input signals from loop powered 2-wire transmitters.
