AI930S 3KDE175511L9300

/ 4.9
1001 reviews | Need a Specific Revision?

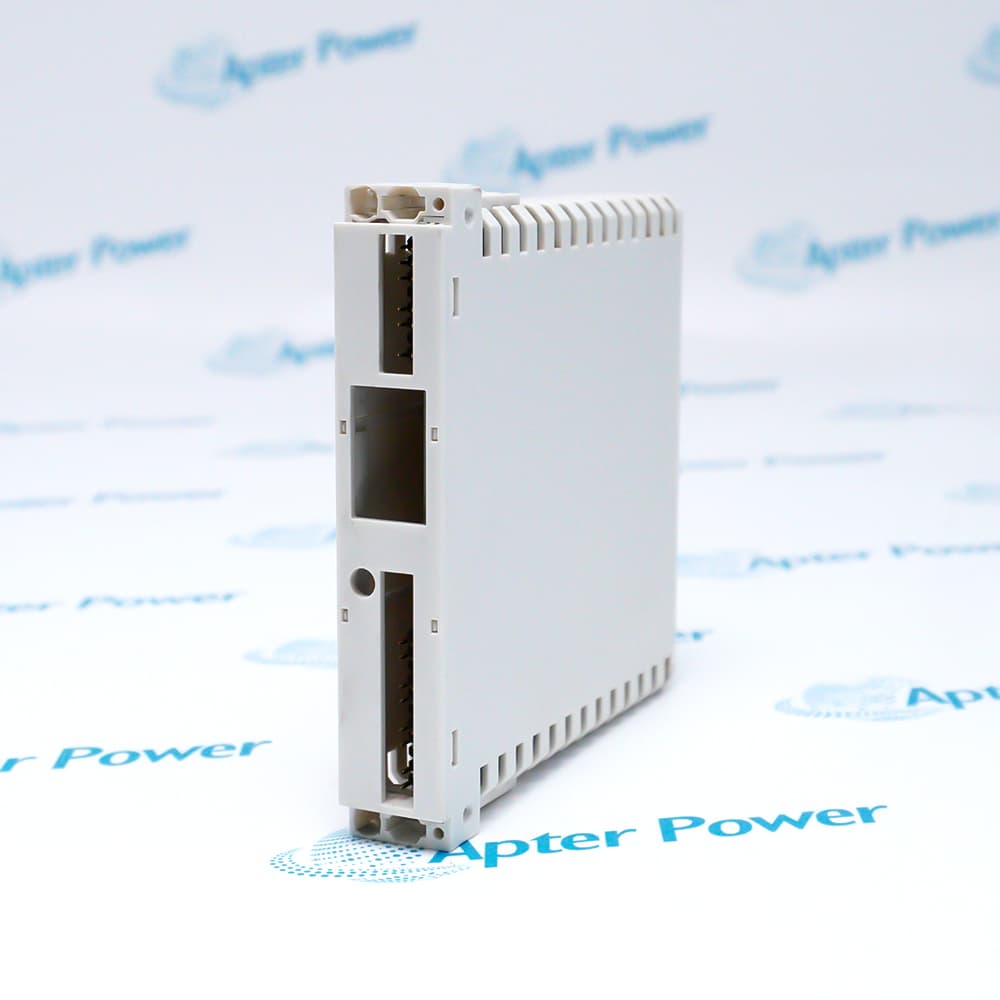

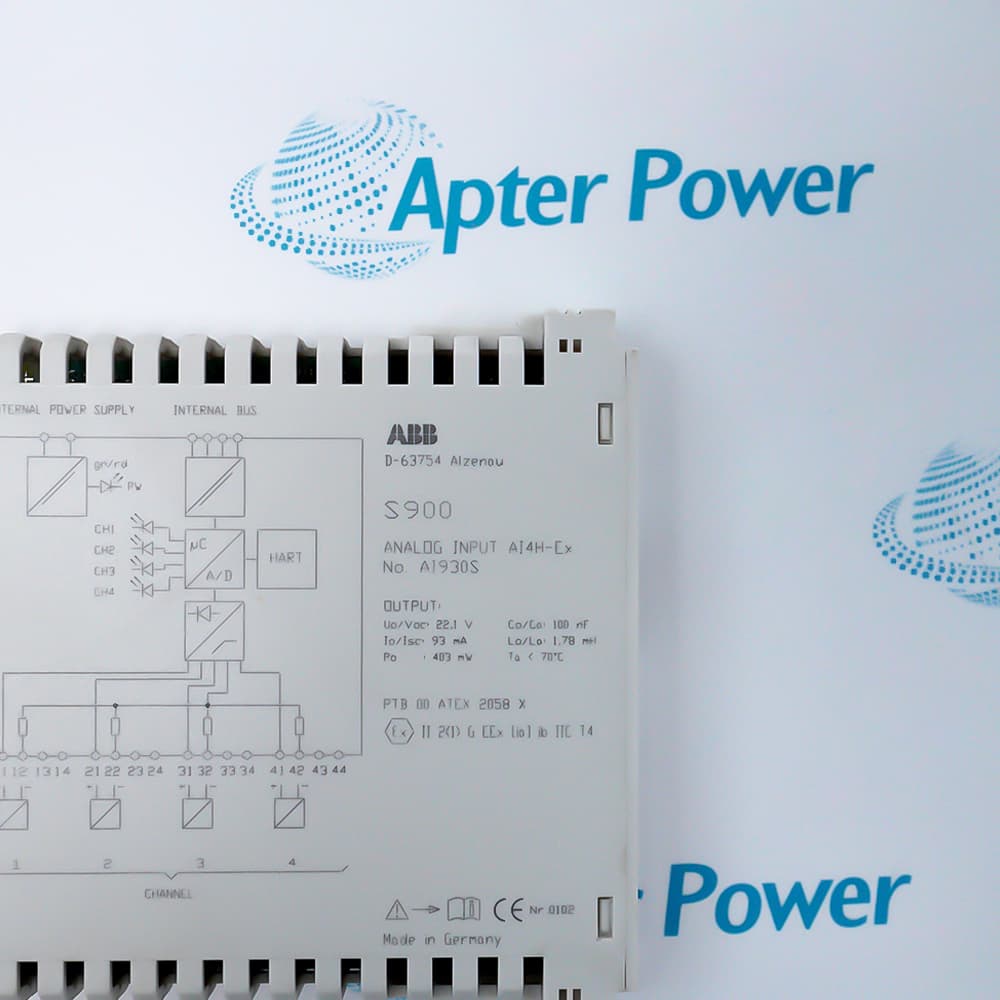

ABB AI930S 3KDE175511L9300 is an analog input (AI4H-Ex) module for the S900 remote I/O system, supporting 4...20 mA loop powered 2-wire transmitters with HART communication.
Get a quick price for AI930S 3KDE175511L9300
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for AI930S 3KDE175511L9300

  • Manufacturer:
    ABB
  • Part Number:
    AI930S 3KDE175511L9300
  • Product Family:
    ABB Advant OCS and Advant-800xA
  • Product Type:
    Analog Input (AI4H-Ex) Module
  • Number of channels:
    4
  • Signal type:
    4...20 mA
  • HART:
    Yes
  • SOE:
    N/A
  • Redundancy:
    No
  • Intrinsic safety:
    Yes
  • Mechanics:
    S900
  • CE mark:
    Yes
  • Hazardous Location:
    ATEX Zone 1
  • Corrosive atmosphere ISA-S71.04:
    G3
  • Climatic operating conditions:
    Relative humidity max. 93 % +/- 3 % at 40°C
  • Max ambient temperature:
    -20 °C...60 °C
  • RoHS compliance:
    DIRECTIVE/2011/65/EU (EN 50581:2012)
  • WEEE compliance:
    DIRECTIVE/2012/19/EU
  • WEEE category:
    Small Equipment (No External Dimension More Than 50 cm)
  • Weight:
    0.12 kg
  • Estimated shipping dimensions:
    2x10.5x11cm
  • Tariff Code:
    2942000000
  • Country of origin:
    Sweden
  • Place of shipment:
    Xiamen, Fujian, China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Specifications Use Cases Operation Environment

Features:

  • Supports intrinsically safe 4...20 mA loop powered transmitters with HART frame transmission via fieldbus.
  • Allows Hot Swap and Hot Configuration in Run for simplified maintenance without interrupting operation.
  • Provides G3-coated components, electrical isolation, and extended diagnostics for reliable use in harsh hazardous environments.
ABB AI930S 3KDE175511L9300 is part of the S900 remote I/O platform developed for distributed process automation systems operating in hazardous locations. The module enables direct field installation, helping reduce marshalling cabinet complexity and overall wiring costs. PROFIBUS DP communication ensures efficient connection between field instrumentation and higher-level control systems. Intrinsic safety support makes the module suitable for critical industrial applications where operational safety is essential.

The analog input functionality of ABB AI930S 3KDE175511L9300 is optimized for 4...20 mA loop powered 2-wire transmitters commonly used in process industries. Four input channels allow reliable acquisition of field measurements while HART communication expands access to device diagnostics and cyclic process variables. Electrical isolation between input, power, and bus sections improves system protection and contributes to stable signal handling in industrial environments.

ABB AI930S 3KDE175511L9300 also focuses on maintenance efficiency and long-term operational reliability. Hot Swap capability reduces downtime during servicing, while integrated diagnostics help identify field issues more quickly. The module is built for corrosive atmospheres with G3 coating protection and supports ambient temperatures up to 60 °C. Applications in chemical plants, offshore facilities, and energy production systems benefit from the rugged design and hazardous area certification of AI930S 3KDE175511L9300.

The AI930S 3KDE175511L9300 ABB Analog Input (AI4H-Ex) Module may still be available for purchase and support from Apter Power beyond End-Of-Life (EOL) by the manufacturer (OEM).
ABB AI930S 3KDE175511L9300 Analog Input (AI4H-Ex) Module Manuals,Datasheets,Link Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
ABB AI930S 3KDE175511L9300 Analog Input (AI4H-Ex) Module Specs

General

  • Manufacturer ABB
  • Model AI930S 3KDE175511L9300
  • Condition New Original ready stock
  • Product Family AI910S 3KDE175511L9100,AI931S 3KDE175511L9310,AI950S 3KDE175521L9500
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
  • Offshore Drilling Platform Oil and Gas Monitoring: Deployed in an explosion-proof enclosure on the oil deck, it collects data from multiple pressure transmitters in real time to monitor the risk of oil and gas pipeline leaks.
  • Chemical Plant Flammable Material Proportioning Control: Connects to an explosion-proof mass flow meter, providing high-precision current closed-loop feedback to ensure accurate feeding ratios of hazardous materials.
  • Refinery Explosion-Proof Heating Furnace Temperature Monitoring: Collects high-temperature thermocouple signals from hazardous areas and transmits high-linearity temperature data to the DCS system for interlocking control.
  • Hazardous Goods Storage and Transportation Tank Truck Pressure Unloading: Monitors the dynamic changes of intrinsically safe pressure sensors at the tank truck loading and unloading station to prevent overpressure hazards during unloading.
  • Cyclic Scan Cycle: The module employs full-channel synchronous sampling technology, enabling A/D conversion and updates of analog data from four channels within millisecond cycles.
  • Data Bus Communication: Digital signals are uploaded to the system's main control unit via the backplane bus, supporting redundant communication links to ensure zero packet loss in data transmission.
  • Cold Junction Compensation Calculation: An integrated high-precision temperature sensor automatically performs real-time cold junction compensation for non-isolated thermocouple inputs during operation.
  • Online Parameter Configuration: Allows remote modification of channel ranges, filter constants, and upper/lower limit alarm thresholds via control software while the system is running.
  • Explosion-proof Safety Rating: Possesses the highest level of intrinsic safety (AI4H-Ex) certification, allowing direct reception of input signals from Zone 0 and Zone 1 hazardous locations.
  • Operating Temperature Range: The module housing is made of temperature-resistant and flame-retardant material, supporting stable operation in harsh industrial environments ranging from -20°C to +60°C.
  • Electromagnetic Interference Immunity: Meets stringent industrial EMC standards, maintaining high signal linearity even under high-intensity electromagnetic fields, radio frequency interference, and surge impacts.
  • Moisture and Corrosion Resistance: Internal circuit boards are coated with a high-performance conformal coating, effectively resisting the corrosive effects of high humidity, salt spray, and trace amounts of corrosive gases in industrial environments.
Description
ABB AI930S 3KDE175511L9300 belongs to the S900 remote I/O family and is intended for hazardous process automation applications requiring stable analog signal transmission and intrinsic safety. The module supports four analog input channels for 4...20 mA signals and enables transmission of HART frames through the fieldbus, allowing additional device diagnostics and process data to be integrated into the control system. AI930S 3KDE175511L9300 is suitable for loop powered 2-wire transmitters and provides common return functionality for all inputs.

The S900 I/O system can be installed in non-hazardous locations or directly in ATEX Zone 1 and Zone 2 hazardous areas depending on the selected system configuration. ABB AI930S 3KDE175511L9300 is designed for installation in Zone 1 and can connect intrinsically safe field devices installed in Zone 0, Zone 1, or Zone 2 areas. PROFIBUS DP communication enables efficient integration with higher-level control systems while reducing marshalling and field wiring costs through direct field installation.

Operational reliability is an important advantage of ABB AI930S 3KDE175511L9300. Integrated disconnection mechanisms support module replacement during operation without interrupting the primary voltage supply. Hot Swap functionality and Hot Configuration in Run simplify maintenance activities and minimize process downtime in continuous industrial operations. Extended diagnostics together with FDT/DTM support improve configuration efficiency and allow easier troubleshooting in demanding process environments.

ABB AI930S 3KDE175511L9300 is engineered for harsh industrial conditions with G3 coating protection for all components and operation in ambient temperatures from -20 °C to 60 °C. The module supports relative humidity up to 93% ±3% at 40°C and complies with CE, RoHS, and WEEE directives. Electrical isolation between input, bus, and power sections improves operational safety, while short and break detection functions contribute to dependable signal monitoring in critical process applications.
Alternative Names
AI93OS 3KDE175511L93OO A1930S 3KDE175511L9300 AI930S 3KDEI755IIL9300 AI910S 3KDE175511L9100 AI931S 3KDE175511L9310 AI950S 3KDE175521L9500 AO910S 3KDE175531L9100 AO920S 3KDE175531L9200
Technical notes
Optimized for hazardous environments, the ABB AI930S (3KDE175511L9300) is a robust 4-channel intrinsically safe analog input module that ensures reliable 4-20mA signal acquisition directly from Zone 0/1 explosive areas with seamless HART pass-through capability.
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
What applications commonly use ABB AI930S 3KDE175511L9300?
ABB AI930S 3KDE175511L9300 is widely used in hazardous process industries requiring intrinsically safe analog input handling, including oil and gas, chemical processing, and power generation systems operating in Zone 1 or Zone 2 environments.
How does ABB AI930S 3KDE175511L9300 support hazardous area installations?
AI930S 3KDE175511L9300 carries ATEX certification for Zone 1 operation and can connect intrinsically safe field devices located in Zone 0, Zone 1, or Zone 2 hazardous areas.
Why does ABB AI930S 3KDE175511L9300 include HART communication capability?
HART transmission through the fieldbus allows additional transmitter diagnostics, configuration parameters, and cyclic HART variables to be accessed together with standard 4...20 mA process signals.
Can ABB AI930S 3KDE175511L9300 be replaced during operation?
Integrated Hot Swap functionality allows maintenance personnel to exchange ABB AI930S 3KDE175511L9300 during operation without shutting down the complete system power supply.
