AI931N 3KDE175513L9310

/ 4.9
1001 reviews | Need a Specific Revision?

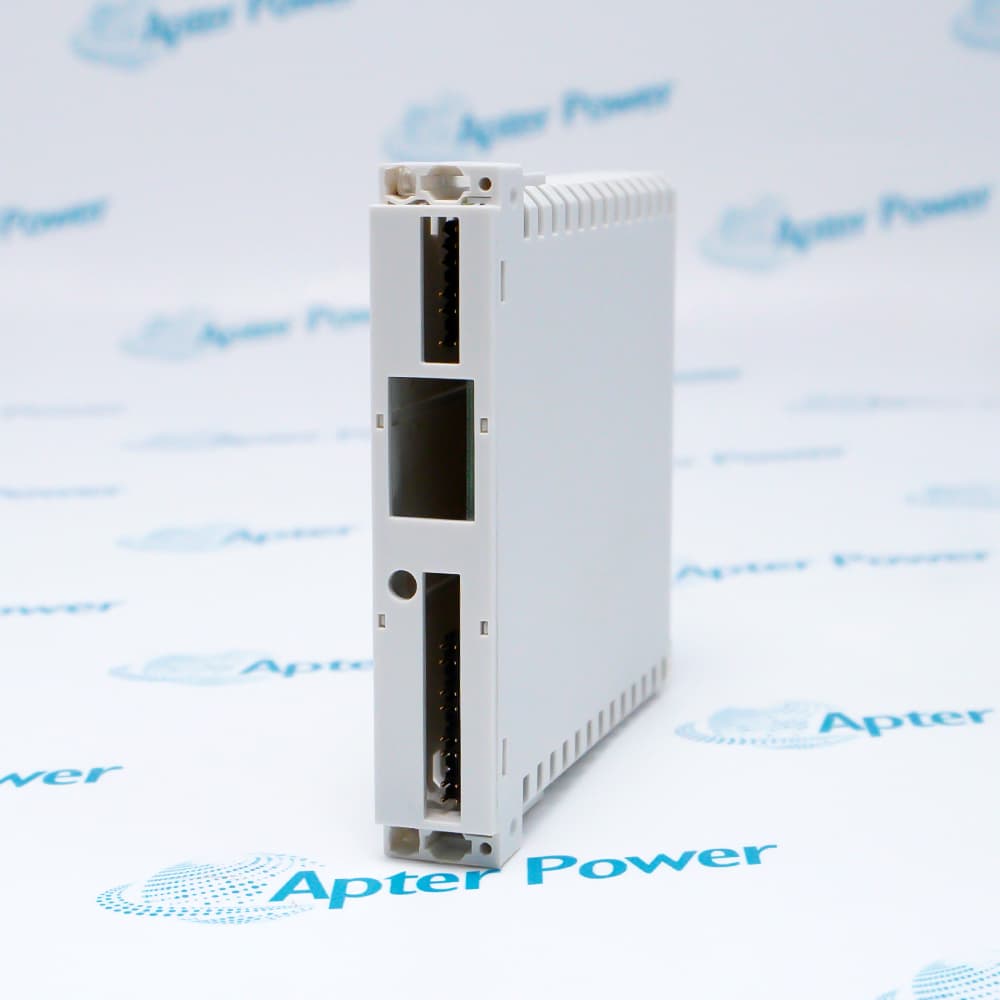

ABB AI931N 3KDE175513L9310 is a 4-channel analog input module for the S900 remote I/O system, supporting passive 0/4...20 mA signal inputs with HART communication capability.
Get a quick price for AI931N 3KDE175513L9310
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for AI931N 3KDE175513L9310

  • Manufacturer:
    ABB
  • Part Number:
    AI931N 3KDE175513L9310
  • Product Family:
    ABB Advant OCS and Advant-800xA
  • Product Type:
    Analog Input (AI4H) Module
  • Number of channels:
    4
  • Signal type:
    4...20 mA
  • HART:
    Yes
  • SOE:
    N/A
  • Redundancy:
    No
  • Intrinsic safety:
    No
  • Mechanics:
    S900
  • CE mark:
    Yes
  • Corrosive atmosphere ISA-S71.04:
    G3
  • Climatic operating conditions:
    Relative humidity max. 93 % +/- 3 % at 40°C
  • Max ambient temperature:
    -20 °C...60 °C
  • RoHS compliance:
    DIRECTIVE/2011/65/EU (EN 50581:2012)
  • WEEE compliance:
    DIRECTIVE/2012/19/EU
  • WEEE category:
    Small Equipment (No External Dimension More Than 50 cm)
  • Weight:
    0.1 kg
  • Estimated shipping dimensions:
    2x10.5x11cm
  • Tariff Code:
    2912299000
  • Country of origin:
    Sweden
  • Place of shipment:
    Xiamen, Fujian, China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Specifications Control Use Cases Compliance

Features:

  • Supports cyclic HART variable transmission together with passive 0/4...20 mA analog input acquisition.
  • Enables uninterrupted maintenance through redundancy support, Hot Swap functionality, and Hot Configuration in Run.
  • Improves operational reliability with electrical isolation, short and break detection, and G3-coated components for corrosive environments.
ABB AI931N 3KDE175513L9310 is designed for distributed process automation systems requiring stable analog signal monitoring and intelligent device communication. The module integrates with the S900 remote I/O platform and exchanges data through the PROFIBUS DP standard. Four analog input channels support passive 0/4...20 mA signals, making the module suitable for process measurement and monitoring applications. Direct field installation helps reduce wiring complexity and lowers installation costs in large industrial facilities.

Advanced diagnostic functionality is an important advantage of ABB AI931N 3KDE175513L9310. Extended diagnostics, auto-diagnostics, and FDT/DTM-based configuration simplify commissioning and troubleshooting activities. HART frame transmission and cyclic HART variables provide additional field device information beyond standard process values. Electrical isolation between input, bus, and power sections contributes to stable communication and dependable operation.

ABB AI931N 3KDE175513L9310 is built for continuous operation in demanding industrial conditions. The module supports ambient temperatures from -20 °C to 60 °C and operates in environments with humidity levels up to 93% at 40°C. G3 coating protection increases resistance to corrosive atmospheres, while Hot Swap capability allows module replacement during operation without interrupting the system. These characteristics make the module suitable for long-term industrial automation and process control installations.

The AI931N 3KDE175513L9310 ABB Analog Input (AI4H) Module may still be available for purchase and support from Apter Power beyond End-Of-Life (EOL) by the manufacturer (OEM).
ABB AI931N 3KDE175513L9310 Analog Input (AI4H) Module Manuals,Datasheets,Link Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
ABB AI931N 3KDE175513L9310 Analog Input (AI4H) Module Specs

General

  • Manufacturer ABB
  • Model AI931N 3KDE175513L9310
  • Condition New Original ready stock
  • Product Family AI930N 3KDE175513L9300,AI930S 3KDE175511L9300,AI931B 3KDE175512L9310
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
  • Adaptive Filtering Control: The internal algorithm automatically adjusts the filter constant based on the fluctuation amplitude of the input signal, balancing dynamic response speed and noise suppression.
  • Gain and Zero-Point Calibration: The control chip incorporates a fully automatic calibration closed loop, dynamically correcting measurement errors caused by temperature drift and maintaining high linearity across the entire measurement range.
  • Wire Break Interlock Protection: When a sudden drop in input current below 3.6mA is detected, the module immediately outputs a wire break fault code to the controller and triggers protection.
  • Multi-Range Signal Mapping: Supports flexible software definition of 0-20mA and 4-20mA standard current signals, allowing for linear range mapping on the host computer.
  • Natural Gas Booster Station Pressure Control: Collects key data from gas pressure transmitters within explosion-proof areas, providing extremely low-latency current feedback closed-loop control for the booster pump.
  • Refinery Catalytic Cracking Temperature Tracking: Receives signals from multiple intrinsically safe temperature transmitters, accurately monitoring minute temperature trend fluctuations inside the cracking reactor.
  • Pharmaceutical Cleanroom Differential Pressure Monitoring: Deployed in isolated explosion-proof areas, it collects micro-differential pressure transmitter signals in real time, ensuring differential pressure compliance in high-risk process environments.
  • Industrial Wastewater Treatment Flow Metering: Receives 4-20mA signals from on-site electromagnetic flowmeters, and reads the instrument's accumulated flow via HART protocol to optimize reagent dosing.
  • ATEX Intrinsic Safety Certification: Certified by the stringent European ATEX explosion-proof directive, meeting the highest safety explosion-proof requirements for electrical equipment in Zone 1 hazardous areas.
  • SIL Safety Integrity: Hardware design and fault diagnosis coverage comply with IEC 61508 standards, suitable for safety-related circuits requiring SIL level assessment.
  • CE and EMC Compatible: The module fully meets EU CE marking requirements, and its RF interference immunity and electrical fast transient/burst test results are industrial-grade.
  • RoHS Environmental Standards: Lead-free soldering is used throughout the production process, and all electronic components comply with the RoHS directive restricting the use of hazardous substances.
Description
ABB AI931N 3KDE175513L9310 belongs to the S900 remote I/O family and is intended for installation in safe non-hazardous areas. The module supports four passive analog input channels for 0/4...20 mA signals and communicates with the control system level through the PROFIBUS DP standard. By allowing direct field installation, the S900 I/O system helps reduce marshalling and wiring costs while improving flexibility in distributed automation architectures.

Integrated HART functionality allows ABB AI931N 3KDE175513L9310 to transmit HART frames and cyclic HART variables through the fieldbus. The module combines process signal acquisition with advanced device communication, making it suitable for process industries requiring detailed diagnostics and intelligent instrumentation support. Electrical isolation between input and bus as well as between input and power improves operational stability in demanding industrial applications.

ABB AI931N 3KDE175513L9310 also supports redundancy for power and communication, increasing system availability in critical processes. Hot Configuration in Run and Hot Swap functionality simplify maintenance procedures because modules and power supply units can be replaced during operation without interrupting the primary voltage. Simplified maintenance is further supported through auto-diagnostics and extended diagnostic functions accessible via FDT/DTM configuration tools.

The rugged design of ABB AI931N 3KDE175513L9310 supports operation in corrosive ISA-S71.04 G3 environments with climatic operating conditions up to 93% relative humidity at 40°C. The module operates within an ambient temperature range of -20 °C to 60 °C and complies with RoHS Directive 2011/65/EU and WEEE Directive 2012/19/EU. With four analog channels, short and break detection, common return for all inputs, and durable S900 mechanics, the module provides dependable analog input performance for industrial control systems.
Alternative Names
A1931N 3KDE175513L9310 AI931N 3KDE175513L931O AI93IN 3KDEI755I3L9310 AI930N 3KDE175513L9300 AI930S 3KDE175511L9300 AI931B 3KDE175512L9310 AI910B 3KDE175512L9100 AI910N 3KDE175513L9100
Technical notes
Engineered for highly strictly regulated areas, the ABB AI931N (3KDE175513L9310) features a 4-channel, SIL-compliant analog input architecture that guarantees certified, ATEX Zone 1 safe 4-20mA current loop measurements for hazardous processes.
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
How does ABB AI931N 3KDE175513L9310 support maintenance work?
Hot Swap functionality, Hot Configuration in Run, and integrated auto-diagnostics allow maintenance personnel to replace modules and perform servicing without shutting down the primary system voltage.
Why does ABB AI931N 3KDE175513L9310 include HART communication?
HART communication allows transmission of HART frames and cyclic HART variables through the fieldbus, providing additional device-level diagnostic and configuration information.
Can ABB AI931N 3KDE175513L9310 operate in corrosive industrial environments?
The module supports ISA-S71.04 G3 corrosive atmosphere requirements and is suitable for industrial environments where enhanced component protection is important.
Which signal types are accepted by ABB AI931N 3KDE175513L9310?
ABB AI931N 3KDE175513L9310 supports passive analog inputs for 0/4...20 mA process signals across four channels.
