AO920N 3KDE175533L9200

/ 4.9
1001 reviews | Need a Specific Revision?

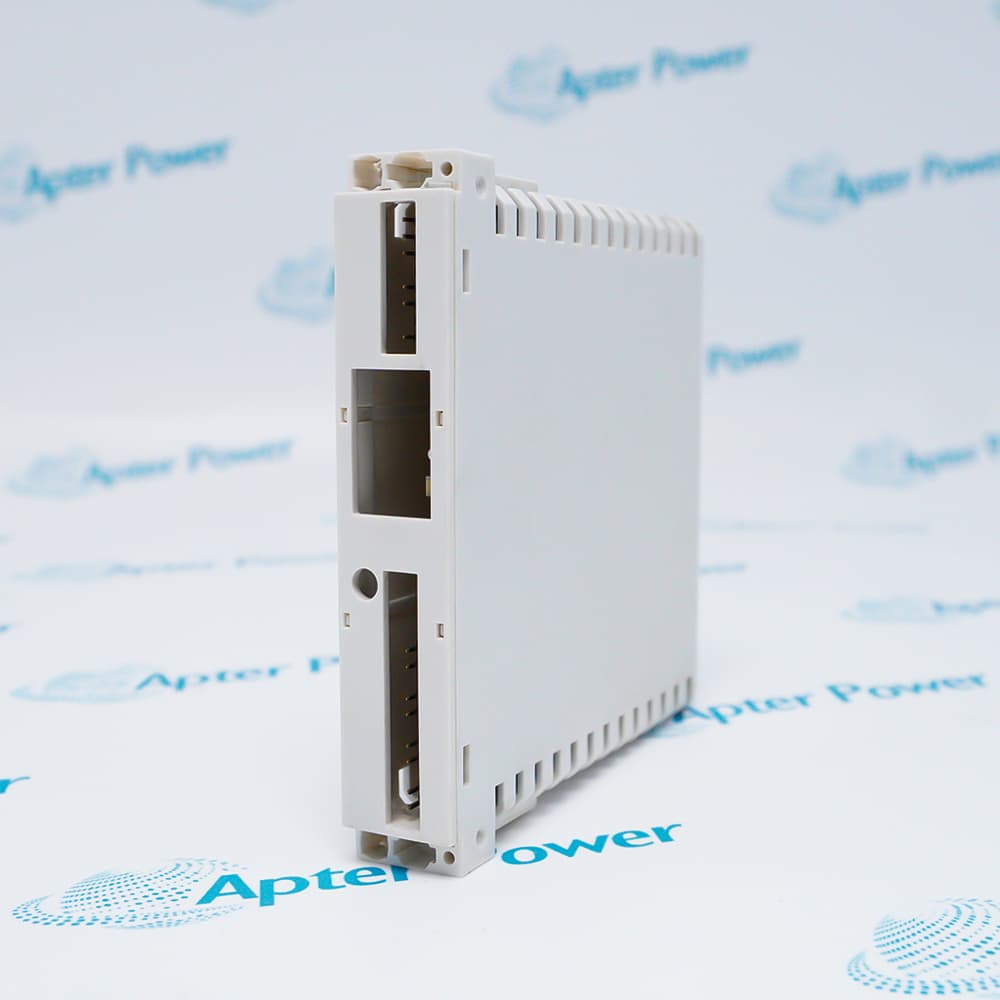

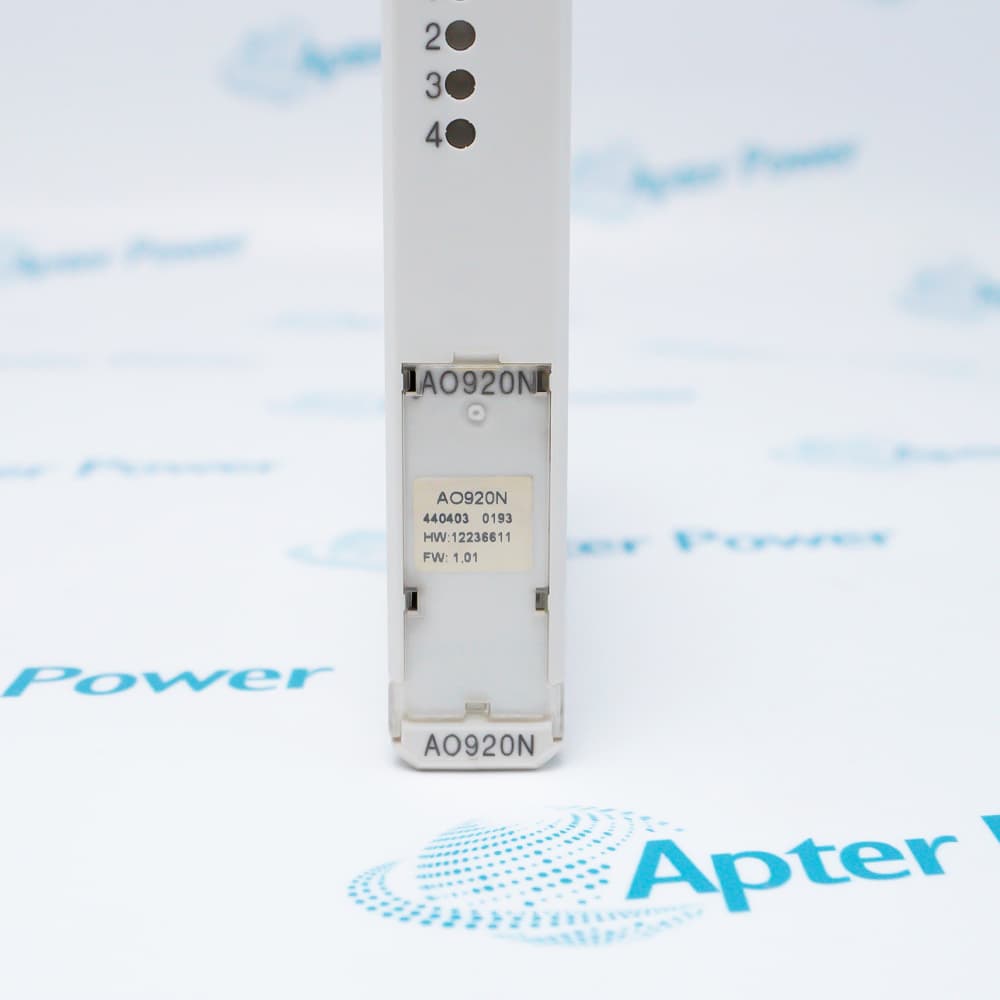

The ABB AO920N 3KDE175533L9200 is a analog output module designed as an integral part of the remote S900 I/O system variant N. This specific module features four isolated channels (AO4I) that deliver output signals ranging from 0/4 to 20 mA explicitly tailored for controlling actuators.
Get a quick price for AO920N 3KDE175533L9200
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for AO920N 3KDE175533L9200

  • Manufacturer:
    ABB
  • Part Number:
    AO920N 3KDE175533L9200
  • Product Family:
    ABB Advant OCS and Advant-800xA
  • Product Type:
    Analog Output Module
  • Number of Channels:
    4 channels
  • Output Signal Range:
    0/4...20 mA
  • Primary Application:
    Control of industrial actuators
  • Communication Protocol:
    PROFIBUS DP standard
  • Electrical Isolation:
    Output to Bus ,Output to Power ,Channel to Channel
  • Fault Detection:
    Short circuit detection ,Line break detection
  • Environmental Protection:
    G3-coating on all components
  • System Redundancy:
    Supported (Power and Communication)
  • Weight:
    0.135 kg
  • Estimated shipping dimensions:
    10.4x2x10.4cm
  • Tariff Code:
    8537101190
  • Country of origin:
    Sweden
  • Place of shipment:
    Xiamen,Fujian,China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Specifications Applications Firmware & Updates Temperature & Humidity Range

Features:

  • Isolated Analog Output Module Driving 0/4 to 20 mA Signals for Field Actuators
  • Provides Comprehensive Electrical Isolation Across Output, Bus, Power, and Channel Boundaries
  • Supports Seamless Integration into the S900 I/O Platform via PROFIBUS DP Communication
The ABB AO920N 3KDE175533L9200 serves as the analog output module within the S900 I/O system, providing isolated 0/4 to 20 mA output signals for actuator control across four independent channels. The AO920N 3KDE175533L9200 continuously generates precise current outputs to drive field actuators while maintaining electrical isolation between output and bus, output and power, and channel to channel to ensure signal integrity and system protection. Designed for installation in safe (non-hazardous) areas as part of the S900 I/O type N configuration, the AO920N 3KDE175533L9200 enables the broader S900 system to support deployment directly in the field, significantly reducing marshalling and wiring costs compared to traditional centralized I/O architectures. The system remains sturdy, error-tolerant, and easy to service, with the AO920N 3KDE175533L9200 contributing reliable analog output capability to the overall platform.

The AO920N 3KDE175533L9200 provides essential analog output functions for the S900 I/O system and is a critical component of the control path, directly affecting the proper operation of actuator-driven processes within the overall automation system. The module delivers four channels of isolated analog output and features G3-coating on all components for environmental resilience. With support for simplified maintenance through auto-diagnostics, the AO920N 3KDE175533L9200 serves as an integral part of the robust S900 platform, ensuring consistent field device control under demanding industrial conditions.

For enhanced availability, the S900 I/O system supports redundancy for both power and communication, enabling the AO920N 3KDE175533L9200 to maintain continuous operation within a highly available architecture. The system incorporates integrated disconnection mechanisms that allow replacement of modules during operation without interrupting the primary voltage, delivering true hot swap functionality. When the AO920N 3KDE175533L9200 detects a fault condition such as a short or break in an output circuit, it activates extended diagnostic alerts accessible through FDT/DTM technology. These capabilities ensure rapid identification and resolution of field device issues while preserving continuous process operation through hot configuration in run support.

The AO920N 3KDE175533L9200 ABB Analog Output Module may still be available for purchase and support from Apter Power beyond End-Of-Life (EOL) by the manufacturer (OEM).
ABB AO920N 3KDE175533L9200 Analog Output Module Manuals,Datasheets,Link Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
ABB AO920N 3KDE175533L9200 Analog Output Module Specs

General

  • Manufacturer ABB
  • Model AO920N 3KDE175533L9200
  • Condition New Original ready stock
  • Product Family AO920S 3KDE175531L9200,AO895 3BSC690087R1
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
  • Actuator Control: Drives proportional valves, positioners, actuators, and variable speed drives.
  • Safe Area Installation: Designed specifically for installation in non-hazardous (safe) areas within the S900 Remote I/O system.
  • Process Automation: Widely used in the oil and gas, chemical, petrochemical, and water management industries.
  • High-Availability Systems: Supports Hot Swap functionality and Hot Configuration in Run (HCIR) for uninterrupted operation.
  • Configuration Protocol: Managed via FDT/DTM technology using standard engineering software.
  • System Integration: Integrated natively into ABB control environments, including System 800xA and Freelance DCS.
  • Updates: Device definitions, GSD files, and firmware packages are managed directly through the host control system and fieldbus masters.
  • Diagnostics: Features built-in short-circuit protection, line-break detection, and automatic module-level error reporting.
  • Operating Temperature: -20 °C to +60 °C.
  • Storage Temperature: -40 °C to +85 °C.
  • Relative Humidity: Maximum 93 % (± 3 %) at 40 °C (non-condensing).
  • Environmental Protection: Features G3 conformal coating on electronic components to resist harsh, corrosive atmospheres..
Description
The ABB AO920N 3KDE175533L9200 is an analog output module configured as an isolated AO4I unit within the S900 I/O system. The AO920N 3KDE175533L9200 is specifically designed to handle precise analog output control for actuators, delivering reliable 0/4 to 20 mA signals in industrial automation environments. By providing electrical isolation between output and bus, output and power, and channel to channel, the AO920N 3KDE175533L9200 solves critical signal integrity challenges, ensuring accurate actuator operation while protecting the control system from electrical interference and ground loops.

The AO920N 3KDE175533L9200 is ideally applied in process automation fields where robust and reliable analog control is essential, including installations in non-hazardous areas and hazardous environments such as Zone 1 or Zone 2, depending on the selected S900 system variant. As an S900 I/O type N module, the AO920N 3KDE175533L9200 is specifically intended for safe area installation, while the broader S900 architecture supports direct field deployment to reduce marshalling and wiring costs. The system communicates with the control level via PROFIBUS DP standard, enabling seamless integration into existing distributed control architectures.

For installation and integration, the AO920N 3KDE175533L9200 leverages the sturdy, error-tolerant, and easy-to-service design of the S900 I/O platform. The module supports redundancy for both power and communication, ensuring continuous availability for critical control loops. Integrated disconnection mechanisms allow replacement during operation without interrupting the primary voltage, which simplifies maintenance activities and minimizes downtime during system integration or expansion.

The AO920N 3KDE175533L9200 offers advanced diagnostic and maintenance capabilities, including extended diagnostic functions, short and break detection, and simplified maintenance through auto-diagnostics. Excellent configuration and diagnostics are achievable via FDT/DTM technology, while all components carry G3-coating for environmental resilience. These features enable proactive fault detection and rapid troubleshooting, ensuring that the AO920N 3KDE175533L9200 maintains optimal performance throughout its operational life.

Regarding upgrade and operational flexibility, the AO920N 3KDE175533L9200 supports hot configuration in run and hot swap functionality, allowing modules to be replaced or reconfigured without stopping the process. This makes the AO920N 3KDE175533L9200 particularly suitable for continuous production environments where process interruption is not acceptable. For upgrade scenarios, users can leverage these hot maintenance capabilities alongside the module's four-channel density to scale analog output capacity efficiently while maintaining full system availability.
Alternative Names
AO920N 3KDE175533L9200 AO920N 3KDE175533L92OO A0920N 3KDE175533L9200 AO920S 3KDE175531L9200 AO895 3BSC690087R1 AO810 3BSE008522R1
Technical notes
Built to operate in safe, non-hazardous areas, the ABB AO920N 3KDE175533L9200 communicates seamlessly with upper control system levels using the standard PROFIBUS DP protocol. It incorporates crucial safety and reliability features, including short-circuit and line break detection, alongside robust electrical isolation between the output and the bus, the output and the power supply, and directly between individual channels.
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
What communication and control systems does the ABB AO920N 3KDE175533L9200 integrate with?
The ABB AO920N 3KDE175533L9200 communicates through the PROFIBUS DP protocol, allowing seamless integration with higher-level control systems. It also supports advanced configuration and diagnostics via FDT/DTM technology. This enables engineers to configure, monitor, and troubleshoot the module efficiently within existing automation networks without complex system redesign.
In which industries and applications is the ABB AO920N 3KDE175533L9200 commonly used?
The module is widely applied in industries that require precise analog control and high system stability, such as chemical processing, oil and gas refining, water treatment, and power generation. For example, in a water treatment facility, it can regulate control valves and chemical dosing pumps, ensuring accurate process control while preventing faults in one channel from affecting other operations.
How does the ABB AO920N 3KDE175533L9200 help reduce installation and maintenance complexity?
The ABB AO920N is designed for direct installation in safe-area environments, reducing the need for traditional marshalling cabinets and extensive field wiring. It supports Hot Configuration in Run (HCIR), allowing configuration changes during operation. Its built-in diagnostics and modular design simplify troubleshooting and reduce engineering workload during both installation and long-term operation.
