Ask our team:
  • Phone: +86 181 0690 9650
  • E-Mail sales1@apterpower.com
  • Lifecycle status

     Discontinued / Obsolete by OEM
    Apter Power sources tested, hard-to-find ABB 5SHX1445H0001 electronic assemblies, ensuring your specialized large-scale power infrastructure stays active and fully protected against unexpected faults.

3BHL000391P0101 5SHX1445H0001 3BHB003230R0101 GVC704 AE01

/ 4.9
1001 reviews | Need a Specific Revision?

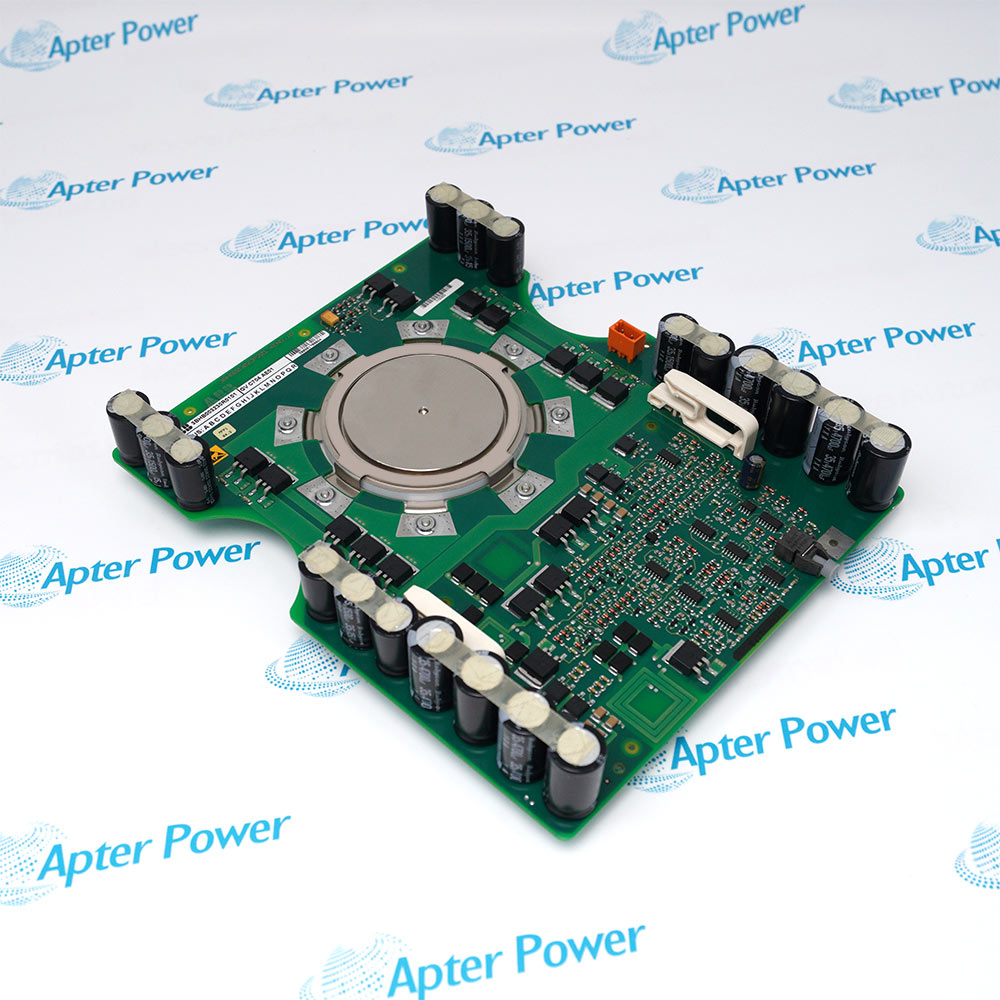

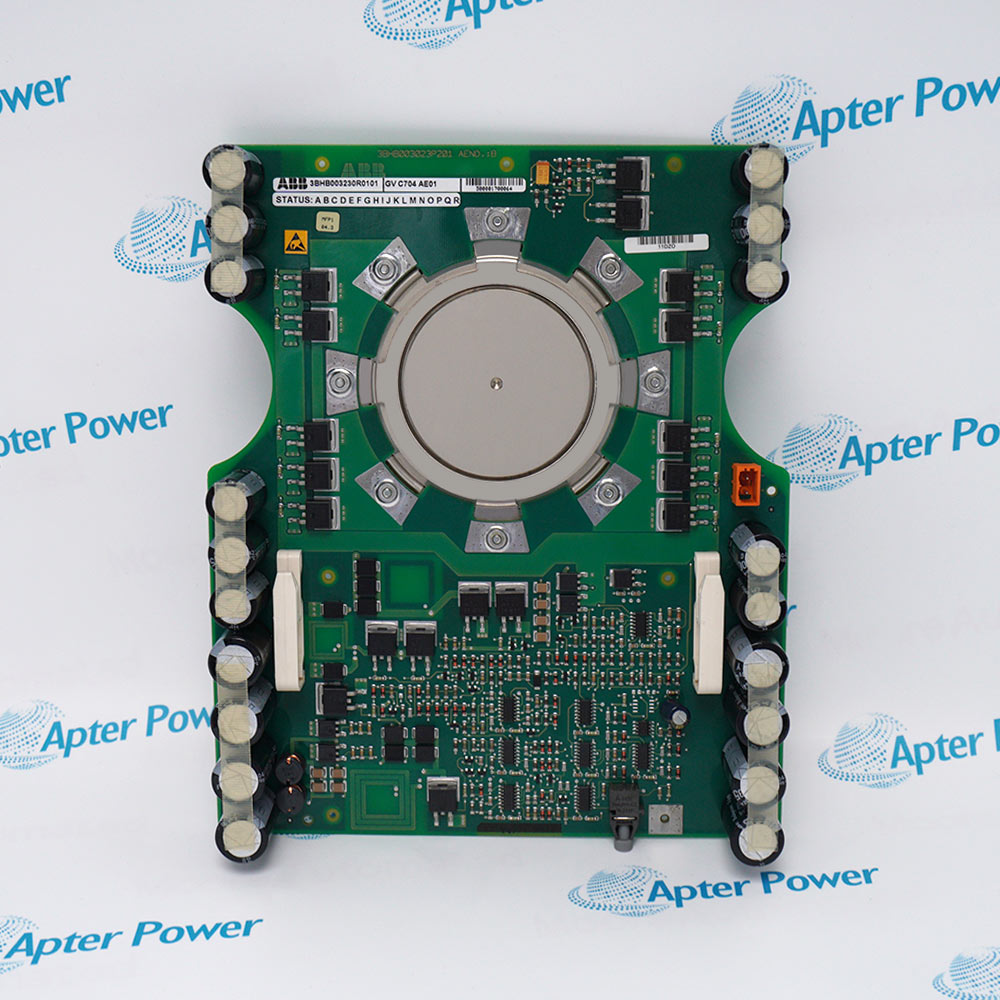

ABB 3BHL000391P0101 5SHX1445H0001 3BHB003230R0101 GVC704 AE01 IGCT Power Module Unit Provides High-Voltage, High-Current Switching With Fiber-Optic Control And Advanced Thermal Management.
In Stock
Ships by Thursday, October 29
Fast Shipping Available
Get a quick price for 3BHL000391P0101 5SHX1445H0001 3BHB003230R0101 GVC704 AE01
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for 3BHL000391P0101 5SHX1445H0001 3BHB003230R0101 GVC704 AE01

  • Manufacturer:
    ABB
  • Part Number:
    3BHL000391P0101 5SHX1445H0001 3BHB003230R0101 GVC704 AE01
  • Product Family:
    ABB Advant OCS and Advant-800xA
  • Product Type:
    Integrated Gate-Commutated Thyristor Module
  • Stock:
    1
  • Rated Blocking Voltage:
    4500 V (4.5 kV).
  • Maximum DC Operating Voltage:
    Typically 2800 V (for 2.8 kV DC links).
  • Shutdown Current:
    Rated typically between 1400 A and 2100 A (depending on specific thermal conditions and bias).
  • Average On-State Current:
    Approximately 500 A - 800 A (depending on ambient temperature).
  • On-State Voltage Drop:
    Typically approximately 2.5 V - 3.5 V.
  • Board Supply Voltage:
    Typically 20 V - 35 V DC.
  • Board control interface:
    Fiber Optic connection
  • Board switching frequency:
    Typically between 500 Hz and 1000 Hz
  • Cooling method:
    Press-fit cooling
  • Mounting force:
    Typically between 36 kN and 44 kN
  • Operating temperature:
    0°C to +125°C.
  • Weight:
    3.5 kg
  • Estimated shipping dimensions:
    14.2x12.7x3.6cm
  • Tariff Code:
    2921300090
  • Country of origin:
    Sweden
  • Place of shipment:
    Xiamen, Fujian, China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Specifications Environmental Ratings Efficiency Application

Features:

  • IGCT Power Module Unit Supports Up To 4.5 kV Blocking Voltage And 2.8 kV DC Operating Voltage
  • Integrated Power Drive Board 3BHB003230R0101 Provides Precise Fiber-Optic Control And Switching From 500 Hz To 1000 Hz
  • Press-Fit Cooling And Mounting Force 36 kN To 44 kN Ensure Reliable Operation From 0°C To +125°C
The ABB 3BHL000391P0101 5SHX1445H0001 3BHB003230R0101 GVC704 AE01 is an advanced IGCT Power Module Unit designed for industrial and high-voltage applications. Rated for 4.5 kV blocking voltage and a typical DC operating voltage of 2.8 kV, it handles average on-state currents of 500 A to 800 A with a low on-state voltage drop of 2.5 V to 3.5 V. Compared with other ABB IGCT units, it provides a flexible shutdown current range of 1400 A to 2100 A, optimizing performance under different thermal and bias conditions.

This IGCT Power Module Unit works together with the 3BHB003230R0101 power drive board and GVC704 AE01 hardware version to deliver precise voltage and current regulation via a fiber-optic interface. Its switching frequency range of 500 Hz to 1000 Hz, combined with press-fit cooling and mounting force of 36 kN to 44 kN, ensures stable operation in demanding environments. The board operates at 20 V to 35 V DC, supporting consistent and reliable module performance.

Engineered for reliability and high-efficiency switching, the 5SHX1445H0001 IGCT Power Module Unit offers superior control, thermal management, and long-term durability. Its combination of high voltage capability, adjustable shutdown current, and fiber-optic control makes it ideal for industrial drives and power electronics systems requiring precision and robustness across a wide temperature range.

The 3BHL000391P0101 5SHX1445H0001 3BHB003230R0101 GVC704 AE01 ABB Integrated Gate-Commutated Thyristor Module may still be available for purchase and support from Apter Power beyond End-Of-Life (EOL) by the manufacturer (OEM).
ABB 3BHL000391P0101 5SHX1445H0001 3BHB003230R0101 GVC704 AE01 Integrated Gate-Commutated Thyristor Module Manuals,Datasheets,Link Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
ABB 3BHL000391P0101 5SHX1445H0001 3BHB003230R0101 GVC704 AE01 Integrated Gate-Commutated Thyristor Module Specs

General

  • Manufacturer ABB
  • Model 3BHL000391P0101 5SHX1445H0001 3BHB003230R0101 GVC704 AE01
  • Condition New Original ready stock
  • Product Family 5SHY35L4520 191091KB62211,3BHE034863R0001 UDC920 BE01
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
  • Protection Rating: Due to its press-pack construction and exposed drive circuit board, the module itself typically requires installation in a sealed enclosure with an IP54 or higher rating for dust and moisture protection.
  • Operating Temperature: Typically 0°C to 125°C. The recommended ambient operating temperature for the drive board assembly is generally between 0°C and 55°C.
  • Humidity Requirements: Non-condensing environment (typically < 95% RH), as moisture in high-pressure environments can cause creepage or short circuits in the drive board.
  • Shock Resistance: Meets industrial-grade vibration and shock standards, but electrical performance and structural stability must be guaranteed under specified mechanical clamping forces (approximately 36kN - 44kN).
  • Extremely Low On-State Loss: Due to its thyristor structure, the on-state voltage drop (typically 2.5V - 3.5V) is significantly lower than comparable IGBTs, resulting in less heat generation during high-current operation.
  • High-Speed ​​Commutation: The gate driver board (GVC704) is integrated into the transistor body, eliminating lead inductance and controlling the turn-off time to within 1 microsecond, achieving extremely high switching consistency.
  • High Blocking Capability: Rated blocking voltage up to 4500V, capable of handling megawatt (MW) level power switching.
  • Fiber Optic Isolation Efficiency: Using fiber optic transmission for trigger signals completely eliminates false triggering caused by electromagnetic interference, improving the overall system operating efficiency and stability.
  • Medium-voltage frequency converters (MV Drives): These are standard power modules in ABB ACS1000 and ACS6000 frequency converters, used to control motors in power plant feedwater pumps, mine hoists, and large wind turbines.
  • Grid compensation (FACTS): Used in static var compensators (SVG/STATCOM) to regulate grid quality and stabilize voltage.
  • Marine propulsion systems: Installed in converters of large, all-electric propulsion vessels, responsible for converting the power of the propulsion motors.
  • Hard-switching applications: Suitable for high-power converters with switching frequencies around 500Hz - 1000Hz, balancing switching losses and conduction losses.
Description
The ABB 3BHL000391P0101 5SHX1445H0001 3BHB003230R0101 GVC704 AE01 is a high-performance IGCT Power Module Unit designed for industrial drives and power electronics applications. It features a rated blocking voltage of 4.5 kV and a typical DC operating voltage of 2.8 kV, supporting demanding high-voltage link requirements. The module handles an average on-state current between 500 A and 800 A, with a low on-state voltage drop of 2.5 V to 3.5 V, delivering both efficiency and reliability. Compared to other ABB IGCT units, this module offers a flexible shutdown current range of 1400 A to 2100 A, ensuring optimal performance under variable thermal conditions and bias.

Equipped with the 3BHB003230R0101 power drive board, this IGCT module achieves precise control over voltage and current via a fiber-optic interface. The GVC704 AE01 hardware version enhances switching accuracy, supporting frequencies from 500 Hz to 1000 Hz. Press-fit cooling ensures effective thermal management, while a mounting force of 36 kN to 44 kN guarantees secure installation, making it highly reliable across the operating temperature range of 0°C to +125°C.

The 5SHX1445H0001 IGCT Power Module Unit is engineered for high-duty-cycle industrial use. Its board supply voltage ranges from 20 V to 35 V DC, providing stable operation. By integrating advanced cooling, precise fiber-optic control, and robust mounting, this module outperforms similar high-voltage IGCTs in both thermal resilience and switching efficiency.

This IGCT module unit is particularly suitable for applications that demand consistent, high-current performance with minimal maintenance. The combination of the ABB 3BHL000391P0101 5SHX1445H0001 3BHB003230R0101 GVC704 AE01 drive board provides an unmatched balance of efficiency, reliability, and long-term durability in industrial and power electronics systems.
Alternative Names
3BHL000391P0101 5SHX1445H0001 3BHB003230R0101 GVC704 AE01 3BHB003230R0101 5SXE05-0152 5SHX0845F0001 3BHL000385P0101 5SHY35L4520 191091KB62211 3BHE034863R0001 UDC920 BE01
Technical notes
ABB 3BHL000391P0101 5SHX1445H0001 3BHB003230R0101 GVC704 AE01 Integrated Gate-Commutated Thyristor Module employ an advanced water-cooling configuration for optimal thermal management. Notably, their advanced unbuffered shutdown design eliminates the need for bulky external protection components, significantly reducing overall power loss and minimizing electromagnetic interference (EMI).
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
What is the maximum DC operating voltage of 3BHL000391P0101 5SHX1445H0001 3BHB003230R0101 GVC704 AE01?
The module typically operates at 2.8 kV DC, ideal for high-voltage link applications.
Why is the turn-off current range important for 3BHL000391P0101 5SHX1445H0001 3BHB003230R0101 GVC704 AE01?
It allows the module to adapt to thermal and bias variations, ranging from 1400 A to 2100 A for safe and efficient switching.
How should I install ABB 3BHL000391P0101 5SHX1445H0001 3BHB003230R0101 GVC704 AE01?
Use a mounting force of 36 kN to 44 kN for secure installation and ensure the board supply voltage is between 20 V and 35 V DC.
What makes ABB 3BHL000391P0101 5SHX1445H0001/3BHB003230R0101 GVC704 AE01 superior to other IGCT modules?
It combines high blocking voltage, flexible shutdown current, fiber-optic control, optimized cooling, and precise switching, outperforming comparable ABB IGCT units in efficiency and durability.
