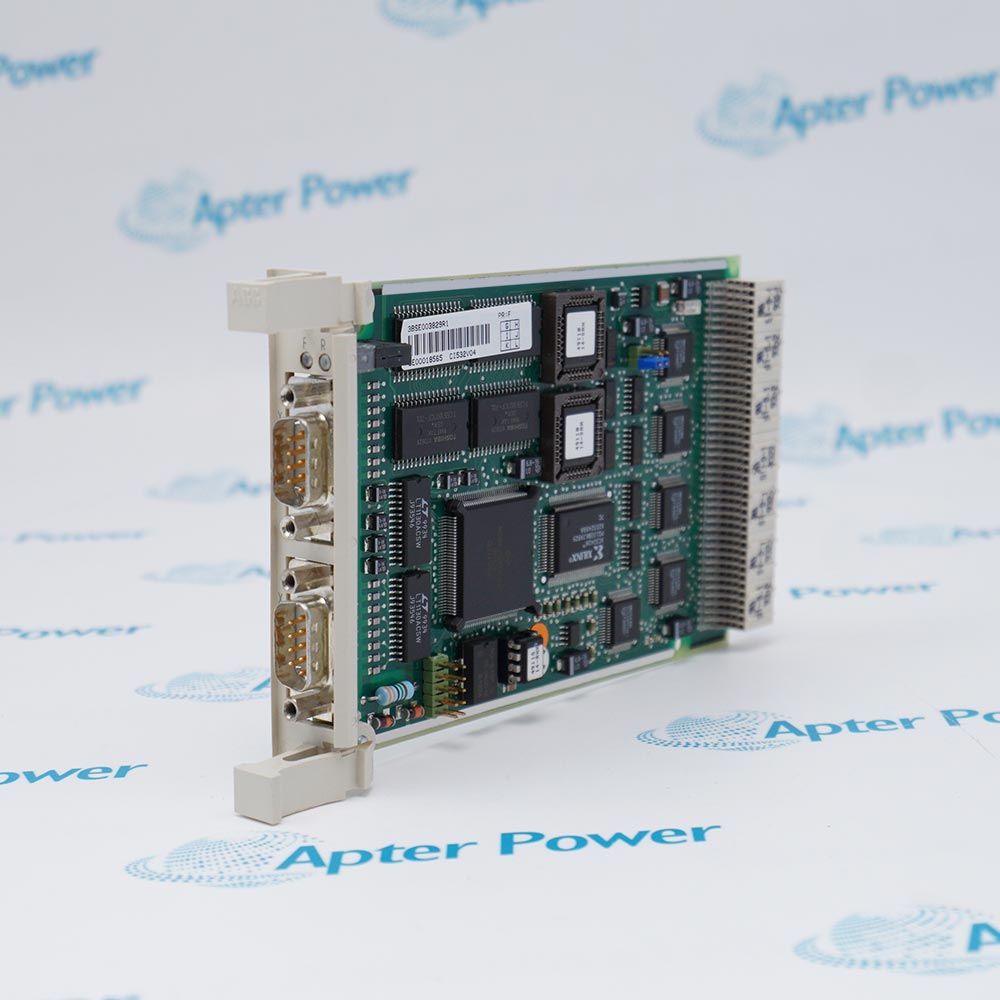

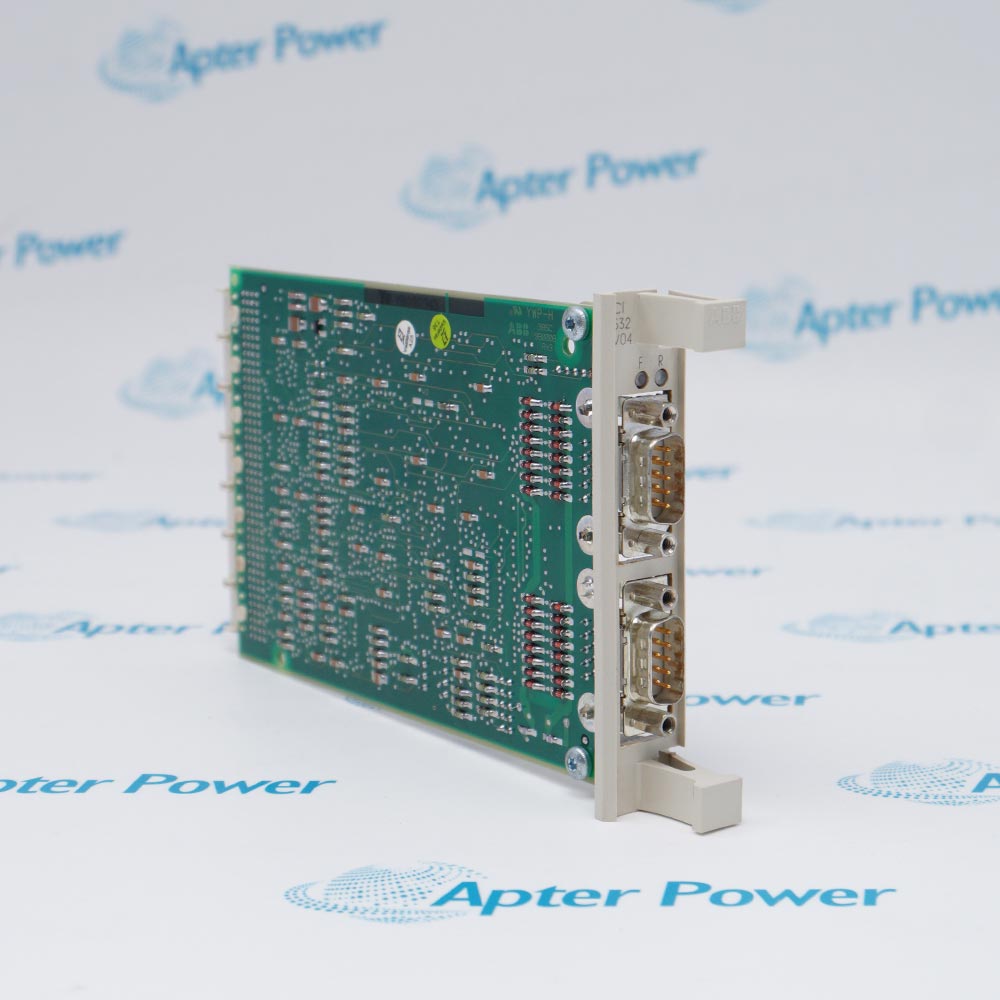

ABB CI532V04 3BSE003829R1 is a dual-port RS-232 MVI submodule for Allen-Bradley communication in documented Advant AC410 and AC460 systems.
In Stock
Ships by Friday, October 30
Fast Shipping Available
Get a quick price for CI532V04 3BSE003829R1
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for CI532V04 3BSE003829R1

  • Manufacturer:
    ABB
  • Part Number:
    CI532V04 3BSE003829R1
  • Product Family:
    ABB Advant OCS and Advant-800xA
  • Product Type:
    MVI Interface Submodule
  • Stock:
    1
  • ABB Catalog Description:
    CI532V04 Allen Bradley MVI
  • Serial Interface:
    Two RS-232 ports
  • Port Protocol Rule:
    Both ports use the same protocol
  • Configurable Baud Rates:
    150, 300, 600, 1,200, 2,400, 4,800, 9,600, 19,200 or 38,400 bit/s per port
  • AC410 Capacity:
    Up to two MVI modules
  • AC460 Capacity:
    Up to four MVI modules in carrier modules
  • Pair Configuration:
    One redundant interface or two independent non-redundant interfaces
  • Documented Product Groups:
    AC400, AC410, AC460
  • Weight:
    0.15 kg
  • Tariff Code:
    8538900000
  • Country of origin:
    Sweden
  • Place of shipment:
    Xiamen, Fujian, China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Serial Interface Controller Capacity Redundancy Application
  • Allen-Bradley protocol variant of the ABB Multi-Vendor Interface
  • Two RS-232 ports with configurable speed per port
  • Supports independent or paired redundant MVI arrangements

CI532V04 3BSE003829R1 is an ABB Multi-Vendor Interface submodule designed for serial communication with Allen-Bradley devices.

Its two RS-232 ports use the same protocol while allowing separate baud-rate settings, and paired modules may be configured for redundancy or independent interfaces.

Before installation or replacement, verify the complete label, controller and carrier location, port speeds, connected devices, serial cabling and the installed redundancy mode.

Availability, condition, price, and shipping time for CI532V04 3BSE003829R1 are confirmed during quotation.

ABB CI532V04 3BSE003829R1 Interface Submodule Manuals, Support, Links

Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.

  • CI532V04 3BSE003829R1 provides two serial RS-232 ports
  • Both ports on one module use the same Allen-Bradley protocol
  • Communication speed is configured independently for each port
  • Advant Controller 410 supports up to two MVI modules
  • Two MVI modules provide four serial ports in an AC410 installation
  • Advant Controller 460 supports up to four MVI modules installed in carrier modules
  • A pair of MVI modules can form one redundant interface
  • The same pair can instead operate as two independent non-redundant interfaces
  • Redundant AC460 pairs normally reside on separate carrier boards
  • Serial integration of Allen-Bradley devices with Advant Controller 410
  • Allen-Bradley MVI communication through carrier modules in Advant Controller 460
  • Redundant or independent dual-module serial interfaces for external Allen-Bradley equipment
Description
CI532V04 3BSE003829R1 is an ABB Multi-Vendor Interface submodule for serial communication with Allen-Bradley devices in documented Advant controller systems.

The module provides two RS-232 ports using the same protocol, permits baud-rate configuration per port, and supports independent or paired redundant MVI arrangements.

Before installation or replacement, confirm the complete type and order label, AC410 or AC460 platform, carrier position, port settings, peer device and whether the installed pair operates independently or redundantly.
Alternative Names
CI532V04 ABB CI532V04 CI532 V04 ABB CI532 V04 CI532V04 3BSE003829R1
Technical notes
CI532V04 3BSE003829R1 requires confirmation of the Allen-Bradley protocol variant, controller and carrier position, two RS-232 port settings and independent or redundant pairing; another CI532 variant may be electrically unsuitable.
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
How can a buyer confirm that CI532V04 3BSE003829R1 is the correct MVI for an Allen-Bradley connection?
Match the complete CI532V04 3BSE003829R1 type on the installed label. ABB assigns the V04 variant to Allen-Bradley communication; other CI532 variants implement different protocols and should not be treated as substitutes.
Can the two serial ports on CI532V04 3BSE003829R1 communicate with different protocol families?
No. ABB states that both RS-232 ports on one MVI module use the same protocol. Both connected devices must therefore fit the Allen-Bradley protocol implemented by CI532V04 3BSE003829R1.
Can CI532V04 3BSE003829R1 use different communication speeds on its two ports?
Yes. ABB documents baud-rate configuration per port. Record both existing port settings before replacement so each connected device returns to its established communication speed.
What should be checked before adding another CI532V04 3BSE003829R1 to an Advant Controller 410?
Confirm the existing MVI count, available module position and required serial ports. ABB permits up to two MVI modules in AC410, providing four serial ports in total.
How should a redundant CI532V04 3BSE003829R1 pair be arranged in an Advant Controller 460?
ABB states that a redundant pair would normally reside on separate carrier boards in AC460. Preserve the carrier assignment and redundancy configuration when replacing either module.
Can two CI532V04 3BSE003829R1 modules be used independently instead of as a redundant pair?
Yes. ABB permits a pair of MVI modules to operate either as one redundant interface or as two independent non-redundant interfaces. Verify the engineered mode before moving hardware or configuration.
What information should be recorded before replacing CI532V04 3BSE003829R1?
Record the complete label, controller type, carrier and slot, both RS-232 connections, each port's baud rate, the connected Allen-Bradley devices and whether the MVI modules are independent or redundant.
