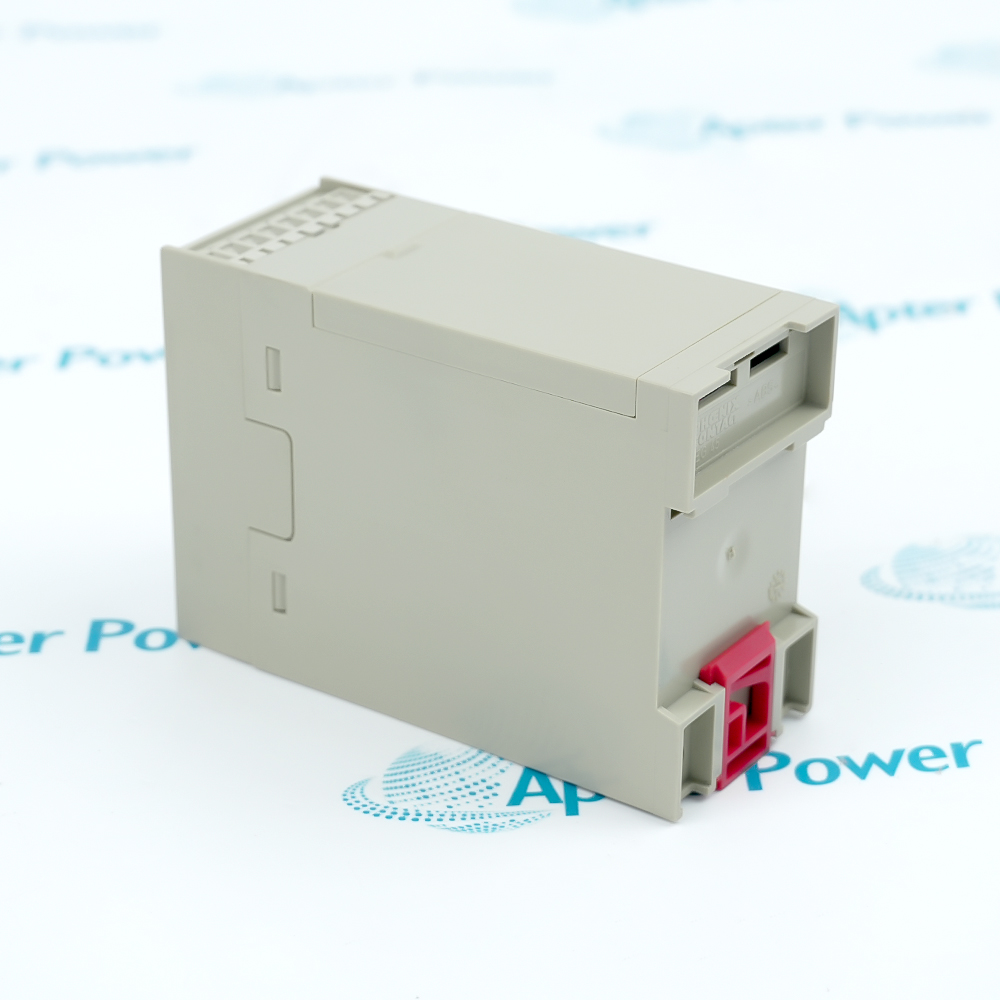

ABB NWIO-01 64168533 is a DriveBus watchdog and digital I/O option unit used with CI858 optical-ring control configurations.
In Stock
Ships by Thursday, October 29
Fast Shipping Available
Get a quick price for NWIO-01 64168533
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for NWIO-01 64168533

  • Manufacturer:
    ABB
  • Part Number:
    NWIO-01 64168533
  • Product Family:
    ABB Advant OCS and Advant-800xA
  • Product Type:
    Watchdog and Digital I/O Option Unit
  • Stock:
    1

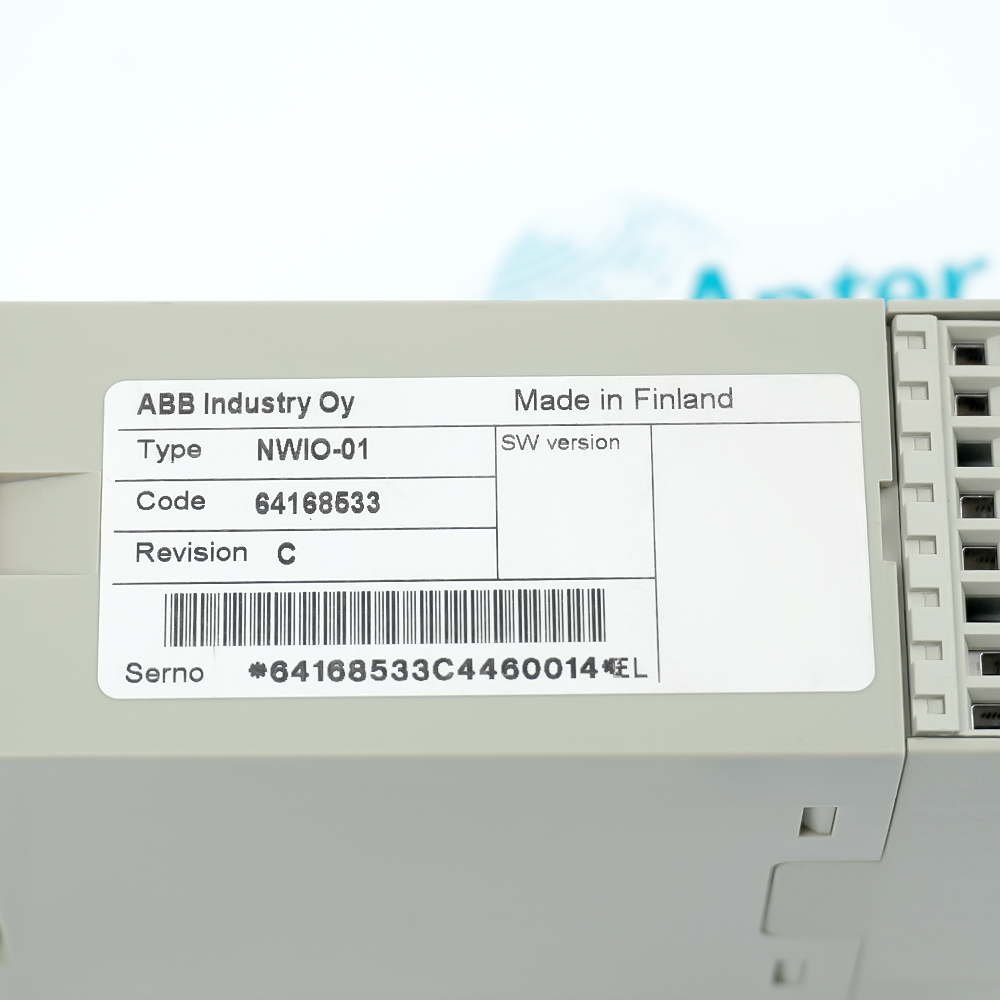

  • Type Designation:
    NWIO-01
  • Digital Inputs:
    2
  • Input Versions:
    24 V DC or 115/230 V AC as documented
  • Digital Outputs:
    2
  • Input Filter Selection:
    1 ms or 8 ms
  • Watchdog Time Constant:
    0.2 s or 1 s, depending on documented setting
  • Control Integration:
    CI858 optical I/O ring with NWIO1DI and NWIO1DO function blocks
  • Weight:
    0.2 kg
  • Tariff Code:
    8504909000
  • Country of origin:
    Sweden
  • Place of shipment:
    Xiamen, Fujian, China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Watchdog DriveBus I/O Mapping Application
  • Combines application-watchdog logic with two digital inputs and two digital outputs
  • Connects through the CI858 optical I/O-ring architecture
  • Uses dedicated NWIO1DI and NWIO1DO control-application function blocks

NWIO-01 64168533 is ABB's NWIO option unit for DriveBus supervision and small-scale digital I/O exchange.

The hardware monitors controller-application operation and transfers field states through the configured optical ring, with a selectable watchdog relationship for the documented output.

Before installation, verify product ID, field-voltage execution, I/O mapping, optical-ring order, watchdog timing, switch position, and CI858 software configuration.

Availability, condition, price, and shipping time for NWIO-01 64168533 are confirmed during quotation.

ABB NWIO-01 64168533 Watchdog and Digital I/O Option Unit Manuals, Datasheets, Links

Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.

  • Select the documented 0.2 s or 1 s watchdog behavior for the application
  • Verify whether the hardware switch associates the watchdog with DO2
  • Test the safe output response when controller communication is intentionally interrupted
  • Place the unit in the configured CI858 optical I/O ring
  • Preserve optical-ring order and dataset mapping during replacement
  • Confirm ring communication before enabling dependent drive functions
  • Use NWIO1DI to read the documented input signals
  • Use NWIO1DO to command and supervise the output signals
  • Match DI voltage execution and field wiring to the installed unit
  • Watchdog supervision of an AC 800M drive-control application
  • Digital field-input acquisition through a CI858 optical I/O ring
  • Digital output control for DriveBus-connected auxiliary or status circuits
Description
NWIO-01 64168533 is an ABB watchdog and digital I/O option unit for AC 800M DriveBus systems.

It monitors controller-application communication and exchanges two digital inputs and two digital outputs through the CI858 optical I/O ring and dedicated software function blocks.

Before installation, verify the complete type and product ID, digital-input voltage execution, I/O mapping, optical-ring order, watchdog setting, and CI858 library configuration.
Alternative Names
NWIO-01 NWIO-01 64168533 ABB NWIO-01 ABB NWIO-01 64168533 ABB 64168533 WATCHDOG & I/O MO NWIO-01
Technical notes
NWIO-01 64168533 requires compatible CI858 DriveBus configuration, optical-ring placement, watchdog timing, and correctly selected DI/DO voltages; mismatched function-block or watchdog settings can disrupt supervised drive control.
