    Apter Power delivers genuine, factory-fresh ABB DO818 digital output modules with immediate availability.

DO818 3BSE069053R1

/ 4.9
1001 reviews | Need a Specific Revision?

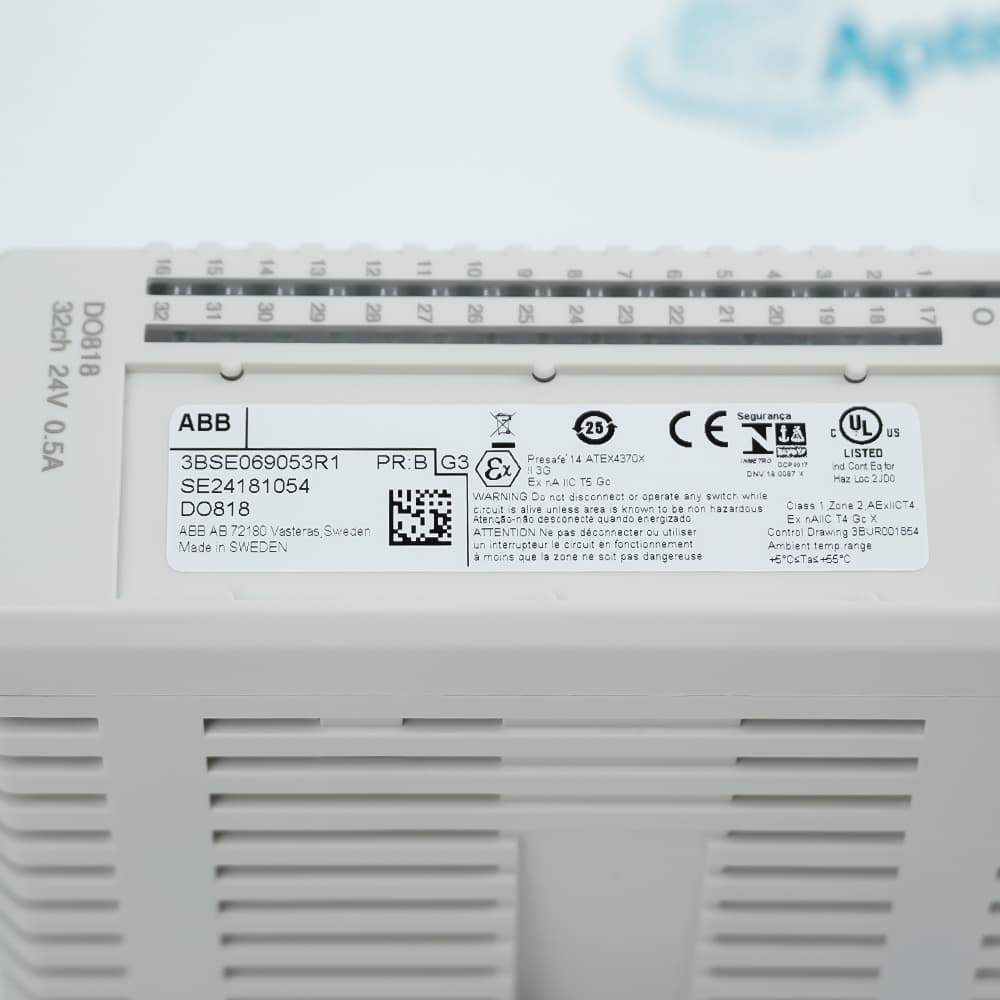

ABB DO818 3BSE069053R1 is a 32-channel 24 V DC S800 I/O digital output module with short-circuit-protected outputs.
In Stock
Ships by Thursday, October 29
Fast Shipping Available
Get a quick price for DO818 3BSE069053R1
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for DO818 3BSE069053R1

  • Manufacturer:
    ABB
  • Part Number:
    DO818 3BSE069053R1
  • Product Family:
    ABB Advant OCS and Advant-800xA
  • Product Type:
    Digital Output Module
  • Stock:
    1
  • Output Channels:
    32
  • Output Voltage:
    24 V DC
  • Output Load:
    0.5 A
  • Isolation Grouping:
    Two groups of 16 channels
  • Protection:
    Short-circuit proof
  • Compatible MTUs:
    TU818, TU819, TU830
  • Communication Support:
    ModuleBus; PROFIBUS via CI801 or CI840
  • Tariff Code:
    8537101190
  • Country of origin:
    Sweden
  • Place of shipment:
    Xiamen,Fujian,China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Grouping Mounting Integration Application
  • S800 I/O digital output module identified by DO818 and 3BSE069053R1
  • Outputs are organized in two electrically isolated channel groups
  • Supported MTU and communication-interface selection are installation-specific
ABB DO818 3BSE069053R1 provides field output switching within a configured S800 I/O station.

The module identity, selected MTU, group supplies, channel wiring, and controller hardware definition must remain consistent throughout the installation.

For PROFIBUS use, verify the applicable CI801 or CI840 interface and the complete station configuration before replacement.

Availability, condition, price, and shipping time for DO818 3BSE069053R1 are confirmed during quotation.

ABB DO818 3BSE069053R1 S800 I/O Digital Output Module Manuals, Datasheets, Links

Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.

  • The 32 output channels are isolated in two groups of 16
  • Field-voltage wiring must follow the documented group arrangement
  • Each group must be checked against its connected load and supply
  • ABB lists TU818, TU819, and TU830 as compatible termination units
  • The installed MTU determines field-terminal access and wiring arrangement
  • Module seating and station order must match the configured S800 I/O hardware
  • ModuleBus operation is supported in the documented S800 I/O architecture
  • PROFIBUS integration is documented through CI801 or CI840
  • Controller hardware configuration and channel mapping must match the physical station
  • Thirty-two-channel 24 V DC field-output control in S800 I/O stations
  • Distributed I/O assemblies using supported MTUs and ModuleBus
  • PROFIBUS-connected S800 I/O stations using CI801 or CI840 interfaces
Description

ABB DO818 3BSE069053R1 is an S800 I/O digital output module with 32 channels arranged in two isolated groups of 16.

Each documented output is rated for 24 V DC and 0.5 A, and the module provides short-circuit-protected output operation.

Before installation or replacement, verify the TU818, TU819, or TU830 termination unit, field-voltage grouping, channel loads, ModuleBus or PROFIBUS interface, wiring, and controller configuration.

Alternative Names
DO818 3BSE069053R1 DO818-3BSE069053R1 DO8183BSE069053R1 ABB DO818 3BSE069053R1 ABB 3BSE069053R1 DO818 3BSE069053R1 ABB DO818 S800 I/O DO818 3BSE069053R1
Technical notes
DO818 3BSE069053R1 must be paired with a supported MTU. Confirm field voltage, group isolation, channel load, ModuleBus or CI801/CI840 PROFIBUS configuration, and project hardware settings.
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
Which termination units are compatible with ABB DO818 3BSE069053R1?
ABB lists TU818, TU819, and TU830 as compatible MTUs. Confirm the installed wiring method and project hardware definition before choosing one.
Can ABB DO818 3BSE069053R1 directly replace a relay-output module such as DO820 or DO828?
No. ABB identifies DO818 as a 24 V DC digital output module rated 0.5 A per channel, while DO820 and DO828 are relay-output modules with different electrical ratings and termination-unit requirements. Verify the load voltage, switching method, channel mapping, isolation, and MTU before replacement.
Can ABB DO818 3BSE069053R1 be used on PROFIBUS?
ABB documentation supports the module on PROFIBUS through the applicable CI801 or CI840 communication interface and a correctly configured S800 I/O station.
What should be checked when a DO818 output channel does not switch correctly?
Follow ABB diagnostics and check the field supply, channel load, group wiring, short-circuit condition, MTU connection, module status, and controller output command.
Can ABB DO818 3BSE069053R1 replace another 24 V output module without project changes?
Not automatically. Confirm channel count, grouping, MTU, current rating, address mapping, communication interface, and the controller hardware configuration.
Why must both DO818 and 3BSE069053R1 be shown in the product identity?
DO818 is the module designation and 3BSE069053R1 is the ABB article number. Matching both avoids confusion with other S800 I/O articles.
What details should accompany a quote request for ABB DO818 3BSE069053R1?
Provide both identifiers, MTU type, communication interface, controller/system information, clear label photos, quantity, required condition, and destination.
