PU514

/ 4.9
1001 reviews | Need a Specific Revision?

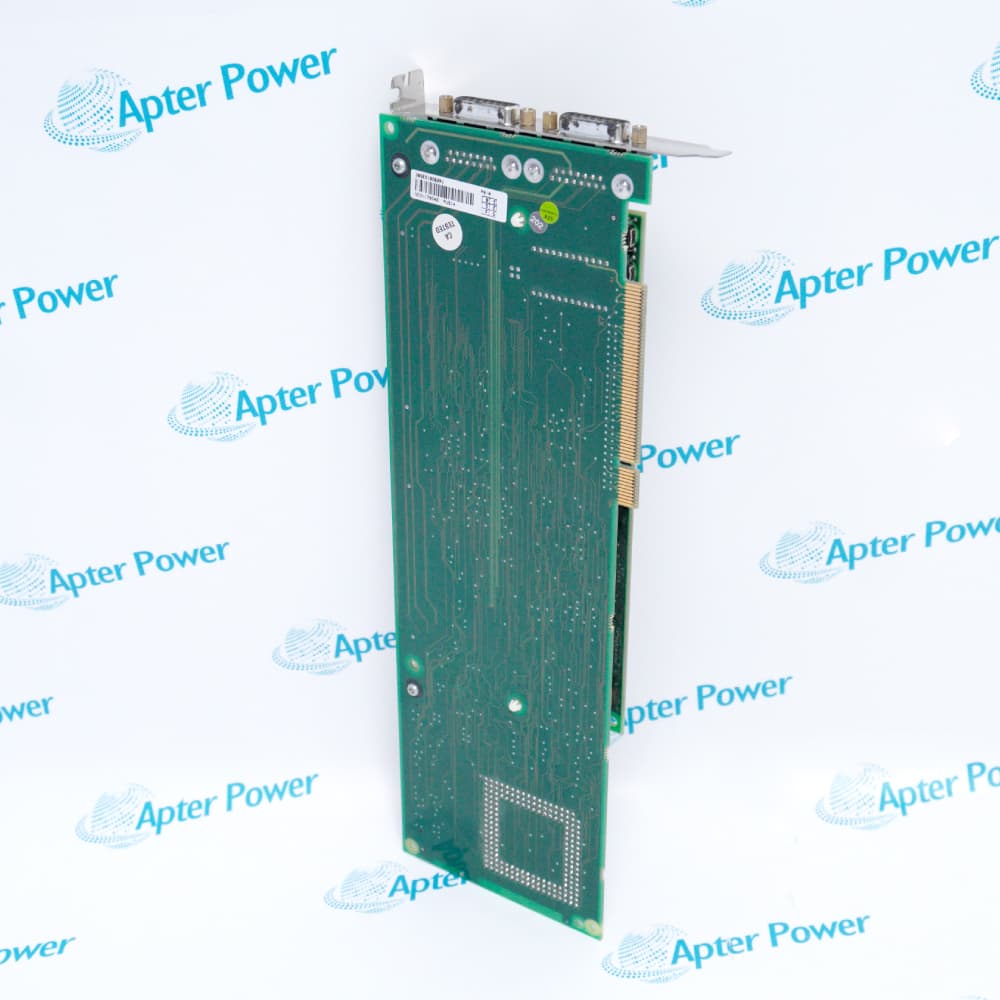

ABB PU514 is a 5 V PCI real-time accelerator board used by 32-bit 800xA for MOD 300 connectivity servers.
In Stock
Ships by Thursday, October 29
Fast Shipping Available
Get a quick price for PU514
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for PU514

  • Manufacturer:
    ABB
  • Part Number:
    PU514
  • Product Family:
    ABB Advant OCS and Advant-800xA
  • Product Type:
    PCI Real-Time Accelerator Board
  • Stock:
    1
  • System:
    800xA for MOD 300
  • Host architecture:
    32-bit
  • Bus:
    5 V PCI
  • Do not use:
    3.3 V PCI-X133, PCI-X266 or higher, or PCI Express slots
  • Documented network roles:
    MOD 300 DCN or eDCN
  • Power source:
    PCI bus
  • Weight:
    0.35 kg
  • Tariff Code:
    8473309000
  • Country of origin:
    Sweden
  • Place of shipment:
    Xiamen, Fujian, China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Host Compatibility DCN or eDCN Role Board Installation Application
  • PCI real-time accelerator board for 800xA MOD 300 connectivity
  • Requires a 32-bit host and available 5 V PCI slot
  • Supports documented DCN or eDCN Connectivity Server roles

PU514 provides the host-bus interface used by a 32-bit 800xA Connectivity Server for MOD 300 network access.

Its compatibility depends on PCI signaling as well as the DCN or eDCN role and installed PAS System Services software.

Verify the host slot and system architecture before handling the board, then follow ABB's power-off and antistatic installation procedure.

Availability, condition, price, and shipping time for PU514 are confirmed during quotation.

ABB PU514 PCI Real-Time Accelerator Board Manuals, Datasheets, Links

Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.

  • Use PU514 only in the documented 32-bit system context.
  • Confirm the computer provides a 5 V PCI slot.
  • Reject 3.3 V PCI-X and PCI Express slots for this board.
  • Record whether the host serves MOD 300 DCN or eDCN.
  • Preserve Connectivity Server configuration and PAS System Services data.
  • Verify network communication after the host recognizes the board.
  • Disconnect host power before opening the computer.
  • Use a grounded antistatic strap and retain protective packaging.
  • Secure the board and complete Windows hardware detection before network tests.
  • MOD 300 DCN Connectivity Server interface
  • MOD 300 eDCN Connectivity Server interface
  • 32-bit 800xA PAS System Services host integration
Description
ABB PU514 is a PCI real-time accelerator board used by 800xA Connectivity Servers communicating with MOD 300 networks.

Installation requires a compatible 32-bit host with an available 5 V PCI slot and the appropriate PAS System Services configuration.

Before replacement, confirm whether the server operates in the documented DCN or eDCN role, then preserve the existing software and network settings.
Alternative Names
PU514 ABB PU514 PU514 RTA Board ABB PU514 RTA Board
Technical notes
ABB PU514 requires a 32-bit host with a 5 V PCI slot, the correct MOD 300 DCN or eDCN role, antistatic installation and matching PAS System Services software.
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
What host slot must be confirmed before installing ABB PU514?
Confirm an available 5 V PCI slot. ABB specifically warns against a 3.3 V PCI-X133 slot, PCI-X266-or-higher slot or PCI Express slot.
Can ABB PU514 be used in a 64-bit 800xA host?
ABB assigns PU514 or PU515 to 32-bit systems; the documented 64-bit alternatives are PU412K01 for DCN and PU410K02 for eDCN.
What network role should be recorded before replacing ABB PU514?
Record whether the board connects the Connectivity Server to a MOD 300 DCN or eDCN and retain the associated PAS System Services configuration.
How should ABB PU514 be protected during installation?
Remove host power, observe antistatic handling, keep the board in its protective packaging until installation and follow the computer manufacturer's slot procedure.
Why might Windows fail to configure ABB PU514 after installation?
The board may be in an unsupported slot or the required ABB PAS System Services software and hardware support may not match the host.
Can ABB PU514A be treated as the same board as ABB PU514?
No. ABB separately discusses PU514A compatibility; do not convert that statement into a revision claim for PU514 without an approved system change.
What should be tested after ABB PU514 is fitted?
Confirm host recognition, PAS System Services communication and the intended DCN or eDCN connectivity before returning the server to service.
