        DSAI130 57120001-P

        / 4.9
        1001 reviews ｜ Need a Specific Revision?

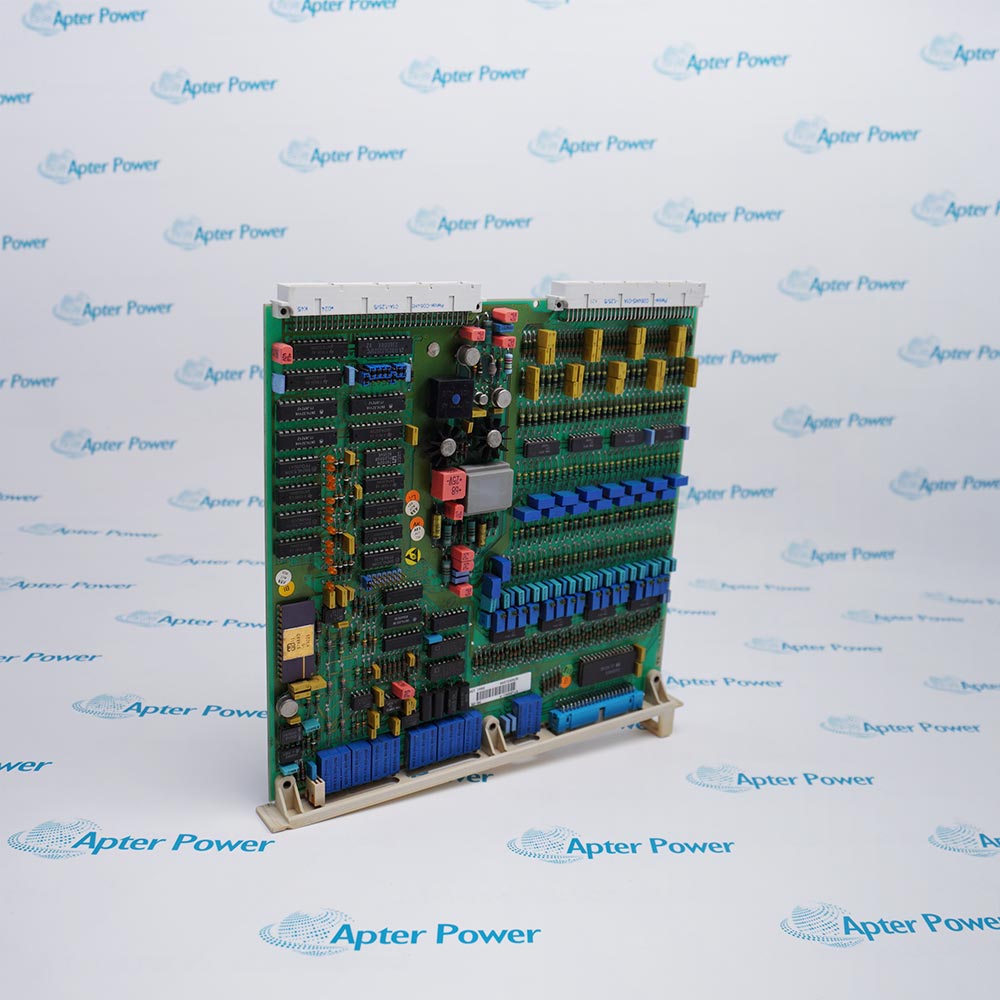

        ABB DSAI130 57120001-P is a 16-channel differential analog input board for ±10 V and ±20 mA signals in supported S100 and Safeguard systems.
        In Stock
        Ships by Friday, October 30
        Fast Shipping Available
        Get a quick price for DSAI130 57120001-P
        Quantity
        *E-mail
        Company
        *Mobile
        *Content
        Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)
        Get a Quote
        Warranty Policy
        We provide 1 year warranty for all remaining parts.
        The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
        Return Notice
        The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
        In the event of a defect, we will send new equipment, repair equipment or refund the purchase price based on our availability. You must contact us to obtain a return authorization and return the defective device to us within 14 days of reporting the defect.
        Shipping Mode
        Various transportation options are available in each country. Shipping methods and fees are clearly indicated on all quotations.Various transportation options are available in each country. Shipping methods and fees are clearly indicated on all quotations.
        Parts Availability
        Apter Power offers a wide range of components, products and services related to industrial automation. We also supply new products from a variety of quality manufacturers.
        How to order
        We have been working hard to update our inventory. If we have stock or parts available for new factory purchases, you can contact the order online. If we do not currently have an inventory, the displayed quantity will show "Ask". Please create an online quote or contact us by phone, fax or email to check availability.

        Technical specifications for DSAI130 57120001-P

        • Manufacturer:
          ABB
        • Part Number:
          DSAI130 57120001-P
        • Product Family:
          ABB Advant OCS and Advant-800xA
        • Product Type:
          16-channel differential analog input board
        • Stock:
          1
        • ABB Type Designation:
          DSAI130
        • Function:
          Analog input board
        • Input Channels:
          16
        • Input Topology:
          Differential
        • Voltage Input Range:
          ±10 V
        • Current Input Range:
          ±20 mA
        • Documented Accuracy:
          0.025 percent
        • Order Requirement:
          Controller hardware license must be specified
        • Spare Use:
          Safeguard controllers, MasterPiece 2x0, or common-mode voltage above 50 V
        • StepUp Reference:
          STU3BSE077316R1
        • WEEE Category:
          5, small equipment
        • Battery Content:
          0
        • RoHS Status:
          Follows EU Directive 2011/65/EU
        • Dimensions:
          23.67 × 1.44 × 32.76 cm
        • Weight:
          0.52 kg
        • Tariff Code:
          8538900000
        • Country of origin:
          Sweden
        • Place of shipment:
          Xiamen, Fujian, China
        By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

        More Information

        Overview Manuals Response Timing CI856 Loading Spare Eligibility Application
        • 16 differential analog input channels
        • ±10 V and ±20 mA ranges with 0.025 percent accuracy
        • Restricted spare-use path tied to controller and common-mode conditions

        DSAI130 57120001-P is an ABB differential analog input board.

        Its documented spare-use path depends on the installed controller family and the application's common-mode voltage.

        Confirm controller hardware license, Safeguard status, common-mode voltage, signal mode, termination, and replacement path before ordering.

        Availability, condition, price, and shipping time for DSAI130 57120001-P are confirmed during quotation.

        ABB DSAI130 57120001-P Analog Input Board Manuals, Datasheets, Links

        Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.

        • DSAI130 has a documented conversion time of 0.1 ms
        • The CI856 scan interval is configured per I/O board or channel
        • S100 response time combines conversion time, internal scan time, and the CI856 scan interval
        • ABB assigns DSAI130 a BaseLoad value of 20
        • The documented ChannelLoad value is 125 per used channel
        • Total CI856 load from all I/O boards should remain below 80 percent
        • The installed controller hardware license number must be specified when ordering DSAI130
        • ABB limits this spare to Safeguard controllers, MasterPiece 2x0, or common-mode voltage above 50 V
        • For standard MP200/1 or AC410/450/460 at 50 V or below, ABB specifies DSAI130A 3BSE018292R1
        • Differential voltage measurement in S100 I/O
        • Differential current measurement in S100 I/O
        • Safeguard or high-common-mode replacement cases specifically documented by ABB
        Description
        DSAI130 57120001-P is an ABB 16-channel differential analog input board for voltage and current measurement.

        ABB specifies ±10 V and ±20 mA ranges, 0.025 percent accuracy, and a restricted spare-use path for Safeguard controllers, MasterPiece 2x0 systems, or installations with common-mode voltage above 50 V.

        Confirm controller hardware licensing, common-mode voltage, controller family, termination, channel configuration, and the approved replacement path before ordering.
        Alternative Names
        DSAI130 DSAI 130 57120001-P DSAI130 57120001-P ABB DSAI130 ABB DSAI130 57120001-P
        Technical notes
        ABB DSAI130 57120001-P has controller-specific spare-use limits. Confirm the hardware license, common-mode voltage, termination, and DSAI130A or StepUp route before ordering.
        Exceptional Service

        Our Mission

        • 100% Satisfaction

          We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.

        • Trust Guaranteed

          Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.

        • Expertise

          Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

        FAQS

        The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
        VIEW ALL FAQS
        How can a buyer determine whether ABB DSAI130 57120001-P or DSAI130A is the correct replacement?
        Confirm the controller family, Safeguard use, common-mode voltage, hardware license, terminal unit, and ABB replacement guidance for the installed system.
        What should be verified before using ABB DSAI130 57120001-P in a Safeguard installation?
        Verify the exact controller hardware, approved Safeguard configuration, signal wiring, common-mode conditions, spare-part route, and site change-control requirements.
        Why must common-mode voltage be confirmed before ordering ABB DSAI130 57120001-P?
        ABB's replacement guidance changes according to the common-mode condition, so an incorrect assumption can lead to the wrong DSAI130 or DSAI130A selection.
        What controller information should accompany a request for ABB DSAI130 57120001-P?
        Provide the controller model, hardware-license details, installed board and terminal-unit labels, channel configuration, common-mode assessment, and application type.
        When is ABB DSAI130 57120001-P retained as the spare?
        ABB limits this path to Safeguard controllers, MasterPiece 2x0 systems, or applications with common-mode voltage above 50 V.
        What replaces ABB DSAI130 57120001-P in standard MP200/1 or AC410/450/460 use?
        For common-mode voltage at or below 50 V, ABB directs users to DSAI130A 3BSE018292R1; all site conditions must be verified.
        What should be checked before buying ABB DSAI130 57120001-P?
        Confirm product ID, controller license, controller family, common-mode voltage, signal type, termination, and required condition.
