YXU169F YT204001-JT

/ 4.9
1001 reviews | Need a Specific Revision?

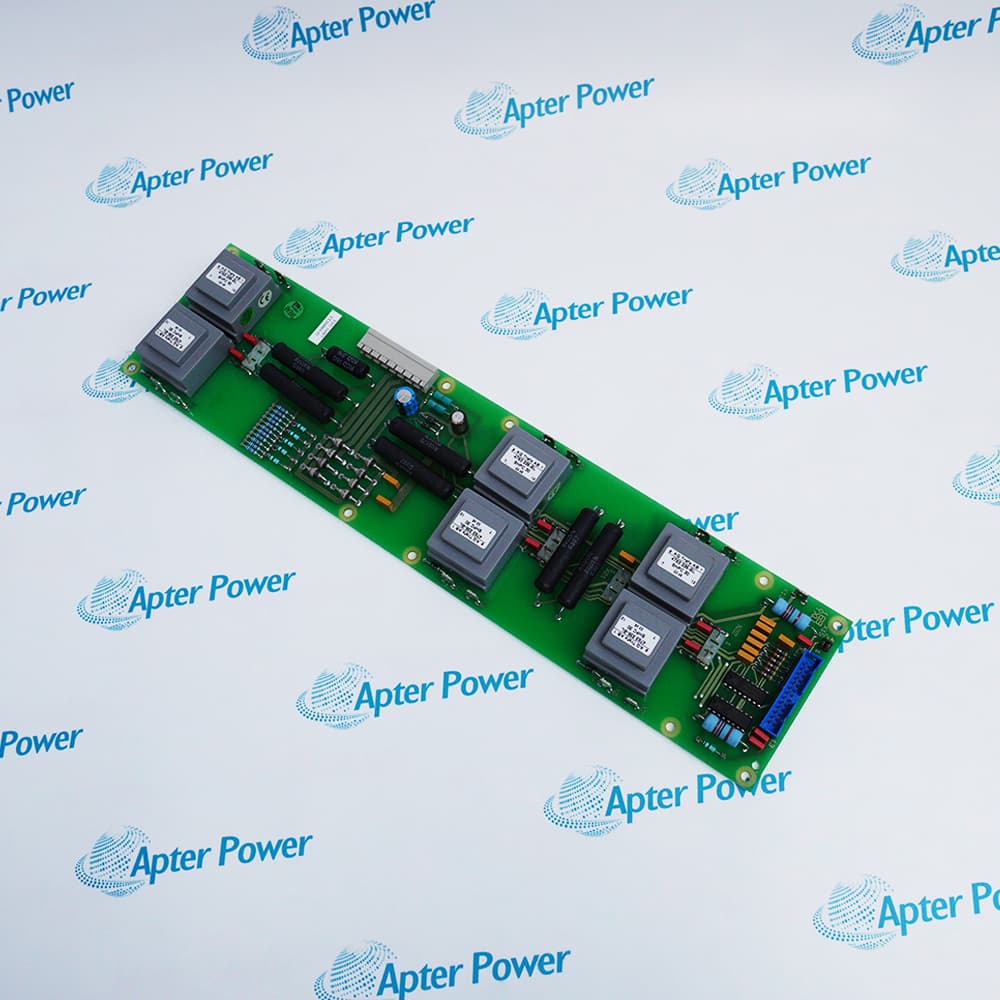

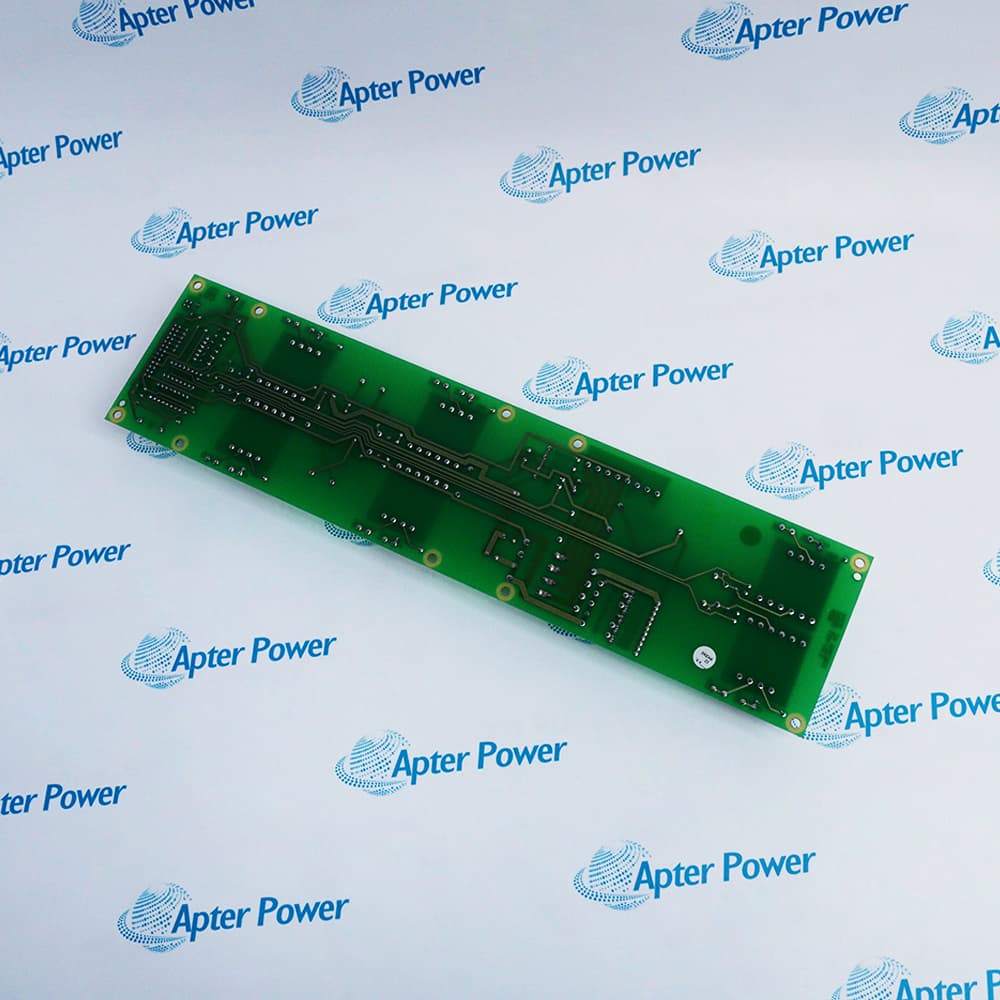

The ABB YXU169F YT204001-JT is a high-performance trigger pulse board designed to generate precise thyristor firing signals for industrial motor control, rectifiers, and frequency converter systems. It ensures reliable SCR triggering under demanding operational conditions.
Get a quick price for YXU169F YT204001-JT
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for YXU169F YT204001-JT

  • Manufacturer:
    ABB
  • Part Number:
    YXU169F YT204001-JT
  • Product Family:
    ABB Advant OCS and Advant-800xA
  • Input control voltage:
    24 VDC (±10%)
  • Trigger pulse frequency:
    50 / 60 Hz
  • Peak output current:
    approx. 1.5 A to 2.0 A
  • Rise time:
    < 1.0 μs
  • Isolation voltage:
    2500 VAC / 1 min
  • Operating temperature:
    -10°C to +70°C (industrial standard).
  • Protection class:
    IP00 (requires installation in a shielded or protective cabinet).
  • Weight:
    0.48 kg
  • Estimated shipping dimensions:
    37x9x2.8cm
  • Tariff Code:
    8486403900
  • Country of origin:
    Sweden
  • Place of shipment:
    Xiamen, Fujian, China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Specifications Performance Application Environmental Ratings

Features:

  • Provides Fast And Precise Thyristor Triggering With Minimal Rise Time.
  • Supports Industrial-Grade Operation Across Wide Temperature Range.
  • Offers High Isolation Voltage And Reliable Electrical Protection.
The ABB YXU169F YT204001-JT is an industrial trigger pulse board engineered to deliver accurate firing signals for SCRs in motor control systems, rectifiers, and frequency converters. It operates with a 24 VDC input and maintains a peak output current of approximately 1.5 A to 2.0 A, ensuring consistent performance under varying load conditions.

Designed for rapid response, the module achieves rise times under 1.0 μs and operates with both 50 Hz and 60 Hz trigger pulse frequencies, supporting precise control in demanding industrial applications. Its electrical isolation of 2500 VAC for one minute provides robust protection for connected circuits.

Intended for installation in shielded or protective cabinets due to its IP00 rating, the YXU169F functions reliably in environments ranging from -10°C to +70°C. It is ideal for situations requiring consistent and accurate SCR triggering, contributing to stable operation of complex power conversion systems.

The YXU169F YT204001-JT ABB Trigger Pulse Board may still be available for purchase and support from Apter Power beyond End-Of-Life (EOL) by the manufacturer (OEM).
ABB YXU169F YT204001-JT Trigger Pulse Board Manuals,Datasheets,Link Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
ABB YXU169F YT204001-JT Trigger Pulse Board Specs

General

  • Manufacturer ABB
  • Model YXU169F YT204001-JT
  • Condition New Original ready stock
  • Product Family YPR104B YT204001-EH,YPM102A YT204001-AA,YPG109A YT204001-CE
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
  • Ultra-fast response time: Pulse rise time is typically < 1.0 μs, ensuring instantaneous full conduction of the SCR and significantly reducing turn-on losses in power devices.
  • High trigger strength: Provides peak trigger current up to 1.5 A - 2.0 A, ensuring a reliable and stable trigger signal for the SCR under high current and high voltage conditions.
  • Precise synchronous control: Highly synchronized with the grid frequency (50/60 Hz), with minimal phase angle deviation, improving the power factor of the rectifier system and reducing the generation of higher harmonics.
  • Low standby power consumption: Employs high-efficiency pulse transformer coupling technology, resulting in extremely low power consumption in non-triggered states, effectively reducing overall heat buildup within the control cabinet.
  • DC Drives: Primarily used in ABB DCV 700 series and earlier high-power DC drives, responsible for precise control of armature or magnetizing current.
  • High-Power Rectifiers: Widely used in high-current industrial power supply systems requiring three-phase fully controlled bridge rectification in industries such as electrolytic aluminum, electric arc furnaces, and electroplating.
  • Industrial robot drive: A core component for current regulation in the drive unit of early ABB S3/S4 robot control systems.
  • Electric soft starter: Used in the trigger circuit of a high-voltage motor soft starter to achieve smooth motor starting by adjusting the thyristor conduction angle.
  • Wide operating temperature range: Designed for operating environments from 0°C to +70°C, suitable for control cabinet environments in high-temperature industrial settings such as metallurgy and power generation.
  • Electromagnetic Interference Immunity (EMC): Compliant with IEC 61800-3 standard, possessing extremely strong electromagnetic interference immunity to prevent false triggering of pulse signals by magnetic fields generated by high-current buses.
  • Insulation Withstand Voltage: The insulation withstand voltage between the control and power terminals is 2.5 kV (RMS) / 1 min, ensuring that high-voltage side faults will not affect the main control board.
  • Surface Protection Process: The PCB surface is coated with industrial-grade conformal coating, providing excellent protection against moisture, salt spray, and conductive dust contamination.
Description
The ABB YXU169F YT204001-JT trigger pulse board is engineered for industrial-grade applications, providing fast and accurate control of thyristors in various power conversion setups. Operating with a 24 VDC input (±10%), it delivers peak output currents ranging from 1.5 A to 2.0 A, ensuring consistent SCR triggering for stable system performance.

With a rapid rise time of less than 1.0 μs and a trigger pulse frequency compatible with both 50 Hz and 60 Hz power systems, the board supports precise timing requirements in complex motor drives and frequency converters. Its design includes isolation up to 2500 VAC for one minute, offering robust electrical protection for sensitive control circuits.

Built to withstand industrial environments, the YXU169F functions reliably in temperatures from -10°C to +70°C. The board is rated IP00, so installation within a protective or shielded cabinet is necessary to maintain safety and prevent environmental exposure.
Alternative Names
YXU168A YT204001-AD/2 YXU170E YT204001-JH YXU172E YT204001-JJ YPQ108A YT204001-DT YXU173E YT204001-JK
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
How is the YXU169F YT204001-JT protected electrically?
It provides isolation up to 2500 VAC for one minute, protecting control circuitry from high-voltage transients.
What operating environments are suitable for this board?
It is designed for industrial use, handling temperatures from -10°C to +70°C.
What is the primary function of the ABB YXU169F YT204001-JT?
It generates and distributes precise trigger pulses to thyristors (SCRs) in motor drives, rectifiers, and frequency converters.
