        DSAX110

        / 4.9
        1001 reviews ｜ Need a Specific Revision?

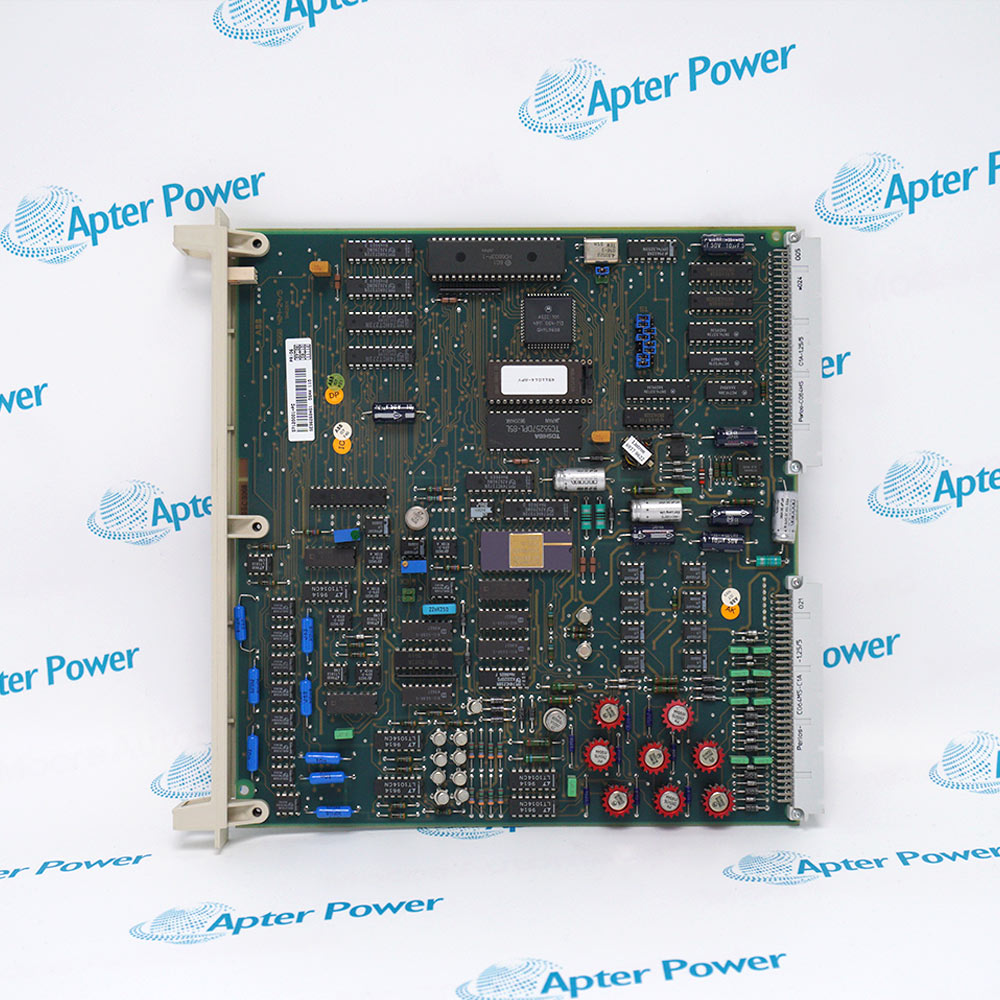

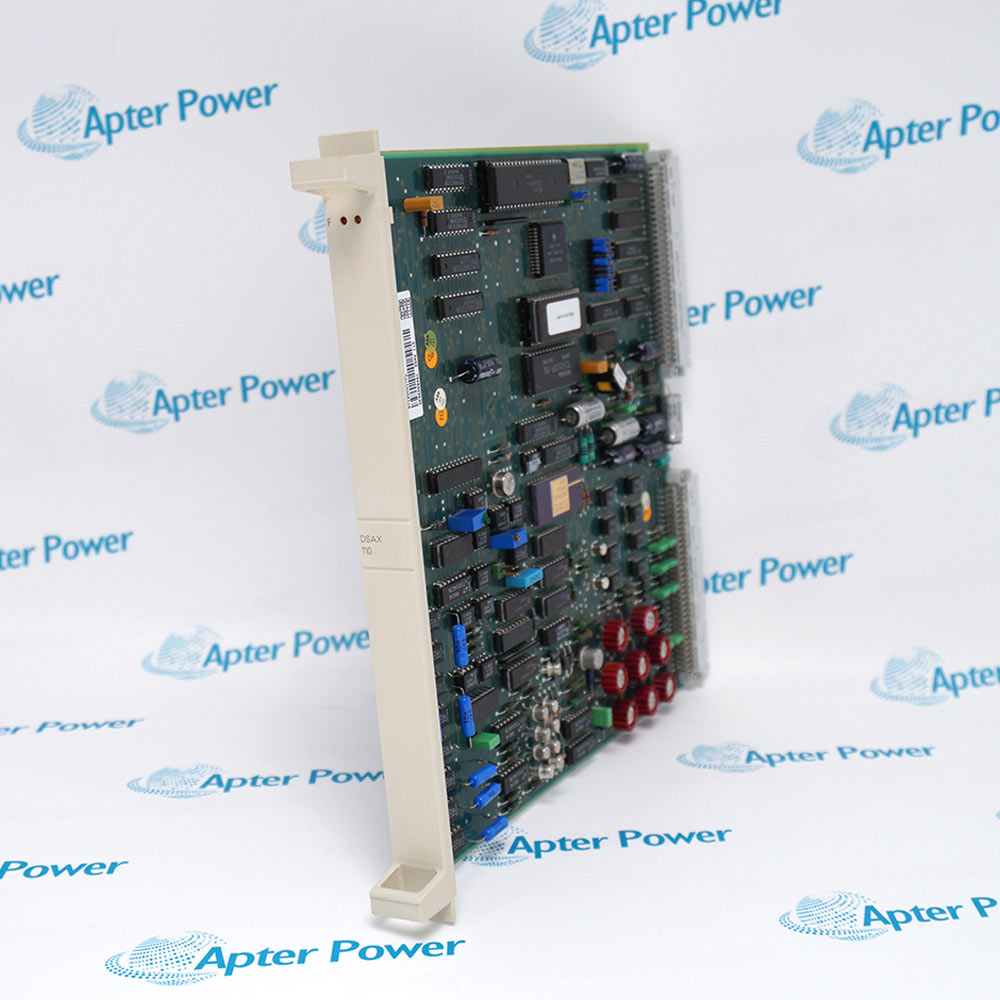

        The DSAX110 is an ABB analog input/output board with 8 input channels (12-bit, 0-10V/0-20mA/4-20mA) and 8 output channels, for S100 I/O systems.
        Get a quick price for DSAX110
        Quantity
        *E-mail
        Company
        *Mobile
        *Content
        Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)
        Get a Quote
        Warranty Policy
        We provide 1 year warranty for all remaining parts.
        The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
        Return Notice
        The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
        In the event of a defect, we will send new equipment, repair equipment or refund the purchase price based on our availability. You must contact us to obtain a return authorization and return the defective device to us within 14 days of reporting the defect.
        Shipping Mode
        Various transportation options are available in each country. Shipping methods and fees are clearly indicated on all quotations.Various transportation options are available in each country. Shipping methods and fees are clearly indicated on all quotations.
        Parts Availability
        Apter Power offers a wide range of components, products and services related to industrial automation. We also supply new products from a variety of quality manufacturers.
        How to order
        We have been working hard to update our inventory. If we have stock or parts available for new factory purchases, you can contact the order online. If we do not currently have an inventory, the displayed quantity will show "Ask". Please create an online quote or contact us by phone, fax or email to check availability.

        Technical specifications for DSAX110

        • Manufacturer:
          ABB
        • Part Number:
          DSAX110
        • Product Family:
          ABB Advant OCS and Advant-800xA
        • Catalog Description:
          Analog Input/Output Board
        • Analog Input Channels:
          8 channels (single‑ended, directly grounded)
        • Input Resolution:
          12 bits unipolar
        • Input Ranges:
          0 to +10V, 0 to +20mA, 4 to 20mA
        • Shunt for 4‑20mA:
          250Ω (0.05% accuracy) or 500Ω (0.1% on DSTA 001)
        • Analog Output Channels:
          8 channels (inferred from board type)
        • Product Type:
          I/O Module
        • WEEE Category:
          5 – Small Equipment (no external dimension >50 cm)
        • RoHS Status:
          Exempt from EU Directive 2011/65/EU
        • Pain Point Solved:
          Solves the need for a combined analog input/output board for legacy ABB S100 I/O and Safeguard 400 systems – providing 8 inputs and 8 outputs in a single module, saving rack space and reducing cost compared to separate input and output boards. Directly supports 0-10V, 0-20mA, and 4-20mA signals.
        • Weight:
          0.3 kg
        • Estimated shipping dimensions:
          2x24.8x24.4cm
        • Tariff Code:
          8517795000
        • Country of origin:
          Sweden
        • Place of shipment:
          Xiamen, Fujian, China
        By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

        More Information

        Overview Manuals Specifications Performance Application Areas Application Scenarios

        Features:

        • 8 analog inputs + 8 analog outputs; saves rack space and reduces cost compared to separate modules.
        • Supports 0‑10V, 0‑20mA, and 4‑20mA with 12‑bit resolution; external shunt resistors for current loops.
        • Works with S100 I/O, Safeguard 400, 800xA, Advant OCS, MasterPiece 200, and Compact Product Suite; RoHS exempt spare part.
        The DSAX110 integrates both analog input and analog output functions on a single board. It provides 8 analog input channels for monitoring field signals (e.g., pressure, temperature, flow) and 8 analog output channels for controlling field devices (e.g., valves, actuators, VFDs). This combined design is a significant advantage for legacy ABB S100 I/O systems where rack slots are limited. Instead of using separate analog input and output modules (occupying two slots), the DSAX110 fits in one slot, freeing space for other I/O modules. This reduces the overall footprint of the control system and lowers spare part inventory costs.

        The DSAX110 accepts three standard analog input signal types: 0 to +10V (voltage), 0 to +20mA (current), and 4 to +20mA (live zero current). The inputs have 12‑bit unipolar resolution, providing 4096 discrete steps over the full range. This is sufficient for most industrial monitoring and control applications where high precision is not critical. For 4‑20mA current loop inputs, the module requires external shunt resistors to convert current to voltage. A 250Ω shunt (0.05% accuracy) is used for standard applications. When using DSTA 001 termination units, a 500Ω shunt with 0.1% accuracy is required. The inputs are single‑ended and directly grounded, meaning they share a common ground reference.

        The DSAX110 is specifically designed for ABB's legacy S100 I/O platform and is compatible with a wide range of ABB control systems: Safeguard 400 (Series 1.6), 800xA, Advant OCS with Master SW (MasterPiece 200 and 200/1), Advant OCS with MOD 300 SW, and Compact Product Suite. This broad compatibility makes the DSAX110 a versatile spare part for various legacy installations. The module is exempt from EU RoHS Directive 2011/65/EU under Article 2(4)(c),(e),(f),(j) for ABB Advant Master Process Control Systems spare parts. This exemption is critical for operators of legacy systems in the EU – it allows the continued sale, installation, and use of the DSAX110 even though it may contain restricted substances such as lead. The declaration of conformity reference is 3BSE088609.

        The DSAX110 ABB Analog I/O Board may still be available for purchase and support from Apter Power beyond End-Of-Life (EOL)by the manufacturer (OEM).

        ABB DSAX110 Analog I/O Board Manuals, Datasheets,Drivers,Link Important Notice:Other accessories,manuals,cables,calibration data,software,etc.are not included with this equipment unless listed in the above stock item description.All prices are shown in USD.
        ABB DSAX110 Analog I/O Board Specs

        General

        • Manufacturer ABB
        • Model DSAX110
        • Condition New Original ready stock
        • Product Family DSAX120,DSAX130,DSAI110,DSAO120
        Important Notice:Other accessories,manuals,cables,calibration data,software,etc.are not included with this equipment unless listed in the above stock item description.All prices are shown in USD.
        • Channel Configuration: Features 8 analog input channels with a single-ended input design.
        • High-Resolution Conversion: Supports 12-bit unipolar resolution, handling standard industrial signals from 0 to +10 V or 0 to +20 mA.
        • Precise Signal Processing:For 4-20 mA signals, high-precision shunt resistors of 250 Ω (0.05%) or 500 Ω (0.1%) can be used with the DSTA 001.
        • Power Generation and Utilities: Data acquisition for industrial power plant control, steam management, and renewable energy (such as solar and wind) systems.
        • Manufacturing and Process Industries: Monitoring sensor status in chemical, petrochemical, and general factory automation.
        • Data Center Management: Monitoring power consumption and cooling system parameters to optimize energy efficiency.
        • Closed-loop control: In scenarios requiring real-time adjustments (such as motor speed control or valve opening adjustment), the DSAX 110 simultaneously receives feedback signals and outputs control commands.
        • Environmental Monitoring Systems (EMS): Collects temperature, humidity, and air quality data in buildings or factories to achieve energy optimization and predictive maintenance.
        • Legacy system maintenance and migration: As a member of the S100 I/O family, it is commonly used to maintain existing Advant control architectures or integrate with modern 800xA systems via communication bridges.
        Description
        The DSAX110 is a combined analog input/output board for ABB's S100 I/O family. It features 8 analog input channels (single‑ended, directly grounded) with 12‑bit resolution, supporting 0‑10V, 0‑20mA, or 4‑20mA (with 250Ω shunt). The product ID is 57120001-PC with ABB type designation DSAX 110.

        When using the DSAX110, engineers can monitor 8 analog inputs and provide analog outputs from a single board. The inputs are 12‑bit unipolar. For 4‑20mA current loops, a 250Ω shunt (0.05% accuracy) is used, or 500Ω shunt (0.1% accuracy) on DSTA 001.

        The DSAX110 is exempt from EU RoHS 2011/65/EU under Article 2(4)(c),(e),(f),(j) for ABB Advant Master Process Control Systems spare parts. It has a customs tariff number of 85389091 and HS code 853890.

        For legacy ABB systems requiring both analog input and output in a single module, the DSAX110 provides an efficient solution. It is listed under S100 I/O – Analog Input/Outputs and Safeguard 400 safety system categories.
        Alternative Names
        DSAX120 DSAX130 DSAI110 DSAO120
        Technical notes
        The DSAX110 provides 8 analog input channels with 12‑bit unipolar resolution. The inputs are single‑ended and directly grounded – not isolated. Do not use with field devices that have different ground potentials.For 4‑20mA current loop inputs, the DSAX110 requires external shunt resistors: 250Ω (0.05% accuracy) for standard use, or 500Ω (0.1% accuracy) when using DSTA 001 termination units.
